Computer Interface : 3 in 1 RS-232RS-422RS-485 interface Support : Ad-Hoc, Infrastructure, pseudo IBSS mode support Transmission rate : Auto negotiating 10100 MBPS Ethernet Signal Indication : LINK (Indicate WLAN), DIS (Indicate WLAN status) ACT (Transmit data serial to WLAN), PWR (Power Indication) Supply : 9�36VDC Range : 1000ft. (Open Environment) Working Environment : 0°C�55°C, 95%RH

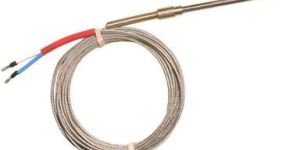

Tempsen have customized High Temperature Thermocouple Type ‘K ‘ up to1200°C, ‘S’ up to1600°C, ‘B’ up to1800°C Available range of 0 to 1800 ºC. assemblies find applications in temperature measurement of Furnace, Oven and other High Temperature Application of corrosive or non-corrosive nature. High Temperature Pressure assemblies with SS thermo wells and weld on flanges are offered on request. A wide Variety of designs, diameters, lengths and materials of sheaths ( ceramic SS) can be offered along with standard designs. High precision test Thermocouples duly calibrated from recognized test laboratories. Available with Aluminum Head with IP 65 weather proof or Flame proof

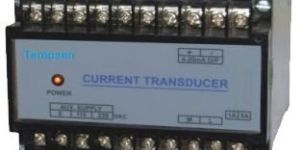

Input (Single or dual): Voltage(ACDC) Current(ACDC) Power( KWW) â�¢ Transmission OP (DualSingle): Linear current (4 20 mA) or voltage (0-10VDC) â�¢ Power supply: 230VAC or 110VAC , 50 Hz â�¢ Re transmission accuracy: 0.2%FS�± 1 Digit â�¢ Customized Transducer as per your application â�¢ Size (W x H): 70 x 100 (DIN rail) â�¢ Other features: Input calibration ( zerospan) â�¢ Operating ambient: Temp.: 10C~60�°Câ�� humidity

Application : All Process Indicating systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , clean Room environment , online pressure , humidity etc …

The microlite is an ideal solution for a variety of industrial cold chain logistics, requiring a small form factor usb data logger. Low cost, water resistant, multi-trip temperature data logger, with high resolution, 4-digit lcd display and direct usb connectivity – the microlite offers truly cost effective data logging. Accurate historical data indicator for an unbroken cold chain six models offer a unit for every application long battery life and 32k cyclic memory serve long haul transports real-time lcd data display dust and water resistant, depending on logger model license-free data analysis software the comprehensive microlite range allows organizations to select the unit most appropriate for their mission-critical environment:

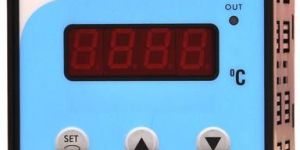

TUTC Series Input RTD, Thermocouple(JK) selectable, RTD -50.0 to 400.0 º C, J 0-600 º C, K 0-1250 º C Control mode onoff and Time proportional, Hysteresis, Time, Proportional , Offset Selectable , Same controller have SSR and Relay output Control set Point can be set feather touch keys Power supply : 230 VAC mains operated Control mode : HeatCoolHigh& Low Alarm

Input (Single or dual): Voltage(ACDC) Current(ACDC) Power( KWW) â�¢ Transmission OP (DualSingle): Linear current (4 20 mA) or voltage (0-10VDC) â�¢ Power supply: 230VAC or 110VAC , 50 Hz â�¢ Re transmission accuracy: 0.2%FS�± 1 Digit â�¢ Customized Transducer as per your application â�¢ Size (W x H): 70 x 100 (DIN rail) â�¢ Other features: Input calibration ( zerospan) â�¢ Operating ambient: Temp.: 10C~60�°Câ�� humidity

Usage/Application : All Process Indicating systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , clean Room environment , online pressure , humidity etc …

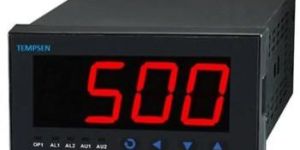

Input : Universal [All type of thermocouple and PT100‚ Cu50 (RTD)‚ linear voltage‚ linear current‚ MV‚ 2 wire transmitter input],AC current (0 5 amp.), AC voltage (0 500 volt),Alarm: High‚ low‚ second high and second low (Selectable) Communication : RS 485‚ RS 232 (Plug in type modules) Re transmission OP : Linear current or voltage, Power supply: SMPS 100~240VAC‚ 50 Hz, Accuracy : 0.3%FS± 1 unit Display resolution : 0.001° C (Selectable), Other features : Over range and sensor fail output off‚ input offset, Operating ambient: Temp.: 10°C~60°C‚ humidity :

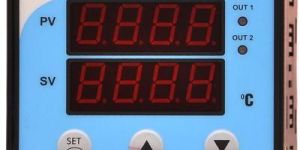

TUDTC Series Input RTD, Thermocouple(JK) selectable, RTD -50.0 to 400.0 º C, J 0-600 º C, K 0-1250 º C Control mode onoff and Time proportional, Hysteresis, Time, Proportional , Offset Selectable , Dual Display ( PVSV) with Dual Relay Output, Control set Point can be set feather touch keys, Power supply : 230 VAC mains operated Control mode : HeatCoolHigh& Low Alarm

Application : All temperature Indicating and Controlling systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , Room environment etc …

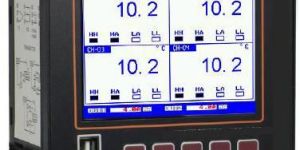

Accuracy : ±（0.2%FS+1）digit Power supply : 100-240VAC; 24VAC Display : 5.6 inch, 320*240 Color LCD Input Signal : T.C: K, S, E, J, T, B, N, R, WRe526, WRe325, RTD: PT100, CU50, CU100, Linear voltage: 0-5V, 1-5V, Linear current: 0-10mA, 4-20mA, Frequency input: 0-5KHZ, one Channel, Others: 0-20mV,0-60mV, 0-100mV, 0-500mV Output Module : 16 channels relay alarm output (Max), 4-20mA Retransmission output RS485 communication port RS232 print port DC5V12V24VDC aux. power supply USB port Record time : Flexible setting interval time: 1s, 2s….3600s Record Time: 45days Channel numbers x Record interval time Screensaver Protection : Screensaver time setting for LCD background light auto off when no any Operation in order to decrease the power consumption Power-off Protection Time : The setting parameters and history data can be kept by FLASH MEMORY, Memorized forever if power off Hardware clock built in for still accuracy running Environmental temperature : 0-50℃ Environmental humidity : 0-85%RH Size : 144x144x180mm

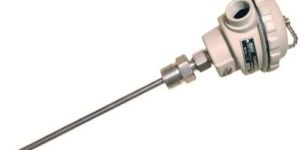

Customized RTD sensor Water Proof Head with IP 6567 standard SS Tube with cast Aluminum Head SS304-Normal,SS316 –chemical Application Simplexduplex element Pt 1005001000 Optional Process Connection NPTBSP Temperature Range -200 to 600 º C Temperature Transmitter output 4 -20mA optional Size available customized LengthDiaProcess connection

Application : All Process Indicating systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , clean Room environment , online pressure , humidity etc

Tempsen offer thermocouple and RTD Compensating Cable for thermocouple Type J , K, N, S, B Insulation type PVC, Teflon, Fiber ,SS shielded with 2 wire for RTD type Pt 100, Pt500,pt1000 insulation Teflon, Fiber, SS shielded with 2 wire, 3wire and 4 wire , Duplex cable also available Use proper compensating cable avoid temperature loss . Also available with thermocouple RTD and compensating connectors Customized cable also available

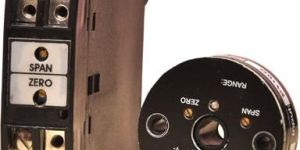

Transmitter Accept input RTD, Thermocouple Transmitter output available 4-20 mA ( 234 wires) Out put Range -999 to 9999 counts DIN Rail Head mounting , Power supply : 12-36 VDC (or )230 VAC Output Load at 20 mA , 600 ohms maximum @ 24 VDC With Display optional , Range select at factory Single Dual Input optional

Application : All Process Indicating systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , clean Room environment , online pressure , humidity etc …

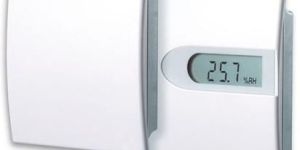

EE10 room transmitters are the ideal solution for indoor applications such as HVAC in residential and official buildings. The very stylish, functional housing makes easy installation and fast exchange of the sensing unit for service purposes possible. The standard humidity output of EE10 transmitters is 4 - 20 mA or 0 - 10 V. The temperature output signal can be active or passive. All EE10 versions can be equipped with a good legible LCD display.

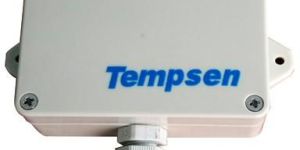

Transmitter Accept input RTDs,Voltage ,current Process – Temperature and Humidity Temperature Range : 0 to 50 Deg C Temperature Out put : 0 4-20mA ( 2 Wire) Humidity Range : 0 to 100 % RH Humidity Out put : 0 4-20mA ( 2 Wire) Calibration Zero and Span adjustment Accuracy :±2%rh±0.3k, Power supply : 12-36 VDC Output Load at 20 mA , 600 ohms maximum @ 24 VDC With Display optional , Range select at factory Single Dual Input optional , wall mounting

Application : All Process Indicating systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , clean Room environment , online pressure , humidity etc …

TUTTC Series Input RTD, Thermocouple(JK) selectable, RTD -50.0 to 400.0 º C, J 0-600 º C, K 0-1250 º C, Control mode onoff and Time proportional, Hysteresis, Time, Proportional , Offset Selectable , Dual Display ( PVTime) with Dual Relay Output, Control set Point can be set feather touch keys, Power supply 230 VAC mains operated Power supply : 230 VAC mains operated Control mode : HeatCoolHigh& Low Alarm

Application : All temperature Indicating and Controlling systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , Room environment etc...

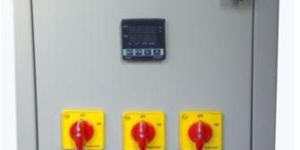

Manual , OnOff, PID with Fuzzy Logic Control Controller Accept input RTDs Thermocouples Single or Three Phase Mains Operated Single or Three phase Heater Control Output Control Device Contactor or Solid state Relay or Tyristor Capacity available 254070100120 A Fabricated wit Stainless Steel or MS with Powder Coated Power on , Heater on , Fan on switches Temperature Range 50 to 1200 º C

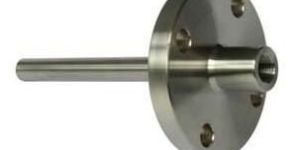

The very nature of thermowells lend themselves to custom designs and we invite our customers to send us drawings of their requirements. We strive to give you a competitive quotation within 24 hours if you can provide us all the necessary date on our inquiry sheet. All of our thermowells can be provided with material certification if required. We work in a wide variety of metals, and in general we can provide 72 hours service for our standard material such as Brass, 304 Stainless Steel, and 316 Stainless Steel. In addiction we are also very competitive in Carbon Steel, Haste alloy, Alloy 20, Titanium, Monel and Inconel

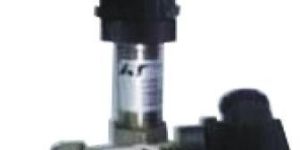

High Strength Stainless Steel Construction Wide Operating Temperature Range Low Static and Thermal Errors ,EMIRFI Protection Compatible with Wide Range of Liquids and gases -40 to 85º C Operating Temperature , Accuracy:

Applications : Advanced HVAC Controllers, Refrigeration Systems, Automotive Test Stands, Gas compressors, Industrial process control, Pumps and Compressors, Hydraulic/Pneumatic Systems etc.

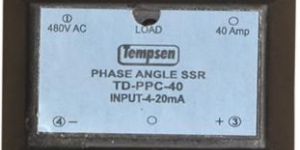

The Tempsen Solid State Relay accept DC voltage ( 4-32 VDC) , Variable current ( 4-20 mA), AC Voltage( 12-230VAC), Variable ohms ( 0-470 K). The SSRPPC soft start , no noise Long life work , use proper heat sink avoid rejection. The SSR work ON OFF mode function only controlled by controller suitable for heater application, the phase angle regulator (PPC)regulate the Voltage suitable for Power variable application that is controlled by pid controller provided Variable current (4-20mA)output suitable for high accuracy heat control The instrument is housed In a compact PVC case . maximum Load capacity 100A single phase , three phase optional

Application : Thermocouple Calibration Bath ,High / Low temperature Furnace, Heat treatment Oven , molding Machine, Hot Air oven , Heat / cool Chamber, Hot bench, Portable oven etc…

Computer Interface, USB V1.12.0 Plug and Play Support Windows 98MEXP2000CE� MAC & Linux Transmission rate Over 460 KBPS Signal Indication Sending data(red) and receiving data(green) LED Supply From the USB port, Bus protection 600W Working Environment 0°C~70°C� 10%~95%RH Features Every time same COM number when use 1 MBPS data transfer rate Support the RS485 serial interface, Support remote walk up and power management

Computer Interface, USB V1.12.0 Plug and Play Support Windows 98MEXP2000CE� MAC & Linux Transmission rate Over 460 KBPS Signal Indication Sending data(red) and receiving data(green) LED Supply From the USB port, Bus protection 600W Working Environment 0°C~70°C� 10%~95%RH Features USB Specification rev.1.12°0 compliant, Every time same COM number when use Support the RS232 serial interface, Over 460KBPS data transfer rate Support remote walk up and power management

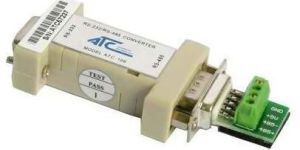

Transmission Media : Twisted pair cable or shielded cable Connector : RS-232 – DB9 Female; RS-485 – DB9 Male & Terminal Block Connector Operation Mode : Asynchronous half duplex Transmission Speed : 9600BPS to 6000 feet Supply : Port Powered (It Takes power ± 5.5 V form TD or Handshake Lines.) Working Environment : 0°C˜50°C, 5%˜95%RH RS-485 Connection : 485+, 485-, GND (ATC-106N)

Regulator power supply is currently the most widely adopted device TPS series industrial power supply offers users DC24V 12V9V5V with enhanced safety, efficiency and the best power quality. Full MS with powder coated casing for lightweight and corrosion resistant handling 110 or 230 VAC input, Overload protection, Overvoltage protection Thermal protection, Expected lifetime: 10 years For transmitter and sensor purpose Current Rating 50100150200250 mA Panel and wall mounting type

Application : overload protection (OLP/OCP) to prevent damages resulted from over current. When the rated current is higher than 150%, the output voltage will start to drop automatically ( Transmitters Power safety Device)

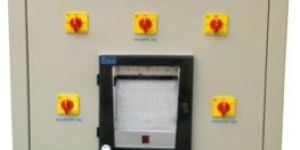

Program 9 profile with 163264 steps program Manual , OnOff, PID with Fuzzy Logic Control Controller Accept input RTDs Thermocouples Three Phase Mains Operated Three phase Heater Control Output Control Device Contactor or Solid state Relay or Tyristor Capacity available 254070100120 A Fabricated wit Stainless Steel or MS with Powder Coated Temperature Range 50 to 1200 º C ( customized)

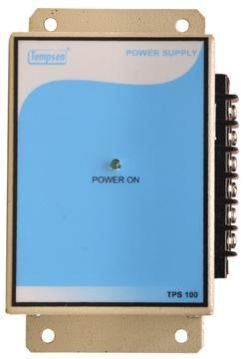

Switch Mode power supply is currently the most widely adopted device TSPS series industrial power supply offers users DC24V 12V9V5V with enhanced safety, efficiency and the best power quality. Full MS with powder coated casing for lightweight and corrosion resistant handling Universal input voltage 100-240VAC, Overload protection, Overvoltage protection Thermal protection, Expected lifetime: 10 years For transmitter and sensor purpose Current Rating 400mA or 1000mA Panel and wall mounting type

Application : overload protection (OLP/OCP) to prevent damages resulted from over current. When the rated current is higher than 150%, the output voltage will start to drop automatically ( Transmitters Power safety Device)
