Calibrators Dealers

The instrument serves the calibration of gauge from 0.5 to 100 mm length. The slip gauge to be measured is compared with reference master whose deviation at center is exactly known. With two measuring probes, one at the top and the other at the base plate, this differential measurement gives reliable measurements with extremely high accuracy. A template profile allows the probes to trace 5 points on the surface of the slip gauge under test and one at the center point of the reference master. The manual remote control allows to move the slip gauge smoothly without jerk and interference from body heat. The instrument comes in two versions: Manual and Computerized.The computerized version allows quicker inspection its user-friendly interface and intuitive design. The calibration conform with the requirements of National and International Standards i.e. IS-2984 of 1981 and DIN-861 of 1988.The following features are determined in accordance with the specifications of the standards: Center deviation. Parallelism by measuring at 5 points, and Thereby selection of the Grade. The system is useful in the calibration laboratories which are officially approved by the National Accreditation Board.

10 step ut calibration block inch version.dimensions: l x w x t (7.5” x ¾” x 0.1” 0.05”).description: metric version of the 10 step ut calibration block for thickness and linearity. the measure steps in the 10 step calibration block range from below measurementvariants. step range variants:1. steps starting from 0.1” – 1” with 0.1” increments on each step.2. steps starting from 0.05” – 0.50” with 0.05” increments on each step.material : carbon steel,stainless steel,titanium,aluminum,alloy steel,cupro nickel,inconel,etc.

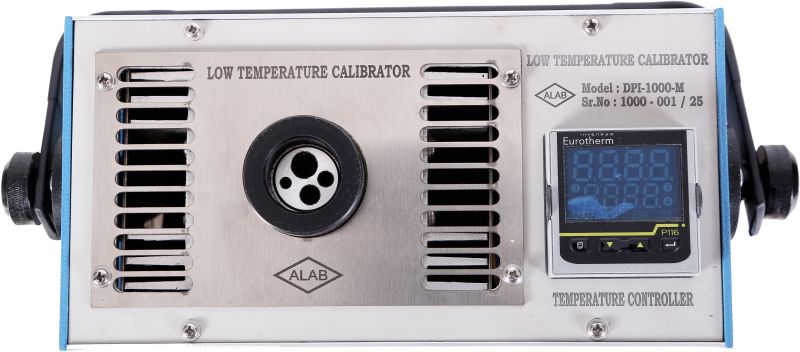

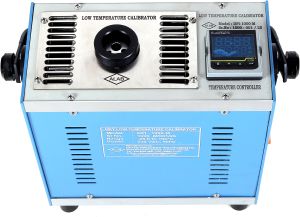

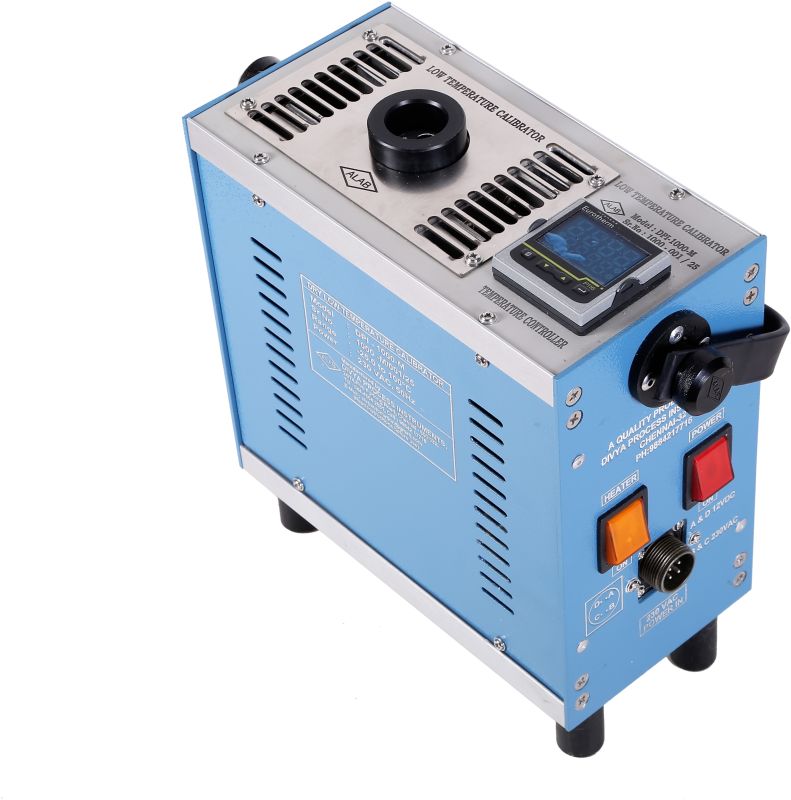

Range : -40°C from Ambient to 123°C • Accuracy : ±0.3°C • Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution & Stability • Fast & heat cooling • 128 x 64 Graphic Display • Measurement Capability for RTD, mA & Resistance Signals • Touch Membrane Keypad • Switch Test Contact Measurement

We can develop calibration test bench for your sensor or devices with customized report for analysis voltage sensor, current sensor, pressure sensor, temperature sensor, flow sensor, level sensor, acoustic sensor.

Intcal SM –10 Variety of outputs and inputs Easy configuration and interactive display messages Direct Digit Access Settings and Readings in percentage Single Key Functions Memory Stepping Logging off field data for calibration report Battery protect functions

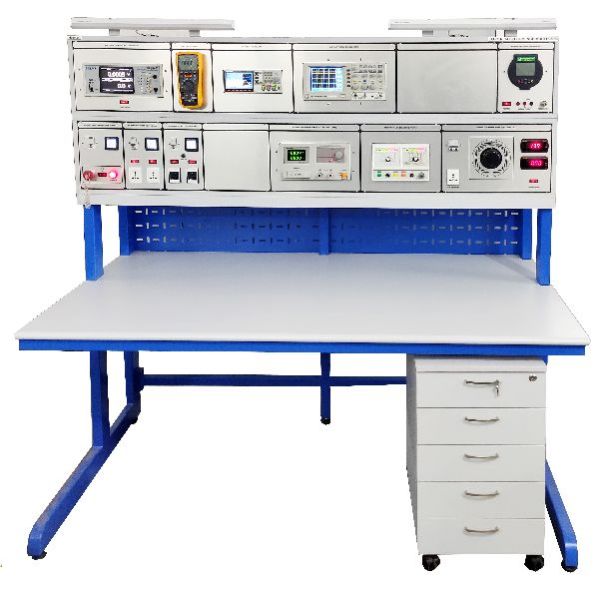

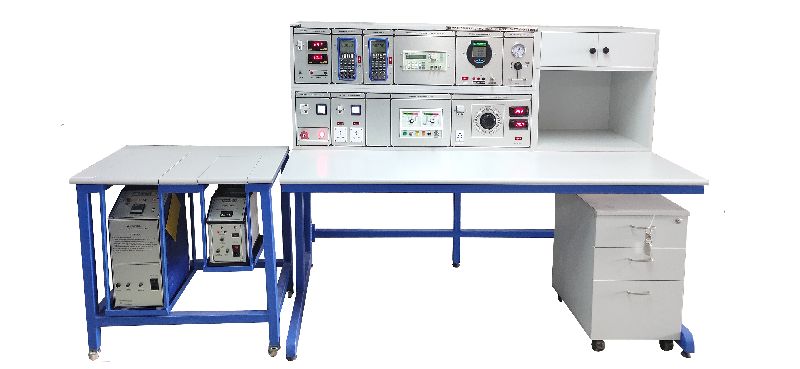

Hi-tech Next Generation “Multi-Flex” Range of Test Benches offer space saving / multi-purpose “Push-Pull” (Electrically operated) Pop-in/Pop-out Device panels & Mounted Under-bench Trolleys. Nagman also can offer only Bench-tops for Mounting on Customer Table / Furniture. Nagman offer – for Remote / Distributed Field / Site Calibration work Compact Mobile Units – combination of Modules & Utilities mounted in a sturdy Trolley case. Nagman can offer these Test Benches / Bench-tops – one or more – mounted in a Van or Container to serve as “Mobile Calibration Lab” for Site / Field Calibration assignments. Calibration Accuracies (of Instrument Modules) are Traceable to International Standards & duly verified (where possible) (before integration) & Certified by Nagman’s NABL (equivalent to UKAS) Accredited – per ISO 17025:2005 – “Centre for Calibration”.

MEASUREMENTS: Loop powered supply with mA measurement for Transmitter calibration . Electrical measurements of mA &Volts . Peak pressure measurements (High & Low peak) PRESSURE SWITCH TEST FACILITY: Opening and closing pressures are easily identified by display hold while opening and closing contact DISPLAY: Large backlit Graphical display . ‘Auto OFF’ function forlonger battery life KEYPAD: Feather Touch keypad for easy operation . Dedicated ZERO key for Zeroing before test

The Process Sensors blackbody calibration source model BBS110-TE is well suited for calibration and verifi cation of non-contact infrared thermometers, thermal imaging cameras, FPA (focal plane arrays), and spectrometers in the temperature range from –15 °C to 110 °C.

The pressure Calibrator with Digital Pressure Gauge The calibrator suitable for Pressure Gauge Calibration. Available Range -1 Bar ( -760mmHg) to 700 Bar as per Customer requirement . calibration Password protected The Gauge is an Ultra Low Power microprocessor Controlled, accurate and versatile Digital Pressure Instrument ,Thermal drift operational amplifier ensures good stability. Calibration Point can be set very accurately. RPGC are available in many models. When Indicate” LO” sensor is open condition . The instrument is housed In a compact Aluminum Anodize case . 1000 Hours Battery Life 7.5 VDC Battery Operated Recommended DURACELL type MN1500-LR6.

    Compact, Light Weight Unit with Holster •    Selectable Temperature Output Readings (in °C / °F) •    Measurement & Simulation of Thermocouple types R, S, B, E, K, J, T & N Voltage – 1 V Simulation, 100 mV Measurement

Universal Portable Calibrator is a precision instrument used either as a temperature indicator with input from RTD sensors and thermocouples or a calibrator for other process instruments. It can be used in any of 3 modes: measure, source or simultaneous, which combines the first two. It handles a wide range of process inputs - RTDs, thermocouples, mV and mA linear input and resistance (ohms). Built of a microprocessor-based closed-loop design, the calibrator's programmed output is continuously compared to a highly stable reference and automatically corrected for errors. It achieves a very high accuracy with a possible error of only 0.02% of the full-scale value. Powered by a Ni-Cad battery, MICROCAL is extremely portable and lasts up to 8 hours of constant use on a single charge. It weighs a mere 1.5 kg and takes a little less than 4000 cc of space. The calibrator directly displays thermocouple and RTD inputs in Celsius or Fahrenheit units. MICROCAL performs automatic or manual electronic cold-junction compensation for thermocouples to maintain a high-accuracy even in the case of thermocouples connected via extension wires.

The Process Sensors blackbody calibration source model BBS110-TE is well suited for calibration and verifi cation of non-contact infrared thermometers, thermal imaging cameras, FPA (focal plane arrays), and spectrometers in the temperature range from �15 °C to 110 °C. A serial interface RS485 (optional USB adapter) enables the control of the black body via a PC. Digital PID controller and precision platinum resistance thermometer PT100 provide excellent accuracy and stability. Optional dry air or nitrogen purge reduces condensation at low operating temperatures. The BBS110-TE offers fast slew rates, high emissivity and uniformity.

Fluke 724 Temperature Calibrator Built for the masters of temperature. The Fluke 724: everything you need to troubleshoot and calibrate temperature.   Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant.   The Fluke 724 is the master’s answer to temperature calibration. The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms.   The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power.   The dual line measure/source display lets you source temperature and view loop current at the same time.   With its simple, “no menus controls, the Fluke 724 is easy to operate, too. FEATURES   Easy to read dual display lets you view input and output simultaneously   Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters   Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters   Perform fast linearity tests with 25% and 100% steps   Execute remote tests with auto step and auto ramp   Power transmitters during test using loop power supply with simultaneous mA measurement   Store frequently-used test setups for later use   Compact, streamlined shape makes it easy to carry   Rugged, reliable design stands up to field use   Backlight lets you work in poor light   Large battery capacity of four AA cells   Battery door for easy changes

Ideal for calibration of vacuum & pressure gauges, switches, transmitters, etc. PRODUCT FEATURES MEASUREMENTS: Loop powered supply with mA measurement for Transmitter calibration . Electrical measurements of mA & Volts . Peak pressure measurements (High & Low peak) PRESSURE SWITCH TEST FACILITY: Opening and closing pressures are easily identified by display hold while opening and closing contact DISPLAY: Large backlit Graphical display . ‘Auto OFF’ function for longer battery life KEYPAD: Feather Touch keypad for easy operation . Dedicated ZERO key for Zeroing before test
