Rasci Instruments Saidapet, Chennai, Tamil Nadu

Input (Single or dual): Voltage(ACDC) Current(ACDC) Power( KWW) • Transmission OP (DualSingle): Linear current (4 20 mA) or voltage (0-10VDC) • Power supply: 230VAC or 110VAC , 50 Hz • Re transmission accuracy: 0.2%FS± 1 Digit • Customized Transducer as per your application • Size (W x H): 70 x 100 (DIN rail) • Other features: Input calibration ( zerospan) • Operating ambient: Temp.: 10C~60°C‚ humidity:

TUTC Series Input RTD, Thermocouple(J/K) selectable, RTD/ -50.0 to 400.0 º C, J/ 0-600 º C, K/ 0-1250 º C Control mode on/off and Time proportional, Hysteresis, Time, Proportional , Offset Selectable , Same controller have SSR and Relay output Control set Point can be set feather touch keys

Universal [All type of thermocouple and PT100‚ Cu50 (RTD)‚ linear voltage‚ linear current‚ MV‚ 2 wire transmitter input],AC current (0 5 amp.), AC voltage (0 500 volt),Alarm: High‚ low‚ second high and second low (Selectable) Other features : Over range and sensor fail output off‚ input offset, Operating ambient: Temp.: 10°C~60°C‚ humidity :

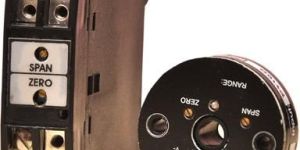

Transmitter Accept input RTD, Thermocouple Transmitter output available 4-20 mA ( 234 wires) Out put Range -999 to 9999 counts DIN Rail Head mounting , Power supply : 12-36 VDC (or )230 VAC Output Load at 20 mA , 600 ohms maximum @ 24 VDC With Display optional , Range select at factory Single Dual Input optional

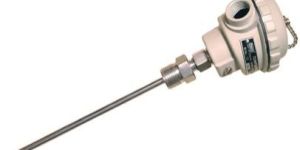

Customized RTD sensor Water Proof Head with IP 6567 standard SS Tube with cast Aluminum Head SS304-Normal,SS316 –chemical Application Simplexduplex element Pt 1005001000 Optional Process Connection NPTBSP Temperature Range -200 to 600 º C Temperature Transmitter output 4 -20mA optional Size available customized LengthDiaProcess connection

Multicolor Ribbon , RedBlueGreen Pen And Strip chart ( Roll Z folder), Circular Chart ( weekly, Daily, Shift ) 168248 Hours Strip Chart size 100mm, 120mm, 180mm Circular chart size 150mm, 300mm Customized chart , Pen also available This Spares suitable for Tempsen, RR, sietex Recol, Honeywell, yakagowa, shinko, Chino recorders Ranges available -200 to 1200 % and °C,°F Option with circular strip Recorder

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc. Application All Process Indicating systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , clean Room environment , online pressure , humidity etc. :

The MicroLite is an ideal solution for a variety of industrial cold chain logistics, requiring a small form factor USB data logger. Low cost, water resistant, multi-trip temperature data logger, with high resolution, 4-digit LCD display and direct USB connectivity – the MicroLite offers truly cost effective data logging. Accurate historical data indicator for an unbroken cold chain Six models offer a unit for every application Long battery life and 32K cyclic memory serve long haul transports Real-time LCD data display Dust and water resistant, depending on logger model License-free data analysis software The comprehensive MicroLite range allows organizations to select the unit most appropriate for their mission-critical environment:

The Tempsen Solid State Relay accept DC voltage ( 4-32 VDC) , Variable current ( 4-20 mA), AC Voltage( 12-230VAC), Variable ohms ( 0-470 K). The SSRPPC soft start , no noise Long life work , use proper heat sink avoid rejection. The SSR work ON OFF mode function only controlled by controller suitable for heater application, the phase angle regulator (PPC)regulate the Voltage suitable for Power variable application that is controlled by pid controller provided Variable current (4-20mA)output suitable for high accuracy heat control The instrument is housed In a compact PVC case . maximum Load capacity 100A single

empsen offer thermocouple and RTD Compensating Cable for thermocouple Type J , K, N, S, B Insulation type PVC, Teflon, Fiber ,SS shielded with 2 wire for RTD type Pt 100, Pt500,pt1000 insulation Teflon, Fiber, SS shielded with 2 wire, 3wire and 4 wire , Duplex cable also available Use proper compensating cable avoid temperature loss . Also available with thermocouple RTD and compensating connectors Customized cable also available

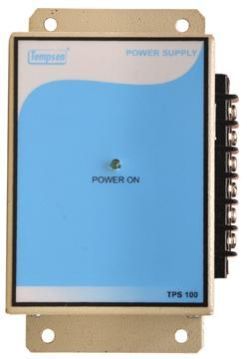

We offer regulator power supply. Regulator power supply is currently the most widely adopted device tps series industrial power supply offers users dc24v 12v9v5v with enhanced safety, efficiency and the best power quality.

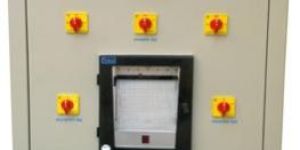

we offer Programmable Temperature Control Panel. Program 9 profile with 163264 steps program Manual , OnOff, PID with Fuzzy Logic Control Controller Accept input RTDs Thermocouples Three Phase Mains Operated Three phase Heater Control Output Control Device Contactor or Solid state Relay or Tyristor Capacity available 254070100120 A Fabricated wit Stainless Steel or MS with Powder Coated Temperature Range 50 to 1200 º C ( customized)

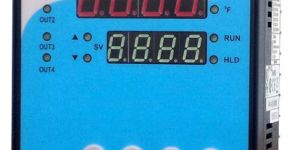

Input: :accept Thermocouples (B, E, J, K, L, N, R, S, T, U, T),RTD (PT100), Analog current (0 ~ 20mA, 4 ~ 20mA) and linear voltage (0 ~ 5V, 0 ~ 10V) Accurate PID parameter auto-tuning and Programmable  output :Relay/Voltage/ Current , Panel sizes: 48X48 ,96X96mm Dual Quality LED display and Celsius or Fahrenheit temperature display programmable control modes : 8 ptnX16/32/64Step ( Ramp/Soak) Optional RS-485 communication interface Modbus ASCII, RTU. Universal Power Operated : 100 to 240 VAC/ 50 Hz international dimension and CE, UL international safety approvals.

Measures relative humidity, temperature and dewfrost point Instrument Operating Range : 0...100%rh -10...60°C Measurement Range : 0...100%rh -100...200°C (Probe - Dependent)

Accuracy : ±（0.2%FS+1）digit Power supply : 100-240VAC; 24VAC Display : 5.6 inch, 320*240 Color LCD Input Signal : T.C: K, S, E, J, T, B, N, R, WRe526, WRe325, RTD: PT100, CU50, CU100, Linear voltage: 0-5V, 1-5V, Linear current: 0-10mA, 4-20mA, Frequency input: 0-5KHZ, one Channel, Others: 0-20mV,0-60mV, 0-100mV, 0-500mV

Temperature , Pressure, Humidity ,Level Flow,Co2, Air velocity, Diff pressure etc … Display Range :-1999 to 9999 Selectable 4 ½ Digit LCD Display with selection Keys IP 65 weather Proof enclosure, Also available flame Proof enclosure with CMRI Group I,IIA&IIB Certified fire safety with chemical and oil industries , save cable

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc …

ccept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc …

Tempsen THTS humidity and temperature sensor module is designed Base capacitive humidity and temperature by Tempsen devices. This Product utilizes humidity sensor capacitor (HS1101,France Humirel) And Temperature sensor (LM-32 ,America) with characteristics of Stable ,High accuracy , quick response ,good crossing-over and it also Use craftwork of SMD, and so own extremely small body , stable and Reliably performance. Temperature Range : 0-60 °C with RTD pt 100 output Humidity Range : 0 to 100 % Rh with 0-3 VDC output , 5 VDC opera

Rasci Heating Cooling Chamber outer fabrication of Mild steel with powder coated and Inner Fabrication of Stainless Steel .The RHCC are insulated with ceramic fiber mat to reduce the radiation Cool loss to Minimum This is suitable for Low Temperature Process Testing application. High accuracy temperature controller With Tyristor Contactor based control circuit. The RHCC Cooled by High Quality Compressor and Maintain Temperature use Heater .Insulation with high quality superior quality Insulator. The temperature inside is maintained any desired level with in the operating range by a digital automatic temperature controller and Mp b

Tempsen THTS humidity and temperature sensor module is designed Base capacitive humidity and temperature by Tempsen devices. This Product utilizes humidity sensor capacitor (HS1101,France Humirel) And Temperature sensor (LM-32 ,America) with characteristics of Stable ,High accuracy , quick response ,good crossing-over and it also Use craftwork of SMD, and so own extremely small body , stable and Reliably performance. Temperature Range : 0-60 °C with RTD pt 100 output Humidity Range : 0 to 100 % Rh with 0-3 VDC output , 5 VDC operated Optional with temperature and cable

Rasci Heating Cooling Chamber outer fabrication of Mild steel with powder coated and Inner Fabrication of Stainless Steel .The RHCC are insulated with ceramic fiber mat to reduce the radiation Cool loss to Minimum This is suitable for Low Temperature Process Testing application. High accuracy temperature controller With Tyristor Contactor based control circuit.

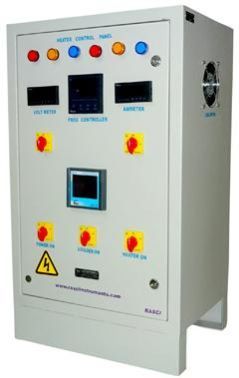

We offer heater control panel with paperless recorder. Program 30 steps or 50 steps program manual , onoff, pid with fuzzy logic control controller accept input rtds thermocouples three phase mains operated three single phase control output control device contactor or solid state relay or tyristor fabricated wit stainless steel or ms with powder coated capacity available: 254070100120 a temperature range : 50 to 1200 º c

ow Input :Linear Voltage (0-5V DC OR 1-5V DC, Linear Current (4-20mA), Two Wire Transmitter Input (All Linear inputs can be configured with or without Square Root Extraction) OR Frequency Input Temperature Input : RTD PT-100 OR Thermocouple (K,E,J) – For Temperature Compensation (Compensation possible with TUPC-FC) Pressure Input: Linear Voltage (0-5V DC OR 1-5V DC, Linear Current (4-20mA) –For Pressure Compensation (Compensation possible with TUPC-FC) Display:Flow Rate, Accumulated or Total Flow, Pressure & Temperature

Tablet power supply is currently the most widely adopted device PMC series industrial power supply offers users DC24V (35W, 50W and 100W) and DC12V (35W、50W and 100W) models with enhanced safety, efficiency and the best power quality. Full Aluminum casing for lightweight and corrosion resistant handling Universal AC input, Overload protection, Overvoltage protection Thermal protection, Expected lifetime: 10 years international dimension and CE, UL international safety approvals.
