S. M. Enterprises Thoraipakkam, Chennai, Tamil Nadu

We are offering spring cones provide proper sealing force to the yarway colour-port water level gauge.

DYNAFLEX double window sight flow indicator allows operators to visually inspect the flow of liquids or gases. It features two transparent windows—Available options of borosilicate glass, tempered glass, or acrylic—mounted on opposite sides of a metal body (often stainless steel, carbon steel, or PVC).

Brand Name : DYNAFLEX

Material : Metal, Steel,SS, CS, CI

Condition : New

Surface Treatment : As per standard

Pressure : High Pressure, Low Pressure, Medium Pressure

Application : Gas Use, Liquid Use

Size : 1.1/2inch, 1.1/4inch, 1/2inch, 1inch, 2inch, 3/4inch, 4/5inch, 5/6inch, 6/7inch

We are offering retaining ring is a very critical part in the colour-port water level gauge assembly.

Number Of Flower : Retaining Ring

Material : Stainless Steel

Country of Origin : India

Glass Type: Fused Quartz / Silica  Fused quartz is a result of melting crystalline silica in the form of stone, sand or rock. It is sometimes used in the same applications as fused silica. The main differences are that fused quartz has a much lower OH content and fused silica transmits better in the UV. Both are highly pure, have high chemical resistance, good thermal shock resistance, and low thermal expansion coefficient.   Thermal Properties Thermal Coefficient of Expansion (0/300°C): 5.5 X 10 -7/°C Annealing Point 1213.83°C / 2216.9 °F Softening Point 1683°C / 3061 °F Strain Point 1122°C / 2051.6 °F Mechanical Properties Density 2.21 g/cm3 Knoop Hardness >600 Kg/mm2 Young's Modulus 10.5 X 106 PSI (70 Gpa) Poisson's Ratio .17 Electrical Properties Dielectric Constant 3.75 @ 20°C, 1 MHz Resistivity 7 X 107 ohm * cm (350°C) Dielectric Strength 1270 volts/mil

Number Of Flower : Fused Silica / Quartz Glass

Shape : Custom made

Pattern : Plain

Condition : New

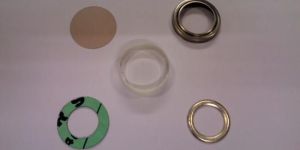

We are offering mica-gasket-glass assembly for yarway color-port water level gage. Repair kit part no. 7000013156 (replaces kit part no. 923321) pressure rating: 1551 to 3000 p.s.i. For use with color-port figure numbers 4591 thru 4595 glasses are accurately molded and tempered to yarway specifications. The assembly of glass, mica and gasket is registered precisely in the gasket groove in the body. At boiler pressures above 300 psig, high temperature water will corrode unprotected gage glass. A thin sheet of high quality ruby mica on the inner surface of each port protects the gage glass from corrosive attack of steam, water and alkalis; however, this protection is not permanent. Continual exposure to high temperature, high pressure water will also corrode the mica shield. The rate at which this corrosion occurs is significantly less than that of glass, and is dependent upon a number of factors. Generally, the higher the operating temperature, the higher the rate of attack. Warning: replace immediately when glass appears white or opaque. Failure to promptly replace the mica-gasket-glass assembly that appears white or opaque can result in catastrophic failure of the glass with violent discharge of hazardous high velocity steam. The discharge of high velocity steam can result in personal injury and property damage may occur. Yarway recommends each customer establish a preventative maintenance schedule which insures the mica-gasket-glass assembly is replaced previous to the dissolution of the mica shield. In-service gages that have glass which appears white or is opaque, should be isolated immediately and the mica-gasket-glass assembly should be replaced before returning to service. Should any question develop on the condition of the gage glass, the procedure given under the section on preparation for washdown, auxiliary service or gage inspection of the installation, operation and maintenance manual of colour-port water level gages should be used to evaluate port glass condition.

Thickness : 10-15mm

Grade : BS, DIN

Feature : Extra Stronger, Hardend & Temper, High Quality

Surface Finishing : Polished

Country of Origin : India

Brand Name : DYNAFLEX

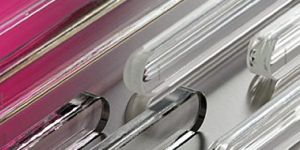

We are offering maxos transparent gauge glass. the mechanical strength and pressure resistance of the transparent glasses is attained through the thermal pre-stressing, homogeneity, flatness, precise dimensions and flawless surface of safety glass.

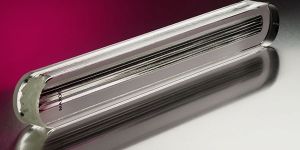

We are offering maxos reflex gauge glass. exceptional resistance and a high safety level of our reflex glasses influence decision makers again and again to choose maxos.

Number Of Flower : Reflex Glass

Material : Borosilicate Glass, Toughned Borosilicate

Thickness : 17mm

Application : Chemical, Industrial, Steam, Water

Packaging Type : Clear

Condition : New

Function : Boiler, View The Liquid Level In The Tanks

Packaging Type : Box

Temperature : 200-400 Deg C

Brand Name : Maxos

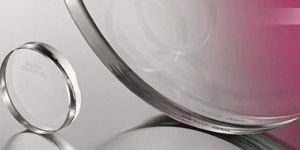

We are offering maxos circular sight glass acc . the material properties values and small dimensional tolerances are guaranteed by production and quality controls. With these exceptional safety characteristics, maxos safety sight and level gauge glasses can be used under extreme operational conditions.

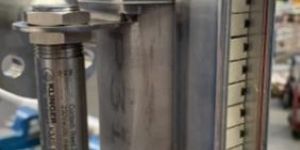

Klinger KMS: reed magnetic switch suitable with all Klinger magnetic level gauges.   Standard execution: SPDT bistable Orientation Magnetic switch must be mounted on the right or on the left respect to the visual scale. A maximum angular error of 30° with respect to the theoretical position is allowed. Installation The switch can be positioned along the entire field of vision of the magnetic indicator. Switch installation on the indicator is carried out using a hose clamp. The switching point is at 45 mm from the upper end of the switch, for the models KMS and KMSJB, and 60 mm from the upper plane of the explosion-proof case, for the model KMSJB-EXD. Switching zone is ± 5 mm.

Specialities : Rust Proof, High Tensile, High Quality, Heat Resistance

Design : Standard

Shape : Rectengular

Brand Name : KLINGER

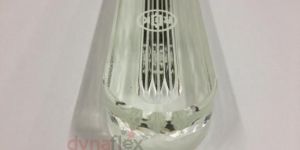

we are offering klinger transparent gauge glass din 7081. klinger transparent glasses are manufactured from borosilicate glass ("extra-hard"). the surfaces on both sides are finely grounded and polished to ensure optimal transparency. applications: in steam service above 35 bar and for media with a high ph-value, klinger transparent glasses must be protected by a mica shield on the side facing the medium chamber. transparent glasses should always be chosen for contaminated, viscous or corrosive media. within the given service limitations they may be used for all media except steam at pressures up to 340 bar or temperatures up to 400 deg c. types of transparent glasses: there are four different types of transparent gauge glasses: a, b, h und ta-28. dimensions, weight and field of application can be found in the product catalogue (pdf-document in the download area on right side). note: only klinger original parts guarantee a trouble free operation of the gauge glasses for a long time. therefore we recommend to use only original spare parts for gauge glasses, mica shields, sealing gaskets and cushion gaskets. quality control: klinger transparent glasses are subject to continuous control during manufacture in order to guarantee exact dimensions, stress conditions, material composition and resistance to bending strain. international standards: we manufacture transparent glasses in accordance to the following standards: oenorm m 7354 (long gauge glasses) din 7081 (long gauge plate glasses) jis b 8211 (japanese industrial standard) omv-spez. h 2009 (omv, vienna) mil-g-16356 d (us-navy-ships) esso eng. spec. 123 (esso research & engineering co., new jersey) s.o.d. spec. 123 (standard oil development company, new jersey) bs 3463 (british standard insitution)

Brand Name : Ilmadur

Material : Glass, Toughned Borosilicate

Shape : Oblong

Color : Transparent

Size : Size 1 to 11

Type : Transparent Gauge Glass

Thickness : 17mm

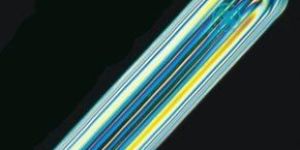

the side facing the media chamber is provided with moulded grooves set at 90� angle. the moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness. this makes it extremely resistant to the attack of boiler water. applications: up to 35 bar saturated steam, reflex glasses provide the optimum solution: the reflex glasses are corrosion resistant and provide an absolutely clear indication. reflex glasses can be used with all media except steam at the service conditions up to 400 bar pressure or up to 400�c operating temperature. types of reflex glasses: there are three different types of reflex gauge glasses: a, b and h. dimensions, weight and field of application can be found in the product catalogue (pdf-document in the download area on right side). note: only klinger original parts guarantee a trouble free operation of the gauge glasses for a long time. therefore we recommended to use only original spare parts for gauge glasses, sealing gaskets and cushion gaskets. quality control: klinger reflex glasses are subject to continuous control during manufacture in order to guarantee exact dimensions, stress conditions, material composition and resistance to bending strain. standards: we manufacture reflex glasses in accordance to the following standards: oenorm m 7354 (long gauge glasses) din 7081 (long gauge plate glasses) jis b 8211 (japanese industrial standard) omv-spez. h 2009 (omv-ag, vienna) mil-g-16356 d (us-navy-ships) esso eng. spec. 123 (esso research & engineering co., new jersey) s. o. d. spec. 123 (standard oil development company, new jersey) bs 3463 (british standard insitution)

Number Of Flower : Glasses

Shape : Oval

Certification : DIN, BS

Application : Level Gauge

Feature : Good Strength, Long Life, Transparent

Condition : New

Packaging Type : Paper Box

We are offering ilmadur transparent gauge glass . gauge glasses are designed for continuous service temperature up to 280 c. Temperatures exceeding 280 c may cause the induced compressive stress to be relieved, reducing it to approximately 90% of its initial value following a service of 300 hours at 300 c, or about 70% for service temperature up to 320 c. The reduced compressive stress will also decrease the thermal shock resistance of the glasses. However, in some special cases depending on the actual service conditions (pressure, temperature, kind of media, kind of frame) it may be possible to use the tgi ilmadur transparent gauge glass for temperatures higher than 280 c. Tgi ilmadur transparent gauge glasses (e.g. Width 34mm) can be used for media with no significant glass attack (e.g. Oil, hydrocarbon) under the following service conditions. For media with significant glass attack (e.g. Saturated steam, alkali) we recommend the use of tgi ilmadur transparent gauge glasses along with protective mica shields for service pressure >35 bar. In any case the service operator has to check the actual and expected datas for the process, gauge glasses are used for.

We are offering ilmadur reflex gauge glass din 7081. tgi ilmadur reflex gauge glasses allow simple and safe readings to be made from a distance.

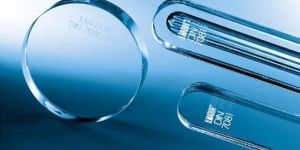

We are offering ilmadur circular sight glass acc. ilmadur has an enviable reputation for offering high quality, precision-engineered glass products typically used in scientific, advanced engineering and industrial applications, namely: circular sight glasses sight and flow glasses our products are manufactured to exacting international standards to meet safety regulations; this is particularly important in demanding hazardous environments that may involve exposure to high temperatures and or pressures, or chemically corrosive substances.

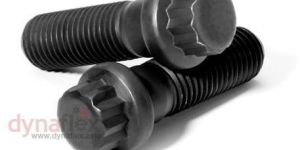

We are offering cap screw for yarway colour-port water level gauge. Each cover of the yarway colour-port water level gauge is held solidly against the body by four special cap screws part no. 954181-10.

Number Of Flower : Borosilicate Glass

Material : Toughened Glass

Shape : Round

Condition : New

Appearance : Transparent

Finishing : Polished

Country of Origin : EU

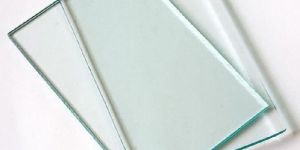

We are a leading Manufacturer, Exporter, Supplier, Distributor, and Trader of high-quality Toughened Glasses from India. Our Number Of Flower Toughened Glass features a flat shape with a thickness of 10-20mm, making it ideal for building applications. Known for its complete finishing and transparent appearance, this toughened glass is non-polished and has a width of 1-10mm. Trust in our top-notch Toughened Glasses for your construction needs.

Number Of Flower : Toughened Glass

Material : Toughened Glass

Shape : Flat, Rectangular, Square, Cicular

Thickness : 10-20mm, 20-30mm, 30-40mm, 40-50mm

Application : Building, Door, Industrial Use, Window

Feature : Complete Finishing, Durable, Hard Structure, Heat Resistance, High Strength, Weather Resistance

Appearance : Transparent

Finishing : Non Polished

Width : 1-10mm, 10-20mm, 20-30mm, 30-40mm, 40-50mm

Country of Origin : India
