Siddharth Electricals Alwarpet, Chennai, Tamil Nadu

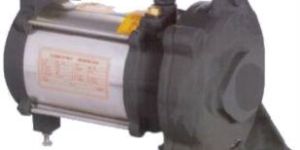

Horizontal Open well Submersible Pumps are designed for under water application.Pumps are suitable for open well or tanks where there is wide fluctuations in water level. Application: Gardening Sump to Overhead tank filling Fountains   Material of Construction: Pump Body: Stainless Steel Impeller: Noryl & Cast Iron Mechanical Seal: Ceramic Vs. Graphite Shaft: Stainless Steel

Head : Upto 55 m

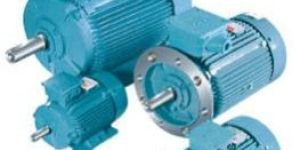

M2BA M 2000 Range M2000 motors have been engineered for the twin objective of high power to weight ratio and efficiency at a designed ambient of 50˚ C. Heavy Duty Design The Electrical and mechanical design of M2BA motors offer high performance values in all the mounting arrangements, protection class and in all applications. Ip55 M2BA motors are protected against the ingress of water and dust. A high degree of protection IP55 is a standard feature of M2BA. Winding Stator winding uses high quality enameled wires confirming to IS: 13730. The windings are reinforced in the slots with slot wedges and on the overhang with fiber glass tape. Low Noise Levels M2BA motors are the result of special efforts made to minimize electromagnetic, airborne and structural noise Bearing M2BA motors use appropriately selected ball bearings with high temperature grease to give increased life and reliability.

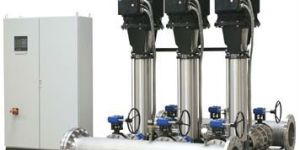

Application: Domestic: High-rise buildings, condominiums, etc Industrial: Processing and manufacturing industries and cleaning applications. Social service: Health clinics, hospitals, school and other institutions. Commercial: Hotels, restaurants, office- blocks and departmental stores. Agriculture & irrigation. Fire-fighting.   FEATURES & BENEFITS Quality: Stainless steel multistage pump and quality approved components. Wide range: Extensive range for applications of any size. High reliability: Multi-pump operation maintains supply, even in the event of pump failure. Easy installation: Mounted on a common frame, including all necessary accessories and internal piping. High efficiency: Cost effective operation. The Multi Pump Control – MPC The brain of the booster systems is the newly developed, highly advanced MPC control unit, the MPC controlling up to six pumps connected in parallel.   Easy to operate user interface Large Graphic Display with overview of the system including key measuring points. Menu bar for easy navigation Control Functions Cascade control Speed Control

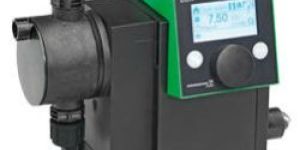

DDA: This high-end pump range is designed for complex and demanding applications such as degassing liquids. Flow: Maximum 30 lph Head: 16 Bar Flow control with selective fault diagnosis Auto Flow Adapt DDC The DDC pump range is Optimum solution for common applications. Flow: Maximum 15 lph Head: 10 Bar Turn-down ratio 1:1000 Flow control with selective fault diagnosis Auto Flow Adapt DDE The DDE offers Digital dosing with basic functions even for a low budget for easier application Flow: Maximum 15 lph Head: Maximum 10 Bar Capacity Setting: 0.1 – 100% Smooth Continuous Dosing Simple Pulse Operation Mode       Features: Powerful Variable – speed stepper motor Internal Stroke speed cont Smooth Continuous dosing Optimal for degassing liquids Slowmode function for high-viscosity liquids

The use of electrical motors in potentially explosive atmospheres is quite frequent these days. These motors have to be constructed in such a way that there is no risk of an explosion. An explosion occurs when the following situation occurs. Presence of potentially explosive atmosphere Existence of a source ignition Possibility of transmission of the explosion   Features Motors suitable for high ambient temperature 50˚ C Keeps an explosion which takes place inside the enclosure from propagating through gaps to the ambient Withstands the explosion pressure created inside the enclosure. Benefits when dealing with special operating modes such as heavy stars and special application. All Surface temperatures are selected to comply with the temperature class.

Ambient Temperature : 50˚ C

CM twin Booster set consists of two identical Grundfos CM Pumps connected In parallel and mounted on a common base frame and a control cabinet incorporating motor protection and controller. Application: Domestic Buildings Hotels Hospitals Schools Industrial Plants   Material of Construction: Electro-coated cast iron parts-free from corrosion Horizontal multistage centrifugal pump Pump Shaft : SS 304   Pump Features: Reliability of supply: Multi – Pump Operation maintains supply, event in the event of one pump failure Simple control and alteration between pumps, dry running protection, built in relay for ensuring constant and steady operation Automatic start/stop upto 100 Times/hours Quiet Operation

Application: CM Pump with pressure controller is used for constant water pressure. Can be ideal when space is constraint near overhead tank. It also had dry running protection, incase of no water in the pipeline.CM pump is also supplied with pressure tank for constant water pressure. When the pressure drops to the Pre-set level, the pump will start-up and when the water consumption drops again, the outlet pressure will rise to a pre-set stop pressure after which the pump will stop. Available from 8 lts to 100 lts tank range.   Material of Construction: Electro-coated cast iron parts-free from corrosion High Efficient motor Horizontal multistage centrifugal pump Long life components are of corrosion and wear resistance stainless steel   Technical Data: Head Range: Upto 58 mts Flow range: Upto 15 m3/hr Power range: Upto 2.5 Hp Liquid Temperature: From 20° Upto 120° C
