Toggle Clamps Dealers in Chennai (8 products available)

We are the main supplier of this product.

• Material: MILD STEEL / STAINLESS STEEL
• Packaging Type: Box
• Surface Finishing: Zinc Plated
• Application: Industrial

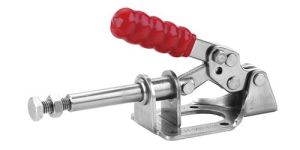

Toggle clamp is a simple Mechanism which holds instantly. The Toggle Clamps Consist of a handle to operate, a Clamping Arm to Reach the work piece, linkages for multiplying the applied force, and a base for mounting at the workplace on it’s base. The handle is operated which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively. Holding Capacity: The holding capacity mentioned for each clamp refers to the maximum force, which the clamp can withstand after being over-centered without damage to the clamp and without the toggle unlocking due to distortion of the clamp. The over-center dimension is carefully chosen in relation to the elasticity of the clamp to maximize clamping force while ensuring that the clamp locks closed even under vibration or intermittent loading. For Hold Down Clamps, holding capacity is measured with the spindle at the farthest end of the clamping arm and will increase as the sp Clamping Force: Clamping Force, the amount of force actually applied to the work piece by closing and locking the clamp, is generally less than the stated holding capacity. Actual clamping force depends on many factors including; spindle position, proper spindle height adjustment, spindle cushioning, work piece material and the clamps mechanical advantage. In most cases, roughly 1/3rd of the stated holding capacity can be applied by hand with medium effort.

Rotary Actuators, Leak Testing Machines, Pressure Regulator

Toggle Clamp, Wood Screws, socket countersunk head screws, Carbon Steel Taps

Clamping Devices, jaw boring fixture, Machine Tool Accessories, Power Chucks

Toggle Clamp, Industrial Fastener
