The Champion RBS is specially designed for the continuous removal of coarse particles from process liquids. The accumulated solids are continuously brushed off the filter surface and thereby generating renewed surface area for filtration.

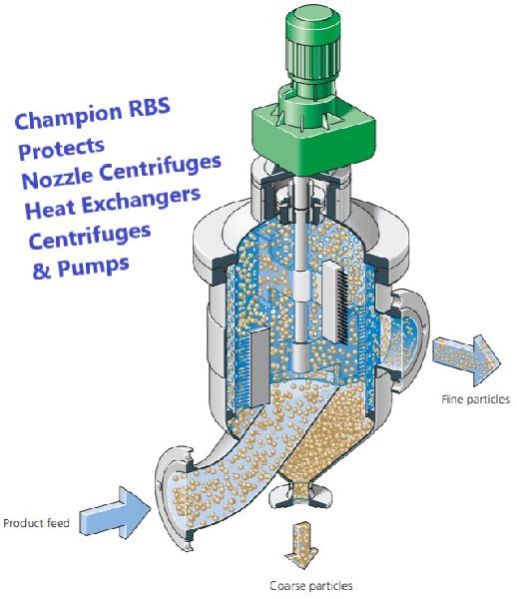

Working principle : The strainer has a stainless steel wedge wire filter basket through which the liquid passes. Any coarse particles suspended in the liquid are held back in the filter basket, and then forced downwards by rotating brushes mounted on a central shaft.
This shaft is driven by an electrical gear motor mounted on top of the unit. The collected particles are removed from the cone at the lower end via the sludge valve, which is controlled via a timer in the electrical cabinet.
Depending on application, the flow is designed to be inside to outside or vice versa with the scraper/brush system mounted on dirt straining area.
For high viscosity products or for improved CIP ability, the strainer can be equipped with teflon scrapers.
· Applications include Filtration of Miscella, Crude Oil / Palm Oil, Starch Filtration, Beverages production, Waste water treatment, Coffee and tea production, Fat and oil processing, Fruit and vegetable processing, Industrial food refrigeration, Soft drink production
