MAK Controls & Systems Pvt Limited Avinashi Road, Coimbatore, Tamil Nadu

MAK Solid State Ground Power Unit   Our solid state Ground Power Unit / Static Frequency Converter, is now part of our standard Ground support Equipment and is the safest and most reliable solution for aircraft power supply requirements Mak's Static Frequency Converter units are designed with Power factor correction to guarantee a perfect sinusoidal input current from 25% to 150% load and a low THDi (

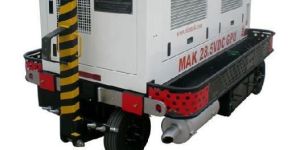

Functioning similar to a standard diesel generator it supplies electrical power to a parked aircraft on ground at 28.5V DC Voltage. This can be used for powering of various aircraft systems and also starting aircraft engines employing an electric starter mechanism. Available in Towable Trailer mounted / Skid Mounted / Self propelled configurations. GSE OPERATION, MAINTENANCE & SERVICE – THE NEED Easy and quick interpretation of comprehensive operational data Acquire complete information in a single touch Increased outputs & enhanced productivity from every technician Real-time fault notification vide email/online Geo-location of active/inactive equipment Recent O&M history available at all times All operational and maintenance history to be digitized Remote management of any GSE with basic adjustments Automated periodic updating of GSE on email/online

Power : : 11.4kW/17.1kW/22.8kW

Liquid to Refrigerant Cooling System (LRCS) for RADAR Application Liquid to Refrigerant Cooling System (LRCS) for Defence and special purpose applications are designed and manufactured at MAK to cool the radar systems. A high-powered 330kW Liquid to Refrigerant Cooling System (LRCS) for defence radar application, is one of our successful achievements in cooling system development. Salient Features Sophisticated digital control system, touchscreen (MAK RDMS optional) Successfully tested from -20°C to +55°C operations. Efficient cooling with minimal power consumption Capable of maintaining precise set temperature Complied for EMI/EMC MIL STD – 461E

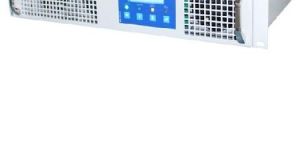

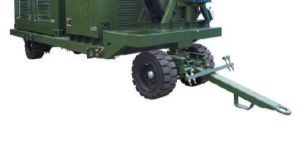

PMA based power systems   MAK developed various PMA based power systems with variable speed engine, compact coupled to a PMG for defense applications from 2.5kVA to 140kVA (customizable).   This PCU has dual outputs of capacity 40kVA (32kW) 415V 3ph 50Hz 200V 3ph 400Hz It consists of convertor & two inverters in theform of independent modules

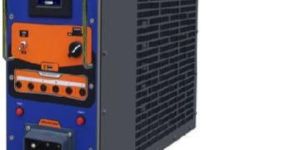

48kW-144kW 400Hz AC, 300A-2500A 28.5V DC – Digital USB   Our Load banks come with latest digital communication via USB, portable and come in a hardened shipping trolley that can be taken everywhere.

Cooling : Air cooled via cooling fans

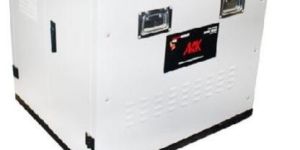

LFP & LTO Batteries with BMS   MAK has the Integration and control capability of using Lithium batteries in power systems. Lithium battery has the characteristics of safety, environmental protection, long life, high charge/discharge rates and wide operating temperature range (-30 °C to +60 °C). It is widely used in military, marine transportation, aerospace and other fields. LTO Battery energy storage system is Lithium-ion battery system using the Lithium Titanium Oxide. It is capable of 10C discharge current rating. LFP Battery energy storage system is lithium-ion battery system using the Lithium Ion-Phosphate. It is capable of 3C discharge current rating. BMS - Battery Management System.

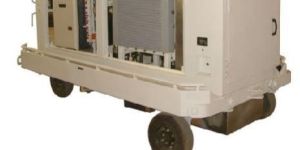

Hydraulic Servicing Trolley, High pressure, High flow pneumatic systems   Hydraulic servicing trolley for aircraft hydraulic systems, cargo deck loaders, hydraulic self -propulsion systems, High pressure pneumatic systems up to 5000PSI for defense application are some of our projects in this field of engineering. MAK's HST is highly recommended to use with aircraft across the world by aircraft manufacturers. Salient Features Hydraulic servicing carts up to 350Bar (5000 PSI) Cargo loaders for civil and military aircraft application Hydraulic self-propulsion vehicles Pneumatic trollies up to 5000PSI

Mak controls is a leading manufacturer and supplier of aviation ground power unit. We provides complete aircraft and airport ground support equipment solutions. Our product support offices have been established at strategic locations across the world. We are committed to providing the highest standards of customer satisfaction, craftsmanship and quality.

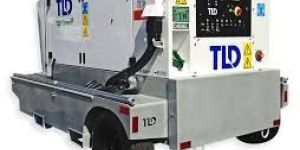

40/60/90/140/180 kva – 400 hz – 28.5v dc gpu, battery cart & many more…   ground support equipment for aircraft supplies power to a parked aircraft on ground through 200 / 115v 400hz ac and / or 28.5v dc voltages. this can be used for powering of various aircraft systems and also starting aircraft engines employing an electric starter mechanism. available in towable trailer mounted / skid mounted / self propelled configurations.   ground power unit -mak manufactures gpu ground power unit for commercial and defense applications since last 3 decades and is a pioneer of digital 400hz gpus across the world. a diesel engine/electric motor coupled to mak’s highly reliable alternator provides a perfect output to your aircrafts. With a touchscreen control panel and interactive gui, this gpu is easy to operate and effortless to maintain. mak ac ground power unit can be supplied with additional 28.5v dc module and small 50hz invertor for obtaining commercial power voltage for tools, appliances. Etc during aircraft maintenance.   mak rdms – comes as a standard feature with all ground support equipment (gse), it is a feature-rich software built for remote operations of mak gse viz parameter details, fault alarms, alerts and periodic maintenance schedule. For more details please look at our mak rdms brochure.

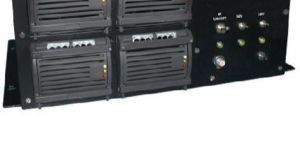

nput voltage: 85v - 290v ac output voltage: 28v48v110v dc efficiency: >90% charging current limit: 70a - 700a (customizable operating temp.: -20 °c to +65 °c stroage temp.: -30 °c to +70 °c display: oledlcd.

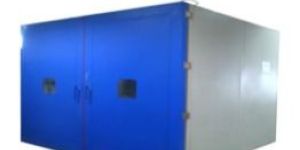

Environmental Stress screening (ESS) Lab of MAK Engineering services helps stimulates product's environmental operation condition and establish its operational behavior under these conditions. The product undergoes various environmental conditions like climate test , extreme thermal test , vibration test to name a few.   The product components are susceptible to stress inflicted on them by the environment in which they operate, we shall stimulate these conditions in our computer controlled environmental stress chambers where the components or product as a whole will be subjected to Thermal Cycles (constant or cyclic temperatures and with humidity). We shall conduct these test with a prototype product at initial stage of production to protect the product from any environmental inflicted stress. In addition, we can provide failure trend analysis pertaining to environment stress to aid in product refinement. Few of our ESS capabilities are :- a) Environmental Stress Screening (Thermal, Vibration, Corrosive etc…)b) Performance testingc) Endurance / Durability and Electrical testingd) Development samples validatione) Ability to coordinate validation tests viz., Salt Spray Test etc. in collaboration with accredited external Test Laboratories.

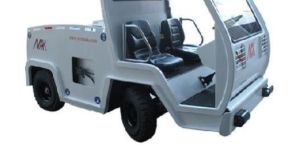

Mak apron tractor   the tugs at an airport serve multiple purposes and represent an essential part of ground support equipment. They can be used to tow baggage carts, ground support equipment, trestles or any other equipment. salient features highly reliable traction motor directly coupled to heavy-duty transaxle long lasting traction battery digital control drive mechanism hydrostatic power steering system dashboard display - battery soc, vehicle speed, run hours and faults hydraulic servo assisted braking system compliance to ahm standards minimal maintenance requirements electric baggage cargo tractor – mak gse design, manufacture and proudly present the latest version of electric baggage cargo tractor for aviation and airport ground handling requirements, our electric baggage cargo tractor is used to tow baggage carts from the airport terminal to the aircraft section completely. Mak’s predominant apron tractor is completely used for the transportation of baggages/ cargo between the aircraft and the terminal facility very quickly and efficiently electric baggage cargo tractor technical specification

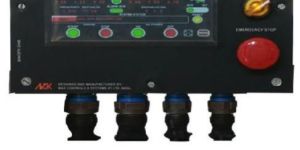

Remote Control Units, MAK GSE Monitor and Control Systems.   MAK's strength is digital control systems. Our core R&D activities in this field focuses on Embedded control systems, Internet of things(IoT), SCADA/PLC implementation to our products as necessary. Most of MAK's control systems involves interactive graphical user interface (GUI) that summarises all operational data on a single screen for easy interpretation with maintenance chart, fault log chart and troubleshooting guide for its products. MAK has always embraced technology and been few steps ahead of competition with our continual R&D efforts.

Range of Power System Products MG Set for Radars Auxiliary Power Unit (APU) for Main battle tanks Mobile Power Systems (MPS) for MRSAM Single / Dual Power Supply Units (PSU) Power supply units across various ranges for numerous missiles and radars Special power supply units for high altitude operations Containerized power supply units Dual Rectifier Center (DRC) for radar application World's first simultaneous operation Dual Frequency Generator (DFG) Please do contact us for your requirements on any special products to serve your project and we shall be honoured to fulfill your requirements.

10 - 100 kVA - Rack Mounted and Modular UPS Systems The standard 19" modular, scalable, hot-swappable, online double conversion UPS ranging from 10 - 100 kVA, with its flexible configuration of 3/3, 3/1 and 1/1 compact structure is the ideal choice for various applications. Single Phase UPS:

High Efficiency Small Size Low Noise APFC Front End Light Weight

We have been designing and manufacturing cable wiring & harness for our products since inception and we believe its our main forte , our experienced engineers shall design simple and easy to maintain wiring systems which are implemented on the product by our skilled workmen. We excel at solving unique and difficult electrical interconnect problems for the aviation , defense , industrial and other markets.   Some products require complex wiring systems where cables would run for kilometers if stretched fully, our CWH shall bind all wires and cables in a single harness where possible and secure them from the effects of vibration , moisture and abrasion. We fit protective sleeves , conduits and flame retardant sleeves as required to prevent any sort of electrical fires. Upon completion of wiring kit it is tested using test boards. On successful completion and testing , we shall train the user on its operational characteristic and provide supporting documents on wiring and materials used for easy reference during time of support or ordering spares.

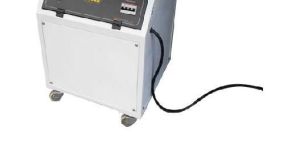

80V Battery Charger   Battery charging is an important phenomena for long battery life. MAK special purpose battery chargers are high tech SMPS / Phase control based systems depending on the application. MAK offers highly efficient and modular type chargers. Salient Features LCD Display System State Indications Smart Charging technology ensures constant battery Temperature Minimal Electrolytic Loss Automatic Shut down after Charging Charging will be terminated by dv/dt method to achieve extended battery life

Field Current: 10A Field Voltage: 75V DC Frequency: 50400HzField Current: 10A Field Voltage: 75V DC Frequency: 50400Hz

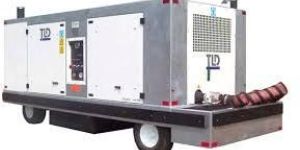

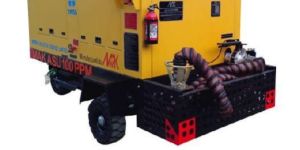

100PPM / 120PPM / 180PPM / 250PPM / 400PPM & many more…   ASUs are used for starting aircraft engines equipped with pneumatic starter. It supplies necessary quantity of air at specified pressure through one/two or three hoses attached to the aircraft's under belly. MAK design and manufacture ASUs from 100PPM to 400PPM (customized units can be made to order). MAK ASUs are under operation with major commercial airlines and military organizations across the globe. MAK has supplied custom designed ASU’s for endurance testing of world’s largest aircraft engine GE90-115B. MAK ASUs come with a touch-screen control panel GSEM V8-A and MAK RDMS – A feature rich fleet management software which transmits live operational data to a remote computer/mobile and alerts users in real-time of faults, alerts. With this software users can plan maintenance schedules, ad-hoc service records, order spare parts… and much more.   Air Start Unit Salient Features   Diesel engines from Deutz/Cummins equivalent conforming to latest EPA/Euro emission norms MAK Air start unit  proprietary digital pressure control system automatically regulates the output air pressure/flow for different air crafts Demand throttle for fuel efficient operation Meets MIL, AHM & ARP standards Low noise level – Air start unit Digital control system with touchscreen MAK GSEM V8 – A Interactive GUI visible under all weather conditions Graphical representation of operational data Fault log chart & troubleshooting guide MAK RDMS – Remote Diagnosis and Monitoring System (RDMS)

ASUs are used for starting aircraft engines equipped with pneumatic starter. It supplies necessary quantity of air at specified pressure through onetwo or three hoses attached to the aircraft's under belly. MAK design and manufacture ASUs from 100PPM to 400PPM (customized units can be made to order). MAK ASUs are under operation with major commercial airlines and military organizations across the globe. MAK has supplied custom designed ASU’s for endurance testing of world’s largest aircraft engine GE90-115B.
