Ryder Equipments P Ltd Athipalayam, Coimbatore, Tamil Nadu

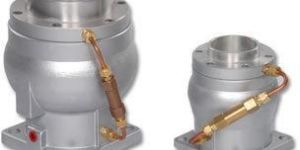

We make suction control 3" and 4" size suction controller inlet. Ryder suction controller controls the compressor capacity. At start up the valves open until a control signal is applied to close the valve. During normal operation the valve opens and closes in response to the control signal to meet the down stream air demands. As shut down a check valve stays closed to prevent back through the compressor. Features of Suction Control Valve: Straight through design for low pressure drop. PTFE valve seat for tight seal One piece housing with square flange mounting Side ports for pressure taps Operating pressure up to 200psi Flow up to 500cfm Sample Availability : Yes Supplier Product Code : 01

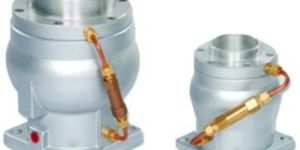

We make suction control 3" and 4" size suction controller inlet. Ryder suction controller controls the compressor capacity. At start up the valves open until a control signal is applied to close the valve. During normal operation, the valve opens and closes in response to the control signal to meet the downstream air demands. At shut down a check valve stays close to prevent back through the compressor. Specifications :   Straight through design for low pressure drop. PTFE valve seat for tight seal One-piece housing with square flange mounting Side ports for pressure taps Operating pressure up to 200psi

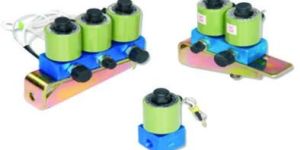

This Solenoid Valve Manifold is used in the automobile vehicle to operate various functions in the vehicle. One valve is used in the exhaust brake system, another valve is to operate PTO and the third valve is used to the dipper operation. Three valves are mounted in a frame and the valves are operated independently based on the operator signal. The valves are 24V DC normally closed two positions three way valves. Specifications :

Type : NORMALLY CLOSED, NORMALLY OPEN

Ryder Servo cylinder controls the step less positioning of the throttle valve (Butterfly or Fuel Injection Pumps). Due to Teflon rings and very low friction between spindle guidance, the motion is a juddar free motion. This cylinder is rear mounted and the spindle travels up to 40mm. This cylinder is used up to 5 kg/cm² Servo pressure Specifications :

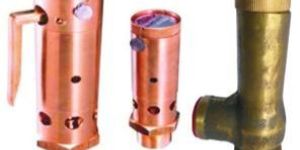

safety valves are designed for use in the compressed air industry and other services involving gases and vapours. thread size: 34", 1", 1-14", 1-12" BSPBSPTNPT

Material : spring, stem valve- ss, seal- viton, others components-brass

Ryder Safety Valve are designed for use in the compressed Air Industry and other services involving gases and vapours .These Safety valves are made from excellent quality raw materials . Specifications : Setting Pressure range : 5 to 30/kgf/CM 2 Full opening Pressure : set pressure +10 % Resetting Pressure : set pressure -10 % Temp Range : -20o C to 205o C Thread Size : 3/4",1" ,1-1/4 ",1-1/2" BSP / BSPT / NPT Seal : Viton, Teflon Spring,Stem Valve:Stainless steel Body Seat and other Components :Brass

Pressure regulator is used to regulate pressure in compressed air systems Specifications :

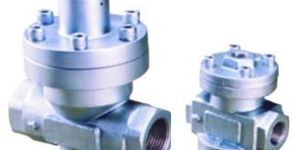

Ryder Pilot Operated Valves are rugged, reliable and have fast response. The pilot operated valve has high flow, two position, and spring return and direction control valve. The valves are used as ON- OFF control valve, Unloading valve in the Pneumatic System, Airdryer , Oxygen Nitrogen Generator etc     Valve housing, Cover, Piston: aluminium Poppet, Guide, Seat Poppet: Brass Seal: Nitrile / Viton Spring, Actuator: Stainless Steel Specifications :

Port Size : ¾” 1”, 1.5”, 2” BSP/BSPT/NPT

Ryder Oil Stop Valve is used in the Screw Compressor to stop the oil flow from the receiver to the Screw Compressor. The normally closed type oil stop valve is controlled by the pressure difference between the discharge pressure and the oil- injection pressure. It will close the oil line on stopping the compressor and re-open on starting the compressor. The normally open type oil stop valve is controlled by the pressure difference between the discharge pressure and the pressure in the oil receiver. Cover: Aluminium Guide Bush: Brass Piston: Aluminium Plug, Poppet, Seat Poppet, Rod Actuator: Steel (Corrosive Resistant)   Specifications :

Type : Normally open, normally closed

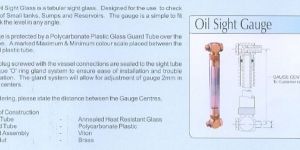

Ryder Oil sight glass is a tubular sight glass. Designed for the use to check the level of small tanks, sumps, and reservoirs. The gauge is a simple to fit and simple to check the level in any angle. The gauge is protected by a polycarbonate plastic glass guard tube over the sight tube. The end plug screwed with the vessel connections are sealed to the sight tube by a unique ‘O’ ring gland system to ensure ease of installation and trouble-free operation. The system will allow for adjustment of gauge 2mm in the fitting centres. Specifications :

Operating Temperature : -20⁰C to 205⁰C

Ryder oil sight glass is a tabular sight glass. designed for the use to check the level of small tanks, sumps and reserviors. the gauge is a simple to fit and check the level in any angle.

Application : Refer our catalogue above

Ryder Oil Level plug used to view the oil level in the pressurized tank. The oil level plug had a circular thick toughened glass with internal reflector. Wide ranges of plug sizes are available. This plug is suitable for high pressure and temperature. Oil level plug mostly used the screw compressor oil tank pressurized hydraulic tanks & vessels Specifications :

Application : Refer Catalogue

Ryder Non Return Valve has a very low opening pressure and low differential for closing even at high operating pressure. The unit locks effectively in reverse directions at pressure differential as low as 0.1 kgf/cm2 . The unit is equally efficient in operation while handling fluids under pressure or vacuum. This valve is a self-aligning unit and hence can be mounted/ fitted in any position. However horizontal position is more desirable Specifications :

  Negative type regulator, the output pressure reduced based on the input. In this type butterfly valve is open always and when pressure increased more than 25Kg/cm2 pressure regulator will close. Specifications :

Ryder minimum pressure valve is designed for use in oil-injected screw compressor and vane compressors. it ensures the necessary oil pressure for cooling and rotary-lubricating of the compressor is maintained. the minimum pressure valve is a spring loaded type and a built in non-return valve. ryder valve gives maximum life to the air-oil separator. 1", 1-12", 2", 2-12" BSPBSPTNPT, Nominal bore: 25,38,50, 62mm

Inflator gun is used to inflate, deflate and check the air pressure in the tyre. Models: C type: Used for two wheelers and four wheelers D Type: Used for all type vehicles including trucks

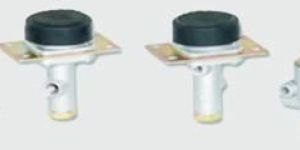

Foot Control Valve is an on-off valve which is operated by foot. The valve body and the foot rest is made up of aluminium alloy and the piston is spring loaded one. It is in the closes condition by means of the spring and when the foot rest is pressed the valve opens and the air to the operation.

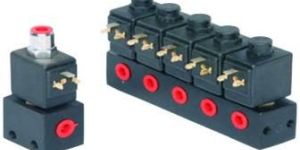

This is a Electro Magnetic Valve and each valve is connected to different function of the component in the vehicle or machine. It is a three way two position valve and operate in 12V DC Solenoid valve. These Electro Magnetic Valves are made from excellent quality raw materials. Our Electro Magnetic Valves can be availed at industrial leading price. Specifications :

Type : NORMALLY CLOSED, NORMALLY OPEN

Voltage : 220/110VAC, 24V/12V DC/coil moulded

Ryder Air gun is suitable for all industries.The air gun is madeup of aluminium body with build in control valves and a hangup hook, Advantages Materials Attractive Design body- Aluminium Max.Flow Tube -Steel Zinc Plated Low Noise Level Valve - Brass Seals Nitrile Rubber spring - Spring Steel.

Ryder throttle cylinder controls the step less positioning of the throttle valve (Butterfly or Fuel Injection Pumps). Throttle cylinder accomplishes a juddar free motion. This cylinder travels up to 50mm. This cylinder is used up to 4 kg/cm' pressure Specifications :
