Dirt, oil and vapour coming through compressed air without getting filtered could eventually have adverse effects on your end products. These contaminants have to be periodically filtered through effective means to increase the performance of pneumatic tools.
oil and water is present both in liquid and vapour state. Complete liquid oil and water is removed by coalescing filters manufactured by trident, which has a filter media (boro silicate micro glass fibres). Oil vapour is removed by activated carbon filters.
features
* automatic drain valve as standard fitment
* particles upto 0.01 microns are also filtered at lower efficiency
* very low pressure drop. 1 psi for dry media and 2-3 psi for wet media
with 10-20 wt oil
* status indicator
* different coalescer grade for various applications
* maximum oil carry over of 0.008 ppm w/w
Dirt, oil and vapour coming through compressed air without getting filtered could eventually have adverse effects on your end products. These contaminants have to be periodically filtered through effective means to increase the performance of pneumatic tools.
oil and water is present both in liquid and vapour state. Complete liquid oil and water is removed by coalescing filters manufactured by trident, which has a filter media (boro silicate micro glass fibres). Oil vapour is removed by activated carbon filters.
features
* automatic drain valve as standard fitment
* particles upto 0.01 microns are also filtered at lower efficiency
* very low pressure drop. 1 psi for dry media and 2-3 psi for wet media
with 10-20 wt oil
* status indicator
* different coalescer grade for various applications
* maximum oil carry over of 0.008 ppm w/w

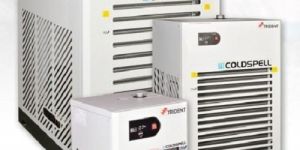

Features
1.Condensing Temperature control for ambient Temperature variations.
2.Hot gas by-pass circuit for partial load.
3.Maintains constant pressure dewpoint.
4.Compressor safety through HP cut switch.
5.The advanced mimic display indicates the functions & faults if any.
6.Trident Automatic Drain Valve provided in Demister & Heat exchangers for
effective Dryer functioning.
Features
1.Condensing Temperature control for ambient Temperature variations.
2.Hot gas by-pass circuit for partial load.
3.Maintains constant pressure dewpoint.
4.Compressor safety through HP cut switch.
5.The advanced mimic display indicates the functions & faults if any.
6.Trident Automatic Drain Valve provided in Demister & Heat exchangers for
effective Dryer functioning.

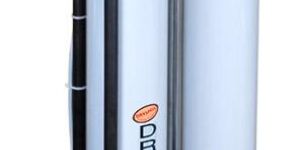

Designed and tested to provide 100% clean dry oil free compressed air. The dryspell is a compact dryer with valves, piping built into the manifold. The dryers are suitable for point of use and available for 10, 20, 30, 45, 60, 90 scfm. The dryer is very economical as it is manufactured in large quantities.
features
* manifold construction
* shuttle valve for low pressure drop
* microprocessor based controller
* pre filter with borosilicate glass element
Designed and tested to provide 100% clean dry oil free compressed air. The dryspell is a compact dryer with valves, piping built into the manifold. The dryers are suitable for point of use and available for 10, 20, 30, 45, 60, 90 scfm. The dryer is very economical as it is manufactured in large quantities.
features
* manifold construction
* shuttle valve for low pressure drop
* microprocessor based controller
* pre filter with borosilicate glass element

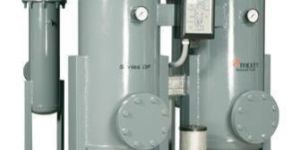

Features
1.Purge economizer, an energy saving device reduces purge loss to as low as 50%.
2.Programmable Controller, with clear functional displays, ensures uninterrupted operation even while tower changeover.
3.Automatic drain valves in pre and oil filter to reduce moisture load and to ensure life of desiccant at no extra cost.
4.All new Microprocessor based controller has a unique purge economizer. The dryer load can be manually set. It can also accept up to 3 compressor load/unload contact and compute dryer load dynamically. The purge is set accordingly. The controller also accepts a pressure input and purge air is controlled accordingly.
Features
1.Purge economizer, an energy saving device reduces purge loss to as low as 50%.
2.Programmable Controller, with clear functional displays, ensures uninterrupted operation even while tower changeover.
3.Automatic drain valves in pre and oil filter to reduce moisture load and to ensure life of desiccant at no extra cost.
4.All new Microprocessor based controller has a unique purge economizer. The dryer load can be manually set. It can also accept up to 3 compressor load/unload contact and compute dryer load dynamically. The purge is set accordingly. The controller also accepts a pressure input and purge air is controlled accordingly.
ldv series:
* zero air loss
* noise free
* condensate sensing type
* design patented
features:
1. the electronic level control ensures proper draining of condensate and avoids unnecessary loss of air.
2. all the functions of the valve are accurately indicated by the led display.
3. test switch (or) manual drain allows function test at anytime.
4. intelligent controller detects valve, probe failure test at anytime.
5. noise free, as air is not discharged.
ldv series:
* zero air loss
* noise free
* condensate sensing type
* design patented
features:
1. the electronic level control ensures proper draining of condensate and avoids unnecessary loss of air.
2. all the functions of the valve are accurately indicated by the led display.
3. test switch (or) manual drain allows function test at anytime.
4. intelligent controller detects valve, probe failure test at anytime.
5. noise free, as air is not discharged.
the valve has a large orifice and special solenoid operator section to discharge dust. should the valve still get clogged you can service it without removing from the installation. press the knob at the bottom of the valve to mechanically clear all the sludge. electronically flush a few times and now it is fully serviced and ready for use.
features:
* easy to mount at all locations
* maintain and clean drain valve without removing from service.
* on and off timing adjustable
* large orifice for effective drain of dust and condensate
* condensate discharging is no more problem
* design patented
the valve has a large orifice and special solenoid operator section to discharge dust. should the valve still get clogged you can service it without removing from the installation. press the knob at the bottom of the valve to mechanically clear all the sludge. electronically flush a few times and now it is fully serviced and ready for use.
features:
* easy to mount at all locations
* maintain and clean drain valve without removing from service.
* on and off timing adjustable
* large orifice for effective drain of dust and condensate
* condensate discharging is no more problem
* design patented
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Year of Establishment1988
No. of Employees51 - 100
Annual TurnoverRs. 5 to 25 Crore Approx.
Ownership TypeLLC (Ltd Liability Corp)
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Established in year 1988, Trident Pneumatics Private Limited is Retailer of Submicron Filters, Seperators - Clean well, Desiccant Compressed Air Dryers, Refrigeration Compressed Air Dryer, Compressed Air Dryers, Automatic Drain Valves (ctd 11 - B), Automatic Drain Valves (ldv), breathing systems, compressed air drain valves, compressed air treatment systems from Coimbatore, Tamil Nadu.
