Unitized Substation Dealers in Coimbatore (4 products available)

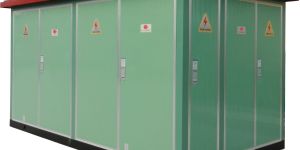

36kV : Compact Series

We offer mx-cs series Unitized Substations (uss). we uss are available upto 36 kv and 2500 kva, offers a high tech standard and economy over the years for the switchgear manufacturer with dependability, reliability and versatility. our mx-cs series unitized sub station is a compact arrangement, which simplifies conventional substation design. substation is divided into three compartments [1] hv compartment [2] the transformer compartment [3] lv compartment salient features of max mx-cs series uss
design conforms to iec 62271-202, iec 1330(1995) and is 14786:2000 standards.
fully compartmentalized design.
ip 23/ ip 33 degree of protections available.
designed to withstand electrical impulses, thermal and dynamic stresses.
compact and occupies less floor space.
available in both indoor and outdoor versions.
tailed configuration to meet customer requirements.
scada compatible.
adequate illumination and safety switches & theft proof designs.
easy to transport, ready to install and operate.
minimal maintenance. model description mx-uss-3lbs uss with 3 lbs, oil cooled/hermatically sealed xmer / acb with mccbs. mx-uss-2lbs1vcb uss with 2 lbs 1vcb, cast resin xmer / acb with mccbs (sf6) mx-cs-uss-st1 rmu, transformer, acb with mccb mx-cs-uss-st2 rmu, transformer, acb with apfc & mccb mx-cs-uss-mv1 rmu, mv metering unit, transformer, acb with mccb mx-cs-uss-mv2 rmu, mv metering unit, transformer, acb with apfc & mccb

Pentagon Switchgear Private Limited manufactures various modules of Indoor Outdoor type Compact package sub-Stations from 6.6kV to 33kV and up to 2500kVA transformer capacity with HTLT Switchgear.Our USS panels are manufactured as superior quality and user friendly products through Innovative design and technological up gradation, The Unitized sub-station is a compact arrangement, which simplifies conventional sub-station arrangement consists of AB switch, Transformer, Lightning arresters are mounted on a pole structure.They are ideally suited for new residential and commercial complexes as it can be placed on ground floor or basement or rooftop of the High raises buildings.
