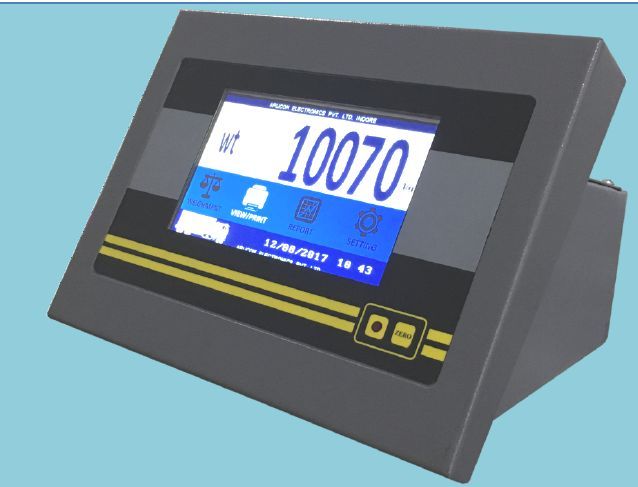

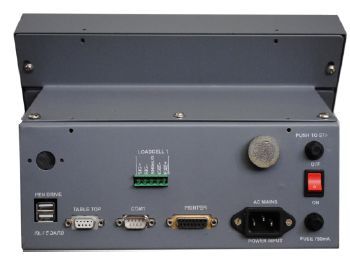

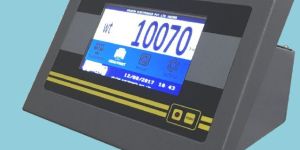

Alphanumeric TFT LCD Module
40,000 Per Piece
Type : Alphanumeric Lcd Modules
Material : Aluminium
Shape : Rectangular
Application : WEIGH-BRIDGE
Feature : Automatic Brightness Control, Easily Programmable, Time And Temperature Display
Condition : New
Display Type : LCD
Power Source : Electric
Country of Origin : India
Processor : 32bit ARM Processor
Processor Clock Frequency : 50 MHz
Real Time Clock : On board battery backed RTC
Memory : Chip based memory to save 1 lac records
Power Supply : SMPS Power Supply
Input Voltage : 90 V to 270 V AC @ 50Hz
Power Consumption : 10 VA approx.
A to D convertor : Sigma Delta type with 24bit resolution
A to D Clock : 20 Hz
Conversion Speed : Internal 25 Sample per Second
Loadcell Excitation : 8 V DC currect capable to drive upto 12 LC of 350ohms input resistance
Signal Sensitivity : 0.3 micro volt per division of weight (unit weight)
Display : 7” TFT multi color
Keyboard Port : 101 key IBM keyboard (USB type)
USB port : USB port for connectivity with pendrive
Printer Port : Isolated Centronics compatible for connecting 80 column dot matrix printer
Serial Port : Isolated RS232 serial port for continuous transmission of weight
Remote Display Port : Remote display port is provided to connect external wired display (0.5” / 1” / 2.3”/ 4”).
Environment : Operational Temperature - 0 to 55 degree Celsius, Humidity - up to 95% RH non-condensing
Non Contact Thermometer
Type : Non Contact Thermometer
Color : White
Application : Monitor Temprature
Driven Type : Battery
Feature : Light Weight, Scratch Proof
Thermometer Type : Digital
