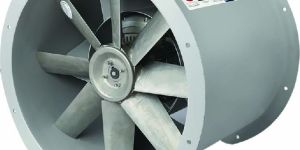

Smoke Exhaust Vane Axial
AIR FLOW" High Efficiency Smoke Heat Exhaust Vane Axial Fan (AFPVX Series) is ideal for safe smoke and heat extraction at less noise level in various diverse application. Our smoke & heat exhaust fan operate in run and standby modes and are suitable for internal and external mounting for both normal and emergency smoke ventilation conditions. Our high efficiency vane design is ideal for high temperature exhaust at relatively less noise level and our impeller comes with manually site adjustable pitch blade to give wide range of air performance. AFPVX Series is UL listed & BS EN 12101-3:2002 certified for Smoke & Heat Exhaust application as following Standards:-

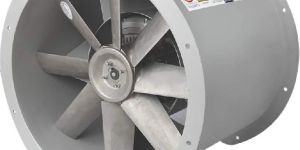

...moreAMCA Certified Vane Axial
AIR FLOW High Efficiency Vane Axial Fan AFPVX Series is the perfect combination of high volume, compact size, durability and superior quality fans required for air ventilation in commercial or industrial segment. Our AFPVX Series are certified for Sound & Air Performance under Fan Efficiency Grade (FEG) from AMCA are among the most Efficient & Silent Fan which helps in reducing overall installation & operational cost.
...moreToilet Exhaust Valve
Toilet Exhaust Valve MAPRO make Toilet Exhaust Valve (MEV Series) are best applied to air exhaust specially for the low air flow movement in circular ductwork. The adjustable central disc can be moved in and out to result adjustment of air flow passage area thus the air flow rate can be varied according to the requirement.

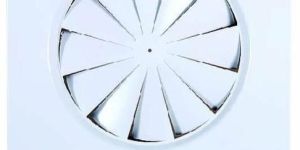

...moreSwril Diffuser
MAPRO make Swirl Diffuser (MSWR Series) is a efficient alternative to conventional square or round ceiling diffusers as they produces aerodynamically controlled air pattern which promotes high induction and provide rotation to room air and led to increases mixing effectiveness.

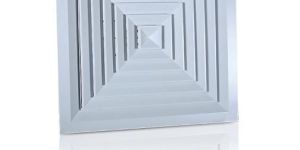

...moreSquare Ceiling Diffuser
MAPRO make high capacity multi louvered face directional diffusers designed to supply large volumes of air at relatively low sound level and pressure drops. Available in square or rectangular shapes, with anti – smudge frame and removable inner core to facilitate the adjustable of air control damper. Option for grid diffusers are designed to suit outer dimension i.e 2’ x 2’ of grid tile, neck size as per discharge of air.
...moreSpot diffuser
MAPRO make Spot Diffuser (MSD Series) is designed to give optimum performance for supply of air - distribution within the large room where supply of air via ceiling diffuser is not possible. The "Eye Ball" and socket arrangement provides the flexibility of setting the air jet to any desired angle within 40 Deg.

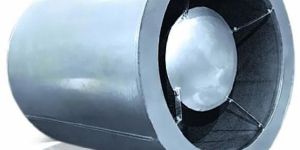

...moreRound Sound Attenuator
"MAPRO" make round sound attenuator (MSA-R) series are specifically designed to reduce ductborn noise generated by axial or centrifugal fan, damper or any other source of noise within a ventilation system. They are also recommended for use in the reduction of noise caused by generators compressors or other similar rotating equipment.

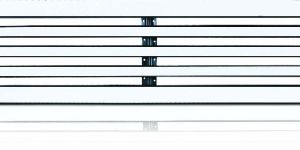

...moreSlot Diffuser
MAPRO Make Multi � Slot Diffuser (MDS Series) are crafted by keeping fully adjustable air flow pattern in mind, achieved by means of two deflectors per slot. Air flow direction in each slot is individually adjustable. Hit & miss dampers (HM) are provided to control flow rate without affecting the air pattern.
...moreplaque diffuser
MAPRO make improvised version of conventional multicone square diffuser with only one passage of all four sides with larger area by stepping down the core. Rest of all the cores is blocked with the sheet fixed to the core ring forming the removable plaque. The appearance of panel or plaque shall have aerodynamic rigid, hemmed edges around the perimeter and shall be the single piece construction the panel shall be flat, smooth and shall be free from any welding and forming blemishes.

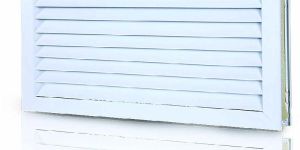

...morenon vision grille
Non vision door grill with one side fixed and other removable flange, an ideal fit for kitchen, toilets doors for transfer of air with 0% across visibility.

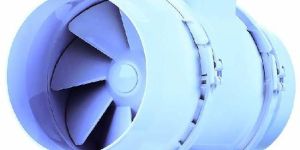

...moreMixed Flow Inline Fan (AFTT Series)
Our range of ultra silent, high efficiency Mixed Flow Inline Fan (AFTT Series) are optimum solution for silent indoor application. Our AFTT Series fan combine powerful characteristics and excellent aerodynamics of Centrifugal & Axial Fan by giving wide range of Air Performance at relatively less sound level.

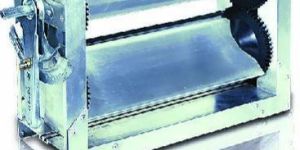

...moreLow Leakage Damper
MAPRO make Aluminum Low Leakage, High Performance Damper is suitable for medium & low pressure commercial HVAC systems, Our VCD is crafted using high extruded aluminum blades. Low Leakage high performance control damper with extruded aluminum aerofoil blades, in open position is completely aligned within frame allowing damper to be directly mounted on duct, louver, filter frame or similar application with no blade interference. High strength aerofoil blades insure the lowest resistance to airflow in HVAC System
...moreLinear Fixed Bar Grille
MAPRO make Linear Grilles with fixed bars at front or vertical bars at rear having 0, 15 and 30 degrees deflection. Angle Round edged flanges available in 20, 25 and 30mm widths with fixed or removable core, are designed to suit aesthetic look of the interior. Wide range of possible combinations suitable for side wall, ceiling suspended or false floor grilles.

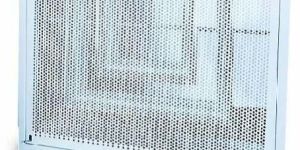

...moreLaminar Flow Diffuser
MAPRO make Modular Laminar Flow Ceiling Diffuser (MLD Series) is specifically designed to provide low velocity laminar air flow pattern required in clean rooms, Labs and operation theatres. Removable perforated face panel allows easy plenum access for cleaning and damper adjustable. Optional HEPA Filtersplenum mounting system.

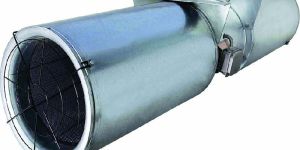

...moreJet Vent Fan
Air Flow provides complete ventilation system for car parking. Our Smoke Heat Exhaust Jet Fan system is active systems offering a cost effective solution to ventilate and extract smoke from enclosed or underground car parks. Our Smoke Exhaust Jet Fans are space and energy saving designs that require less maintenance and investments, and completely eliminates the heavy ductwork. Jet Fans are flexible in positioning when the car parking is redesigned.

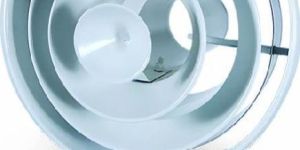

...moreJet Nozzle
MAPRO make high flow Jet Nozzle Diffuser (MJD Series) is suitable for wall ceiling mounting application for large volume of air handling and longer throw. Our MJD Series have a unique feature of setting the device both on diffusion or jet mode and also the universal joint type settings allows both jet or diffusion mode in any desired angle. The diffuser is versatile in any application by virtue of novel �reversible and rotatable� core design which allow the air jet to be adjusted for both pattern and deflection. Unit may be mounted individually or in blanks in bulkhead arrangement or directly into sub duct.

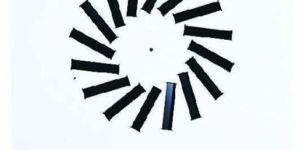

...moreHelical Diffuser
MAPRO make Helical Diffuser (MHD Series) is a variant of high induction swirl diffuser, with individually adjustable radial blades for optimal diffusion, ensuring an instant mixture of primary and secondary air.

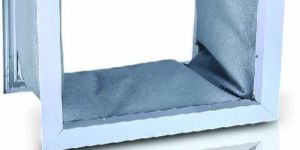

...moreflexible duct connectors
Mapro make flexible canvass connector is ideal solution to isolate duct orand vibration produced by air handling unit, fans, blower and other equipment when connected to air duct. Our canvass connection is constructed with the combination of metal to fabric to metal. Made for industrial, commercial and residential application with special canvass cloth and aluminum construction frame. Our flexible duct connector is a substitute for asbestos & convention canvass cloth. Since it is air tight and has some outstanding properties, it can be considered for almost any application requiring high temperature performance and fireproof result.

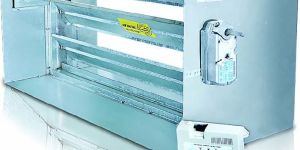

...moresmoke damper
MAPRO make Fire Damper is a perfect combination which perform both functions i.e. A) Fire Damper and B) Smoke Damper. Building layouts and designs often combine fire rated partitions with smoke barriers requiring the installation of both a Fire Damper and a Smoke Damper at a same location. All type of Fire Dampers and Combination Fire Smoke Dampers must be qualified under UL Standard 555-1995 (presently prevalent in India and tested by Central Building Research Institute, Roorkee) as a Fire Damper. The consideration mentioned above applies to the selection and application of both Fire and Combination Fire and Smoke Dampers.

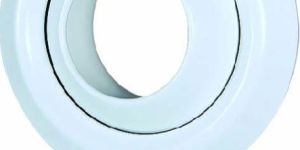

...moreEye Ball Diffuser
MAPRO make Eye Ball Diffuser (MED Series) is designed for aerodynamic flow resulting in low noise characteristics, they can be used is critical areas where the supply air from diffuser has to travel the long distance to the occupied zone when supply of air via ceiling diffuser isnot possible.

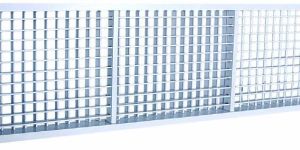

...moreDouble Louver Adjustable Grille
MAPRO make Supply or return air grilles with single double deflection adjustable louvers, to provide multi directional air flow. Optionally, front fixed louvers at 0, 15 and 30 degrees deflection, Available in combination with Rear Vertical adjustable louvers.
...moreDIDW Direct Drive
AIR FLOW make DIDW direct driven forward curve fans is a ideal solution for supply & exhaust application in various HVAC system and products. All wheels are statically and dynamically balanced to ISO1940 and AMCA204 Standards.

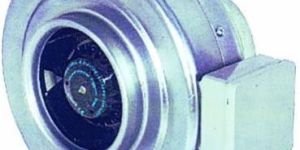

...moreCircular Fans (AF Series)
AIR FLOW inline fans are the perfect combination of Domestic & foreign advanced Technology on Design with Air Capacity of up to 950 CFM. Our Circular Inline Fan comes with CE Certification & with unique feature of Standard Thermal overload protection (S.T.O.P) Inline Circular Duct Fan: - The inlet & outlet sizes of our Inline Circular Duct Fans are the frame which saves the overall design & installation cost. Aerodynamic Impeller Design & special housing helps in reducing overall noise & vibration level. These Fans are compiled with ROHS requirement, Easy to install & can be installed by one person only. Impeller:- Backward curve impeller to achieve higher efficiency & lower noise level. Integration of impeller with external rotor motor is kept in mind while designing the fans. So that motor can be cooled by the airflow itself, which ultimately increase Product Life & Durability. Motor:- External Rotor or Motor passed CE, CCC Certification. The direct integration of motor with impeller i.e. direct driven Fans. The impeller & motor are combined to a whole with small install space, shed controllable & reset thermal protection device. It helps in reducing noise & vibration by keeping proper balance of current. Helps in achieving the optimum utilisation of power. Connection Box:- Connection Box is been designed by keeping convenience of connecting and disassembling of wire in mind. The box is made of fire proof material, which can prevent burning.

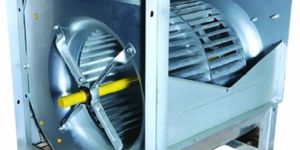

...moreCentrifugal Forward Curve Fans
AIR FLOW range of AFFC Series Forward Curve Fans are of manufactured with precision to increase the efficiency and to reduce the noise level. Impellers of AFFC Series fans are manufactured out of Galvanized steel. All the impellers are statically and dynamically balanced on computerized balancing machine as per quality grade ISO1940 & AMCA Standard 204.
