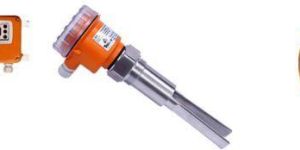

Vibrating Fork Level Measurement Switch Point level switches which are based on the vibrating tuning fork principle that are designed to detect the low and high level of liquids and fine-frained flowing solids.  ELIXIR Liquid Level Switch Solid Level Measurement Switch Vibrating Rod Level Switch PIPE - FORK Vibrating Fork Level Switch

Universal or Fixed Input RTD, Thermocouple, Current & Voltage Front Key Calibration Red or Green Display Color Engineering Unit Labels Insertion Control Action - ON/OFF Control Action - ON/OFF The design of Universal Process Controller is characterized by high reliability and precision, electrical noise and EMI immunity. These features make them ideal for industrial applications in Instrumentation and Process Control. They accept fixed or universal input that can be mA DC, Volts DC, mV DC, thermocouples, RTD or pulse input. The controllers are projected on modularity and flexibility concepts, having single or dual relay output. It can be used for ON/OFF control application where the control action is reverse for heating and direct for cooling. The controller is calibrated for all the basic input and the calibration is not required to be changed if the input type is changed. However if re calibration is required due to any error then calibration can be done through keyboard.

Thermowell are provided to protect the basic sensor from the Thermowell material can be brass, SS304, SS316, mechincal damage and corrosion. An extremely sturdy SS316L, SS310, Inconel 600, Inconel 800, Monel, design may increase the life of the sensor but may lead to a Hastelloy depending upon the process parameters and type poor response. Similarly, a delicate design will have poor life of fluid. For proper selection of Thermowell material, expert but will improve the response time. Various Types of Thermowells : Bar Stock Threaded (BT) (Process threads NPT, BSP or Metric) Bar Stock Fanged (BF) (Flanges as per ANSI, BS or DIN) Bar Stock Weld In (BW) Fabricated Threaded (FT) Fabricated Flanged (FF) Fabricated Weld In (FW)

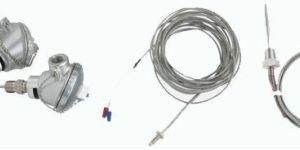

Our Mineral Insulated Thermocouple Assemblies consist of two,four or six thermocouple wires embedded in compact Mgo - mineral insulation, enclosed in a metallic tube The assembly is compact ,flexible enough to route, has a high insuation resistance and high thermal conductivity. Mineral insulated thermocouple assemblies are robust in construction and offer good mechanical strength. Advantages: Faster response Longer length can be offered Pliable and easily routed available in SS316, SS310, Inconel -600,Incoloy -800,SS446 sheath materials

Features :  Ref.Standard   ASME B 40.200,EN 13190 System            Gas  (N2)filled,case  compensated in accordance with SAMA CI.IIIB Dial                 100mm/150mm in aluminium,white background,black marking Case               SS304/SS316 with bayonet bezel Protection       Weatherproof to IP-67 (IS/iEC:60947) Window          Shatterproof glass Pointer           Aluminium, black with micrometer adjustment Stem              SS316 in 6mm, 8mm, 10mm, 12mm dia as standard Capillary        SS Covered / SS Covered + PVC/SS Covered + SS armoured+ PVC (up to 25 mtr.) Connection    1/2" NPT(M) adjustable three piece compression fitting in SS304 or SS316 Range            (-)200° C to 800° C with minimum span of 80° C Accuracy        ± 1% FSD Overrange      125% FSD Reset              Micrometer Pointer Optional          Silcon Oil Filled Case Bimetal Dial Thermometer Gas Filled Dial Thermometer Liquid Filled Dial Thermometer Indicating Temperature Switch

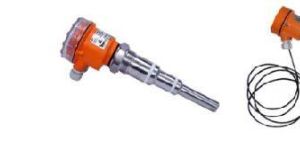

  If you are working with (but not limited to) viscous liquids and slurries, use Sapcon's relaible and accurate level measurement solutions based on the RF-Admittance level measruement principle.  Compact Admittance type Level Switch COATEn-DURE Admittance Level Switch Admittance Level Limit Switch R.F. Admittance Level Switch Intelligent Admittance Level Limit Switch

Up to 48 channels of input. Start/Stop recording by batch, and create data files. Expandable to upto 348 channels with the MW100 automatic connection function. Internal memory increased to 400 MB. Enables control of calibration correction scheduling. Automatically creates template-based  excel spreadsheets. Display & Operation. Arrange the display your way with a custom display function. Review historical data with date and time calender search function.

  The UT35A is a general-purpose digital indicating controller with selectable multi-channel contact I/O and a wide range of communication options. It also comes standard with a ladder sequence function. The UT32A is a compact general-purpose digital indicating controller that supports Modbus and CC-Link communications. It also includes a ladder sequence function.

Pressure and Differential Pressure Gauges, manufactured in accordance with international standard EN 837, CE Certified. Features :  Compliance to latest EN-837 standard. Bourib Sensing Pressure Gauges Range : (-)1 to 1600 Kg/cm2 Liquid Filled Pressure Gauges Bourdon in SS316 Ti as standard providing better mechanical properties guaranteeing repeatability & accuracy  Safety Pattern Solid Front Pressure Gauges Accuracy +1% FSD (standard), +0.5% FSD on request Diaphram Seal Pressure Gauges Capsule Sensing Pressure Gauges Unit of measurement - Kg/cm2, bar, PSI, kPa, Mpa Pressure Gauges intended fr process industries such as chemicals, petro-chemicals, Energy or Gas industry, Food processing, nuclear etc. Receiver Gauges These pressure gauges have been designed to satisfy requirements to operate in an aggresive environment. Absolute Pressure Gauges Master Pressure Gauges Indicating Pressure Switches Hygiene Gauges

Accurate temperature monitoring and control begins with a properly designed sensor. RTD - Resistance Temperature Detector used for temperature measurement (-) 200 deg C to 500 deg C (up to 800 deg C on request), must have the physical configuration neccesary for optimum thermal response to the process fluid it is sensing and the resistive element compatiable with instrumentation. Linear over wide operating range  Wide temperature operating range  High temperature operating range Interchangeability over wide range Good stability at high temperature Most Accurate

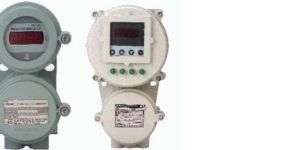

Microprocessor based fault tolerant design. High brightness 4 digit LED display .Wide range,-100 to +400 Deg.C Resolution of 0.1 Deg C over full range . Built in sensor Non Linearity correction to DIN 43760. Single / Two point software Calibration data ratention . Flameproof gas Gr.ll A, B enclosure . Digital Communication Interface on RS485 MOBUS.

The US1000 Digital Indicating Controller has bright LED bar displays,and a variety of advanced control and custom computation functions. Operations and configurations can be easily carried out using the front panel keys or PC. Features : The US1000 Digital indicating controller has bright LED bar displays,and a variety of advanced control and custom computation functions. Operations and configurations can be easily carried out using the front panel keys or PC It is possible to connect moany types of thermocouples,RTDs,mV and V signal for universal input. US1000 has 24 V DC power supply function to connect one or two 2-wire transmitters directly. It is possible to select 3 types of signals for control outputs: 4 to 20mA current,voltage pulse and relay contact.. FM and CS approvals for non-incendive electrical equipment for use in hazardous location,Class I, Div.2,Gr.A,B,C&D:t4. Short depth 150mm,for easy installation. IP65 dust and water protection. Create a custom computation function with Model LL1200 windows-based. Custom Computation Building Tool. Modbus communication with a PC or PLC.

Generally Pressure Gauges and Differential Pressure Gauges are provided with Micrometer type Pointer, by which zero can be adjusted after opening the bezel & glass. However for gauges with Liquid filled Case, this arrangement is practically not suitable, since the filling liquid has to be drained before opening the bezel & glass. After doing the zero adjustment, the Bezel & Glass has to be re-assembled and again the case has to be filled with Liquid. In order to overcome this difficulty, general instruments Consortium has developed a unqiue design if external zero adjustment. By this arrangement, zero can be adjusted without draining the Glycerine, without opening the Bezel, without removing the glass & without touching the pointer, just by rotating a knob provided outside the gauge. Features:  Bellow Type Diaphram Type Capsule Type Magnehelic Type Indicating Differential Pressure Switch
