arrdev international Delhi

These are single stage centrifugal pumps designed to operate with compact hydro massage equipments. They are equipped with total emptying system to prevent the discharge of residual liquid in each stopping. These pumps are designed to operate with clean water at a maximum water temperature of 4.C-50.C. Built of top quality materials; they are subjected to strict hydraulic and electrical controls and are carefully verified

Water Slide : Water slide made of fiber glass with iron frame and water recirculation system.

3m wide and 900 mm high 75 mm wide aluminum made frame foxed with fiber made designer floating base on both side with net and holding rope. Two - no’s

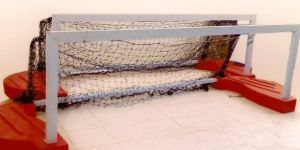

Water polo goal post of 3m wide and 1 meter high with floaters on both side with net on back. the side rope to hold the water polo goal post at one place.

Swimming pool light made of ABS plastic with 100w/12 v halogen light. Surface mounting with diamond cutting shape. Minimum qty: 4 no’s.

SS-304 made Shepherd hook on curved as specified with rod of 10 ft extendable up to 20 ft with aluminum. Minimum packing : 2 pieces.

These are beautiful filter that looks like ladder and had filtration system for water inlet and out let. The sand filter is place and the back end . No piping or puncher is need if these filters are installed. The capacity of per ladder filter is 500sqft area. Water filter capacity of 6000 liters per hour and pool capacity of 48000 liters.

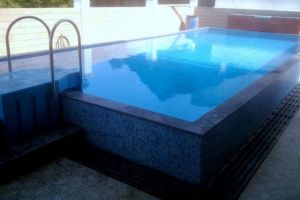

Combo pipeless fitler is for both domestic and commercial swimming pools with size of 700 sq ft (20x35ft). It has three step ladder and one under light in it. All systems are inbuilt and complete swimming pool filter and accessories requirement. For bigger size that 700 sq ft multiple filters are installed. It have 1 hp motor and flow rate can be 10000 ltrshr. Inbuilt fountain aeration system is also there.

HALOGEN under water light of 100w/12v with two color covering and accessories for surface mounting. Minimum qty : 4 no’s.

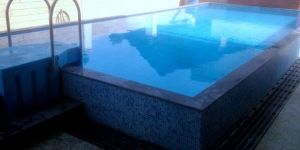

Pipeless filter for swimming pool with deck mounting . no cutting or change is needed in swimming pool. 1.5 hp circuation and 20000 liter capactiy. with cartidge filter cf-75 2 no's with one under water light.s

swimming pool step well made of fiber glass with size of 9x6x4ft and with filter pump clenaing accessoires and under water light inclusive.    heater side bars additional.

Number Of Flower : readymade swimming pool

Brand Name : arrdevpools

Material : fiberglass

Drain Location : bottom

Massage Type : jet

Life jacket made of Teton cloth with floating foam inside with quick release fixture including zip on front side. The jacket is equipped with reflectors. Suitable for adults in swimming pool only.(Weight of life jacket: 600 gram). Minimum packing : 10 pieces(other sizes depend on order).

Life buoy made of fiber glass with floating foam inside. Having reflector and nylon  rope.

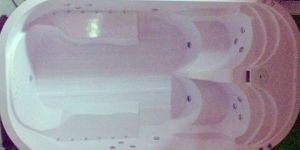

The need of Indian families for small spa with swimming facility was felt long so Arrdev have come up with swim spa which is suitable for the small space and can be accommodated in just 100 sqft (10 sqmeter). This is suitable to fit at roof top with less weight; it can also be placed at back yard of house or inside house. Even fit in big size balcony.SWIM SPA SIZE: 12 x 6.5 x 3.5 ft.Water quantity: 4000 LitersWater Filter: CF-25 micron same water used for entire year.6 person usage for massage jets.( Air and water mixed) 2 people - lounge sitting.1 person counters current endless swimming.Water heater, air blower and LED lights.The swim spa can be installed above or below ground. Swim spa is equally good for outdoor or indoor usage.Unique Design:Swim spa is having Unique design with overflow and skimmer.The access to the spa is from three sides.Ample sitting area fully submerse or sitting on ramp.It occupy only 100 sqft space in your house.Massage JETSSwim spa has Jacuzzi jet for body massage at back and shoulders.Pressure is controlled by mix of air for soft and vigorous massage.Endless Swimming Jets3 no’s of jets are in v – shape allow user to swim in pool.The circulation pump is of 3 hp with single phase only.3.5 ft depth allow safe swimming for beginner or kids.Water FiltrationSwim spa is equipped with CF-50 online cartridge filter of 25 micron which cleans the water up to crystal clear clarity trough out a year. And electrical consumption is very low and only need electricity of 2 units per day.LED light Color changing LED light for different effect.OVERFLOW SPILL TUB SPAArrdev has made the innovative spa which is overflow type water collected in glass chamber.Water Recirculate into spa with online filter of 25 micron.4 people sitting in spa at one time.Same water used throughout the year.All weather usage with heated water.12 no’s of Jacuzzi jets are for 4 persons with two jet pumps and air controller.24 no’s of air jets are for whirl pool with air blower.Digital control and air controlled on off system.All above ground or semi ground installation.LED color changing lights.Jacuzzi TUB for 2 persons 2.5 ft wide and 6 ft long with capable to have 9 massage jet nozzles.

Fiber made 500mm x 500mm with 10 degree slope with 600mm high from pool deck. Frame made in SS-304 and removable fixtures. All four side numbering. As per FINA specifications. Minimum packing : 4 pieces.

Starting Block : Fiber made 500x500 mm with 10 degree slope & 300mm high starting block for olympic/ competition swimming pools. Minimum packing : 2s pieces.

Fiber made any size (8 ft) with anti slippery surface and Thickness from 25mm to 40 mm with flexible material inside. Minimum packing : 1 piece.

Swimming pool inlet nozzles with made of ABS and jet ball inside to be fixed in 63 mm 6kg/cm2 UPVC pipes and fittings. Minimum qty: 10 pieces.

SS-304 made Shepherd hook on curved as specified with rod of 10 ft extendable up to 20 ft with aluminum. Minimum packing : 2 pieces.

The shape and size of your swimming pool should be determined according to the type of usage the pool will get: A purely recreational pool needs a large shallow area and any shape will do. A pool built for swimming laps should have a long, straight section with parallel ends. If you want to make swimming a part of your daily workout but have limited room in your backyard, a swim spa might be the best option for you.

Side mounted multi port valve for water filter, backwash and rinse. The filter is made of fiber glass with lamination and bobbin wound method. The working pressure is 1.5-2.5 kg/cm2. The media of water filtration is quartz sand and gravels. For Olympic size swimming pool the horizontal filters or MS made big filters are used as the fibre made filters are not available in size of 2000 mm. Mild Steel filters can be made in any size and air blowers are being used for more than 1800 mm size filters. Olympic pools are having capacity of at least 3000000 liters of water and that is being filtered with multi grade sand filter in line arrangements. Air blowers are being used for aerations.

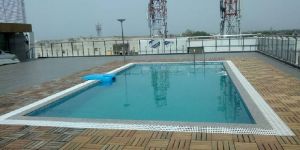

roof top installation save the cost of RCC and PCC for swimming pool. the cost is less in this case. Roof top prefabricated swimming pool are of two kind one is of single piece ready-made fiber glass swimming pool which has its own limitation in terms of size of swimming pool and lifting issues. Second is the prefabricated liner pool which can be made in any size and shapes. The panel pool is very light weight on roof top and second the issue of leakage and seepage never happen as the liner sheet is impermeable  . The system of prefab pool can be supported with steel brackets which are wall supports and also support the pool deck in case of wooden light weight deck is made. The water filters are of pipe less in nature and also sand filter with over flow channel can be incorporated if needed.

Roman shaped pool are one side semi-circular.The steps are made in that semi-circular side.The water filter, circulation , drain pumps along with pool cover, under water lights and skimmer etc. all are factory fitted.

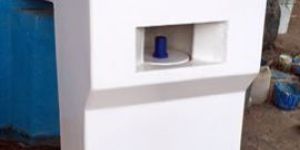

This filter is complete in all respect. It has skimmer at both side & delivery water from front. It save 100% water, reduce 70% chemical consumption and 50% electricity in comparison of conventional filtration systems. This unit hang on wall of less than 300 mm  at any one wall of swimming pool. No balancing tanks, no filter room , no skimmers and no plumbing system need.

Designing : First process is to design or to formulate the Architects drawing into working drawing from structural point of view. For Olympic and semi-Olympic pools all provisions for international law and guide lines are incorporated. The safety and associated utilities building are considered as required such as balancing tanks, filter rooms, overflow channel etc. Mechanical Work : In overflow channel method we uses the piping during civil work with co-ordination of overflow channel, balancing tank and filter room. If we are going for Pipeless filters, multifunctional filters or wall hung filter that  remove the need of piping at all.(in those cases any agency can perform the civil work). The filters are designed as per the requirement, all valves and valve chambers are provided. The filtration plant with filter, pump ,chemical doser etc. are place and fixed.   After concreting work and water proofing the most important work is to select the tiles and stone for outer finishing as these are the main finishes of swimming pool.   The tiles are of three types: Glass mosaic 20x20mm size, Hand made tiles usually 50 x50 mm and ceramic tiles. Some time the stone is also the finishing of swimming pool.   On deck area the planters and foot decking is provided. The stone, granite or tiles can be the finish wood is also great idea, but wood timely maintenance.
