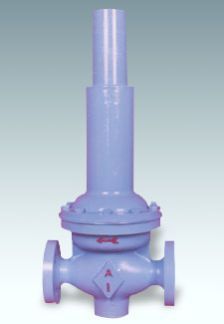

The BP series are upstream pressure control valves. These are general purpose self operated pressure relieving valves for controlling many kinds of fluids and gas. The opening of these valves is in proportional to the rise in inlet pressure beyond set value. Different soft sealing discs are available for different fluids and gas. These discs can be handle wide range of pressure and temperature up to 150 C .ensure shut off the metal sealing surface are carefully lapped at higher temp. These back pressure regulating valves are very well suited for high and varying pressures. Features:-   Gland less ConstructionThe glandless design scores over conventional solution such as below seals etc, where positive zero gland leakage is required as the gland its self is eliminated. Gland less construction results in improvement of sensitivity and repeatability of the valves, as it eliminated hysteresis. Wide range of flow To satisfy the varied flow requirement, wide range of body sizes and parts diameters are available. Accuracy of valvesLarge actuating areas provided more precise control even at low pressure settings. Easy to maintainActuator internals valve disc are holder can be inspected and replaced without removing regulator from pipe line Specification Body Size:These are available in ½”, 1”, & 2” sizes in flanged as per ASA 150 rating. Material of Construction : - ASTM-A-216 Gr, WCB (Standard) CF8, CF8m Bottom Diaphragm Casing : - Steel (Std), S.S-316 or same as body material. Spring Casing:- Steel. Internal Trim Parts :- S.S-316 (Standard, Copper, Brass. Disc & Diaphragm :- Nit rile (Standard), Neoprene, Silicon, PTFE.

When air pressure at the inlet port is reduced a differential in the pressure acting on the diaphragm is created. The differential in pressure lifts the diaphragm from the exhaust port and seats it on the inlet port. This opens the port allow air to flow freely from the out let port to atmosphere and close the inlet port.Should outlet air pressure drop below inlet pressure the differential in pressure seats the diaphragm on exhaust port stopping further exhaust. Feature   Internal Pilot Operated. Line mounted valve. Special version may be developed on request. Suitable for air, water, gas, liquid, oil.   Body Material: Aluminium body (LM-04) Working Pressure: 3 to 7 kg/cm2. Diaphragm: Nit riles, Neoprene. Sizes: 15 NB to 150NB.

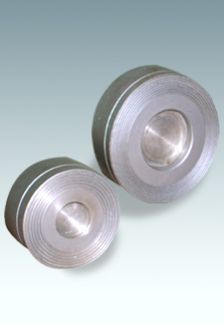

Complies with API-6D and API-594. Sizes: 15mm to 250mm. Type: Non-Slam, Dual Plate and Wafer. Materials: DI, WCB, CF8, CF8M. Ratings: Class 150. Ends: Wafer. Special: Very Low Pressure Drop.

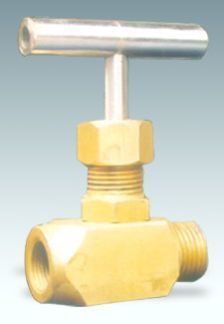

Needle valve come in bar stock in various sizes, sealing styles stem types. Main feature of our Needle valve is that its stems are interchangeable with any of its valves of the thus resulting in low cost endless inventory. Material of Constructions:Normally the material that is used for construction of Needle valve bodies and its various parts SS 316 or SS, MS/Brass. Features: High working pressures. Different types of end connections viz: double ferrule type, NPT, BSPT and many other standard connections. Various packing materials are used for different applications depending on requirements, temperature and with hard seat and with soft seat design. Colors coded handles.

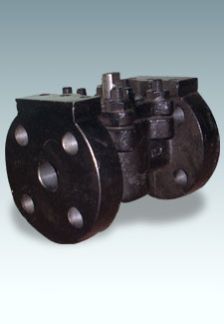

Number Of Flower : Plug Valves

Material : Cast Iron

These valves are known as OnOff Valve, it is use in air dryer and suitable for controlling of air and water, different soft sealing and Teflon sealing are used depending upon pressure and temperature, also available for higher pressure.

Size : ½”, 1”, 1 ½”, 2”, and 3”

These valves are known as onoff valve, it is use in air dryer and suitable for controlling of air and water, different soft sealing and teflon sealing are used depending upon pressure and temperature, also available for higher pressure.

These valves are known as On/Off Valve, it is use in air dryer and suitable for controlling of air and water, different soft sealing and Teflon sealing are used depending upon pressure and temperature, also available for higher pressure. Wide range of flow Wide range of body sizes and flanged ASA-150, ½”, 1”, 1 ½”, 2”, and 3”and for higher size higher pressure contacts ASHU INDUSTRIERS. Easy to maintain Easy to change sealing, Teflon, U-Seal, O-ring, and Spindle- S.S-304 Material of Construction   Body Material, (Aluminium LM-04), Cast Steel, depending upon the pressure and temperature. Body sealing aluminium and disc seating Teflon.   Used in process services Oxygen, Nitrogen, Hydrogen. Utility Services Air, Water, Gas. Operation 2 Way and 3 Way

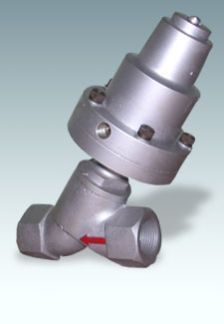

The angle valve is pneumatically operated and extremely reliable. They guarantee a high number of working cycle as well as bubble tight sealing. They are installed with self lubricating and self adjusting plug stem set that automatically adjusts its self as it. The self align plug with a seal in PTFE, guarantees tight closer even in the most arduous condition. Technical Characteristics Technical Characteristics Air, Water, Oil, Petroleum products, steam, etc. (as long as compatible with AISI 316L or PTFE). Pressure from 0 to 15 bar (Steam from 180 0C from 0 to 10 bars). Depending on the size and model. Temperature from -10 0C to 180 0C. Max Viscosity 800 cst (mm2/s). Control Media Driving media: compressed air, lubricated or dry, gas or neutral media. Ambient temperature: -10 0C to + 60 0C. General Feature Body Valve Material: Aluminium LM/4. Valves Ends: Screwed / Flanged. Assembling is possible in all position: upright, flat or angled. Range available from DN-25 to DN-50 in double acting versions, spring return N.C. from above and below the plug, spring return N.O. from below the plug.
