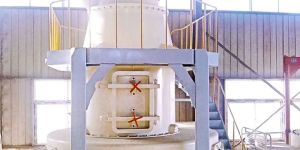

Hyper Pressure V Type Grinder is new type high efficiency grinding mill designed by EMCC engineer combining clients requirement and practical situation. Advantage Star rack and V type grinding roller centrifugal force is transformed to grinding force grinding roller parallel transmit around vertical axis to press grinding ring to guarantee the max surface contact of grinding roller and grinding ring capacity is improved by 30%. Classifier is available According to fineness requirement bladed classifier (80-325 mesh) and cage classifier (200-1250 mesh) are available. Spacer protective measures Main machine is under protection easy to be replaced and maintenance costs is reduced Grinding device Grinding roller and grinding ring get wear uniformly and lengthen the using lifetime. Product introduction Production capacity : 0.5-40T/H Notice: this capacity is mean value capacity and the specific production capacity is subject to clients’ actual equipment configuration. Processable Material : Power process for limestone calcite fly ash calcium carbide kaolin calcium carbonate coal gangue gypsum slag ore slag coal dust bentonite barite marble talc refractory material. Range of Application : Glass rubber farm chemical enamel oil paint phosphatic fertilizer and papermaking industry. Hyper Pressure V Type Grinder is new type high efficiency grinding mill designed by EMCC engineer combining clients’ requirement and practical situation. Compared with traditional high pressure trapezium mill and high pressure overhang roll mill in the market, it has many advantages. Hyper Pressure V Type Grinder is widely applied in glass, rubber, farm chemical, enamel, oil paint, phosphatic fertilizer and papermaking industry and it could process material whose Moh’s hardness is less than 9.3, moisture is less than 6%, such as talc, barite, calcite, limestone, manganese ore, iron ore, quartz stone and bentonite. Working principle After reducing driving force of the main motor by the gear reducer when the drive center axis and the quincunx rack fixed on the center axis revolve under the centrifugal force the roller revolves around the center axis at the same time parallel swing around the shaft making the roller compress out side to the ring thus ensure that the roller and ring has maximum surface contact. At the same time the roller self revolves around the roller shaft making the material scooped up by the shovel blade to grind after grinding the powder blew to upper part of the mainframe then separating by the separator too coarse powder drops to the grinding room to re-grind the qualified powder airflows into the cyclone powder collector through the discharging pipe is qualified product.

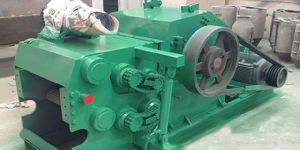

Drum chipper is specialized equipment for high-quality biomass sheet processing, which is applied to all paper mills, particle board plants, fiber plants and wood chip production base, wood chip export base. Advantage Available raw material:Wood logs, branches and twigs with moisture more than 15%. Sperical material blade, with high strength and anti-abrasion. Free of any professional tool sharpener, low maintenance cost. Knife roll is wholistic processing and is undertaken dynamic balance test to improve accuracy and stable operation. It can process larger diameter wood with its special structure. Low power consumption, with is 20-30% lower than similar product in market. Feeding system consists of feeding and squeezing parts: Squeezing part is automatic controlled by hydraulic system; PLC controls the whole feeding system to guarantee the smooth feeding. Forging dead plate, with high strength and long service time. Product introduction Production capacity : 4-70 m3/h Range of Application : Wood logs, branches and twigs with moisture more than 15%.   Drum chipper is specialized equipment for high-quality biomass sheet processing, which is applied to all paper mills, particle board plants, fiber plants and wood chip production base, wood chip export base. The slicer can cut logs, small diameter wood and other material into high-quality industrial wood chips with uniform length and thickness and flat cut. It can also cut branches, plates, etc.. Working principle The slicer can cut logs, wood branches, slab, waste veneer, bamboo, cotton stalks and other non-wood fiber stalks into certain specification sheet material, which can be material of particleboard, fiberboard, non-wood-based board and paper. It has advantages such as advanced structure and high quality sliced product, strong materials adaptability and easy operation and maintenance. This machine is composed of base, blade roll, upper and lower feed rollers, conveyor belts, hydraulic system and other components. The welded base that made of high strength steel is support of the whole machine. Two fly knives are fixed onto the blade roll by specially manufactured fly knives and pressure blocks. According to different raw material thicknesses, the upper feeding assembly can up and down within certain range by means of hydraulic system. Qualified flakes falling down through the mesh sieve and large flakes will be re-cut in the machine. Technical Parameters

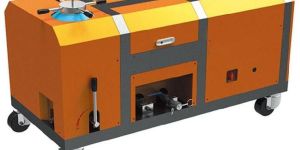

QSM-5-15-B-SH is a new type of portable cutting equipment functioning by front-mix abradant water jet flow; it adopts cold cutting technologies. This waterjet cutting machine has passed spark test, static electricity test and temperature test, and met the anti-explosion requirements. Note: QSM-5-15-B-SH waterjet cutting machine is an integral part of the main machine system and provides high-pressure water jet flows for cutting operations; it needs to assist cutters (for example pipe cutter), cutting gun assembly and high/low-pressure hose to complete cutting operations. Product features: Small, light and portable; Simple and compact structure, easy operation; The anti-explosion motor power (EXd Ⅱ CT4) meets the operation requirements; Low noise, free of environmental pollution; Low working pressure, easy system maintenance.

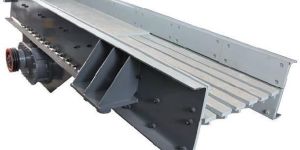

Details Vibrating feeder is for feeding block material for crushing and screening machine. It is divided into steel plate structure and grate structure two types; steel plate structure vibrating feeder is applied in stone and sand production line, grate structure vibrating feeder is for coarse screening material to make whole system more economical, it’s an essential machine in the crushing and screening line. Advantage Grate Grate clearance is adjustable according to requirement backplate is removable to simplify maintenance and lengthen service life. Gear High strength and high high precision gear make stable working of machine Motor Famous motor brand clients can choose Siemens brand Oil quantity display Clients can check the position of lubricating oil Product introduction Production capacity : 30-800T/H Notice: this capacity is mean value and the specific production capacity would be subjected to actual equipment configuration of clients. Processable Material : granite marble basalt iron ore cobble shale bluestone coal cobblestone construction waste. Range of Application : It’s applied in crushing and screening line in metallurgy coal ore dressing building materials chemical industry and abrasive industry.   Vibrating feeder is for feeding block material for crushing and screening machine. It is divided into steel plate structure and grate structure two types; steel plate structure vibrating feeder is applied in stone and sand production line, grate structure vibrating feeder is for coarse screening material to make whole system more economical, it’s an essential machine in the crushing and screening line. GZD Series Vibrating feeer adopts vibration motor as the source of vibration, which has features of simple structure, high capacity, low maintenance rate. It can be widely used in the fields of metallurgy,construction, stone crushing, etc.. While, ZSW Series Vibrating feeder adopts eccentric block as the source of vibration, gear drove by turns which has low vibrating noise, smooth operation, long usage. It can also pre-screen fine raw materials which makes higher effiency. The design of adjustable fence can prevent the materials from blocking in the gap.   Working principle GZD Series Vibrating feeer adopts vibration motor as the source of vibration which has features of simple structure high capacity low maintance. It can be widely used in the fields of metallurgyconstruction stone crushing etc. While ZSW Series Vibrating feeder adopts eccentric block as the source of vibration gear drove by turns which has low vibrating noise smooth operation long usage. It can also pre-screen fine raw materials which makes higher effiency the designing of adjustable fence can prevent the materials from blocking in the gap.

  VSI vertical shaft impact crusher (sand making machine) is our crystallization of diligence and wisdom . Advantage Two crushing ways of “rock on rock” and “rock on iron”. Multiple crushing ways meet the needs of different materials crushing. Dual Pump Design There is only one pump working in normal use. When the value of the pressure and flow rate do not reach the set value or when the first pump fails the second will open automatically to ensure the normal operation of the host. Bearing Bit Thermostat Bearing bit thermostat and pump automatic cycle ensure that the temperature inside the bearing cartridge similar to the oil in the tank to prevent the winter freeze. Hydraulic Arms Hydraulic arm design greatly reduces maintenance costs. Working principle VSI crusher design is based on the principle of mutual crushing and friction in the high-speed movement materials. This type sand making equipment can not only crush stones but also the stones and gravel can be shaped by it. According to feeding method centrifugal impact crusher working form is divided into central feeding and central with cascade feeding; the crush form is divided into “rock on rock” and “rock on iron” according to material compressive strength abradability. So the VSI crusher can be divided into four kinds: “rock on rock” and “rock on iron” with central feeding “rock on rock” and “rock on iron” with central with cascade feeding. Material from the hopper falls into VSI sand crusher and will be divided into two parts. One part passed into high speed rotating wheel to be accelerated and high-speed projectile rapidly impact crushing another part of the material from points around the tray and will be impacted on the vortex branch cavity lining together. Then it will be bounced back to the top of vortex chamberand the movement direction would be changed to start moving down on the diagonal; materials emitters from the impeller form a continuous material curtain. Finally crushed material discharge from the lower discharge port. Product introduction Production capacity : 60-500T / H Note: this is only an average value and the specific value is subject to the clients’ actual equipment configuration in site. Processable Material : Limestone river gravel rocks bluestone cobblestone weathered sand basalt granite quartz diabase etc. Range of Application : Non-metallic minerals building materials artificial sand and a variety of metallurgical slag crushing and shaping VSI vertical shaft impact crusher (sand making machine) is our crystallization of diligence and wisdom . Its integrated design we owe to the technology R&D specialists who personally go to the scene to understand the demand and opinions of equipment operators. By increasing production, reducing wear cost, prolonging maintenance cycle, thus we developed this multi-purpose crusher which has a couple ways of feeding and crushing modes, making it become the preferred device in the fields of stone integer, artificial sand, refractory, ball mill feeding, industrial construction materials processing and so on.

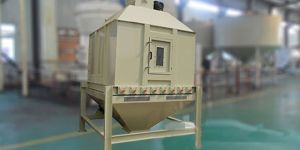

Counter-flow cooler is newly developed and most advanced pellet cooling equipment. It is mainly used for high temperature pellets cooling after granulation. Advantage The unique rotating well-distributed institution makes the materials more even and the cooling effect more thorough. The pendulum flap discharging institution is controlled by hydraulic system, even and smooth discharging. The discharge speed can be adjustable. It can cool kinds of materials like round, block, piece or pellet status.  Low energy consumption and easy to operate. The temperature after cooling will not be over 3 or 5 ℃ of the room temperature. Product introduction Production capacity : 5-30 t/h   Counter-flow cooler is newly developed and most advanced pellet cooling equipment. It is mainly used for high temperature pellets cooling after granulation. Working principle The pellets discharged from the pellet mill are of high temperature and moisture. They are fed by a closed air feeder at the top of the cooler. Then the rotating distribution structure disperses the feed evenly in the cooling cabinet. The air blower sucks hot air from the top feed part, while the cold air enters the cooler from the bottom in all directions and pierce into the feed vertically to take away the heat and moisture. Cooling air reverse the pellets and the pellet is cooled from the bottom to top gradually, thus the cooling time is increased, which does good to the production of high quality pellets and to extend the time of pellets storage. Cooling time is controlled by material upper and lower level. When material reaching upper level, the motor is turn on, beginning discharging. But when material lower than lower level, the motor is stopped, stopping discharging. To avoid overflow, the cooler has been provided with an overflow sensor, which stops feeding to the cooler. The pendulum counter-flow cooler is composed of a closed air feeder, air exhaust header, upper and lower feeders, hydraulic controlling system, pendulum flap discharging system and air sucking system, etc. Technical Parameters

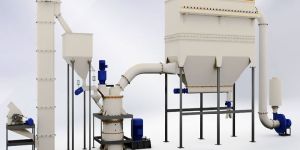

This case is the classic ultrafine talcum powder processing field. HGM80 three-ring medium speed micro powder grinder can process talcum into 800 meshes used for papermaking filler. The fineness is even and through sieving rate is about 95%, which is very satisfied for the customers. HGM series three-ring micro powder grinder can also be called Ultrafine Grinder. On the basis of the mill production experience for many years, it absorbed Sweden’s advanced mechanical manufacturing technology. After more than 20 times’s test and improvement, it is a new type of ultra-fine powder processing equipment and is the latest product to lead the world trend of mill.

Symons production line configuration is suitable for high hardness of stones, with finished product granularity in 3 mm – 64 mm. Discharging granularities can be adjusted according to need.

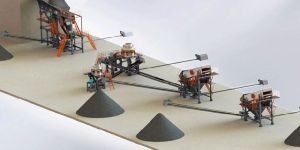

Symons stone crushing production plant configuration is suitable for crushing high hardness stone with finished particle size 3mm-64mm. The particle size can be adjusted according to need.   Advantage 1.Big crushing ratioand high capacity; 2.It adoptssteel frame instead of concrete foundation, making installation easy and quick and appearanceWhen you need to move to better production site, the steel frame can also be secondary used. 3. Wearing parts useshigh-strength wear-resistant materialsto enable low loss and long service Product introduction Production capacity : 27-600T / H Note: this is only a average number and the specific value is subject to the clients’actual equipment configuration in site. Processable Material :Gravel crushing process of limestone granite marble basalt iron ore river pebble shale bluestone coal cobblestone construction waste Range of Application : metallurgy construction water & electricity transportation chemical industry building materials industry Symons stone crushing production plant configuration is suitable for crushing high hardness stone with finished particle size 3mm-64mm. The particle size can be adjusted according to need. WKS Symons cone crusher developed by EMCC meets customers’production reqirements and there are two specifications of standard and short head type. Our equipments always pursues efficiency, reliability, stability, durability to help customers achieve long-term an stable income. Working principl Raw materials are screened and carried by vibrating feeder which conveys large materials into jaw crusher equably for primary crushing. Crushed materials will be transported by belt conveyor into WKS Symons cone crusher for fine crushing and then materials enter into circular vibrating screen for screening to distinguish the different specifications of finished product and unqualified gravel will be conveyed into cone crusher to be crushed again.

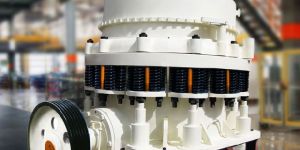

Symons cone crusher is a improved machine of PY series cone crusher. It’s applied in above medium hardness all kinds of ore and rock. Compared with PY series cone crusher, it has reliable structure, high efficiency, easy adjustment, low cost and many other advanrages. Advantage Unique Cavity Design Lamination crushing has a great performance on high hardness material even and good final product shape high capacity. Dry Oil Seal Unique dry oil seal can protect machine from dust reliable seal Replacement cycle and service life of parts are lengthened. Overload Protection Spring system is overload protection to protect machine from metel damage.lengthened. Rolling Mortar Wall More material is allowed to be taken into machine and discharge volume is increased. Working principle When working the motor will drive the eccentric shaft to move through the V-beltbig pulley transmission shaft small bevel gear big bevel gear the cone crusher’s eccentric shaft central line will revolve wit the eccentric shaft sleeve. Then the concave will be close then far away from the mantle surface then the material will be circled around the fixed and mobile cone impacted pressed and then curved. After many times of repetition material would be crushed into the desired size then discharged from the lower part. Product introduction Production capacity : 20-600T/H Notice: this capacity is mean valueand specific production capacity would be subjected to actual equipment configuration of clients. Processable Material : granite marble basalt iron ore cobble shale bluestone coal cobblestone construction waste. Range of Application : metallurgy construction white fuel traffic chemical engineering construction material. Symons cone crusher is a improved machine of PY series cone crusher. It’s applied in above medium hardness all kinds of ore and rock. Compared with PY series cone crusher, it has reliable structure, high efficiency, easy adjustment, low cost and many other advanrages. It’s applied in metallurgy, construction, white fuel, traffic, chemical engineering, construction material to process above medium hardness all kinds of ore and rock, it’s the best choice for large scale stone plant and ore crushing.

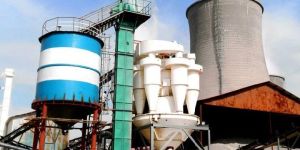

Details KX superfine rotor classifier is external circulating new type classifier with rotor and its designed and developed by EMCC. based on rotor type classifier and combined plane eddy flow theory this kind of classifier is designed. Advantage   High quality of final product New type high efficiency low resistivity cyclone dust collector makes low resistance and high dust collection efficiency. Longer service life New type lining plate is adopted in all consumable parts easy to maintain and effectively extanding the life of the host machine. Shock absorption device Dustproof -shock absorpting fan minimize the vibration of the whole system Anti knot fell good effect Flexible sweeper is set inside the machine to keep machine clean. Product introduction Production capacity : 16-160T/H Note: This is a mean value capacity and the specific is subject to the clients’actual equipment configuration in site. Processable Material : Limestone calcite fly ash Calcium carbide desulfurization kaolin calcium carbonate coal gangue gypsum water granulated slag fine slag powder coal dust bentonite barite marble talc refractory material. Range of Application : With grinding mill and ball mill to screen final product. Being set up in sand making production line.   KX superfine rotor classifier is external circulating new type classifier with rotor, and it’s designed and developed by EMCC. Based on rotor type classifier and combined plane eddy flow theory , this kind of classifier is designed. Proved by practical use, powder classifying efficiency is up to 85%, flexible in fineness adjustment, reliable in performance. Working principle 1.Raw material is taken to the inside of classifier from hopper then falls on the combination propeller bulk plate which combines with rotor under the force of rotation of bulk plate. Material will be diffused to all around under the centrifugal force meanwhile material will be raised by the updraft caused by blade rotation and material boiling will be formed on the bulk plate blade. Finer powder will float and suspend and coarse material will falls down along the cylinder wall. Then the first process will be completed. 2.A lower cage-shape rotor 10 is set under the material diatributing tray. The lower cage-shape rotor rotates along with the principle axis. With the rotating movement vortex flow is formed. Then the coarser and heavier material will be scattered again and the finer material will be raised and returned to the circulating air for another classification. And the coarse powder will be excluded from endocone through trickle device. Technical Parameters

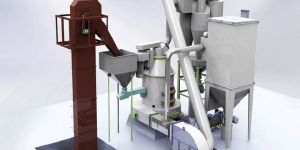

YGMX ultrafine powder mill production line is suitable for processing materials with fineness of finished products in 325-1250 mesh. Advantage 1.With stable operation, the unique structure grading wheel equipped inside the hostmakes good grading effect, ideal particle size, stable product quality and no large particle contamination. It is currently ideal equipment of non-metallic mineral powder dry 2.The rollerand ring adopts special wear-resistant steel, achieving low wearing, long service life and easy maintenance and reducing downtime and replacement 3.The equipment can independently complete the whole production process from raw material crushing equipment, transport, milling to the finished product collection, storage and packaging. 4.Squirrel-cage classifier improvesgrading capabilities and efficiency. Product introduction 0.4-18T / H Note: this is only an average value and the specific is subject to the clients’actual equipment configuration in site. Processable Material :Powder grinding process of limestone calcite fly ash calcium carbide desulfurization kaolin calcium carbonate coal gypsum slag powder bentonite barite marble talc refractories etc. Grinding processing of mineral materials and other more than 280 kinds of materials in metallurgy building materials chemical mining etc. YGMX ultrafine powder mill production line is suitable for processing materials with fineness of finished products in 325-1250 mesh. The YGMX ultra-fine powder grinding mill does not only meet customer requirements for fineness, but also meets the big yield requirements of customers. It not only has the function of product improvement, but also pursues efficiency, reliability, stability, persistence, to help customers achieve long-term, stable income. Working principle After crushed by hammer crusher materials enter into hopper through bucket elevator and then the material inside silo would be evenly taken into YGMX superfine grinding mill by the electromagnetic vibration feeder.Grinded materials enter KX high fine rotor type classifier through the upper spout under the action of windand the dust is purified by pulse dust collector also.

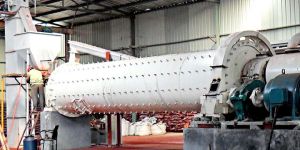

MQX series Superfine Ball Mill is a kind of new type and high-efficient powder and superfine powder process machinery which is used for grinding the medium and low-hard material, the classified powder could be adjusted between 300 and 2500 mesh. Advantage Lining plate and grinding medium Optimize texture of lining plate and grinding medium according to German technology to reduce rate of spoiled products and increase efficient of grinding. Grinding medium and grinding auxiliaries Grinding medium is reasonable loaded by the final product request with high filling rate and high efficiency. Optimize aperture ratio and aperture design of grid plate Optimize aperture ratio and aperture design of grid plate small grinding medium could improve the grinding fineness. Smooth final product discharge overflow grinding is eliminated barrel do not need to be cooled down. The advanced and reasonable design Design meets the Germany superfine padding mineral requirement which its optimized draw ratio could make the best grinding effect instead of over grinding. Product introduction Production capacity : 0.5-15T/H Note: this capacity is mean value capacity and the specific production capacity is subject to clients’ actual equipment configuration. Processable Material : Limestone calcite fly ash calcium carbide kaolin calcium carbonate coal gangue gypsum grain slag ore slag coal dust bentonite barite marble talc refractory material. Range of Application : Medium and low hard non-flammable non-explosive fragile minerals material that Moh’s hardness is below 6 humidity is less than 8%. MQX series Superfine Ball Mill is a kind of new type and high-efficient powder and superfine powder process machinery which is used for grinding the medium and low-hard material, the classified powder could be adjusted between 300 and 2500 mesh, the final product could be finer if classifier is assembled to meet clients’ requirement. MQX series Superfine Ball Mill is mainly for grinding medium and low hard material that Moh’s hardness is below 6, humidity is less than 8%, and non-flammable non-explosive fragile minerals, like calcite, chalk, limestone, kaolin, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, kieselguhr, barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassium ore, pumice, this is the best choice for nonmetal ore superfine grinding. The wear-out part service life would be decreased if When used Mohs hardness of the material in the 4 to 6. Working principle after washing and drying process raw ore(water content less than 1%) will be coarse crushed below 2mm by jaw crusher and hammer crusher hoisting equipment takes crushed material to raw material stock bin material will be taken to superfine ball mill through frequency conversion belt system under the force of rotary grinding medium will impact and grind the material grinded material will go to fine powder classifier through bucket elevator to be first classified coarse particle will be separated and fine powder will be taken to turbine classification zone by updraft to be secondary classified standard fine powder will be taken by classification collected by cyclone collector and bag collector coarse particle will go back to ball mill to be re-grinded from bottom of classifier.

Spring cone crusher is applied to process above medium hardness ore stone and rock. Its spring insurance system is overload protection to protect machine from damage of metal, grease and water seal are adopted, segregating stone powder and grease to guarantee stable working performance. Advantage Spacer Increasing or reducing the number of spacer to adjust chew clearance and suspension point height. Adding spacer could change the position of cone lining and principal axis to adjust the gap. Unique Shape of Cavity Material is in the gap of cones to get squeezed curved and sheared to make process easier and low energy consumption. Overload Protection Overload protection could lengthen service life of machine. Bearing Higher speed of operation even size of final product cube shape of product high capacity. Working principle Spring Cone Crusher crushes materials by the working surface between the movable cone and fixed cone so it is more advanced and efficiency than Jaw Crusher. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone rocks are grinded into pieces when the cone leaves pulverized materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting. Product introduction Production capacity : 20-300T/H Notice: this capacity is mean value and the specific production capacity is subject to clients’ actual equipment configuration. Processable Material : granite marble basalt iron ore cobble shale bluestone coal cobblestone construction material Range of Application : metallurgy construction white fuel transportation chemical engineering construction material Spring cone crusher is applied to process above medium hardness ore stone and rock. Its spring insurance system is overload protection to protect machine from damage of metal, grease and water seal are adopted, segregating stone powder and grease to guarantee stable working performance. This type of crushing chamber depends upon the purpose of mineral . The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to hyper fine crushing. Spring cone crusher is widely applied in metallurgy, construction, white fuel, transportation, chemical engineering and construction material to process above medium hardness ore stone and rock, it has many advantages like reliable structure, high capacity, easy to adjust, low cost, and so on.

LSX spiral sand washer machine can be used for cleaning and separating the powder dust and soil from construction sand. Novel seal structure and reliable transmission of this sand washing device make sure the cleaning effect. Advantage Helical Blade Clever design plays a role in separation of powder and soil in the sand stone. Transmission Device Reliable transmission device makes sure the cleaning effect. Energy-Efficient Greater capacity smaller power consumption easier operation and maintenance and high efficiency. Less Investment and High Benefit Lower price than other series sand washing machine with the same capacity. Working principle The electric motor runs slowly with the impellor after being decelerated by the belt decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder roll with the impellor and grind each other. The impurity covering the sand is washed away. At the same time adding more water the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process the washing function is finished. The clean sand and stone is lifted up by vane. When it goes up slowly the water begins to drop through the mesh and fall back in the washing launder. On one hand water is removed from the sand and stone; on the other hand the water can be fully used. Finally the sand and stone go to the out launder from the rotary impellor to finish the washing task. Product introduction Production capacity : 100-350T / H Note: this is only an average value and the specific is subject to the clients’ actual equipment configuration in site. Processable Material : Limestone river gravel rocks bluestone cobblestone weathered sand basalt granite quartz diabase. Range of Application : Construction sites gravel plants concrete hydropower dam site metallurgy building materials utilities and other industries washing operations. LSX spiral sand washer machine can be used for cleaning and separating the powder dust and soil from construction sand. Novel seal structure and reliable transmission of this sand washing device make sure the cleaning effect. LSX sand washing machine is usually used with a sand making equipment, and there are two sorts of single spiral type and double spiral type, with features of a high degree of washing, reasonable structure, large capacity, low power consumption, and less loss of sand available. Especially transmission parts of sand washing machine are water and sand isolated, so the failure rate is much lower than the commonly sand washing machine. So it is the best choice for upgrading washing sand industry

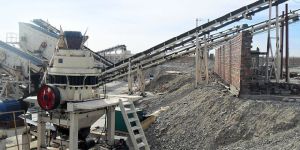

EMCC’s mobile crushing plant breaks through the restriction of traditional operation such as fixed crushing ground, high cost of material transportation and can realize the site-operation.

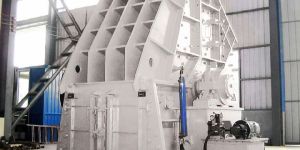

DPC series single-stage impact hammer crusher is one of the leading products in our company which is widely used to crush limestone stones with medium hardness compressive strength under 200 Mpa and calcium content higher than 40%. Advantage Feed Port Big feed port makes high charging rate. Hydraulic Traction Bar Rear cover could be opened by hydraulic traction bar easy to change impact plate and easy to maintain. Observation Door When machine shut down service condition could be observed. Effecient and Energy-Saving Single stage and high capacity. Working principle DPC series single-stage impact hammer crusher is composed of rotor bearing part discharge dandruff comb strike plate and shell. Hammer of the crusher strikes ore stone ore stone hits impact plate and ore stone impacts each other these are the principle of single stage hammer crusher. Ore stone is fed to feed port by feeder then it will fall into crushing cavity where there are two relative rotating rotors and impacted by hammer to get preliminary crushing. Material will be secondly crushed by rotor and impact plate in the process of falling down then shunted by strike plate to go two mutual symmetry discharge area finally standard material will be discharged by bottom of the machine. Product introduction Production capacity : 70-1000T/H Notice: this capacity is mean value and the specific production capacity is subject to clients’ actual equipment configuration. Processable Material : granite marble basalt iron ore cobble shale bluestone coal cobblestone construction waste Range of Application : Stone crushing in building materials industry highway and railway construction housing and other industries. DPC series single-stage impact hammer crusher is one of the leading products in our company, which is widely used to crush limestone, stones with medium hardness, compressive strength under 200 Mpa and calcium content higher than 40%. It can crush the big size ore to the small size ones which can be directly fed to the grinding mill, thus replace the traditional two-stage crushing, simplify the process, save infrastructure investment and production cost.

The electromotor leads the eccentric sleeve to rotate by the V-belt drive shaft and drive gear. Working principle The electromotor leads the eccentric sleeve to rotate by the V-belt drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom. Product introduction Production capacity : 70-800T/H Notice: this capacity is mean value and the specific production capacity is subject to clients’ actual equipment configuration. Processable Material : granite marble basalt iron ore cobble shale bluestone coal cobblestone construction material Range of Application : metallurgy construction white fuel transportation chemical engineering construction material The single cylinder hydraulic cone crusher is applicable to mineral fine grinding and ultra fine grinding. This series of crushers are divided into PYB, PYZ, PYD, respectively used in coarse crushing, secondary crushing, and fine crushing. It is easy for crushing the material to the required size range, and meets the production needs of customers.c

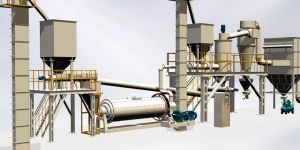

It is a full set of quartz sand production line equipment produced and designed by EMCC which provides you with the comprehensive technical support.   Advantage 1. Reasonable inlet and outlet designimproves equipment production stability; 2. High manganese steel linerismore wear-resistant and with longer working life; 3. Theclosed cycle of productioncan ensure both fineness and production efficiency; 4. The equipment can independently complete the whole production process from raw material crushing equipment, transport, milling to the finished product collection, storage and packaging. 5. It canalso use special ball mill lining for special industryto get non-ferrous products. Product introduction Production capacity : 20-600T / H Note: this is only an average value and the specific value is subject to the clients’actual equipment configuration in site. Processable Material : For quartz & silica sand crushing or grinding process. Range of Application : Glass foundry ceramics and refractories smelting ferrosilicon metallurgical flux metallurgy construction chemicals plastics rubber abrasive industry and other industries. It is a full set of quartz sand production line equipment produced and designed by EMCC which provides you with the comprehensive technical support. This quartz sand production line is mainly composed of bucket elevator, jaw crusher, frequency screw feeder, MQX superfine ball mill, vortex classifier, cyclone powder collector and pulse dust collector. After ball mill processing, quartz sand powder can be widely used in glass, foundry, ceramics, refractories, smelting ferrosilicon, metallurgical flux, metallurgy, construction, chemicals, plastics, rubber, abrasive and other industries. Working principl After primary crushing by a small jaw crusher crushed materials enter hammer crusher for a second crushing and then being lifted into big hopper by bucket elevator through a frequency conversion screw feeder into the MQX superfine mill for fine grinding. The powder grinded will be transported by bucket elevator to the vortex grader for grading screening. Unqualified powder mill returns to ball mill and qualified powder is brought into the powder collector by updraft cyclone. Most of the qualified powder will be separated from air flow in the collectorand be collected. Trace amount of fine powder follows airflow into the pulse dust catcher. With this required fineness powder is gathered up and meanwhile air is purified by the dust catcher.

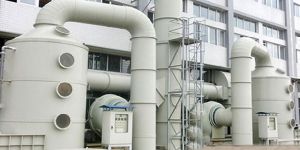

Gas gets into the scrubber tangentially through the bottom air intake, under the action of the fan, quickly filled the air intake segment space, and then flow evenly through uniform flow section up to the first stage feeding absorption section. Advantage Small resistance, low consumption, low noise, high purification efficiency, compact structure, small cover space, good corrosion resistance and aging resistance, light weight. Product introduction Production capacity : 300-1330mm Processable Material : Treatment of all kinds of harmful gases   Gas gets into the scrubber tangentially through the bottom air intake, under the action of the fan, quickly filled the air intake segment space, and then flow evenly through uniform flow section up to the first stage feeding absorption section. On the surface of the filler, the pollutants in gas phase react with the liquid phase substance. The reaction resultant (mostly soluble salts) flowing into the lower portion of the reservoir with the absorption liquid. The gas not completely absorbed continues rises into the spray section. The absorption liquid sprays in high-speed through the uniformly distributed nozzle in the ejection segments, generating numerous small droplets continue react with the gas. This treatment can cool the exhaust gas to remove particles and other impurities. The tower uppermost segment is for defogging, and the absorbing liquid droplets carried by gas are cleared here. The treated clean air is blown into the atmosphere through the upper end of the scrubber. Gas gets into the scrubber tangentially through the bottom air intake, under the action of the fan, quickly filled the air intake segment space, and then flow evenly through uniform flow section up to the first stage feeding absorption section. On the surface of the filler, the pollutants in gas phase react with the liquid phase substance. The reaction resultant (mostly soluble salts) flowing into the lower portion of the reservoir with the absorption liquid. The gas not completely absorbed continues rises into the spray section. The absorption liquid sprays in high-speed through the uniformly distributed nozzle in the ejection segments, generating numerous small droplets continue react with the gas. This treatment can cool the exhaust gas to remove particles and other impurities. The tower uppermost segment is for defogging, and the absorbing liquid droplets carried by gas are cleared here. The treated clean air is blown into the atmosphere through the upper end of the scrubber. Working principle Gas gets into the scrubber tangentially through the bottom air intake, under the action of the fan, quickly filled the air intake segment space, and then flow evenly through uniform flow section up to the first stage feeding absorption section. On the surface of the filler, the pollutants in gas phase react with the liquid phase substance. The reaction resultant (mostly soluble salts) flowing into the lower portion of the reservoir with the absorption liquid. The gas not completely absorbed continues rises into the spray section. The absorption liquid sprays in high-speed through the uniformly distributed nozzle in the ejection segments, generating numerous small droplets continue react with the gas. This treatment can cool the exhaust gas to remove particles and other impurities. The tower uppermost segment is for defogging, and the absorbing liquid droplets carried by gas are cleared here. The treated clean air is blown into the atmosphere through the upper end of the scrubber. Technical Parameters Scrubber The Scrubber has A, B and C three models. A model is wet scrubber. B model is acid and alkaline gases scrubber. C model is organic gases and heat gases scrubber. A Series Scrubber Parameters

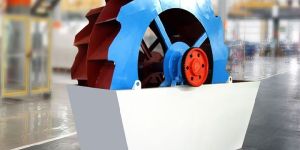

XSD efficient bucket sand washing machine’s biggest characteristic is that the transmission part is separated from water and sand, so failure rate is much lower than other sand washer, and the novel sealing structure and reliable transmission could be well used to ensure the cleaning and dehydration effect. Advantage Rational Design of The Impeller Impeller design is reasonable with the characteristics of high cleaning degree reasonable structure large quantity and low consumption. Unique Transmission Gear Entire transmission (including bearings) is isolated from water and raw material to avoid bearing damage due to soaking sand and pollutants. High Quality Screen Using high quality screen made of wear-resistant materials effectively extending the service life of sand washer; and except the screen generally do not need to equip other wearing parts. High Quality Bearing Using the bearing products of brands ZWZ and SKF which are the largest bearing manufacturers in China. Working principle The electric motor runs slowly with the impellor after being decelerated by the belt decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder roll with the impellor and grind each other. The impurity covering the sand is washed away. At the same time adding more water the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process the washing function is finished. The clean sand and stone is lifted up by vane. When it goes up slowly the water begins to drop through the mesh and fall back in the washing launder. On one hand water is removed from the sand and stone; on the other hand the water can be fully used. Finally the sand and stone go to the out launder from the rotary impellor to finish the washing task. Product introduction Production capacity : 20-150T / H Note: this is only an average value and the specific value is subject to the clients’ actual equipment configuration in site. Processable Material : XSD sand washing plant is suitable for nature sand and artificial sand crushed from limestone river gravel rocks bluestone cobblestone weathered sand basalt granite quartz diabase etc. Range of Application : Construction sites gravel plants concrete hydropower dam site metallurgy building materials and other operations for industries washing. XSD efficient bucket sand washing machine’s biggest characteristic is that the transmission part is separated from water and sand, so failure rate is much lower than other sand washer, and the novel sealing structure and reliable transmission could be well used to ensure the cleaning and dehydration effect. With features of reasonable structure, large capacity, low power consumption, etc., it is a deserved ideal industrial sand washing equipment. As this sand washer is very good for separating and cleaning stone powder and soil in the artificial sand, it is often associated with sand making machine for construction sand crushing and washing. Technical Parameters

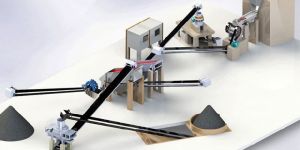

Sand making line usually merges Vibrating Feeder Jaw Crusher Straight Impact Crusher (Sand Making Machine) Vibrating Screen Sand Washer Belt Conveyor and Centered electric control cabinet into a single whole.   Advantage 1.Big crushing ratio and high capacity; 2.The produced aggregate is mostly reasonable cubic and low content of needle flake material. And the aggregate can be used for highway construction. 3. The artificialsand is with higher quality than natural 4. Wearing parts useshigh-strength wear-resistant materials to enable low loss and long service life. Product introduction Production capacity : 70-600T/h Note: this is only a average number and the specific value is subject to the clients’actual equipment configuration in site. Processable Material : Sand making&washing line for processing limestone river gravel rocks bluestone pebbles weathered sand basalt granite quartz silica diabase Range of Application : All kinds of metal and nonmetal mines cement refractory materials abrasives glass raw materials construction aggregate sand mechanism metallurgy etc. Sand making line usually merges Vibrating Feeder, Jaw Crusher, Straight Impact Crusher (Sand Making Machine), Vibrating Screen, Sand Washer, Belt Conveyor and Centered electric control cabinet into a single whole. Designed capacity is generally 50-500T/h. Experiencing several years of research and development, the whole set of sand production line ,which we combined Straight Impact Crusher under advanced international level with other ancillary products to develop, is leading the line. Working principle Vibrating Feeder equably puts raw material into Jaw Crusher then belt conveyor puts unfinished products into sand making machine for further crushing and the unfinished products which achieve the final requirement size are put into sand washer after Vibrating Screen’s separating. The cleaned products are the final products. The unfinished products which do not achieve the final requirement size will be reprocessed in sand making machine which forms circulatory system. The output size is changed by owner’s needs. If you choose dried production process it should cooperate with powder separator and dust removal equipment.

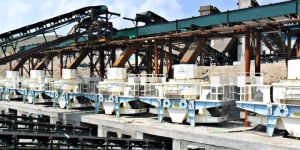

The user in this case buys from our company 10 VSI1145 new types of sand making machines and puts into production in parallel. Production Capacity is up to standard and it is in a smooth operation, which wins customer’s praise.

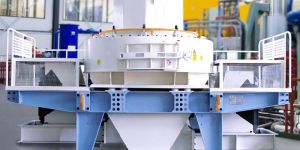

The new series of 5X sand making machine set three kinds of crushing patterns in one, which is the core equipment in construction, mining, metallurgy industry, highways, railways, bridges, hydropower, mineral grinding areas and mechanism sand industry. Advantage Motor Standard high-performance vertical motor. Alloy wear resistant block Alloy wear-resistant block adoptes highly wear resistant and high temperature resistant materials in important U.S. industries and thus has a longer service life. The New Impeller Design Optimize material flow increase production by 30%. Optimize material flow increase production by 30%. Height can be adjusted to control the feed volume and different proportion of materials that are vertically into the impeller and scattered around of the impeller to adjust the particle size ratio. Working principle Material from the hopper falls into sand crusher and will be divided into two parts by the distributor. One part falls into the high-speed rotation impeller through the middle and is accelerated rapidly within the impeller. That acceleration can be up to several hundred times the acceleration of gravity and then the materials project out from three uniform impeller flow channel at speed of 60-70 m / s; another part of the material falls freely from all around the feeder impact on the vortex branch cavity lining and then will be bounced back to the top of vortex chamber. The movement direction would be changed to start moving down on the diagonal; materials emitters from the impeller form a continuous material curtain. Thus materials will be hit rubbed and grinded twice or several times in whirl crushing cavity. Finally crushed material discharges from the lower discharge port. Throughout the crushing processmaterials impact and crush each other not in direct impact on the metal element but only shock rub and grind the lining thus prolonging mechanical life. Product introduction   Production capacity : 70-640T / H Note: this is only an average value and the specific is subject to the clients’ actual equipment configuration in site. Processable Material : Limestone river gravel rocks bluestone cobblestone weathered sand basalt granite quartz diabase Range of Application : All kinds of metal and non-metallic mineral cement refractories abrasives glass raw materials construction aggregate mechanism metallurgy and other industries. The new series of 5X sand making machine set three kinds of crushing patterns in one, which is the core equipment in construction, mining, metallurgy industry, highways, railways, bridges, hydropower, mineral grinding areas and mechanism sand industry. 5X sand making equipment(centrifugal impact crusher) is widely used in a variety of metals and non-metallic minerals, cement, refractories, abrasives, glass raw materials, construction aggregate, sand mechanism, metallurgy and other industries. The sand maker is uitable for crushing various mid-hard ores and rocks, such as iron ore, nonferrous metal ores, silicon carbide, bauxite, quartz sand, corundum, perlite, basalt and other types of high hardness materials.
