Number Of FlowerAutomatic Chain Link Fencing Machine
CertificationISO 9001:2008
Power9-12kw
Driven TypeElectric
Weight2000-4000kg
Automatic GradeAutomatic
Warrenty1year, 2years
Mesh size30 to 110mm
Wire typeGI/ PVC/ SS
Wire dia1.6 to 4mm
Production100-120 Kg/-Hr
we offer the best automatic chain link machines compatible in running indian commercial quality wires.
our chain link fence machines are incorporated with mitsubishi plc, schneider electricals and delta/housine servo drive and motor.
mesh size: 30 to 110mm
wire type: gi/pvc/ss
wire dia: 1.6 to 4mm
production:
4mm: 150-160 kg/-hr
2.5mm: 75-85 kg/-hr
..

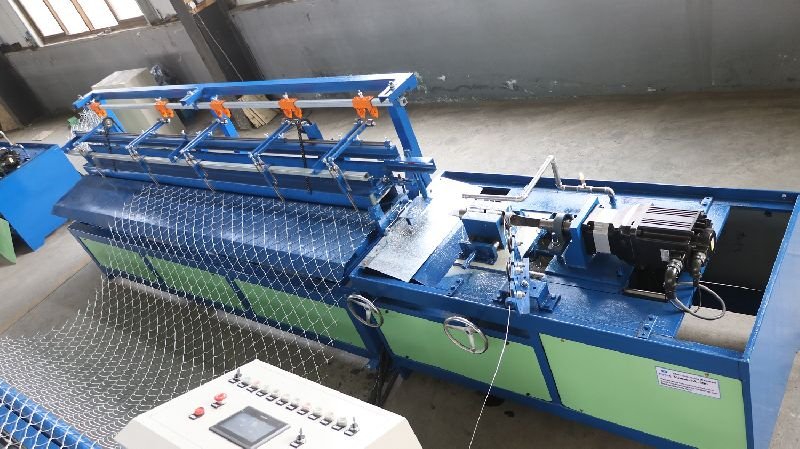

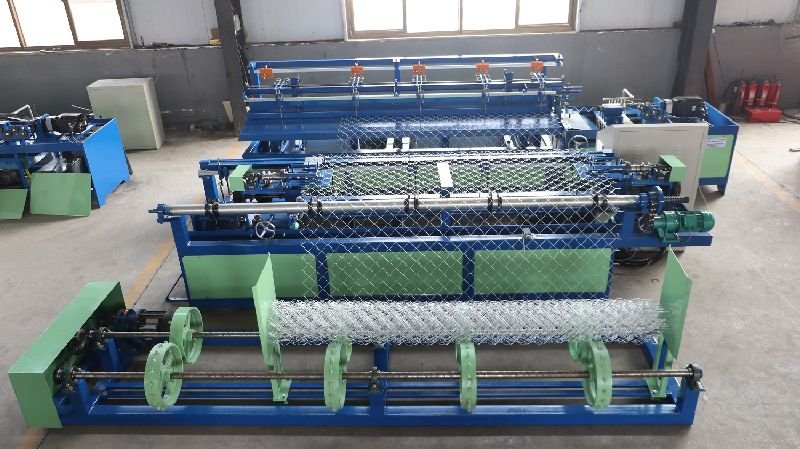

Single Wire Fully Automatic Chain Link Fencing Machine
999,999 - 1,250,000 / Unit
ConditionNew
Brand NameMaxx
Space Required20x20 ft
Mesh Size30 to 110 mm/ 50 to 130 mm
GI Wire Dia1.6TO4mm
PVC Wire Dia3 to 5.5 mm
SS (304) Wire Dia1.6 to 4mm
Cutting MachineDelta servo system 6HP
Electric PanelMitsubishi & Schneider Electrics
Wire Pay-Off Stand Capacity250 kgs

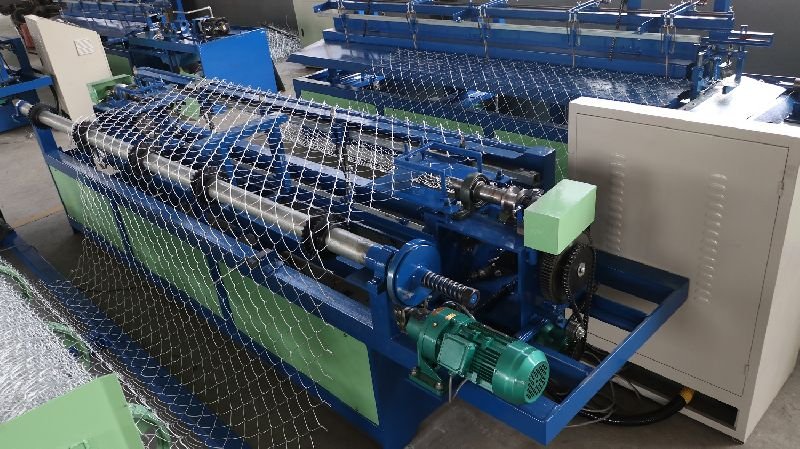

Weaving MachineHeavy duty brake motor + gear

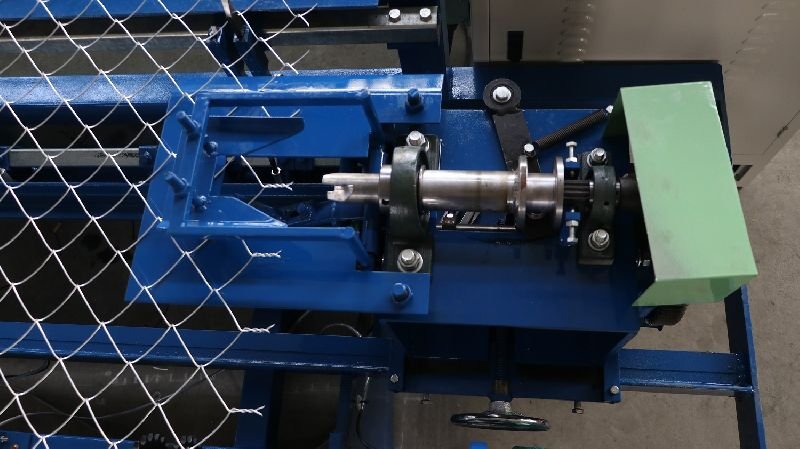

Locking PartNew Model: Twist/Knuckle
Roller TypeAuto Roller with Motor
ReducerOil/grease free gearbox
Accessories
Moulds — 5 dyes
Professional Tool Kit
Extra Relay
Oil Dispenser
Gloves
Wheels & Extra Spares
Compactor (Optional)
Production per Hour
4mm -150-170 KG
3.5mm-130-150 KG
3mm -100-120KG
2.5mm- 80-90KG
2mm - 50- 60KG
16mm- 35-40KG
Power
Connected Load : 12HP
Running Load: 8-9 HP
No. of Motors :8
