Beijing HYZTong Co., Ltd Mohan Cooperative Industrial Estate, Delhi

NAWS-E10 Thermal or Dots Needle POS Printer   Main Feature      - Is sport body design, the appearance of fashion, concise.     - Maximum diameter of paper warehouse is 60mm     - Is 60mm large diameter paper storage design, reduce paper change frequency.     - (Matrix) Needle printer or thermal print mode     - Paper width may be selected from 44mm, 58mm or 80mm     - It is optional with wide voltage power supply DC 5V-9V or DC 9V-24V     - Fully support interface of LPT parallel interface, USB-B, RS-232C, TTL or RS-485     - Its optional with the external control interface of cashbox and optional built-in battery.     - Fully support Windows8, 7, XP, 2000 system.   Order Model：     NAWS-E10-[ ]-[ ]-[ ]-[ ]                |   |   |   |               |   |   |   + 5 -> DC5V-9V               |   |   |     24 -> DC9V-24V               |   |   |     BA -> Optional built-in battery               |   |   |                |   |   +GB -> Grey body and transparent black cover               |   |    GT -> Grey body and transparent cover               |   |    BB -> Black body and transparent black cover               |   |    BT -> Black body and transparent cover               |   |                 |   + LPT -> Parallel Interface (DB25)               |     USB -> USB Interface               |     232 -> RS-232 Interface or TTL               |     485 -> RS-485 Interface               |               + M1244 -> 12 Dots Needle printer mode, 44mm wide paper, 90 Dots/line                 M12571 -> 12 Dots Needle printer mode, 57mm wide paper, 144 Dots/line                 M12572 -> 12 Dots Needle printer mode, 57mm wide paper, 240 Dots/line                 M1644 -> 16 Dots Needle printer mode, 44mm wide paper, 90 Dots/line                 M16571 -> 16 Dots Needle printer mode, 57mm wide paper, 144 Dots/line                 M16572 -> 16 Dots Needle printer mode, 57mm wide paper, 240 Dots/line                 T1657 -> 16 Dots thermal print mode, 57mm wide paper                 T1680 -> 16 Dots thermal print mode, 80mm wide paper                 T2457 -> 24 Dots thermal print mode, 57mm wide paper                 T2480 -> 24 Dots thermal print mode, 80mm wide paper           Order Model Sample:          NAWS-E10-T2457-232-GB-24, The printer is 24 dots thermal print mode,          57mm paper width, RS-232 interface, grey body and transparent black          cover, Power supply DC9-24V.     Technical Specification:     (Matrix) Needle Printer Specification (Model. NAWS-E10-M)         Power Detection: Automatically         Paper Supply Method: Manual         Paper Width: 44mm (Diameter 60mm)                       57mm (Diameter 60mm)         Effective Print Width: 32mm or 48mm         Paper Tear Off Way: Manual         Cut Paper Method: None         Dot Matrix/: 96 Dots/Line: 144 Dots/Line: 240 Dots/Line         Speed: 1line/sec: 0.7line/sec: 0.4line/sec         Instruction Set: Hexadecimal 20H-FFH, ASCII         Out of Paper Alarm: None         Memory Cache: 20k         Overheating Protection: None     Thermal Printer Specification (Model. NAWS-E10-T)         Power Detection: Automatically         Paper Supply Method: Manual         Paper Width: 57mm (Diameter 60mm)                       80mm (Diameter 50mm)         Effective Print Width: 48mm or 72mm         Paper Tear Off Way: Manual         Cut Paper Method: None         Paper Type: Thermal paper         Dot Matrix: 8 Dots/mm (203dpi)         Speed: 60mm/sec         Printer Head Reliability: 50km         Instruction Set: Hexadecimal 20H-FFH, ASCII         Out of Paper Alarm: Yes         Automatic Memory: Unavailable         Memory Cache: 20k         Overheating Protection: Yes     Interface         LPT parallel interface with DB25 pins socket and TTL level voltage         RS-232C interface with DB9 pins socket and 232 or TTL level voltage         RS-485 interface with DB9 pins socket and 485 level voltage         USB2.0 interface with standard USB socket     Physical Character         Outline Dimension : 119x157x88mm         Power Supply and Power: DC9V-24V <24W         : DC5V-9V <15W         : Optional built-in battery         Weight:      Environment         Operating Temperature: 5 to 50 Celsius         Operating Humidity: 10% to 80%RH         Storage Temperature: -20 to 80Celsius         Storage Humidity: 10% to 90%RH

We are engaged in offering high grade Embedded Panel Dots Needle Printer for use in commercial establishments. Highly efficient and requiring low maintenance, our range of dots printer is preferred by various professionals all over the world. Our high range of network in a short time since establishment has made us a premium Supplier and Exporter of Embedded Panel Dots Needle Printer from Delhi, India.   Features : Dots needle print mode Easy installation Diameter 30mm paper warehouse Paper width - 44 or 57mm Installation Port Size - 102.2x56mm   Specifications : Physical Character :    Installation Method - Easy installation Paper Supply Method - Auto load paper Paper Change Mode - Front Outline Dimension (WxHxD) -107.3x61.4x65.6mm Installation Port Size (WxH) -102.2x56x67mm Paper Specification : Paper Warehouse - Diameter 30mm Paper Type - Dots paper Paper Roll Diameter - 30mm Paper Thickness - 0.06 - 0.08mm    Environment : Operating Temperature -  0 - 55Celsius Operating Humidity - 10%-85%RH Storage Temperature -   -20 to 60Celsiud Storage Humidity -10%-90%RH Print Character : Method -Dots print Reliability - 50 km Resolution (dots/mm) - 8 Dot Matrix (dots/line) - 384 Paper Width (mm) - 44 or 57 Speed (line/sec) - 60 Printer Header Manufacture - Made in Japan   Other : Paper Tear Off Way -Manual Cut Paper Method - None Automatic Memory - Unavailable Memory Cache - 32k Color - White Weight Print Font :           Instruction Set - ESC/POS, 12x12dots, 16x16dots English Set - 12, 24, 40Letters/Line (12Dots) Letters Print - 12, 18, 40Letters/Line (16Dots)   Speed : Speed (line/sec)   1 for 16 Letters/Line 0.7 for 24 Letters/Line  0.4 for 40 Letters/Line Printer Head : EPSON -  Made in Japan   Power Supply - 4.2 to 7.5VDC or 7.5 to 24 VDC   Place of Origin - Beijing, China

We are a reputed Supplier and Exporter of Embedded Thermal Printer (NAWS-R07) based in Delhi, India. Extremely user friendly and printing properly aligned paper, our Embedded Thermal Printer is highly popular in domestic and international market. We are proficient in delivering orders of Embedded Thermal Printer to our customer on a timely basis.   Features: Thermal print mode Easy installation Diameter 50mm paper warehouse Paper width - 57mm 16 or 24 Dots Programmable Installation Port Size - 78.9x79.1mm Power Supply - 4.2V-7.5V or 7.5V-24V   Specifications : Physical Character :    Installation Method - Easy installation Paper Supply Method - Auto load paper Paper Change Mode - Front Outline Dimension (WxHxD) -110.2x64.3x48.2mm Installation Port Size (WxH) -102.6x56.4mm Paper Specification : Paper Warehouse - Diameter 50mm Paper Type - Thermal paper Paper Roll Diameter - 50mm Paper Thickness - 0.06 - 0.08mm    Environment : Operating Temperature -  0 - 55Celsius Operating Humidity -10%-85%RH Storage Temperature -   -20 to 60Celsiud Storage Humidity -10%-90%RH Print Character : Method - Thermal print Reliability - 50 km Resolution (dots/mm) - 8 Dot Matrix (dots/line) - 384 Paper Width (mm) - 57±0.5 Speed (line/sec) -  60 Printer Header Manufacture - Made in Japan   Other : Out of Paper Alarm - LED Flashing Overheating Protection - None Paper Tear Off Way - Manual Cut Paper Method - None Automatic Memory - Unavailable Memory Cache - 32k Color -  White Weight Print Font :           Instruction Set - ESC/POS, 6x8dots English Set - 8x16dots, 12x24dots Letters Print - 32 Letters/Line (24Dots) (Programmable) - 16 Letters/Line (16Dots) Power Supply - 4.2 to 7.5VDC or 7.5 to 24 VDC   Place of Origin - Beijing, China

NAWS-R07 Embedded Panel Thermal Printer   Features:     - Thermal print mode     - Easy installation     - 50mm diameter paper warehouse     - Installation port size 78.9x79.1mm     - Paper width 57mm     - Dots 16 or 24 Programmable     - Power Supply 4.2V-7.5VDC or 7.5V-24VDC   Order Model:     NAWS-R07-[ ]-[ ]-[ ]               |   |   |                       |   |   + W -> White Color               |   |     B -> Black Color               |   |                |   + 5 -> 4.2 to 7.5VDC               |     24 -> 7.5 to 24VDC               |                       + 232 -> RS232 and TTL Interface                  485 -> RS485 and TTL Interface                 422 -> RS422 and TTL Interface                 PRT -> Parallel Interface                 USB -> USB Interface                  Order Model Sample:     NAWS-R07-232-5-W, It's 232 interface, White Color and 4.5 to 7.5VDC.   Technical Specification:     Physical Character         Installation Method: Easy installation         Paper Supply Method: Auto load paper         Paper Change Mode: Front         Outline Dimension (WxHxD): 84.5x84.7x53.5mm         Installation Port Size (WxH): 78.9x79.1mm     Paper Specification         Paper Warehouse Diameter: 50mm         Paper Type: Thermal paper         Paper Roll Diameter: 50mm         Paper Thickness: 0.06 to 0.08mm     Environment         Operating Temperature: 0 to 55 Celsius         Operating Humidity: 10% to 85%RH         Storage Temperature: -20 to 60 Celsius         Storage Humidity: 10% to 90%RH     Print Character         Method: Thermal print         Reliability: 50 km         Resolution (dots/mm): 8         Dot Matrix (dots/line): 384         Paper Width (mm): 57         Speed (mm/sec): 60         Printer Header Manufacture: EPSON Made in Japan     Print Font         Instruction Set: ESC/POS, 6x8dots         English Set: 8x16dots, 12x24dots         Letters Print (Programmable):              16Dots, 24Letters/Line              24Dots, 32 Letters/Line      Other         Paper Tear Off Way: Manual         Cut Paper Method: None         Automatic Memory: Unavailable         Memory Cache: 32k         Color: White or Black         Weight:          Power Supply: 4.2 to 7.5VDC or 7.5 to 24VDC

Our company is considered a top notch Supplier and Exporter of Embedded Thermal Printer (NAWS-R06) from Delhi, India. The Embedded Thermal Printer offered by us is known for its unsurpassed performance and providing clear output prints. We are capable of delivering bulk quantities of Embedded Thermal Printer for industrial and commercial use all over the world.   Features: Thermal print mode Easy installation Diameter 40mm paper warehouse Paper width - 57mm 16 or 24 Dots Programmable Installation Port Size - 78.9x79.1mm Power Supply - 4.2V-7.5V or 7.5V-24V   Specifications : Physical Character :    Installation Method - Easy installation Paper Supply Method - Auto load paper Paper Change Mode - Front Outline Dimension (WxHxD) -110.2x64.3x48.2mm Installation Port Size (WxH) - 102.6x56.4mm Paper Specification : Paper Warehouse - Diameter 40mm Paper Type - Thermal paper Paper Roll Diameter - 40mm Paper Thickness - 0.06 - 0.08mm    Environment : Operating Temperature -  0 - 55Celsius Operating Humidity - 10%-85%RH Storage Temperature-   -20 to 60Celsiud Storage Humidity - 10%-90%RH Print Character : Method - Thermal print Reliability - 50 km Resolution (dots/mm) - 8 Dot Matrix (dots/line) - 384 Paper Width (mm) - 57±0.5 Speed (line/sec) - 60 Printer Header Manufacture -    Made in Japan   Other : Out of Paper Alarm - LED Flashing Overheating Protection - None Paper Tear Off Way - Manual Cut Paper Method - None Automatic Memory - Unavailable Memory Cache - 32k Color - White Weight Print Font :           Instruction Set - ESC/POS, 6x8dots English Set - 8x16dots, 12x24dots Letters Print - 32 Letters/Line (24Dots) (Programmable) - 16 Letters/Line (16Dots) Power Supply - 4.2 to 7.5VDC or 7.5 to 24 VDC   Place of Origin - Beijing, China

NAWS-R06 Embedded Panel Thermal Printer   Features:     - Thermal print mode     - Easy installation     - 40mm diameter paper warehouse     - Installation port size 78.9x79.1mm     - Paper width 57mm     - Dots 16 or 24 Programmable     - Power Supply 4.2V-7.5VDC or 7.5V-24VDC   Order Model:     NAWS-R06-[ ]-[ ]-[ ]                |   |   |                       |   |   + W -> White Color               |   |     B -> Black Color               |   |                |   + 5 -> 4.2 to 7.5VDC               |     24 -> 7.5 to 24VDC               |                       + 232 -> RS232 and TTL Interface                  485 -> RS485 and TTL Interface                 422 -> RS422 and TTL Interface                 PRT -> Parallel Interface                 USB -> USB Interface              Order Model Sample         NAWS-R06-232-5-W, It's RS232 interface, White Color and 4.5 to 7.5VDC.   Technical Specification:     Physical Character         Installation Method: Easy installation         Paper Supply Method: Auto load paper         Paper Change Mode: Front         Outline Dimension (WxHxD): 84.5x84.7x45.5mm         Installation Port Size (WxH): 78.9x79.1mm     Paper Specification         Paper Warehouse: 40mm         Paper Type: Thermal paper         Paper Roll Diameter: 40mm         Paper Thickness: 0.06 to0.08mm     Environment         Operating Temperature: 0 to 55 Celsius         Operating Humidity: 10% to 85%RH         Storage Temperature: -20 to 60 Celsius         Storage Humidity: 10% to 90%RH     Print Character         Method: Thermal print         Reliability: 50 km         Resolution (dots/mm): 8         Dot Matrix (dots/line): 384         Paper Width (mm): 57         Speed (mm/sec): 60         Printer Header Manufacture: EPSON Made in Japan     Print Font         Instruction Set: ESC/POS, 6x8dots         English Set: 8x16dots, 12x24dots         Letters Print (Programmable):              16Dots, 24Letters/Line              24Dots, 32 Letters/Line      Other         Paper Tear Off Way: Manual         Cut Paper Method: None         Automatic Memory: Unavailable         Memory Cache: 32k         Color: White or Black         Weight:          Power Supply: 4.2 to 7.5VDC or 7.5 to 24VDC

The Embedded Thermal Printer (NAWS-R05) offered by us is quite user friendly and requires low maintenance. To ensure customer satisfaction, we make sure that our Embedded Thermal Printer is tested on various quality parameters before dispatching. This is why we are a celebrated Supplier and Exporter of Embedded Thermal Printer based in Delhi, India.   Features : Thermal print mode Easy installation Diameter 30mm paper warehouse Paper width - 57mm Dots - 16 or 24 Programmable Installation Port Size - 77.7x52.9mm Power Supply - 4.2V-7.5V   Specifications : Physical Character :    Installation Method - Easy installation Paper Supply Method - Auto load paper Paper Change Mode - Front Outline Dimension (WxHxD) - 110.2x64.3x48.2mm Installation Port Size (WxH) - 102.6x56.4mm Paper Specification : Paper Warehouse -  Diameter 30mm Paper Type -  Thermal paper Paper Roll Diameter - 30mm Paper Thickness - 0.06 - 0.08mm    Environment : Operating Temperature - 0 - 55Celsius Operating Humidity - 10%-85%RH Storage Temperature-   -20 to 60Celsiud Storage Humidity - 10%-90%RH Print Character : Method - Thermal print Reliability - 50 km Resolution (dots/mm) -8 Dot Matrix (dots/line) - 384 Paper Width (mm) - 57±0.5 Speed (line/sec) - 60 Printer Header Manufacture - Made in Japan   Other : Out of Paper Alarm - ED Flashing Overheating Protection - None Paper Tear Off Way - Manual Cut Paper Method - None Automatic Memory - Unavailable Memory Cache - 32k Color - White Print Font :           Instruction Set - ESC/POS, 6x8dots English Set - 8x16dots, 12x24dots Letters Print - 32 Letters/Line (24Dots) (Programmable) -16 Letters/Line (16Dots) Power Supply - 4.2 to 7.5VDC   Place of Origin - Beijing, China

NAWS-R05 Embedded Panel Thermal Printer   Features:     - Thermal print mode     - Easy installation     - 30mm diameter paper warehouse     - Installation port size 77.7x52.9mm     - Paper width 57mm     - Dots 16 or 24 Programmable     - Power Supply 4.2 to 7.5VDC   Order Model:     NAWS-R05-[ ]-[ ]                               |   |                       |   + W -> White Color               |     B -> Black Color               |                       + 232 -> RS232 and TTL Interface                  485 -> RS485 and TTL Interface                 422 -> RS422 and TTL Interface                 PRT -> Parallel Interface                 USB -> USB Interface                      Order Model Sample:         NAWS-R05-232-W, It's RS232 interface and White Color.   Technical Specification:     Physical Character         Installation Method: Easy installation         Paper Supply Method: Auto load paper         Paper Change Mode: Front         Outline Dimension (WxHxD): 82.9x58x45.6mm         Installation Port Size (WxH): 77.7x52.9mm     Paper Specification         Paper Warehouse: 30mm         Paper Type: Thermal paper         Paper Roll Diameter: 30mm         Paper Thickness: 0.06 to 0.08mm     Environment         Operating Temperature: 0 to 55 Celsius         Operating Humidity: 10% to 85%RH         Storage Temperature: -20 to 60 Celsius         Storage Humidity: 10% to 90%RH     Print Character         Method: Thermal print         Reliability: 50 km         Resolution (dots/mm): 8         Dot Matrix (dots/line): 384         Paper Width (mm): 57         Speed (mm/sec): 60         Printer Header Manufacture: EPSON Made in Japan     Print Font         Instruction Set: ESC/POS, 6x8dots         English Set: 8x16dots, 12x24dots         Letters Print (Programmable):             16Dots, 24Letters/Line              24Dots, 32Letters/Line      Other         Paper Tear Off Way: Manual         Cut Paper Method: None         Automatic Memory: Unavailable         Memory Cache: 32k         Color: White or Black         Weight:          Power Supply: 4.2 to 7.5VDC

We are an eminent Supplier and Exporter of Embedded Thermal Printer (NAWS-R02) from Delhi, India. The model offered by us can be easily installed and can work at high temperature conditions. Out printer is widely appreciated for having an efficient performance and prompt output. Customers can buy bulk quantities of this model of Embedded Thermal Printer from us at affordable price.   Features: Thermal print mode Easy installation Diameter 30mm paper warehouse Paper width - 57mm Installation Port Size - 102.6x56.4mm Power Supply - 4.2V-7.5V or 7.5V-24V   Specifications : Physical Character :    Installation Method - Easy installation Paper Supply Method - Auto load paper Paper Change Mode - Front Outline Dimension (WxHxD) - 110.2x64.3x48.2mm Installation Port Size (WxH) - 102.6x56.4mm Paper Specification : Paper Warehouse - Diameter 30mm Paper Type - Thermal paper Paper Roll Diameter - 30mm Paper Thickness - 0.06 - 0.08mm    Environment : Operating Temperature - 0 - 55Celsius Operating Humidity - 10%-85%RH Storage Temperature -  -20 to 60Celsiud Storage Humidity - 10%-90%RH Print Character : Method - Thermal print Reliability - 50 km Resolution (dots/mm) - 8 Dot Matrix (dots/line) - 384 Paper Width (mm)  - 57±0.5 Speed (line/sec) -60 Printer Header Manufacture - Made in Japan   Other : Out of Paper Alarm - LED Flashing Overheating Protection - None Paper Tear Off Way - Manual Cut Paper Method - None Automatic Memory - Unavailable Memory Cache - 32k Color - White Weight Print Font :           Instruction Set - ESC/POS, 6x8dots English Set - 8x16dots, 12x24dots Letters Print - 32 Letters/Line (24Dots) (Programmable) - 16 Letters/Line (16Dots) Power Supply - 2 to 7.5VDC or 7.5 to 24 VDC   Place of Origin - Beijing, China

NAWS-R02 Embedded Panel Thermal Printer   Features:     - Thermal print mode     - Easy installation     - 30mm diameter paper warehouse     - Installation port size 102.6x56.4mm     - Paper width 57mm     - Dots 16 or 24 Programmable     - Power Supply 4.2 to 7.5VDC or 7.5 to 24VDC   Order Model:     NAWS-R02-[ ]-[ ]-[ ]                |   |   |                       |   |   + W -> White Color               |   |     B -> Black Color               |   |                |   + 5 -> 4.2 to 7.5VDC               |     24 -> 7.5 to 24VDC               |                       + 232 -> RS232 and TTL Interface                  485 -> RS485 and TTL Interface                 422 -> RS422 and TTL Interface                 PRT -> Parallel Interface                 USB -> USB Interface                  Order Model Sample:     NAWS-R02-232-5-W, It's RS232 interface, White Color and 4.5 to 7.5VDC.   Technical Specification:     Physical Character         Installation Method: Easy installation         Paper Supply Method: Auto load paper         Paper Change Mode: Front         Outline Dimension (WxHxD): 110.2x64.3x48.2mm         Installation Port Size (WxH): 102.6x56.4mm     Paper Specification         Paper Warehouse: 30mm         Paper Type: Thermal paper         Paper Roll Diameter: 30mm         Paper Thickness: 0.06 to 0.08mm     Environment         Operating Temperature: 0 to 55 Celsius         Operating Humidity: 10% to 85%RH         Storage Temperature: -20 to 60 Celsius         Storage Humidity: 10% to 90%RH     Print Character         Method: Thermal print         Reliability: 50 km         Resolution (dots/mm): 8         Dot Matrix (dots/line): 384         Paper Width (mm): 57         Speed (mm/sec): 60         Printer Header Manufacture: EPSON Made in Japan     Print Font         Instruction Set: ESC/POS, 6x8dots         English Set: 8x16dots, 12x24dots         Letters Print (Programmable):              16Dots, 24Letters/Line              24Dots, 32 Letters/Line      Other         Paper Tear Off Way: Manual         Cut Paper Method: None         Automatic Memory: Unavailable         Memory Cache: 32k         Color: White or Black         Weight:          Power Supply: 4.2 to 7.5VDC or 7.5 to 24VDC

Our company is a distinguished Supplier and Exporter of Thermal POS Printer based in Delhi, India. Thermal POS Printer offered by us is appreciated for its reliable performance and compact design. Clients from worldwide order various range of Thermal POS Printer from us at leading market price. Owning to our efficient logistic structure, we are capable of delivering bulk quantities of Thermal POS Printer all over the world within postulated time.   (Matrix) Dots Needle Printer Specification (Model. NAWS-E10-M) : Power Detection - Automatically Paper Supply Method - Manual Paper Width - 44mm (Diameter 60mm) or 57mm (Diameter 60mm) Effective Print Width - 32mm or 48mm Paper Tear Off Way - Manual Cut Paper Method - None Dot Matrix/  -  96 Dots/Line 144 Dots/Line 240 Dots/Line Speed -  1line/sec 0.7line/sec 0.4line/sec Instruction Set -  Hexadecimal 20H-FFH, ASCII Out of Paper Alarm - None Memory Cache - 20k Overheating Protection -   None Thermal Printer Specification (Model. NAWS-E10-T) : Power Detection - Automatically Paper Supply Method - Manual Paper Width - 57mm (Diameter 60mm) or 80mm (Diameter 50mm)            Effective Print Width - 48mm or 78mm Paper Tear Off Way - Manual Cut Paper Method - None Paper Type - Thermal paper Dot Matrix - 8 Dots/mm (203dpi) Speed - 60mm/sec Printer Head Reliability - 50km Instruction Set - Hexadecimal 20H-FFH, ASCI    IOut of Paper Alarm - Yes Automatic Memory - Unavailable Memory Cache - 20k Overheating Protection - Yes Interface : Out of Paper Alarm OLPT parallel interface with DB25 pins socket and TTL level voltage RS-232C interface with DB9 pins socket and 232 or TTL level voltage RS-485 interface with DB9 pins socket and 485 level voltage USB2.0 interface with standard USB socket      Physical Character : Outline Dimension - 119x157x88mm Power Supply and Power  DC9V-24V <24W DC5V-9V <15W Optional built-in battery Weight   Environment : Operating Temperature - 5 - 50 Cesius Operating Humidity - 10% - 80%RH Storage Temperature -   -20 - 80 Cesius Storage Humidity -10%-90%RH Place of Origin - Beijing, China

Having the latest features and quick response time, our Embedded Panel Thermal Printer is extensively demanded all over the world. Easy to install and having the option of auto loading the paper, our Embedded Panel Thermal Printer is advanced in every way imaginable. Our large warehouses make it possible to store and entertain bulk orders of our clients from all over the world. We are counted amongst the trusted Supplier and Exporter of Embedded Panel Thermal Printer from Delhi, India.   Features : Thermal print mode Easy installation 30mm diameter paper warehouse Installation port size -103x56x53mm Paper width - 57mm Dots - 16 or 24   Order Model : NAWS-E01-[ ]-[ ] + 232 -> RS232 Interface TTL -> TTL Interface +16 -> 16 Dots, 24 -> 24 Dots Order Model Sample - NAWS-E01-24-232, It's 24 dots and RS-232 interface   Technical Specifications : Physical Character : Installation Method - Easy installation Paper Supply Method - Auto load paper Paper Change Mode - Front Outline Dimension (WxHxD) - 110x63.5x60mm Installation Port Size (WxH) - 103x56mm   Paper Specification : Paper warehouse diameter - 30mm Paper Type - Thermal paper Paper Roll Diameter - 30mm Paper Thickness - 0.06 to 0.08mm   Environment : Operating Temperature - 0 to 55 Celsius Operating Humidity - 10% to 85%RH Storage Temperature - -20 to 60 Celsius Storage Humidity - 10% to 90%RH   Print Character : Method - Thermal print Reliability- 50 km Resolution (dots/mm)- 8 Dot Matrix (dots/line)- 384 Paper Width (mm)- 57±0.5 Speed (line/sec) -60 Printer Header Manufacture- Made in Japan   Print Font : Instruction Set - ESC/POS, 6x8dots English Set- 8x16dots, 12x24dots Letters Print- 32 Letters/Line (24Dots) 16 Letters/Line (16Dots)   Other : Out of Paper Alarm - LED Flashing when out of paper Overheating Protection - None Paper Tear Off Way - Manual Cut Paper Method - None Automatic Memory - Unavailable Memory Cache - 32k Color - White

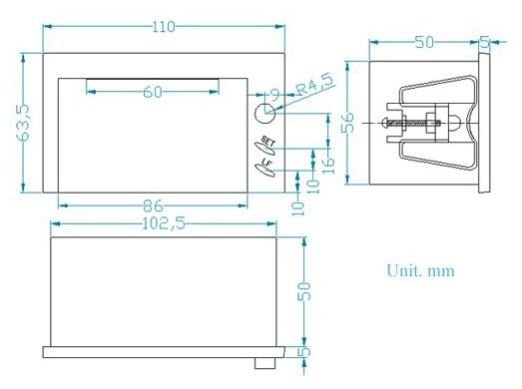

NAWS-E01 Embedded Panel Thermal Printer   Features:     - Thermal print mode     - Easy installation     - 30mm diameter paper warehouse     - Installation port size 103x56x53mm     - Paper width 57mm     - Dots 16 or 24   Order Model:     NAWS-E01-[ ]-[ ]               |   |               |   + 232 -> RS232 Interface               |     TTL -> TTL Interface               |               +16 -> 16 Dots                24 -> 24 Dots       Order Model Sample: NAWS-E01-24-232, It's 24 dots and RS-232 interface   Technical Specification:     Physical Character         Installation Method: Easy installation         Paper Supply Method: Auto load paper         Paper Change Mode: Front         Outline Dimension (WxHxD): 110x63.5x60mm         Installation Port Size (WxH): 103x56mm     Paper Specification         Paper warehouse diameter: 30mm         Paper Type: Thermal paper         Paper Roll Diameter: 30mm         Paper Thickness: 0.06 to 0.08mm     Environment         Operating Temperature: 0 to 55 Celsius         Operating Humidity: 10% to 85%RH         Storage Temperature: -20 to 60 Celsius         Storage Humidity: 10% to 90%RH     Print Character         Method: Thermal print         Reliability: 50 km         Resolution (dots/mm): 8         Dot Matrix (dots/line): 384         Paper Width (mm): 57±0.5         Speed (line/sec): 60         Printer Header Manufacture: Made in Japan     Print Font         Instruction Set: ESC/POS, 6x8dots         English Set: 8x16dots, 12x24dots         Letters Print:32 Letters/Line (24Dots)                       16 Letters/Line (16Dots)     Other         Out of Paper Alarm: LED Flashing when out of paper         Overheating Protection: None         Paper Tear Off Way: Manual         Cut Paper Method: None         Automatic Memory: Unavailable         Memory Cache: 32k         Color: White

NAWS-Z02 Embedded Panel Dots Needle Printer   Features:     - Dots needle print mode     - Easy installation     - 30mm diameter paper warehouse     - Installation port size 102.6x56x53mm     - Paper width 44 or 57mm     - Dots 12 or 16   Order Model:     NAWS-Z02-[ ]-[ ]-[ ]                               |   |   |                       |   |   + W -> White Color               |   |     B -> Black Color               |   |                       |   + 232 -> RS232 and TTL Interface                |     485 -> RS485 and TTL Interface               |     422 -> RS422 and TTL Interface               |     PRT -> Parallel Interface               |     USB -> USB Interface               |                               + 121644 -> 12 Dots, 16 Letters/Line and Paper Wide 44mm                 122444 -> 12 Dots, 24 Letters/Line and Paper Wide 44mm                 124044 -> 12 Dots, 40 Letters/Line and Paper Wide 44mm                 161257 -> 16 Dots, 12 Letters/Line and Paper Wide 57mm                 161857 -> 16 Dots, 18 Letters/Line and Paper Wide 57mm                 163057 -> 16 Dots, 30 Letters/Line and Paper Wide 57mm                  Order Model Sample:     NAWS-Z02-161257-232-W, It's 16 dots, 12 Letters/Line and     RS232 interface and White Color.   Technical Specification:     Physical Character         Installation Method: Easy installation         Paper Supply Method: Auto load paper         Paper Change Mode: Front         Outline Dimension (WxHxD): 107.3x61.4x65.6mm         Installation Port Size (WxH): 102.2x56mm     Paper Specification         Paper warehouse diameter: 30mm         Paper Type: Dots paper         Paper Roll Diameter: 30mm         Paper Thickness: 0.06 to 0.08mm     Environment         Operating Temperature: 0 to 55 Celsius         Operating Humidity: 10% to 85%RH         Storage Temperature: -20 to 60 Celsius         Storage Humidity: 10% to 90%RH     Print Character         Method: Dots print         Reliability: 50 km         Resolution (dots/mm): 8         Dot Matrix (dots/line): 384         Paper Width (mm): 44 or 57         Speed (line/sec):             1 for 12 or 16 Letters/Line            0.7 for 18 or 24 Letters/Line18            0.4 for 30 or 40 Letters/Line         Printer Header Manufacture: EPSON Made in Japan            (12 Dots 16Letters/Line)            (16 Dots 12Letters): EPSON M150II            (12 Dots 24Letters/Line)            (16 Dots 18Letters/Line): EPSON M160            (12 Dots 40Letters/Line)            (16 Dots 30Letters/Line): EPSON M164     Print Font         Instruction Set: ESC/POS, 6x8dots         English Set: 8x16dots, 12x24dots         Letters Print:             16, 24, 40 Letters/Line (12Dots)            12, 18, 30 Letters/Line (16Dots)     Other         Paper Tear Off Way: Manual         Cut Paper Method: None         Automatic Memory: Unavailable         Memory Cache: 32k         Color: White         Weight:
