Builder Hoist
Get Price Quote
We are a trusted entity, known for providing durable and sturdy Builder Hoist! We are among the leading Manufacturers and Suppliers of Builder Hoist based in Delhi, India. We make them available in different grades and ratings to meet several industrial requirements. They can also be customized accordingly. Buyers can rely on us for reasonable prices and timely deliveries.
Details :
Height - 200 ft.
Wire Rope- 12 mm ISI Tested
Bucket Sheet – 10 Guage
Starters- 15.HP.
Motor - 15.HP. Crompton / Kirloskar Make
Trolly Frame – Made out of M.S angles & channels with shocker (spring)
Foundation - Made of 4” X 2” and 2.5 angle with bearing arrangement
Top Double pulley channel made 65 X 125X65mm with universal arrangement.

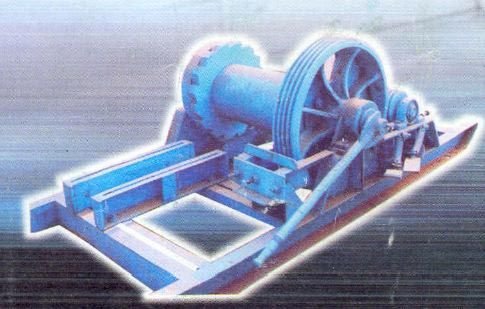

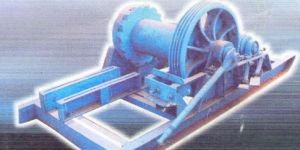

Winch machine strudy frame made out of channels and angles and fitted with hand brake,
foot brake and wooden brake.
Dog lock arrangement also available for safety purpose.
Complete with all accessories (Nut Bolts) make ‘W’.
We will also provide two shoots 08 ft. & 04 ft. for transfer the RMC from Mixer to
bucket of lift. It is useful to better transfer of RMC.
Vertical Channels - 50X100X50MM or 4”X2” (Make Vizag /SALE)
Horizontal Angles - 40X40X5 MM
Cross Angle - 40X40X5 MM
Joint Plates - 65 X 10MM
Joint Angle - 50X50X5 MM
Nut & bolts - ½” Dia
Capacity - 2000 Kg. gross load
Max. Height- Up to 360 ft.
Speed 125 Rft. Per min
Prime mover- 15 H.P. Motor
Drive - V – Belt Pulley system with Limit switch arrangement
