Capital Cables India Pvt. Ltd. Chandni Chowk, Delhi

Zero Halogen Flame Retardant Wires are insulated with ZHFR compound . It is a superior and safer alternative to conventional wires which are made of PVC. ZHFR insulated Wires are filled with hydrated fillers which release water during fire. They are user Friendly, help to save life, property and cost fractionally more money. Completely Free of Heavy Metals. No Risk of Cancer.

T-XLPE Cables have a higher conductor rating i.e. “90°C as compared 70°C of PVC and hence higher current rating. Maximum temperature limit under Short Circuit conditions for LT-XLPE Cables is 250°C as against 160″C for PVC Cables. Hence, LT-XLPE Cables have higher Short Circuit rating. LT-XLPE Cables have higher emergency overload capacity than PVC Cables ( upto 60%). LT-XLPE Cables have longer life as compared to conventional PVC Cables. Tensile Strength for LT-XLPE Cables is 1.9 Kgmm2 as against 1.25 – 2.5 Kgmm2 for PVC Cables. Elongation (%) in LT-XLPE Cables is 300-500 as compared to 200-400 in PVC Cables.

LT Power Cables, Solid Aluminum conductor upto 10 sqmm balance stranded conductor, XLPE Insulated, cores laid up, PVC tape innersheathed, UnarmouredArmour (Aluminium wire for single core cables upto 70 sqmm balance Aluminum strip, Glavanised wire for cables upto 2×10 sqmm,3×10 sqmm, 4×6 sqmm balance all galvanised steel strip), extruded PVC Type ST2 sheathed, 6501100 V grade as per IS 7098 (Part 1) 1988

For trouble free working, these connecting cables are just as important as winding are for the submersible pump motors. 3 core Flat Cables are manufactured keeping in mind the severe and difficult conditions in which they are required to operate. The individual flexible conductors are made from electrolytic grade bright copper. The wires are drawn, annealed and bunched properly to ensure long life. Each of these three flexible copper conductors is insulated with a specially formulated PVC compound and the cores are laid up in Flat Parallel position. The outer sheath of the cable is made from a special grade of resistant PVC compound impervious to water, grease, oil etc.

Capital Cables has also developed a special range of PVC insulated winding wires with stranded copper conductor for higher HP submersible pump motors. These are manufactured to individual customer specifications. The standard range of these winding wires is given in Table. For heavy duty applications such as submersible pumps used in mines, winding wires with double insulation can also be made available.

Power Source : Electricity

Sweep Size : 800 mm

Number of Blades : 6

Air Delivery : 200 cmm

POLYCAB" Brand Power Cables, Solid Aluminum conductor up to 10 sqmm balance stranded conductor, XLPE Insulated, cores laid up, PVC tapeExtruded Innersheathed for Multicore Cables , Armour (Aluminium wire for single core up to 70 sqmm balance Aluminium strip, Glavanised wire for cables upto 2x10 sqmm, 3x10 sqmm,4x6 sqmm balance all galvanised steel strip), extru

The twisted Pairs are stranded in a single unit of 10,20&25 Pairs, Wrapped helically with an identification colour binder. For higher number of Pairs cable, a number of units are stranded together to form a super unit. A coloured identification binder is wrapped around the super units for easy identification

100 VOLTS FLEXIBLE SINGLE CORE & MULTICORE CABLES WITH ANNEALED BARE COPPER CONDUCTOR, ( INDUSTRIAL CABLES ) PVC INSULATED AND OR PVC SHEATHED AS PER IS : 694-1990 WITH ISI MARK

These are manufactured to individual customer specifications. The standard range of these winding wires is given in Table. For heavy duty applications such as submersible pumps used in mines, winding wires with double insulation can also be made available.

Model : Myrius Nextgen

Current Rating : 6A

Circuit Type : 2 Way

Country of Origin : 230V

Material : Polycarbonate

Finish Type : Glossy

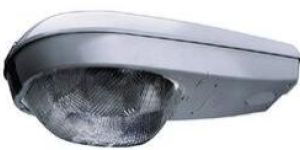

Application : Street Lighting

Lighting Type : LED

Material : Metal

IP Rating : IP55

Lighting Color : Warm White

Country of Origin : 230 V

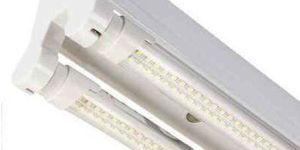

Lighting Type : LED

Wattage : 36 W

IP Rating : IP66

Lighting Color : Pure White

Frequency : 50 Hz

Country of Origin : 240 V

Material : PVC

Country of Origin : Made in India

Conductor Material : Copper

Conductors for Cables are drawn from electrolytic grade Copper Aluminium to ensure compliance with global standards . Annealed conductors are bunched together on custom built heavy duty bunching machines to impart concrete shape to the conductor. “Capital Cables” PVC insulated flexible single core, manufactured with bright annealed bare copper conductor for flexible use, insulated with Di- Electric grade PVC Compound. Impervious to oil, water, petrol, acids and greases generally for working voltage up to and included 1100 Volts.

Country of Origin : 1100 Volts.

Insulation Material : FR

Country of Origin : Made in India

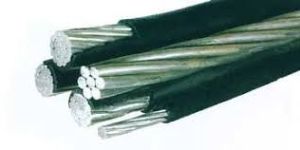

LPEHDPE insulated power conductors of Aluminium (Neutral conductor and street lighting conductor if and when necessary) are laid together (twisted) around a high tensile standard and galvanized steel (Aluminium Alloy may be used) insulated or bare messenger wire to form the Aerial Bunched Cable. This assembly is directly strung on to distribution poletowers by means of standard hardware available in the market but care shall be taken to render the messenger wire completely insulated from Earthing at any point of distribution in case of HT ABC.

Rated Current : 400A to 6300A

Rated Voltage : 240-440 V

Insulation Material : PVC

Conductor Material : Aluminum

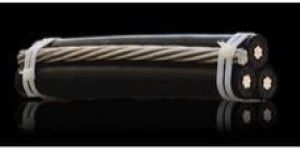

XLPEHDPE insulated power conductors of Aluminium (Neutral conductor and street lighting conductor if and when necessary) are laid together (twisted) around a high tensile standard and galvanized steel (Aluminium Alloy may be used) insulated or bare messenger wire to form the Aerial Bunched Cable. This assembly is directly strung on to distribution poletowers by means of standard hardware available in the market but care shall be taken to render the messenger wire completely insulated from Earthing at any point of distribution in case of HT ABC.

ABC has very high reliability in maintaining services because power and neutral conductors are insulated with the best dielectric medium, resulting in the following advantages: Less fault rate on account of good protection against line and ground fault by high winds or falling trees or birds especially in hilly areas & forests as encountered in rural distribution networks. High insulation resistance to earth in all seasons and polluted atmospheres. Negligible leakage currents and low losses. Multiple circuits of Power and Telephone cables could be strung in the same set of poles or any other supports like walls etc. Better adaptability to run concurrently with existing overhead bare conductor system without any interference. High capacitance and low inductance leading to low impedance of lines.

” PVC insulated flexible single core, manufactured with bright annealed bare copper conductor for flexible use, insulated with Di- Electric grade PVC Compound. Impervious to oil, water, petrol, acids and greases generally for working voltage up to and included 1100 Volts.
