Chandra Controls Jail Road, Delhi

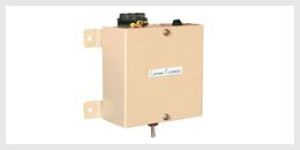

Switching ON/OFF of one or more than one dampers at a time Easy interfacing with all types of ON/OFF type damper actuators Visual indications for damper status Available for both 24V AC and 220V AC type damper actuators Comes in four standard models

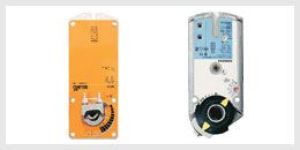

Compact design, high performance, overload proof Maintenance free Varying range of torque output Spring back action on power supply interruption 24V/230V AC/DC power options Limit switch option available Suitable for air and smoke / fire damper Degree of protection : IP54

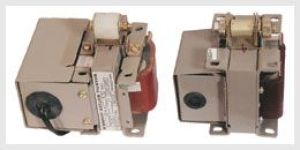

Rugged laminated frame and plunger with steel supporting frame Epoxy moulded coil Electro-mechanical operation Pull at rated voltage (Gross) in kg: 1.25 kg and 6.75 kg 220V AC operating voltage Easy installation on fire/smoke dampers

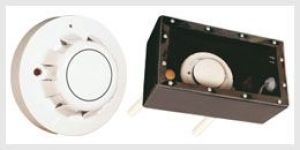

UL approved photo electric sensing head used as sensor Very low leakage chamber used for smoke collection Telescoping tubes used for smoke sampling Easy installation on duct Direct connection to the fire and smoke damper controller

Comes in metallic and plastic enclosures Compact and maintenance free design Current up to 10 Amps. can be controlled Easy installation on dampers and ducts Degree of protection : IP67 (for limit switch) and JSS 51204 (for Microswitch)

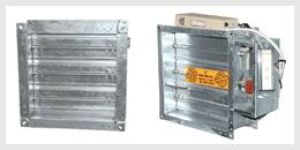

Heavy Gauge G.I. multi blade construction Galvanised Shaft Self lubricanting bronze bushes Actuator and solenoid operated CBRI (Roorkee) approved for 90 Min. fire rating Available in 16g / 18g /20g / 22g of G. I. Sheet
