Countronics Sahibabad, Ghaziabad, Uttar Pradesh

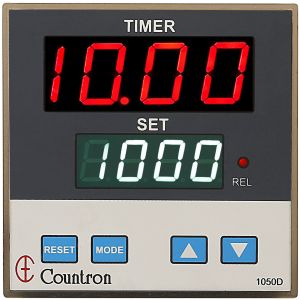

MICROPROCESSOR BASED TIMER Model 1050D Features:  6 different timing ranges of 99.99sec, 999.9sec, 9999sec,99Mins59Secs, 9999Mins, 99Hrs59Mins  Press to start/Power On start/Cyclic modes settable  Delayed On/Off programmable by user from front panel  Up/Down time counting user settable  User settable starting On/Off time for cyclic mode  Number of cycles settable for cyclic mode  Non-volatile memory to save configuration and timing  Configuration lockable by Password  Front Reset/Start switch with parallel terminals at rear    Aesthetically designed panel with membrane switches Specifications:  Display : 4 Digit 0.8” Red 7 segment LED display for Time                   4 Digit 0.56” Red 7 segment LED display for Set Time                  Red LED to indicate current status of Relay On/Off  Modes : User settable from front panel                o Power On start                o Press to start (with battery backup selection using EEPROM)                o Cyclic action  Number of Cycles : 1-199 cycles settable for cyclic mode after which the timer stops Setting number of cycles to Zero disables number of cycles setting  Reset/Start : Front Reset/Start switch with parallel terminals at rear to connect additional switch, if required.  Relay logic : Settable delayed On/Off, 5 Amps/220V AC Dual Relay Contact outputs  Timing direction : Up/Down time counting user settable    Memory : Non-volatile EEPROM to save settings

Brand Name : Countronics

Feature : Durable, Easy To Use, High Accuracy

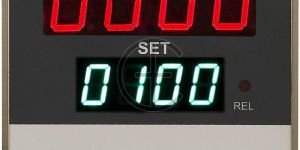

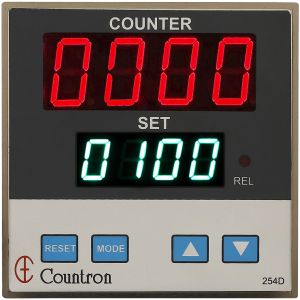

PROGRAMMABLE COUNTER - MODEL 254D Features  4 Digit Preset Counter with separate displays for Count and Set Limit  Large 0.8” display for count, 0.56”  Programmable Multiplying and dividing factor  Pre-settable Batch Counter  Up/Down Counting Selectable  Normal/Auto-Reset with Time setting  Non-Volatile memory to hold settings and counts    Password for Program configuration lock Specifications  Display : 4 Digit, 7 segment LED display (0.8” height) for Count                 4 Digit, 7 segment LED display (0.56” height) for Limit  Range : Maximum Count of 9999  Set Points : Single set points programmable from 1-9999  Batch Limit : Batch limit setting from 0 to 999  Operating Modes : a. Auto Mode (Time Settable) b. Manual Mode (Delay set to Zero)  Count Inputs : a. Voltage Pulse : 3V to 30V DC amplitude from proximity switch                          b. Potential free contact from limit switch, relay or micro switch  Input Frequency : 0 to 1 KHz  Sensor Supply : 10V DC, short circuit protected  Multiplying Factor: Programmable from 1-99  Division Factor : Programmable from 1 to 99  Reset Input : a. Front Panel b. Remote reset by rear terminals  Relay Outputs : NO-Pole-NC contact rated at 5Amp @ 230 V AC  Memory Retention: 10 years  Configuration Lock: By Password  Mounting : Panel Mounting  Size : 96mm x 96mm. Depth 50mm  Weight : Approx. 375 gms.  Operating Temp. : 0-50 ̊C    Humidity : 95% RH

Brand : Countronics

Application : Industrial

Size : 96mm x 96mm. Depth 50mm

Availability : Approx. 375 gms.

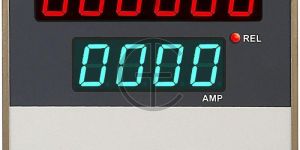

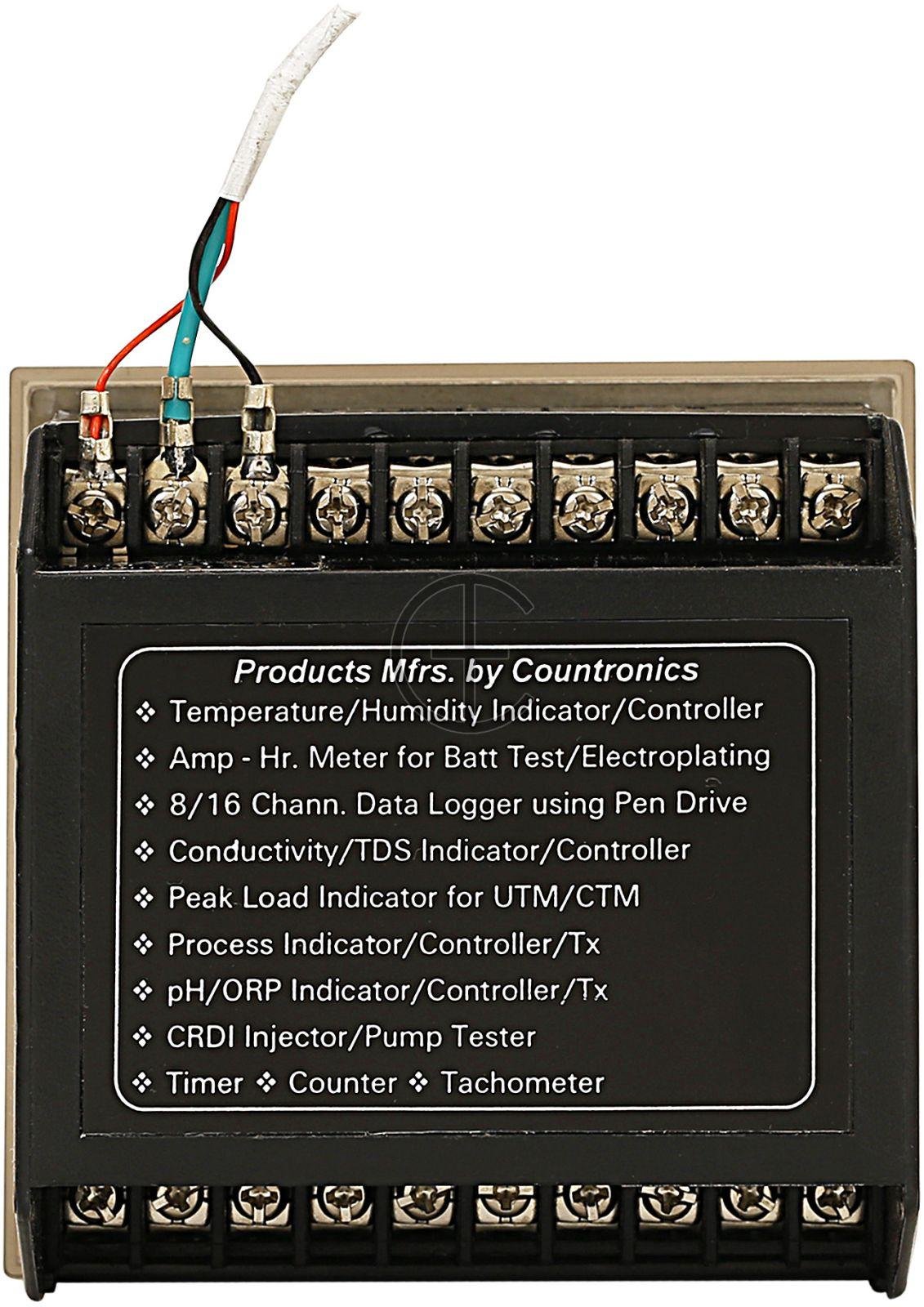

PROGRAMMABLE AMP. HOUR METER MODEL 810AH INTRODUCTION: This micro-controller based programmable Amp-Hour Meter is designed to integrate and display DC current flowing respect to time. It becomes a measure of the total current energy. A preset limit of this integrated current can be pre-programmed and when the limit is reached, a relay is switched ON to trigger an alarm. A 6 digit display for Ampere Hour and a 4 digit display for Current is provided. In addition, an internal limit of 10.5V is preset so that a 12V Battery can be tested for its’ A-H. As soon as the 12V battery discharges to a voltage below10.5V the Amp-Hour meter stops automatically. The instrument reads current also. For different ranges, the equipment can be user-programmed for different shunt resistances. SPECIFICATIONS: 1. Display : 6 RED 7 Segment LEDs of 0.56” character height. 4 Digit Green display for Current 2. Current : Max 9999 Amps using a shunt of current/75mV. User programmed. 3. Amp-Hour : Max 999999 A-H for each preset cycle. 4. Amp-Min : Max 999999 A-Min for each preset cycle 5. Max shunt : Max value of 9999 Amp corresponding to 75mV 6. Totaliser : 6 Digits for Amp-Hour or Amp-Min. i.e. 99,99,99 7. Limit : Up to 999999 AH or Amin. setting 8. Relay Contact : One NO-P-NC of 5 Amp rating 9. Trigger start : By pressing front panel switch or closing a rear external contact. 10. Battery : Not required. All programmed values and readings including A-H stored in EEPROM 11. Lock : Electronic lock for calibration 12. Low Voltage : Set at 10.5V internally. For testing 12V Battery AH 13. Supply : 220V AC  10% 14. Size : Front Fascia: 96mm x 96mm. Depth: 50mm. 15. Weight : 800 grams 16. Mounting : Panel mounted   17. Resolution : 0.1AH or 0.1AMin user selectable through front panel

Brand Name : Countronics

Power Source : Electric

Application : Indsustrial Usage

Country of Origin : 220V AC  10%

Display Type : Digital

Number Of Flower : Ampere Hour Meters

Availability : 800g

Total Carbohydrate : 1Year

Country of Origin : India

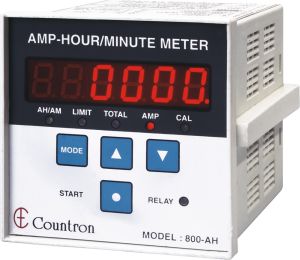

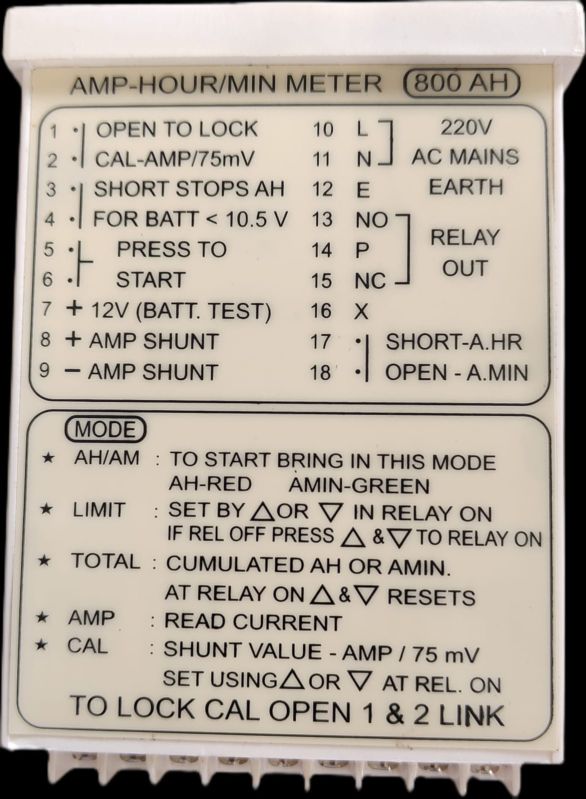

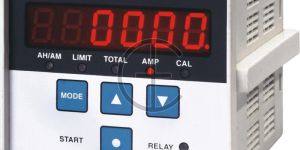

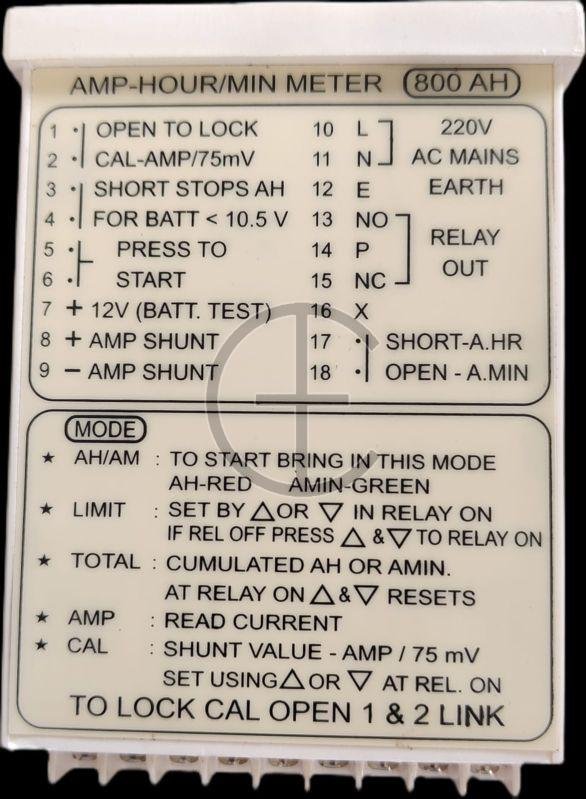

programmable amp-hour metermodel 800ah features  amp-hr/amp-min indicator/controller for         o electroplating thickness control         o testing battery amp-hr  shunt calibration programmable  stores cumulative amp-hour  instantaneous current display  settable limit for amp-hr/min  front membrane switches for easy operation  non-volatile memory for storing settings, hence no battery required specifications 1. display : 6 red 7 segment leds of 0.56” character height. 2. current display : max 9999 amps using a shunt of current/75mv. user programmed. 3. amp-hour : max 9999 a-h for each preset cycle. (amp-hour range is selected by shorting pin 17-18 at the rear) 4. amp-minute : max 9999 a-min for each preset cycle. (amp-minute is selected, opening the link between pin 17 & 18). 5. max shunt : max value of 9999 amp corresponding to 75mv 6. totaliser : 6 digits for amp-hour or amp-min. i.e. 99,99,99. (readable for 10 sec by going into ‘total’ mode). 7. limit : up to 9999 ah or amin. setting (in limit mode using incr./ decr. switches). 8. relay contact : one no-p-nc of 5 amp rating. 9. trigger start : by pressing front panel switch or closing a rear external contact. 10.battery back-up : not required. programmed values & readings, including a-h stored in eprom. 11.lock : electronic lock for calibration (open link between pin 1 & 2 to lock cal) 12.low volt. trigger: set at 10.5v internally. for testing 12v battery ah. (with pin 3 & 4 shorted). 13.increased res. : 0.1ah or 0.1amin facility by shifting internal jumper. 14.supply : 220v ac  10% 15.size : front fascia 96mm x 96mm din size. depth 135mm. cut out : 91mm x 91mm.   16.weight : 800 grams

Brand Name : Countronics

Power Source : Electric

Application : Indsustrial Usage

Feature : Accuracy, Durable, Low Power Comsumption

Availability : 800 grams

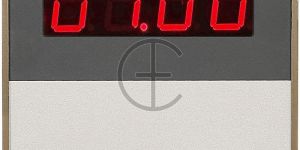

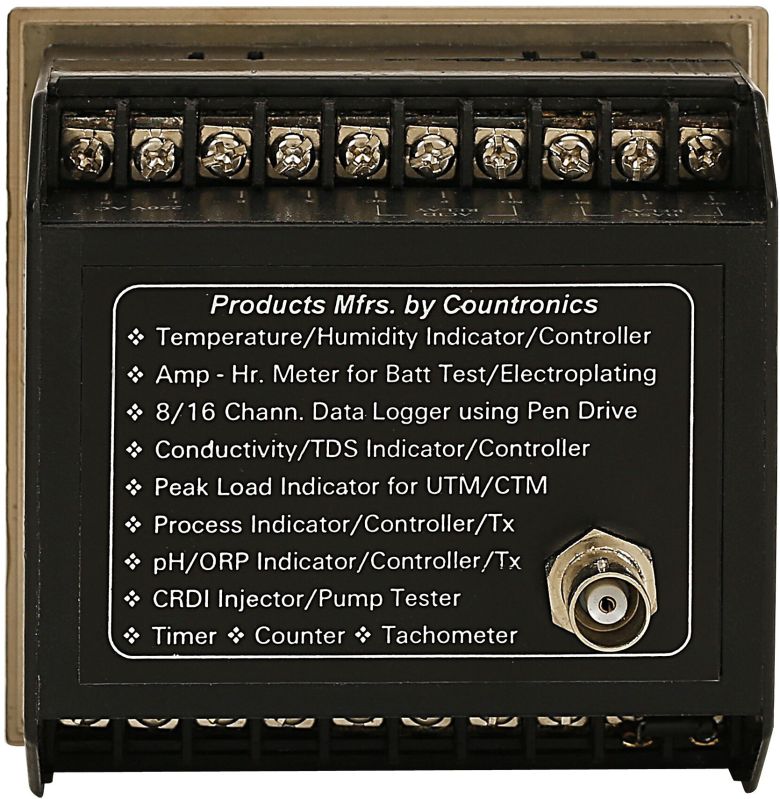

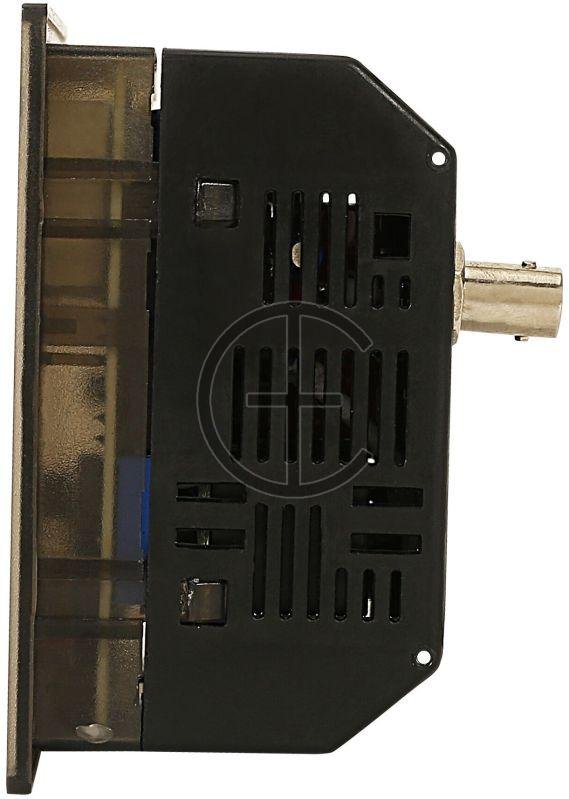

pH Indicator Model 121pH\r\nFeatures\r\n\r\nAccurate pH display with calibration facility on front panel.\r\nLarge 0.8” Red 7 Segment Display\r\nAuto Temp Compensation using external PT100\r\nDigital calibration for pH-7 and pH-4Specifications\r\nDisplay : 31⁄2 Digit Red, 0.8” character height LED display\r\nRange : 0.00 to 14.00 pH\r\nAuto Temp : 0-100 ̊C using PT100 ext. sensor compensation\r\nCalibration : Standard pH-7 : 7.00 ± 1\r\nSlope pH-4 : 4.00 ± 1\r\nAccuracy : 0.5% ± 1 Digit\r\nInput Impedance: >1012 Ω\r\nSupply :220V AC ±10% @ 50/60Hz\r\nSize : Front facia - 96mm x 96mm x 40mm\r\nCut Out - 92mm x 92mm\r\nEnclosure : Plastic ABS\r\nWeight : 700gms\r\nSlim enclosure of only 40mm depth\r\n\r\n

Brand Name : Countronics

Range : 0.00 to 14.00 pH

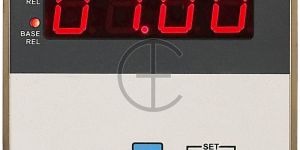

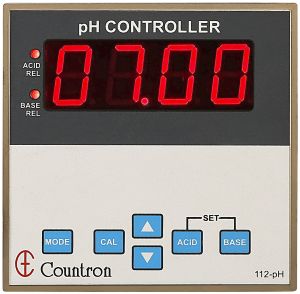

pH Controller, Model 112pH\r\nFeatures\r\n Accurate pH display with calibration facility on front panel.\r\n Large 0.8” Red 7 Segment Display\r\n Independent 2 Set Point controller with separate relays for each set limit\r\n Auto Temp Compensation using external PT100\r\n Digital calibration for pH-7 and pH-4\r\n \r\n Slim enclosure of only 50mm depth\r\nSpecifications\r\n Display : 31⁄2 Digit Red, 0.8” character height LED display\r\n Range : 0.00 to 14.00 pH\r\n Auto Temp : 0-100 ̊C using PT100 ext. sensor compensation\r\n 2 Relay Outputs :Contact rating 5A at 220V AC\r\n Relay Logic : Acid Relay ON for pH> Set Limit + Hysterisis\r\n                       Base Relay ON for pH < Set Limit - Hysterisis\r\n Calibration : Standard pH-7 : 7.00 ± 1\r\n                       Slope pH-4 : 4.00 ± 1\r\n Accuracy : 0.5% ± 1 Digit\r\n Input Impedance: >1012 Ω\r\n Supply :220V AC ±10% @ 50/60Hz\r\n Size : Front facia - 96mm x 96mm x 50mm\r\n              Cut Out - 92mm x 92mm\r\n Enclosure : Plastic ABS\r\n \r\n Weight : 700gms

Brand Name : Countronics

Power Source : Electric

Feature : Accuracy, Stable Performance

Country of Origin : 220V AC +/- 10% @ 50/60Hz

Display : 31⁄2 Digit Red, 0.8” character height LED display

Accuracy : 0.5% ± 1 Digit

Availability : 700gms

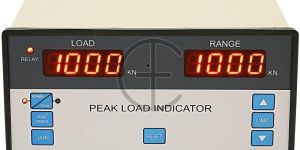

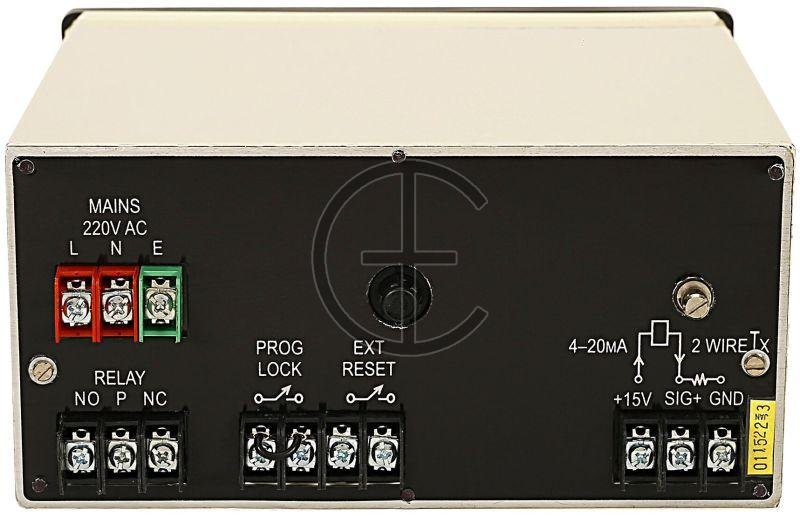

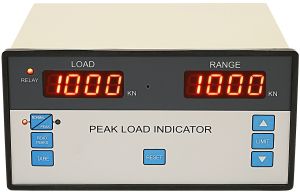

PEAK LOAD RECORDING INDICATORMODEL CT901 Features  Separate displays for load indication and maximum range  Range for load indication corresponding to 4-20mA input digitally settable from front panel  Peak/Normal mode selectable  Up to 9 peaks can be recorded and recalled  Buzzer annunciation at Peak  Relay output for load limit detection with limit digitally settable  Digital tare provided to remove initial error  Non-volatile memory for saving configuration  Configuration lock at rear to prevent tampering with Range  Aesthetically designed front panel with membrane switches Specifications  Display : 4 Digit 0.56” 7 segment Red LED display for Load (KN)                  4 Digit 0.56” 7 segment Red LED display for Set Point (KN)  Range      o Range : 1KN to 9999      o Load : 1KN to Range      o Set Load (Limit) : 1KN to 9999  Accuracy : ±0.1% of Full Scale ± 1 digit  Input : From 2 wire loop transmitter giving 4-20mA output 4-20mA input => 0 - Range  Relay Logic : When Actual Load ≥ Set Load Limit relay switches On.  Normal/Peak Mode : Selectable from front panel with LED indication of mode  Peak Read : Last 9 peaks can be recalled with facility to reset memory  Peak Detection : Peak hold is resettable from front Reset Switch or by a parallel rear external contact  Tare Facility (Zero) : Digital Tare using front panel Tare switch up to a maximum of 50KN (for removing initial offset error)  Memory : Non-volatile EEPROM to save settings  Configuration Lock : On rear terminals to prevent unauthorized/accidental alteration of Range using front switches  Supply : 220V AC ± 15% @ 50/60Hz    Dimensions : Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm

Brand Name : Countronics

Condition : New

Accuracy : ±0.1% of Full Scale ± 1 digit

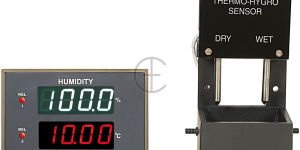

HUMIDITY/TEMPERATURE CONTROLLER Model 7214 Features  Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature  4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.  Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power  On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis  Digital Offset control for Temperature and Humidity  Capacitive sensor for 0-100% Humidity and -20 ̊C to +80 ̊C    Non-Volatile memory to hold settings and counts Specifications  Display : 4 Digit, 7 segment Green LED display (0.56” height) for Humidity                  4 Digit, 7 segment Red LED display (0.56” height) for Temperature  Range : 0-100.0% for Humidity (in 5 ̊C to 50 ̊C temperature range) -20.0 ̊C to +80.0 ̊C for Temperature  Set Limits : 0-100.0% for Humidifier , 0-100.0% for De-Humidifier, -40.0 ̊C to +100.0 ̊C for Heater, -40.0 ̊C to +100.0 ̊C for Cooler  Percentage Power: 0-200% for Set Limits of Humidifier and Heater.  Hysterisis : 0-9.9 for De-Humidifier and Cooler  Digital Offsets : -19.9 to +19.9 for Humidity, -19.9 to +19.9 for Temperature  Sensor Supply : 5V DC  SSR Outputs : +12VDC outputs Heater, Cooler, Humidifier and De-Humidifier  Memory Retention: 10 years  Mounting : Panel Mounting  Size : 96mm x 96mm. Depth 50mm  Weight : Approx. 375 gms.  Operating Temp. : 0-50 ̊C    Humidity : 95% RH

Size : 96mm x 96mm. Depth 50mm

Availability : Approx. 375 gms.

Digital Humidity/Temperature ControllerModel 7210 Features  Direct, accurate display of Humidity and Temperature  Uses the classical Dry/Wet temperature sensing technique  Sensors are sealed Platinum PT100 type in S.S. immune to atmosphere gases etc.  No need of any look-up table as the embedded software accesses the table from the micro controller memory.  A sturdy sensor body has in-built water reservoir with facility to connect a water-drip to ensure the wick never dries up.  4 Control outputs for Humidifier, De-humidifier, heater and cooler. Specifications  Display : 2 Digits 0.56” RED 7 Segment LED for Humidity.                 3 Digits 0.56” RED 7 Segment LED for Temperature  Display Range : 0-99% for Relative Humidity and 0-99.9 ̊C for Temperature  Resolution : 1% for Relative Humidity and 0.1 ̊C for Temperature  Control Range : 0 to 99% for Humidity (over temperature range 0 to 65 ̊C) and 0 to 99.9 ̊C temperature  Accuracy : ± 2% ± 1 Least Significant Digit for Humidity.                    ± 0.2 ̊C ± 1 Least Significant Digit for Temperature  Settings : By front panel membrane touch switches.  Control Output : Humidifier ON for RH < SET HUMID – 1%                             De-humidifier ON for RH > SET HUMID + 1%                             Heater ON for Temp. < SET TEMP – 0.5%                             Cooler ON for Temp. > SET TEMP + 0.5 ̊C  Control Relays : 4 sets of NO-P-NC of 5A/220V AC contact rating  Power Supply : 230V AC ± 15% at 50/60Hz  P.C. Interface : RS-232 output available on extra cost.  Mounting Type : Panel Type  Front Facia : 96mm x 96mm    Weight : 1.2 Kgs.

Brand Name : Countronics

Condition : New

Application : Industrial

Conductivity/TDS Controller Model 160-COND Features  Auto/Manual temperature compensation selectable  Conductivity and TDS selectable from front panel  Cell Factor selectable for both 1.0 and 0.1  4 Step Range selection 0.1μs to 199.9ms for conductivity  Digital calibration for Conductivity/TDS  Auto Temp Compensation using PT100 sensor  Dual set limit with separate relay outputs  Settable hysteresis for both set limits  Bright Red LED display with separate display for set limit-1  Aesthetically designed front panel with membrane switches and ABS cabinet Specifications  Display : 0.56” Red LED 7 segment Display for Conductivity/TDS                   0.56” Red LED 7 segment Display for Set-Limit-1  Ranges : Conductivity: 19.99ms 199.9ms                                      1999 μs 0.1 Cell 19.99ms 1.0 Cell                                      199.9μs 1999 μs                                      19.99μs 199.9μs                                       TDS: 0-1999ppm  Resolution : Conductivity: 0.01ms or 0.01μs depending on range & Cell factor                                            TDS: 1ppm  Auto Temp. Comp. : 0-100 ̊C using PT100 external sensor  Manual Temp. Comp. : Settable from front panel from 0-100.0 ̊C  Cond/TDS Calibration : Digital calibration by factor multiplication from 0.75-1.25  Recorder Output : Isolated 4-20mA => 0-2000 (for whatever unit and resolution selected (Maximum termination 250Ω)  Control Output : Two set of NO-P-NC, 5 Amps potential free Relay Contacts. Relay 1 ON, for Cond/TDS < Set Limit1 – Hysterises1 Relay 1 OFF, for Cond/TDS > Set Limit1 Relay 2 OFF, for Cond/TDS < Set Limit2 Relay 2 ON, for Cond/TDS > Set Limit2 + Hysterises2    Accuracy : 0.5% ± 1 Digit  Supply : 220V AC ±10% @ 50Hz  Enclosure : Plastic (ABS). Size -96x96x110mmm    Weight : 900gms

Feature : Durable

Number Of Flower : Conductivity Controller

Country of Origin : India

Availability : 900gms,1Kg

8 CHANNEL UNIVERSAL TEMPERATURE SCANNER LOGGERCT708 Features:  Data saved directly on USB Pen drive in an MS Excel compatible file  Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.  Auto cold junction compensation for thermocouples and 3 wire input for PT100  Number of usable channels selectable.  Auto/Manual mode of scanning selectable  Rate of logging settable by user in Mins:Secs  Digital offset user settable for individual channels  Internal Real Time Clock with battery backup for saving values along with Date and Time  No need of any complicated or additional software for managing data  Saving data on Pen drive allows a very large amount of storage space at very low cost. Specifications  Display : 0.56” Red LED display for Channel Number                  0.56” Red LED display for Temperature  Sensor : J/K/R Thermocouples and 3 wire PT100 sensor user selectable  Range : J-T/C : 0 to 750 ̊C K-T/C : 0 to 1250 ̊C R-T/C : 0 to 1700 ̊C                 PT100: -100.0 to +600.0 ̊C  Resolution : 1 ̊C for thermocouples and 0.1 ̊C for PT100  Channels : Maximum 8  Scanning Rate: User settable from 1-99seconds  Resolution : 1 ̊C for Temperature  Digital Offset : User settable individually for each channel  Logging Rate : 1 second to 99Mins59seconds  Data Logging : Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels  Real Time Clock: Adjustable Calendar (Month/Date) and Time (Hrs:Mins)  Accuracy : ±1 ̊C ± 1 Least Significant Digit for Thermocouple                     ±0.1 ̊C ± 1 Least Significant Digit for PT100  Power Supply : 230V AC ± 15% at 50/60Hz    Front Facia : 96mm x 96mm

Brand Name : Countronics

Condition : New

Power Source : Electric

Application : Industrial

Backed by our prime motto to provide our clients with best in class products in a stipulated time frame, we have emerged as a superior manufacturer and trader of a wide gamut of 16 Channel Temperature Scanner Logger. These loggers are manufactured under the strict supervision of our competent manpower. Also, our range of 16 Channel Data Logger is widely appreciated for attributes such as data saved directly on USB pen drive in an ms excel compatible file, no need of any complicated or additional software for managing data,etc. Model code:CT716 Product Name:16 channel Temperature Scanner Logger Category:data_logger Sub Category:Data Logger Features   Microprocessor based linearized for J/K/R Thermocouples and PT100 temperature sensors. 4 line alphanumeric LCD display with back-light for user friendly displays Auto cold junction compensation for thermocouples and 3 wire input for PT100 Number of usable channels selectable from 1-16. Auto/Manual mode of scanning selectable Rate of logging settable by user in Mins:Secs Digital offset user settable for individual channels Internal Real Time Clock with battery backup for saving values along with Date and Time Saving data on Pen drive allows a very large amount of storage space at very low cost.   Specification    Display             4x20 line 0.3 character height alphanumeric LCD module display  Sensor  J/K/R Thermocouples and 3 wire PT100 sensor user selectable  Range  J-T/C: 0 to 750C, K-T/C: 0 to 1250C, R-T/C : 0 to 1700C, PT100: -100.0 to +600.0 C,   Resolution  1C for thermocouples and 0.1C for PT100   Channels  Maximum 16  Scanning Rate  User settable from 1-99seconds  Digital Offset  User settable individually for each channel  Logging Rate  1 second to 99Mins59seconds  Data Logging  Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels                           Real Time Clock  Adjustable Calendar (Month/Date) and Time (Hrs:Mins)  Accuracy  1C 1 for Thermocouples, 0.1C 1 for PT100  Power Supply  230V AC 15% at 50/60Hz  Front Facia  96mm x 192mm

Brand Name : Countronics

Condition : New

Power Source : Electric

Application : Industrial
