Dsk Industries Khyala, Delhi

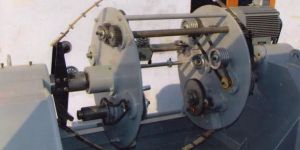

We are offering twist buncher machines. Heavy duty special model single twist, double twist bunching machine, suitable to twist solid and cellular insulated conductors upto 0.8mm and multi strand flexible conductors upto 5mm (4mm od) with minimum running tension. The buncher is totally enclosed within steel structure. Main features equipped with noise absorbed safety cover all rotating parts are statically and dynamically balanced one motor driving system for bow, capstan and spooler. optimized wire path with negligible deviation angles energy saving and ergonomic single bow system

We are offering tubular stranding machine. This strander is for manufacturing high carbon & low carbon steel wire rope, copper & aluminium conductor tubular type high speed stranding for 1+6 bobbin copper aluminium round & compact conductors and steel wire stranding main features rigid rotor running supported by bearings at both ends high efficiency and speed line drive by a.c. Motors with electronic or mechanical synchronization between line components the transmission shaft links all the machine parts together to have a stable stranding pitch and low noise. braking device for bobbin tensioning centralized lubricating system for bearing pneumatic brake for rotor mmi plc equipped, (optional) easy lay setting size wire dia rotor speed (rpm) (max) driven motors (hp) 400 1-4mm 600 30 500 1-4mm 550 30 630 1-4mm 500 40

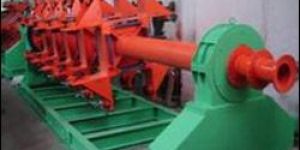

We are offering stranding machine (fork type). The machine is used for stranding cu, al wires and conductors. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped (straight or prespiralled) as per customer requirements. Main features self supporting rigid rotor design with 1+6+12+18+24+30+36 bobbin cage high efficiency and speed bobbins mounted on pintles line drive by a.c. Motors with electronic or mechanical synchronization between line components. different braking device for bobbins centralized lubricating system for bearing disk type pneumatic brake for cage. mmi plc equipped, (optional) easy lay setting technical data size wire dia rotor speed (rpm) bobbin size driven motors (hp) 19 1-3.77mm 180 500630 30 30 1-3.77mm 180 500630 40 37 1-3.77mm 180 500630 40 61 1-3.77mm 180 500630 80 91 1-3.77mm 180 500630 120

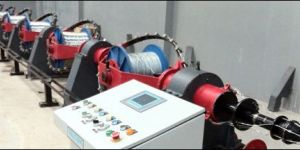

We are offering skip stranding machine. High speed skip stranding machines for copper, aluminium and core stranding laying. This strander is used for making 7 strands or multi core cables. Main features dynamically balanced rotors high speed bearings at both ends of the rotors each rotor driven through timing belts through common line shaft line drive by a.c. Or d.c. Motors with electronic or mechanical synchronization between line components disk type pneumatic brake for rotor designed for high speed stopping mmi plc equipped (optional) easy lay setting ergonomically designed operator control station range of takeups and payoffs available no. Of cradles 1+1, 1+3, 1+4, 1+6. Size 5006308001000120014001600 bore 30455680127mm bobbin holding pintal type brake pneumatic rpm 800 rpm (max)

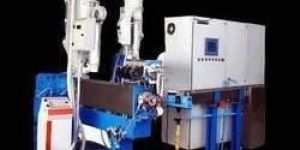

We are offering extrusion machines. Electric wire & cable insulation sheathing stripping & skinning. For single or two layers extrusion are available by using different cross heads. Models of PVC Extrusion:- model max. Screw speed pvc kghr driven motor (hp) DSKEX25mm 125 15 5 DSKEX30mm 125 25 5 DSKEX45mm 125 55 10 DSKEX50mm 125 65 15 DSKEX65mm 125 120 20 DSKEX90mm 100 175 50 DSKEX120mm 80 300 75 DSKEX150mm 60 450 100

We are offering drum twister machine. Drum twister is a highly productive solution for laying up of cables. It is suitable for ltht arial bunch cables. Our drum twisters are also facilitated with sector correction unit for perfect laying up of shaped cables. Size rotating pay of size rotating take-up size rotating caterpillar no. Of sector correction unit helical taping head binder head 1200 800 mm 1200 mm 4+4+2 cyl 05 400mm concentric type 1600 1200 mm 1600 mm 5+5+2 cyl 05 400mm concentric type 2000 1600 mm 2000 mm 6+6+2 cyl 05 400mm concentric type 2240 1600 mm 2240 mm 7+7+2 cyl 05 400mm concentric type 2600 2000 mm 2600 mm 8+8+2 cyl 05 400mm concentric type

The machine is used for cabling the multi core (3, 3 & ½, 4), pvc cables, xlpe cables in round or sector shaped for lt and ht cables. Ariel bunched cables can be laid in (1+4) bobbin configuration. Main features • machine may strand the round cables with back twist and sector cables without back twist. • line drive by a.c. Motors with electronic or mechanical synchronization between line components. • facilitated with motorized sector correction • with or without back twist arrangement (sun and planetary arrangement) • main shaft is supported with roller bearing for easy maintenance • special gear boxes for main drive • heavy duty pneumatic drum brake for main cage • filler bobbin provision for 6 to 9 bobbins • mmi and plc equipped (optional) • heavy duty haul off caterpillar unit • inline tangential or concentric taping heads model rotor speed (rpm) driven motors (hp) dskcl1+31250 50 40 dskcl1+31400 45 50 dskcl1+31600 30 65 dskcl1+31800 20 80 dskcl1+41250 50 40
