Dynamix India Building Products Gokalpuri, Delhi

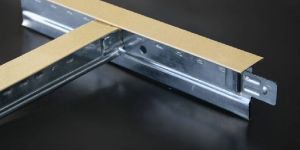

Made from pre painted hot dipped galvanized steel. This is the most convenient false ceiling system in terms of installation, repair & maintenance purpose. We are outstanding performers in providing an advanced range of high quality Tee Grid System, which is extensively used to suspend lay-in ceiling tiles and mineral fiber ceiling tiles to the ceiling. In addition, these durable systems are fabricated in our highly sophisticated manufacturing unit in order to meet the set quality standards Specialties for T-Grid System: Steel material is processed by pre painted hot-dip galvanized. Zinc Mass Coating is 120 gm/m2. Salt spray test for the white pre-painted cap is for 300 Hours. The Material is processed with 20 micron polyester pre-painted. The anti-rust process has been incorporated into the galvanized steel. T-bars are produced by a fully automatic machine controlling the production of straight material to maximum 0.1 mm. Tolerance ensuring consistent dimensioning of the grid module after installation. Load bearing capacity when the span is 1.2 meter, supported with hanger wire from roof for type I is 8.45 kg/m2 and for type II is 12.05 kg/m2. This is the most convenient false ceiling system in terms of installation, repair & maintenance purpose.

Seismic Rx Suspension System saves time and money Hot-dipped galvanized coating inhibits red rusting Available with black reveal Rotary-stitched for additional torsional strength and installation stability 10-Year Limited System Warranty; 30-Year Limited Ceiling Systems Warranty when used with HumiGuard Plus products FastSize main beams and cross tees can be ordered with special sizing and route spacing for your project needs in one carton minimums with two week lead times Fast, tight installations Modification can be easily done after installation Demountable systems allow for quick access to large work areas above the ceiling Global compatibility and availability Cost control Sustainable: 100% post consumer recycled content, 100% locally recyclable, global/regional manufacture

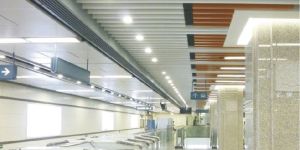

Used as decorative hanging ceiling solutions, It’s made of high quality aluminum alloy strip. It produces different effects. Easy & fast to install; Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings; Fireproof, anti - corrosion, thermo stability and good weather resistance; Outstanding performance with high quality products; Large panel with big length and width; Multiple accessibility options; Various standard and wide choice perforations; Beautiful appearance, and various colors for choice; Good evenness: it changes the distortion & bending phenomenon on aluminum panel so that it can maintain its super evenness;

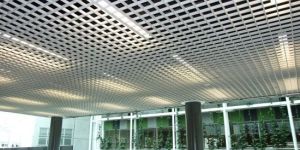

DynamixIndiaBP Open Cell Ceiling Systems offer decorative, durable and functional design solutions for open ceilings. Available in 4 design options, We supply and install open cell ceilings which enables you to employ different structures, materials, and surfaces, you can create rooms which impress with their open, transparent, and individual atmosphere.   In combination with our linear ceiling panels, metal-coffer ceilings, and lighting systems, the opportunities to create your own, unique architecture are almost unlimited. Key Features: Easy Access to Lighting Ventilation System Matched with all type of light Fixtures Versatile range of patterns

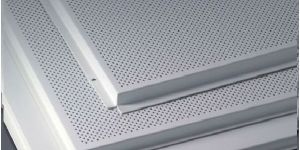

Clip-in false ceiling system with steel tile (600 mm x 600 mm) is manufactured out of 0. 50 mm thick regular modified polyester coated galvanized steel (z-120/180 gms total zinc coating mass of both sides, 240 mpa yield stress). These tiles can have square or beveled edges. It is available in matt finish on the exposed side and a primer coating on the back. Then the tile has 20-micron polyester coated finish and back coat of 5-micron alkyd primer. The rigid suspension system consists of rows of 0. 5 mm galvanized steel clip-in profiles installed at 600 mm c/c spacing to support the tiles. Suspension angles are suspended from the roof structure by gi ceiling brackets. They are joined to the clip-in profiles by hold-on clamps. The tiles / planks are held in place by pressure clips. Application: These are suitable for food preparation areas and hospitals where cleanliness is important and tiles are frequently cleanedand hosed down. They are also used frequently in airport and transport hubs. Unlike mineral fibre boards, metal pan is impervious to moisture so they can be hosed down without damaging the board or causing it to sag or stain

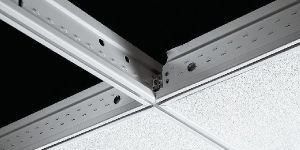

Technical Details: The box-shaped panels which can be attached to an 84mm carrier with ease. The 84mm wide panels feature a 24mm wide flange. The shuts off the 16mm joint between the panels (module 100mm and 200mm). The 12.5mm deep joint gives a linear direction to the ceiling, at the same time being closed from the plenum. These panels, which are stove enameled aluminum panels, are recyclable, lightweight but strong. These panels can be made to fit any requirement. The length of these panels can go up to 5000mm. Panels can be attached by using panel splice. The panel carrier is black or white & is made of 0.5mm thick stove enameled steel. The carrier is provided with prongs to accommodate the panels in a module of 100mm. The standard length of these carriers is 5000mm and is connected by using the carrier splice. New Age’s standard range of edge profiles can be used as perimeters.
