ESP Safety Pvt. Ltd. Udyog Vihar Phase V, Gurugram, Haryana

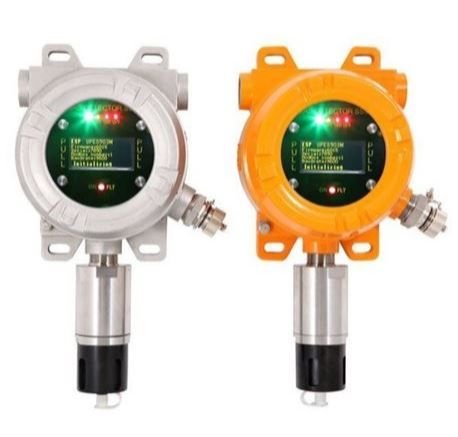

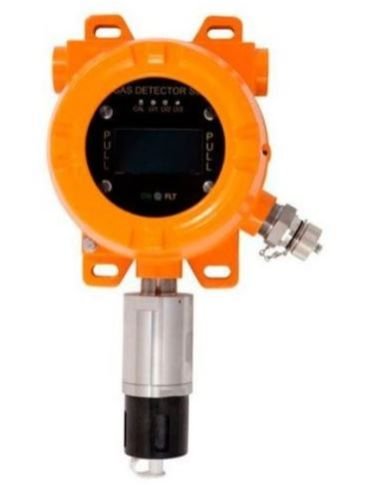

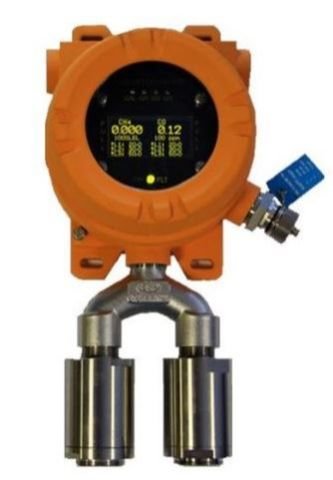

ESP model SSS-903 is a gas detector designed to detect combustible and toxic gases. The SSS-903 detector can operate with the following sensors: Electrochemical Infrared Photoionization Catalytic The detector is explosion proof certified, which allows it to be used in the harshest environments. The SSS 903 is certified by international accreditation agencies for SIL-2 rating.

Number Of Flower : Toxic Gas Detector

Material : Stainless Steel

Certification : FM, ATEX, SIL

Feature : Accuracy, Alarm System, Durable, Easy To Use, Eco Friendly, Stable Performance

Condition : New

Display Type : Digital

Power Source : 24VDC

Total Carbohydrate : 3Year

Gas Type : Toxic Gas

Brand Name : ESP Safety

Detected gas : H2S, CO2, Cl2, H2, O2 and other gases

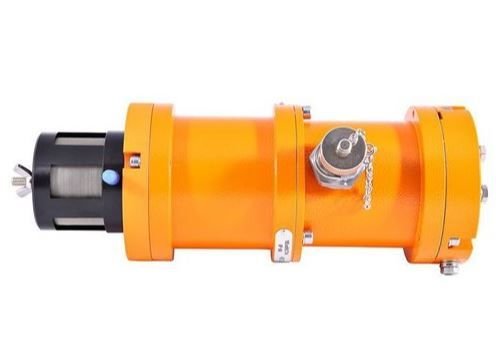

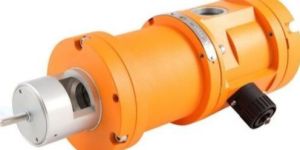

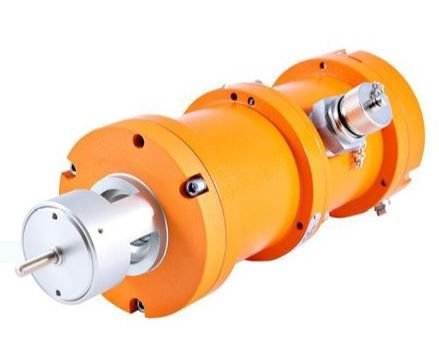

TGAES hydrocarbon gas detector is an open path infrared gas detector that provides continuous monitoring of combustible hydrocarbon gas concentrations in the range of 0 to 1,5 LEL/m, 0-2,5 LEL/m, 0-5 LEL/m, over a distance of 5 to 200 meters. Having a response time less that 5 seconds. The TGAES has an explosion proof certified enclosure. TGAES is also certified by international accreditation agencies for SIL-2 rating.

Number Of Flower : Open Path Gas Detector

Material : Stainless Steel

Certification : FM, ATEX, SIL

Feature : Accuracy, Alarm System, Durable, Easy To Use, Eco Friendly, Stable Performance

Condition : New

Application : Gas Detecting, Industrial Use

Display Type : Digital

Power Source : 24VDC

Total Carbohydrate : 3Year

Gas Type : Combustible Gas

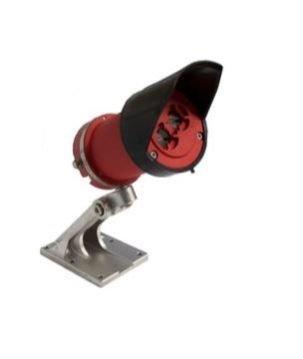

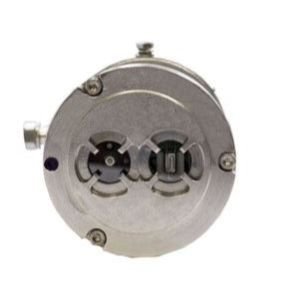

IPES IR/UV advanced detection technology includes optical filters configured for maximum sensitivity to radiation produced by flame or fire and ensures rapid flame recognition and alarm signaling. Upon fire recognition within its field of view, the IPES IR/UV signals a change in state from normal operation to fire signal. In addition, via integrated ultraviolet (UV) and infrared (IR) sensors, the IPES IR/UV monitors specific regions of both spectral ranges. In the infrared spectrum, the device is configured for sensitivity to wavelengths in the range of 3- 5 microns, allowing optimal sensitivity to combustible gas fires while rejecting false signals from incandescent lamps, sunlight and hot objects. For ultraviolet (UV) radiation, the device is configured for sensitivity in the range of 180 to 260 nanometers, making the sensor «blind» to sunlight and radiation from heated objects but still able to «see» the UV radiation emitted by a flame. With these settings the IPES IR/UV detects and alarms for only those characteristic wavelengths emissions from the UV and IR spectrum that indicate actual flame or fire.

Number Of Flower : Flame Detectors

Brand Name : ESP Safety

Material : Stainless Steel

Certification : FM, ATEX, SIL

Condition : New

Application : Flame Detection

Display Type : Digital

Power Source : 24VDC

Feature : Accuracy, Alarm System, Durable, Easy To Use, Eco Friendly, Stable Performance

Total Carbohydrate : 3Year

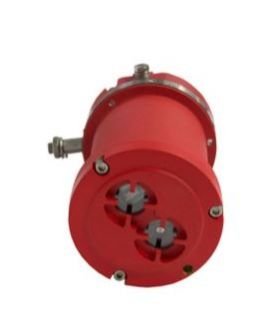

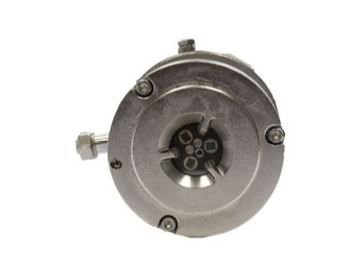

IPES IR3’s, advanced detection technology ensures rapid flame recognition and alarm signaling. In addition, IPES IR3’s selective, multi spectral technology virtually eliminates false alarms. It ignores false triggers from sources such as direct or indirect sunlight, arc welder flash, resistive heaters, fluorescent, halogen, and incandescent light. IPES IR3 sends an alarm only when data from three different IR wavelengths agree that a flame or fire is present in the field of view. Upon confirmation of flame or fire, the IPES IR3 transfers alarm signals to receiving control devices located in control and operations rooms and to fire alarms and burglar/fire alarm systems. While operating, the IPES IR3 transmits detector status information via.

Number Of Flower : Flame Detectors

Brand Name : ESP Safety

Material : Cast Aluminum, Stainless Steel

Certification : FM, ATEX, SIL

Condition : New

Application : Industrial Use, Pharmaceuticals Use, Flame Detection

Display Type : Digital

Power Source : 24VDC

Feature : Accuracy, Alarm System, Durable, Easy To Use, Eco Friendly, Stable Performance

Total Carbohydrate : 3Year

Gas Type : Combustible Gas, LPG Gas, Natural Gas

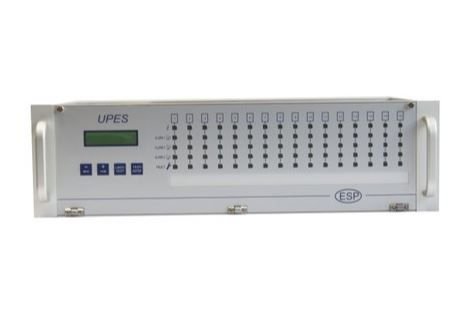

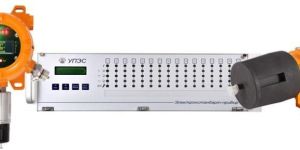

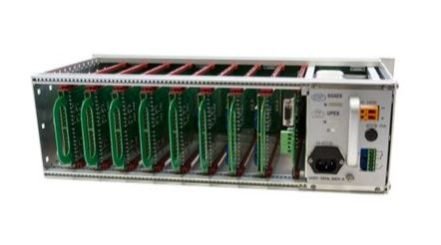

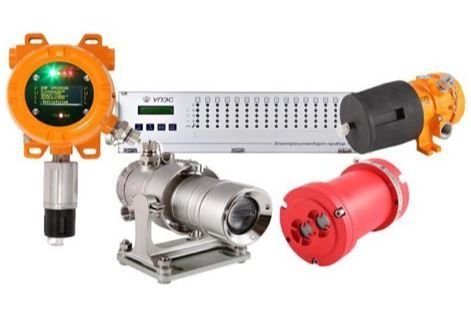

Stationary Combustible Gas Detection System has the capacity to monitor potentially hazardous areas in proximity to oil and gas transit stations, gas and oil trunk pipelines, oil and gas storage tank farms, loading racks and similar facilities.. SGAES TGM Combustible and Toxic Gas Detection System consists of an UPES Control Unit with possibility of connecting up to 16 detectors to it (SGOES, SSS-903, IPES, TGAES) . The Control Unit communicates to the Gas Detectors via 4-20mA or RS-485. The control unit provides a 4-20 mA signal proportional to the gas detectors measuring range of gas of interest, High and Low Alarm indications and Trouble signals. If a lower explosive level (LEL) of gas presence (measured as a percent) has reached a preconfigured value, the UPES sounds a warning and sends alert signals to the control room operator. In addition, the system initiates facility level protection programs. These can include activating emergency shutdown systems. The UPES- 50 has an operating voltage of 220 VDC.

Size : Multisizes

Number Of Flower : Gas Detection Panel

Country of Origin : 220V

Application : Gas and Flame Detection Panel

Body Material : Mild Steel

Power : 9-12kw

Power Source : Electric

Phase : Single Phase

Warrenty : 5 Years

Autoamatic Grade : Fully Automatic

Brand Name : ESP Safety

The FACPES Addressable Fire Alarm Control Panel represents the pinnacle of fire detection and response technology. Engineered for versatility and scalability, it supports 2 to 12 addressable loops, making it suitable for a wide range of applications, from small commercial properties to large industrial complexes. Each loop can connect up to 254 devices, allowing for extensive coverage and tailored system design to meet specific needs

Country of Origin : India

Usage/Application : Fire Alarm Detection & Control

Brand Name : ESP

Certification : UL

Number Of Flower : Addressable

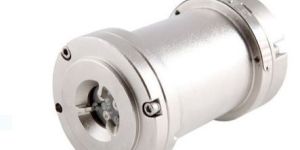

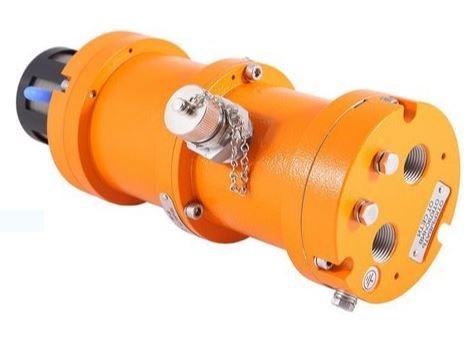

Gas detector SGOES has a standard 4-20 mA,HART, RS-485 (Modbus RTU) and relay. The sensor is ideally suited for use in potentially hazardous gas / vapor-containing environments and withstands overload caused by the content of the measured component, more than 100% LEL. The SGOES is insensitive to the presence in the atmosphere of oxygen, nitrogen, carbon dioxide, carbon monoxide, ammonia, hydrogen sulfide. Ideally suitable for use in the oil and gas industry, as well as other areas where it is necessary to monitor the concentration of hydrocarbons. Gas detector SGOES is available in explosion-proof enclosure and certified in accordance with normative documents regulating the use of electrical equipment in hazardous areas IIA subgroup IIB, IIC, temperature classes T1-T4. And also has international approvals for use in hazardous areas and Class 1, Division 1 and 2, Zones 1 and 2. It gives the reading of the gas concentration and displays it on the LCD indicator. Integrated HART-communicator port allows to provide diagnostic and control of specific options and operability of the detector.

Number Of Flower : Combustible Gas Sensor

Material : Stainless Steel

Certification : SIL

Application : Gas Use

Country of Origin : 18-32VDC

Driven Type : Electric

Total Carbohydrate : 5yrs

Ambient Temperature : -40 - 85deg C

Automation Grade : Automatic

Brand Name : ESP

Application : Combustible Gas Detection

Detected gas : Hydrocarbon

Shell Material : SS316

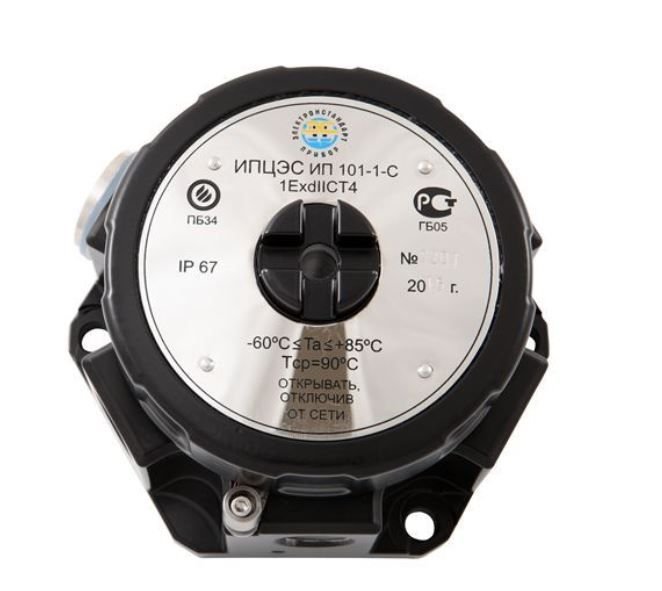

Explosion proof Heat detector DOTES is designed for temperature measurement of gaseous and liquid chemically aggressive and non-aggressive environments. Issuing a relay output once the temperature reading crosses a certain threshold to the control and alarm systems. Features and benefits High accuracy Provides automatic reset with decreasing temperature IP67 Rating Detectors can operate around-the-clock work Resistance to high temperature environment , at least than 15 ° C higher than the normal set temperature , and exposed to cyclic humidity High strength to mechanical stress (shock resistance, vibration , etc.). Immunity to electromagnetic interference of industrial operating facilities Internationally certified explosion proof enclosure

Number Of Flower : Heat Detectors

Material : SS316

Application : Heat Detecting

Certification : CE Certified

Country of Origin : 24VDC

Power Source : Electric

Feature : Light Weight, Micro Controller Based, Saving Power, Sensitivity Adjustment, Waterproof

Total Carbohydrate : 5year

Sound : Beep

Brand Name : ESP Safety
