Drilling machines are cutting tools used to create cylindrical holes. They are also called drill bits. Bits are held in a tool called a drill, which rotates them and provides axial force to create the hole. They are suitable for taking out cylindrical cores upto diameter of 6" (150mm) x 12" (300mm) high from rocks, concrete blocks or air craft runway slabs.

Our range of Centrifuge Extractors is used for the quantitative determination of bitumen in hot-mixed paving mixtures and pavement samples. It is a safe, portable, corrosion-resistant module, which can be used both in the field and the laboratory. Specifications: ASEW-224 Centrifuge Extractor, Hand operated ASTM D 2172, AASHTO T058J0164 This used for the quantitative determination of bitumen in hot-mixed paving mixtures and pavement samples. The centrifuge extractor is a safe, portable, corrosion-resistant module which can be used both in the field and the laboratory,. It consists of a removable cast aluminium rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the rotor bowl and cover plate Tby a knurled nut. The bowl assembly is enclosed is a housing mounted on a cast aluminium body. The gears operate in oil bath assembly is enclosed is a housing mounted on a cast aluminium body. The gears operate in oil bath with splash lubrication. Complete with 25 filter discs. ASEW-225 Centrifuge Extractor, Electrically ASTM D 2172, AASHTO T058,T0164 Similar to above, but is operated by a motor coupled to a gear box and the drive is through a strip pulley. The motor part can be disconnected and the unit can be operated manually in case of power failure. The motor drive gives 3500 r.p.m. to the rotor bowl. Operation on 230 V, single phase, 50 cycles, A.C. supply.

We Manufacturer , Supplier & Exporters of wide range of Centrifuge Extractor. The Hand Operated Centrifuge Extractor, manufactured and supplied by us, is an instrument that is used for determination and checking of bitumen percentage in bituminous mix which is added with solvent and dissolved bitumen is removed by centrifugal action. Hand Operated Centrifuge Extractor manufactured by us consists of a removable aluminum rotor bowl, capacity 1500 gm with a cap and tightening nut.

This instrument is used for determination and checking of bitumen percentage in bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable aluminum rotor bowl, capacity 1500 gms. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved bitumen coming out of the rotating bowl and getting collected in the housing.

We are a leading name as a Manufacturer, Trader and Supplier of Centrifuge Extractor. It is a wonderful instrument for determining and checking the Bitumen percentage in bituminous mix. The process follows when this mix is added with a solvent and the dissolved bitumen is removed by centrifugal action. Solvent is introduced during the test through the holes in the cap of the housing. Components Consists of a removable Aluminum rotor bowl, Capacity 1500 grams.A cap and tightening nut.The bowl assembly mounted on a vertical shaft, which protrudes from cast housing. This shaft and thus the bowl are rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing.A drain is provided to collect dissolved Bitumen coming out of the rotating bowl and getting collected in the housing.

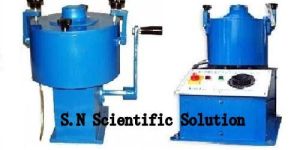

The Centrifuge Extractors are used for determination of bitumen percentage in hot mixed paving mixtures and pavement samples. The mix is added with a solvent and dissolved bitumen is removed by centrifugal action. The Extractors are available in two versions, Hand operated and motorised electrically driven. The Centrifuge Extractor comprises of a precision machine rotor bowl and bowl cover housed in a cylindrical aluminum box. A knurled nut is provided to press filter paper disc between the rotor bowl and cover plate and the complete bowl assembly is removable for determination of weight of sample. The bowl assembly is mounted on a vertical shaft, which comes out from a casted housing. The shaft attached to the bowl is rotated manually by a handle. The gears operate in a casted housing in oil bath with splash lubrication. A drain is provided to collect dissolved bitumen coming out from the rotating bowl. The range of speed is 2400 – 3600 RPM. The bowl capacity is 1.5 Liter The motorized version is provided with a variable speed control device and a hand brake to stop rotation when switched off. The electric motor is of 0.25 HP capacity coupled to a geared assembly. Suitable for operation on 230 Volts, 50 Hz, AC single phase. The following accessories and consumables are not part of the standard supply and are mandatory for the testing work.

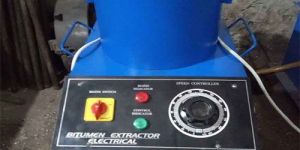

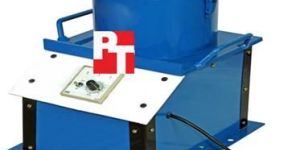

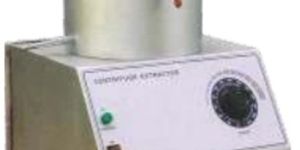

Centrifuge Extractor, Electrical Operation, Capacity 1500g, with a Dimmer stat for speed control from 2,400 to 3,600 rpm. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

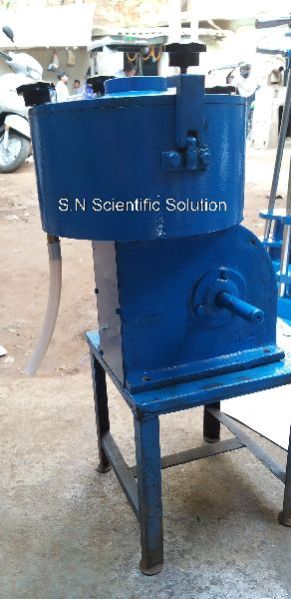

Centrifuge Extractor (Hand Operated )     This instrument is used for determination and checking of bitumen percentage in bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable aluminum rotor bowl, capacity 1500 gms. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved bitumen coming out of the rotating bowl and getting collected in the housing.
