Fragma Engineers (india) Vishwas Nagar, Delhi

We offer tubular and process assembles. Single- and double-ended tubular heaters lend themselves to virtually the entire range of immersion and air heating applications. They have a variety of mounting and termination options that make them ideal for industrial application "fragma" tubular heaters are up to 240v.

We are offering silicon flexble heater. "fragma" silicone rubber heaters are rugged, yet thin, lightweight and flexible. Use of these heaters is limited only by the imagination. Heat can be put where it is needed. These silicone heaters improve heat transfer, speed warm ups, and decrease wattage requirements. Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The silicone rubber heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited. applications: freeze protection and condensation prevention for many types of instrumentation and equipment medical equipment including blood analyzers and test tube heaters exhaust gas pre-heating for dpf regeneration curing of plastic laminates photo processing equipment semiconductor processing equipment computer peripherals such as laser printers

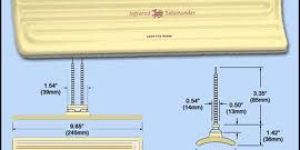

We offer short wave infrared heaters, infrared cermic heaters, I r heater. All type of infrrared heater, plain , curved, round, all wattage and voltage fragma infrred heater

Brand Name : Fragma

Material : Ceramic

Finishing : Polished

Condition : New

Application : Industrial Use

Country of Origin : 220V

An immersion heater is a device which is installed in a tank or container to heat a liquid. The installation can be over-the-side, flanged or threaded. Flanged immersion heaters Flanged immersion heaters consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings, voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications. Flanged immersion heaters are one of the most widely used methods for heating liquids (such as water, oil, heat transfer fluid and corrosive solutions). Designed for use in tanks and pressurized vessels, they are easy to install and maintain to provide heat for many processes. The direct immersion method is energy efficient and easily monitored and controlled. These through-the-side immersion heaters utilize standard pipe flanges ranging from 3" to 14" in diameter to support high tank pressures of liquids. They are installed through a matching companion flange, obtainable from local industrial supply houses, to the tank wall. A wide selection of watt densities, heating outputs and flange sizes and ratings make this an excellent heater for all tanks, vats or irregularly shaped vessels.

Country of Origin : India

Number Of Flower : Industrial Heaters

Fire Retardant Cable : No

Earth Leakage Circuit Breaker : No

Adjustable Temperature Knob : No

Brand Name : Fragma

Certification : ISO 9001:2008

Country of Origin : 220V

Condition : New

Application : Industrial Use

Power Source : Electric

Total Carbohydrate : 1 Year

Material : Steel

Diameter (mm) : 3 Mm-30 Mm

Finishing : Coated

Temperature Capacity : 100-150C

Packaging Type : Packet

Specialities : Vibration And Shock Resistance

Length : 6-10 Inch

Frequency : 50/60 Hz

we offer Hot Runner Coil Heater . DESCRIPTION Coil heaters are an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters. These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube. These heaters can be constructed with or without built in thermocoup APPLICATIONS Hot Runner Nozzles & Bushings Tube Extrusion Pipe Forming

We are offering high watt cartridge heaters. "fragma" high watt density cartridge heaters are designed and manufactured out of experience of many years, thus the performance and life expectancy superseeds other cartridge heaters. Heating conductor grade nicr 80:20 is evenly wound over a supporting core which is centrally located in a chrome nickel steel tube and the inner space is filled with specially selected high purity magnesium oxide. This assembled unit is then highly compressed, converting the core, powder and conductor into a homogenous mass. The bott om end of the heater is welded with a disc washer to prevent contamination. high watt density cartridge heater - applications hot runner bushings marking & sealing machinery packaging industry medical & laboratory apparatus shoe making industry die and platents

Brand Name : Fragma

Finishing : Polished

Insulation Material : Ceramic Tube & MgO, High Purity Mgo

We frequently keep a check on the storage space to ensure that it is well-maintained by the experts. We have installed the latest machines and leading technologies to save products from spoiling. As a known name, we ensure safe and timely delivery of the orders at any desired shahdara(india).

Power Source : Electric

Size : Standard

We offer finned strip heaters, strip heater applications dies, molds, plastic forming and sealing, tank and kettle heating. For specific applications, correctly rated elements should be used to prevent overheating and to ensure long life. A guide to correct watt densities for specific applications is shown below. Features the "fragma" stainless steel strip heater provides clean, dependable heat with sheath temperatures up to 500 deg. And watt densities up to 40 watts per square inch. Because of the seamless stainless steel sheath, "fragma" ceramic insulated strip heaters are dimensionally stable in milled slots.

Country of Origin : India

Number Of Flower : Finned Strip Heaters

Brand Name : fragma

Certification : ISO 9001:2008

Country of Origin : 220V

Condition : New

Application : Industrial Use

Power Source : Electric

Total Carbohydrate : 1 Year

Material : Steel

Phase : Single Phase

Finishing : Polished

Temperature Capacity : 350

Packaging Type : Packet

Length : 40-50 Inch

Frequency : 50 Hz

Power : 100 To 300 Watt

Heating Capacity : 5.4 To 21.9 KW

Size (mm) : 32 Mm To 76.2 Mm

We offer ceramic band heaters. "fragma" ceramic band heaters were developed to meet industrial requirements for high temperature long lasting heaters. They are ideally suited to comply with today's new resins, which calls for ever-increasing process temperatures. Ceramic band heaters design consist of a helically wound resistance coil made from 8020 nichrome wire and kanthal "d", evenly stretched and precisely strung through a specially designed ceramic insulating bricks forming a flexible heating mat. The ceramic heating mat along with ceramic fiber insulation is placed on a stainless steel housing made with serrated edges providing maximum flexibility for easy installation.

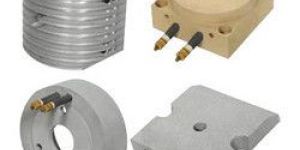

The cast in heaters are composed of one or more electrical heating elements embedded in an aluminum alloy, brass, bronze, copper-nickel or iron type material with excellent thermal conductivity. The gravity casting provides excellent homogeneity of the casting material and therefore allows excellent thermal diffusion.

Mica heaters are efficient and economical solutions to the heating requirements of many applications. Mica heaters can attain a maximum sheath temperature of 900°f, but with different electrical termination styles, clamping mechanisms, and ability to accommodate holes and cutouts, mica band heaters are successfully used in many applications, but are mostly sought for in the plastics industry. Mica heaters are different types of top grade mica. The thickness of each mica layer is carefully selected in order to balance between the insulating characteristics of mica and the ease of heat transfer from the heating core to the machine barrel. The resistance wire ribbon used in a "fragma" mica heater is not restricted to the capabilities of nichrome wire. Different alloys are considered for different applications. The internal winding is carefully designed to ensure uniform heat distribution throughout the band heater. To maximize the surface-to-surface contact, our mica heaters are carefully rounded and formed to optimize the grip on a machine barrel. The external metallic protective sheath of bucan band heaters is made of a special alloy, which expands less than the barrel when heated. This difference in thermal expansion makes the heater grip the barrel firmly once it is energized. This improves heat transfer which extends the life of the mica band heater.

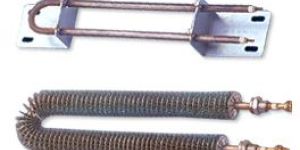

The air heaters are used with blowers or recirculating air in baking, drying, and preheating applications.
