Heavy Engineering Corporation Ltd. Masjid Moth, Delhi

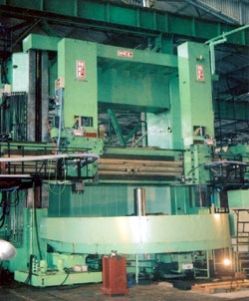

CNC Double Column Machine Specification:  Table Diameter : 3 to 5 meter  Max turning diameter 4 to 6 meter  Max turning height 3.1 to 4.2 meter  Max wt. of work piece 30 to 80 MT CNC Single Column Machine Specification:  Table Diameter : 2 to 5.5 meter  Max turning diameter 4 to 7 meter  Max turning height 1.6 to 2.85 meter  Max wt. of work piece 20 to 50 MT

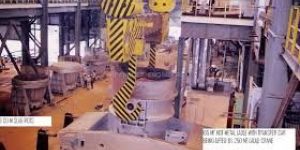

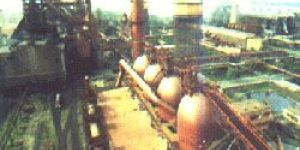

Blast Furnace (Volume 1719,2000,3200 CuM): Supplied to BSP, BSL ,VSP and exported to Turkey & Egypt. Supplies include:  Technical Structure  Ch. Column & Plants  Cooling Plates  Charging Arrangements  Charging Distributors  Skip winch  Belt Control Winch  Valves  Rolling Stocks etc.  Cast House Machines  Pig Casting Machines etc.

Blast Furnace (Volume 1719,2000,3200 CuM): Supplied to BSP, BSL ,VSP and exported to Turkey & Egypt. Supplies include: Charging Distributors, Pig Casting Machines etc.

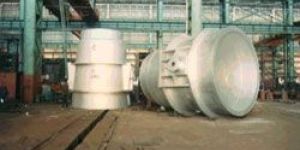

Steel melting converters : supplied to bsl, bsp, vsp, dsp, rsp, malvika steel plants, indomag( jindal) 5 nos converters and 10 nos mixers supplied.

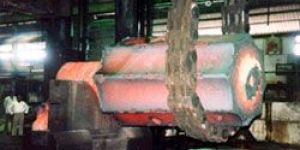

Forgings of various grades of alloy material up to piece weight of 65 Ton finished wt. Complete with heat treatment and machining. (click for forging facilities).  Forged Rings up to diameter : 4.2 M  Die forgings

Heavy Steel castings of piece weight 65 Ton finished wt. (as cast wt. upto 90 Ton) (facility of liquid metal upto 120 T) (click for forging facilities) Material Grades:  Customer specified Typical steel castings products are:  Slag cups for Steel Plants ( 11/15/16/18 CuM )  Roll chocks  Roll mill housings  Cement plant tyre (upto 45T piece weight and 6m dia )  Cyclotron Magnet poles

CNC Under Floor Wheel Lathe:  Gauge 1676 mm  Max./Min. tread dia 1250 / 700 mm  Uncoupled axle distance 1600 mm  Coupled axle distance 1500 - 2650 mm  Max. Axle load 25 MT  Max. Axle load 1889 - 2750 mm   CNC Surface Wheel Lathe:

Electronic mechanical feed counter for pre-selection of cross feed, Automatic cut off device for grinding wheel, Automatic wheel wear compensation, Built in dynamic balancing device.

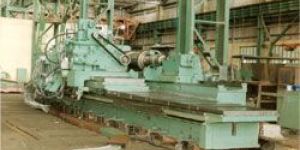

We are one of the famous company, who are manufacturer of Roll Grinding Machine Roll Grinding Machine specification:  Max. dia to be ground : 575 - 1600 mm  Distance between centers 2 / 3 to 6 / 7 M  Max. weight of roll 3 to 6 T  Rigid design for better efficiency & accuracy  Accurate concave & convex grinding  Electronic / mechanical feed counter for pre-selection of cross feed  Built in dynamic balancing device  Automatic feed at reversing points  Automatic cut off device for grinding wheel  Automatic wheel wear compensation

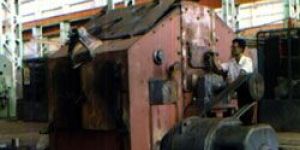

For fine crushing of coke etc. for Sintering and other applications. Two stage crushing made possible in one unit. Available in various capacity range.

Applicable for secondary & tertiary crushing of medium hard materials such as gypsum, limestone etc. and bituminous coal. Designed for achieving very high reduction ratio. Available in various models with capacity ranging from 80 to 550 T Hr. (Coal).

Capacity : 350-550 T/hr.

We are manufacturing products like as Radial Drilling Machine Specifications:  Max. dia Drilled in steel 80 - 100 mm  Min. distance of axis of spindle to column 530 mm  Max. distance of axis of spindle to column 2520 / 3070 and 3620 / 4470 mm

Designed for heavy duty services and stable product size. Supplied over 12 nos for coal and iron ore crushing..  Wide range of models with receiving opening ranging from 1350 to 1500 mm  Adjustment provision for discharge setting to compensate wear & tear of concaves & mantel.  Spider suspension of main shaft assembly.  Optional duel prime movers  Different models available for various output range.

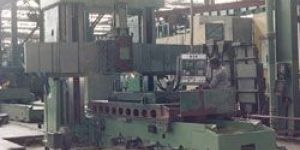

Max. Milling length 10000 - 12000 mm, Bestowed with the onus of making the country self-reliant for heavy engineering equipment and services, HEC continues to contribute in the nation-building endeavor.   Double Column Plano Milling Machine Specifications:

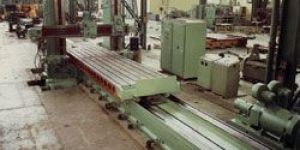

Specifications:  Max. work weight per meter of planning length 2 MT  CNC System Fanuc / Siemance (2 Axis)

Non-Ferrous Castings of piece weight upto 4 Ton (Click for forging facilities), Copper based castings upto 2 Ton piece weight, Aluminium based castings up to 300 Kg. piece weight.

Non-Ferrous Castings of piece weight upto 4 Ton (Click for forging facilities), Founded primarily to facilitate manufacture of steel plant equipment indigenously, HEC has made immense contribution in setting-up, expansion and modernization of steel plants in India. In due course, HEC had diversified to different sectors and made commendable contributions towards manufacture and supply of import-substitute products.

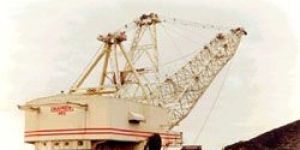

HEC is the first Indian company to manufacture walking Dragline of 24 CuM Bucket capacity. 12 nos of Draglines of 24 /96 and 3 nos of 20 / 90 Draglines supplied by HEC to Indian Mining industry. Hoist & Drag powered by 1300 HP motors, 2 for each systems. Devised with MG set, all motions are powered by adjustable armature DC generators. 2 MG sets each driven by 1750 HP synchronous motor. MG set - for DC supply to main mechanism motors.

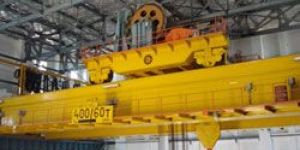

Ladle crane manufactures heavy duty Electric Over Head (EOT) cranes for application in Steel Plant, Engineering sector, Space Research etc. The highest capacity crane designed & manufactured so far is 450 T Ladle Crane for handling hot liquid metal.

Capacity : Up to 50 t

We are engaged in supplying of Horizontal Boring Machine CNC Horizontal Boring Machine specification:  Boring spindle diameter 100 mm  Max spindle travel 900mm  Head stock vertical travel (Y-axis) 1120 mm  Moving column type design  Highly rigid construction  Automatic clamping/unclamping of ISO-60 tooling facility  Circulating lubrication system for H/S & Feed gear box.

Forgings of various grades of alloy material up to piece weight of 65 Ton finished wt. Complete with heat treatment and machining.

HEC designs and manufactures heavy duty Electric Over Head (EOT) cranes for application in Steel Plant, Engineering sector, Space Research etc. The highest capacity crane designed & manufactured so far is 450 T Ladle Crane for handling hot liquid metal. EOT Cranes for workshops and engineering sector up to 400 t capacity, Ladle Crane for handling Hot metal Ladles in Steel and metallurgical plant up to 450 t, Rotating Trolley Crane, Tundish Handling Crane, Magnet Grab Crane, Slab handling Tong Crane for steel plant application, Four girder double Trolley semi portal Scrap Charging Crane, Cantilever Roof mounted Tower Crane.

Capacity : Up to 50 t, 50 t to 100 t, 100 t to 200 t, 250 t, 320 t, 400 t, 450 t

Iron castings of piece weight 70 Ton finished wt. (click for forging facilities), Coke Oven door bodies, door frames and flash plated for Coke Oven upto 7 m height. Iron castings of piece weight 70 Ton finished wt. (click for forging facilities)  Centrifugal Casting Typical Iron castings products are  Coke Oven door bodies, door frames and flash plated for Coke Oven upto 7 m height.  Base plate for Blast furnace stove  Grate bars

For fine crushing of coke etc. for Sintering and other applications. Two stage crushing made possible in one unit. Available in various capacity range.
