Hpl India Limited Darya Ganj, Delhi

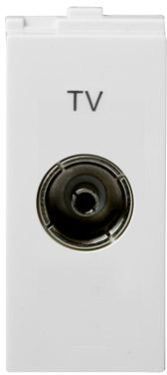

Salient features contract material phosphor bronze gold plated user friendly shutters easy to remove and install.

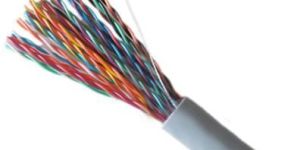

Salient features range : 0.40.450.50.60.70.80.9 mm dia conductors upto 50 pairs . solid 100% pure annealed baretinned electrolytic copper conductor pvc & pe insulation individual overall shielded with aluminium tape polyster backed . Application for telecom data transmission in telephones, intercoms, epbax, fax, close circuit security system, residential industrial telephone line .

Salient features surge suppressor protects the connected entire room appliances suppressed voltage : 700v peak surge current : 10ka, 820 us surge.

Salient features lcd display suitable for 1 phase 2 wire lt network display : active energy, voltage, current and power pulse output available low power consumption.

Salient features microprocessor based intelligent auto switching control. automatic ck and rated step adjustment. automatic ct polarity correction. display of power factor, current & total harmonic distortion of current. programmable sensitivity. last step can be used as alarm fan output. under over voltage alarm, under over compensate alarm & high distortion alarm. available in 6,8,12 & 14 steps

Salient features high quality aluminum extrusion housing environment friendly as it does not contain mercury short circuit & open circuit protection on driver. highly efficient constant current led drivers diffused light with acrylic pc. instant light with low running temperatures

Salient features suitable for 3p, 4w lt application. three line lcd backlit display. displays:- voltage, current & frequency. three push buttons on the front panel for programming and scrolling. ct secondary -1a or -5 a (user selectable). ct primary can be varied from 5a to 6000a in steps of 5 for -5a.ct primary can be varied from 1a to 1200a in steps of 1 for -1a. ip 54 degree of protection. available in class accuracy 1.0

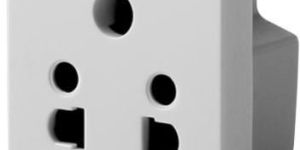

Salient features hardened phosphorus bronze contacts high grade flame retardant engineering plastic each socket has a spring loaded protective safety shutter.

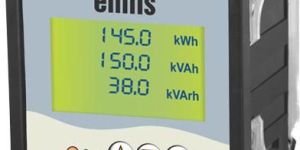

Salient features suitable for 3p, 4w lt application. three line lcd backlit display to display voltage, current, active power, reactive power, apparent power, power factor, frequency and trivector energy. three push buttons on the front panel for programming and scrolling. available with rs485 modbus communication. 6 months history data of active energy, apparent energy & reactive lag & lead energy on rs485 communication which gets updated at 00.00 hours on the last day of the month. 6 months history data of kw md & kva md with date & time on rs485 communication which gets updated at 00.00 hours on the last day of the month. available in class accuracy 1.0 & 0.5

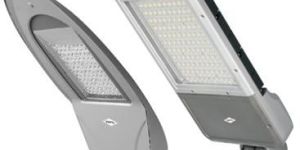

Salient features high grade aluminum pressure die cast housing toughened glass cover different optics for different beam pattern with high spread using high quality lenses and reflector. beam angle for lenses is more than 120 degree. multiple led are used in series and parallel cluster . constant current driver with effeciency >90% life span of led over 50000 hours special protection like reverse emi, over voltage up to 300v, surge voltage up to 4kv provided thermal management for heat sink rise above ambient

Salient features range : 1.5 to 2.5 sqmm , 300500volts grade confirming to bs:5308-i & ii shielding: corepairtriadquads . strandedflexiblesolid, 100% pure annealed baretinned electrolytic copper conductor unarmouredarmoured- galvanized steel roung wireflat strip low attenuation and cross talk . low structural return loss. high transmission reliability . Application used in data acquisition systems, computer networking.pa systems, digital controlmeasuring & communication systems. Speciallly designed to transmit signals without any external interference .

Salient features high quality indoor led t5 tube light. over 80% more efficient than traditional fluorescents eliminate eye strain and headaches associated with fluorescents lighting. will not break even if dropped. No mercury inside. allows the use of lighting when mercury contamination is not an option available in cool white, warm white (2700k to 6500k) aluminium extrusion in d shaped have large diameter for increased convection heat transfer

Salient features no raido frequency interference high grade flame retardant engineering plastic good ventilation for proper heat dissipation easy to remove and install no humming noise.

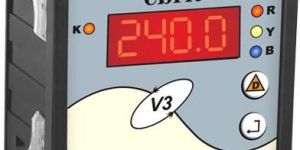

Salient features available in single phase two wire & three phase four wire. universal auxiliary supply – 80 to 300v acdc. push button based site programming of pt ratio. bright 4 digit 14mm led display. colour indication for r, y, & b phases (for 3 phase meter). same model for v & kv. auto scroll facility & scroll lock facility (for 3 phase meter). network selection for star (3 phase 4 wire) and delta (3 phase 3 wire) (for 3 phase meter). pt primary selectable : 110v, 1.1kv, 6.6kv, 11kv, 33kv, 66kv, 132kv, 220kv, & 440kv. pt secondary fixed : 110v. available in class accuracy 1.0 & 0.5

Salient features available in single phase two wire & three phase four wire. universal auxiliary supply – 80 to 300v acdc. bright 4 digit 14 mm led display. laglead indication on the display. measurement range : zero lag – unity- zero lead. accuracy : +- 0.01%. resolution : 0.01 (for single phase p.f. Meter). 0.001 (for three phase p.f. Meter).

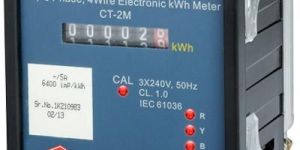

Salient features suitable for 3p, 4w lt application. counter type display. models available: a. Direct reading type. b. -5a type. display: a. 6 digits for direct reading meter. b. 5+1 digits for -5a meter. no separate auxiliary supply is required. low power consumption, less than 1wattphase. potential free pulse output for external energy totalization. records kwh energy consumptions. available in class accuracy 1.0

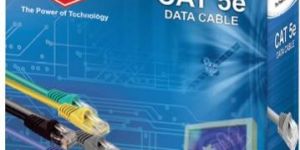

Salient features range : cat-5e & cat-6e data cables . solid 100% pure annealed bare electrolytic copper conductor low attenuation and cross talk . low structural return loss. 100 oms impedance cables . Application for telecom data transmission in telephones,intercoms,epbox,fax,close circuit security system,residential industrial telephone line

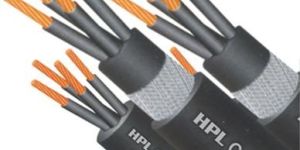

Salient features range : 1.5 to 2.5 sqmm up to 61 core , 1100 volts grade confirming to is:1554-11988 & is:7098-11988. strandedsolid, 100% pure bare annealed electrolytic copper conductor insulation pvcxlpehr unarmouredarmoured- galvanized steel roung wireflat strip outer sheath pvc type-st-1 st2 . heavy duty performance . Application control cables used for power switch yard controlrelay equipment & all industries .

Salient features range : rg-59, rg-11 & rg-6 co-axial . solid 100% pure annealed bare electrolytic copper conductor foam pe insulated co-axial cables . overall shielded with melinex tape wire braidingaluminium foil taping . Application for signals transmission for satellite tv telecom, microwave signals and close circuit tv, catvmatv industry .

Salient features range : 0.5 to 50 sqmm in multi core cables strandedflexiblesolid bare annealed 100% electrolytic grade copper conductor specially formulated pvc compound (type-a & st-1) round submersible cables can be specially asked for . conforms to is:6941990 . Application three core sheathed flat cable can be used in submersible pump & moter for agriculture etc.
