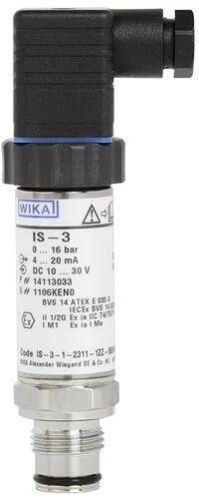

Wika Pressure Transmitter

1,800 / Piece

Model Name/NumberIS-3
BrandWIKA
Accuracy0.5% of span
Area of useCategory 2, Zone 1/21, Div. 1, Div. 2
Explosive atmosphereGas/Mining
ApprovalsATEX/IECEx
Ignition Protection TypeIntrinsically Safe
Process connectionG 1/2 B EN 837
Electrical ConnectionAngular Connector acc. to DIN EN 175301-803 A PG9
Output signal4...20 mA, 2-wire
Measuring ranges0 ... 0.1 to 0 ... 6,000 bar (0 ... 3 to 0 ... 15,000 psi)

...more
Wika Pressure Transmitter

1,800 / Piece

Get Best Price
Temperature Gauge

500 / Piece

Accuracy1.5%
Usage/ApplicationIndustrial
Measuring Range-60-500 Dig.C
BrandPI Control
Nominal diameter60mm,100mm,150mm
Protection GradeIP65
Insertion length75mm
Stem Diameter6mm
Stem material304 stainless steel or Brass
Mounting TypeThread:M27*2,M20*2,G1/2.NPT1/2,Flange :DN20,DN25...(Can be customized)

...more
Temperature Gauge

500 / Piece

Accuracy : 1.5%

Get Best Price

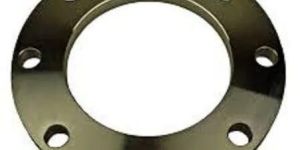

Stainless Steel Flange

200 / Piece

MaterialStainless Steel
Size5-10 inch
ShapeRound
Usage/ApplicationIndustrial
Material StandardASTM A105
Surface FinishPolished
Outer Diameter10 inch
Material GradeSS304

...more
Stainless Steel Flange

200 / Piece

Material : Stainless Steel
Size : 5-10 inch
Shape : Round
...more
Get Best Price
Schnieder Limit Switch

2,500 / Piece

Brand NameSchnieder
Electrical ConnectionScrew-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm
MaterialPlastic
Maximum Actuation Speed0.3 m/s
Contact OperationSnap action
sensor designCompact form C
body typeFixed
head typePlunger head
movement of operating headLinear
type of operatorSpring return roller plunger plastic
type of approachLateral approach, 2 directions
cable entry1 entry tapped for Pg 11 cable gland
number of poles2
contacts type and composition1 NC + 1 NO
switch actuationBy 30 Degree cam
contacts insulation formZb
positive openingWith
positive opening minimum force20 N
minimum force for tripping12 N
contact code designationA300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage300 V conforming to UL 508
[Uimp] rated impulse withstand voltageIEC 60664 6 kV
short-circuit protection10 A cartridge fuse, type gG
electrical durability5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 609
mechanical durability10000000 cycles
width30 mm
height85 mm
depth30 mm
net weight0.145 kg

...more
Schnieder Limit Switch

2,500 / Piece

Brand Name : Schnieder
Electrical Connection : Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm
Material : Plastic
Maximum Actuation Speed : 0.3 m/s
...more
Get Best Price
S Type Thermocouple

1,000 / Piece

Temperature Range0 to 1300 deg C
ApplicationIndustrial
Probe Length0 - 150 mm
Probe Diameter0.5 - 8 mm
Probe MaterialStainless Steel

...more
S Type Thermocouple

1,000 / Piece

Temperature Range : 0 to 1300 deg C
Application : Industrial

Get Best Price

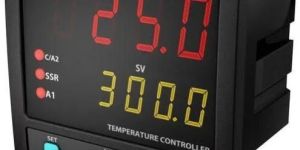

PID CONTROLLER

1,800 / Piece

Control TypeSingle set-point and alarm control
Input SensorUniversal
Usage/ApplicationPID
BrandYudian
Accuracy+-0.5% (of full scale) +-1 digit thermocouple), +-0.2% (of full scale) +-1 digit (Pt-100 resistance ther
Ambient/Storage Temperature0...50 Dig. C / -25...70 Dig. C
Relative Humidity80% relative humidity for temperatures up to 31 DegreeC, decreasing linearly to 50% at 40 DegreeC
Protection DegreeAccording to EN 60529 Front panel: IP65, Rear panel: IP20
HeightMax. 2000m
Supply230V AC +10% -20% or 24V AC +-10%, 50/60Hz or 9-30V DC / 7-24V AC +-10% SMPS
Power Consumption5VA
External ConnectionsPlug-in terminals
ScalePt-100 resistance thermometer -199.9...600.0 DegreeC / -200...600 DegreeC
Line ResistanceMax. 100ohm
C/A2 OutputRelay: 250V AC, 8A (for resistive load), NO+NC selectable as control or Alarm2 output
A1 OutputRelay: 250V AC, 8A ( for resistive load), NO selectable Alarm1 and cooling control output
SSR Output24V, 20mA
Life ExpectancyMechanical 30.000.000 operations (under no load), Electrical 300.000 operations (2A at 250V AC, resi
Control AlgorithmOn-Off, P, PI, PD, PID (selectable)
A/D Converter12 bit
Sampling Time100ms
Proportional BandAdjustable between 0% and 100%. If Pb=0%, On-Off control is selected
Control PeriodAdjustable between 1 and 250s
HysteresisAdjustable between 1 and 50 DegreeC/F
Output PowerThe ratio of power at a set point can be adjusted between 0% and 100%
Mounting MethodPanel mounting
DimensionsW48xH48xD87 mm
WeightApprox. 250g (after packaging)
Enclosure MaterialSelf extinguishing plastics

...more
PID CONTROLLER

1,800 / Piece
1 Piece (MOQ)

Control Type : Single set-point and alarm control

Get Best Price
Moisture Separator

1,000 / Piece

BrandALEMITE
Model Name/Number5616-2
Weight6.0 lb (2.7 kg)
Max Inlet Pressure250 psi (17 bar)
Inlet/Outlet1" NPTF(f)
Air Flow @ 90 psi (6 bar)350 cfm
Bowl Capacity16 oz (453.6 g)
Required Automatic DrainB334547-1

...more
Moisture Separator

1,000 / Piece

Get Best Price

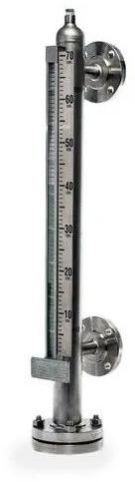

Level Gauge

2,000 / Piece

MaterialSteel
Brand NameIconiq Control
Measuring Range10 to 70 ml
Display TypeMechanical Tube
Size5 inch
Usage/ApplicationMeasuring Liquid
Temperature ResistantYes
Pressure Rating10 PSI

...more
Level Gauge

2,000 / Piece

Material : Steel
Brand Name : Iconiq Control
Measuring Range : 10 to 70 ml
Display Type : Mechanical Tube
Size : 5 inch
...more
Get Best Price

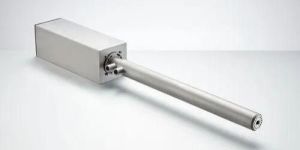

Furnace Camera

1,000,000 / Piece

BrandDurag
Video system Resolution GigE (Standard)1280x960@40f/sec
Temperature measurement range with D-VTA 200 software800 DegreeC - 2000 DegreeC
Weight D-FS2 ...W70-700app. 14kg
Maximum Temperature in Combustion Chamber D-Fs2 ... W70up to 2000 DegreeC
Temperature Monitoring at Endoscope TipPT100
Ambient Temperature (operational)-30 ... +60 DegreeC
Furnace Pressure-100 ... +100mbar
Cooling Water Quantity>500l/h
Purge Air Quantity>15Nm3/h
Cooling Air Quantity>35Nm3/h
IP Protection Class (iec 60529)IP66

...more
Furnace Camera

1,000,000 / Piece

Get Best Price

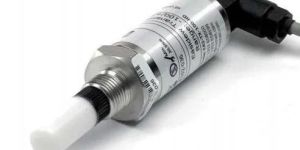

Dew Point Sensor

52,000 / Piece

FeatureUltra fast response to moisture change
Humidity Accuracy+-2 DegreeC
Operating Temperature-20 to +130 Degree V
Packaging TypeBox
PhaseSingle Phase
Wire4 to 20 mA 2
CertificateTraceable 9 point Calibration
Power supply5 to 28 V DC
Sensor316 stainless steel
Process Connections5/8" UNF, 3/4" UNF, G 1/2"
Electrical ConnectorsMiniDIN 43650 C, M12

...more
Dew Point Sensor

52,000 / Piece

Feature : Ultra fast response to moisture change

Get Best Price
