Hose Damage PreventionDesigned To Prevent Hose Damage
Free TorqueLow For Easy Installation
Torque TablesAvailable On Request

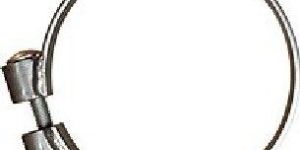

Available in : Zinc Plating (Mild Steel), Stainless Steel 304, Stainless Steel 316 (W1/W2/W3/W4/W5)Applications : Automotive, Irrigation, General Purpose, Marine, Industrial, Oil Lines, ConstructionBolt : Hexagonal Head with screwdriver slotAdditional diameters available on request up to 710mmSmooth or stamped inside of band is designed to prevent hose damageLow free torque for easy installation. Torque Tables available on request.Technically advanced design for superior sealing.Short housing saddles provides even distribution of clamping pressure.
Available in : Zinc Plating (Mild Steel), Stainless Steel 304, Stainless Steel 316 (W1/W2/W3/W4/W5)Applications : Automotive, Irrigation, General Purpose, Marine, Industrial, Oil Lines, ConstructionBolt : Hexagonal Head with screwdriver slotAdditional diameters available on request up to 710mmSmooth or stamped inside of band is designed to prevent hose damageLow free torque for easy installation. Torque Tables available on request.Technically advanced design for superior sealing.Short housing saddles provides even distribution of clamping pressure.
Safety FeatureAdded Safety By Restricting Saddle Expansion
Strength FeatureEnhanced Strength

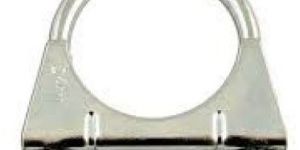

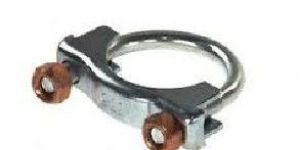

Pre-Assembled with 2 DIN934 NutsApplications : Exhaust Systems, TV Antennas, Signage MountingsDouble Edge Consolidation provides added safety and strength by restricting the saddle from expanding.The welded strips eliminate the possibility of having the clamp come off
Pre-Assembled with 2 DIN934 NutsApplications : Exhaust Systems, TV Antennas, Signage MountingsDouble Edge Consolidation provides added safety and strength by restricting the saddle from expanding.The welded strips eliminate the possibility of having the clamp come off

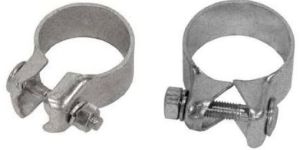

Available in : Zinc Plating, Stainless Steel 304, Powder CoatingBolt : 8x50 or 10x55 or 12x40 DIN603 Carriage Bolt 8.8Pre-assembled with DIN603 Bolt, DIN125 spring-washer, and DIN934 hexagonal-nutAvailable in 2 designs - see images below (Type A on left, Type B on right)
Available in : Zinc Plating, Stainless Steel 304, Powder CoatingBolt : 8x50 or 10x55 or 12x40 DIN603 Carriage Bolt 8.8Pre-assembled with DIN603 Bolt, DIN125 spring-washer, and DIN934 hexagonal-nutAvailable in 2 designs - see images below (Type A on left, Type B on right)

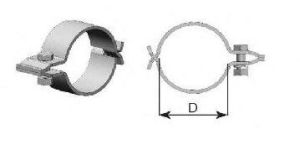

Available in : Zinc Plating, Chrome-Plating, Stainless Steel 304Bolt : Allen Socket Head (x2)Stepped strap accommodates flexible pipe for fast, accurate, and easy installation.Strong, reliable, lightweight, and flexible.Cylindrical trunnions allow the screws to self-center to optimise performance.olerates flex-variations of 2mm on diameter and clamps can be re-tightened.Maximum recommended torque = 25 Nmptionally available as a flat clamp of any diameter given in the table below.Stepped strap accommodates flexible pipe for fast, accurate, and easy installation.
Available in : Zinc Plating, Chrome-Plating, Stainless Steel 304Bolt : Allen Socket Head (x2)Stepped strap accommodates flexible pipe for fast, accurate, and easy installation.Strong, reliable, lightweight, and flexible.Cylindrical trunnions allow the screws to self-center to optimise performance.olerates flex-variations of 2mm on diameter and clamps can be re-tightened.Maximum recommended torque = 25 Nmptionally available as a flat clamp of any diameter given in the table below.Stepped strap accommodates flexible pipe for fast, accurate, and easy installation.
