The Heli Worm Gear BoxesReduction Gear Units are worm type units with modular construction. The units comprise of hardened ground worms with centrifugally cast bronze gears. The Worm Gear BoxesReduction Gear Units when combined with an additional Helical Gear Unit can give particularly low output speeds. The helical gears are hardened and ground to close tolerances.

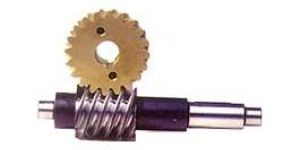

Worm Gears in compliance with international quality standards which are used for transmitting power between two non-parallel, non-intersecting shafts by decreasing the speed. The worm gears designed so scientifically that when gear spins, the friction between the gear and the worm keeps the worm at its respective place.

The Involute Worm GearboxesReduction Gear Units are worm type units with modular construction. The units comprise of hardened ground worms with centrifugally cast bronze gears.

Mechanical worm gear screw jack with trapezoidal lifting screw available with transalating lifting screw or lifting nut. Configurations available in upright, inverted.

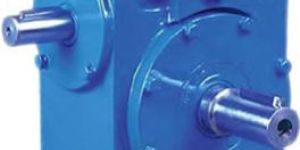

We offer worm gear boxes. The involute worm gear boxesreduction gear units are worm type units with modular construction. The units comprise of hardened ground worms with centrifugally cast bronze gears. The specifications of the gear units are as follows: • worm gear boxes range from center distance of 25 mm to 150 mm • ratios up to 70:1 or customized as per requirements • one or two output shafts • foot or flange mounted with hollow input shafts for standard iec motors.

Worm drive slewing ring is a compact unit, which consists of a slewing ring worm gear, worm drive and housing.The unit offers high output torque with radial and axial load carrying capacity suitable for slow rotation with continuous or cyclical movements.

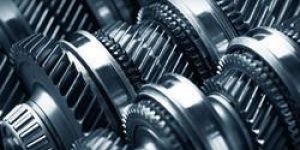

We manufacture, supply, and export supreme quality of Transmission Gears. We exclusively tailor Transmission Gears as per demands and requirements of clients to integrate with their systems. It is widely used in varied automobiles to transmit the power from an automobile engine via the drive shaft to the live axle.

We are offering timing pulleys involute offers a range of classical and htd “high torque” synchronous drives, belt, gear box and timing pulleys. The timing pulleys are available with in pilot bore, finished bore with a keyway or with taper bores suitable for taper-lock bush. The materials used for manufacture are steel, cast iron or aluminum.

Involute offers a range of Classical and HTD “High Torque” synchronous drives. The Timing pulleys are available with in pilot bore, finished bore with a keyway or with taper bores suitable for taper-lock bush. The materials used for manufacture are steel, cast iron or aluminum

Chain Sprockets are offered in the soft or hardened condition. The teeth are hobbed, bores and keyways are mentained to close tolerances to ensure low PCD runouts.

We are offering slewing rings. Slewing rings to complement the existing product range, involute introduced its range of slewing rings in 2005. The product has been designed in-house and is manufactured on a vertical turning lathe – cnc. The bearing consists of 2 seat rings along with one row four-point contact ball taking care of axial & radial forces simultaneously. Slewing rings could be effectively used for slewing conveyors, welding arm and positioners, light and medium duty cranes, excavators, shovel and digging excavators, wind power generation, logging industry machines, machine tools and special equipments such as radar antennas, packaging machinery, rescue vehicles, tunnel machinery, drilling equipments, cleaning and bottling machines etc.

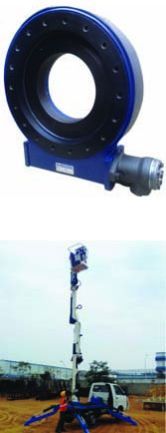

Worm Drive Slewing Rings Worm drive slewing ring is a compact unit, which consists of a slewing ring worm gear, worm drive and housing. The worm drive slewing rings provide an economical and compact solution with low maintenance costs. The unit offers high output torque with radial and axial load carrying capacity suitable for slow rotation with continuous or cyclical movements.

The Shaft Mounted Speed Reducer and designed a keyless gear unit. It is a quick release taper bushing and easier to install and remove that any comparable bushing system. The bushing comprises of a taper sleeve and threaded collar which ensures grater gripping power.Taper clamps are available in various sizes of bores and securing easy method of mounting on different shaft sizes.

We have customized the Shaft Mounted Speed Reducer and designed a keyless gear unit. It is a quick release taper bushing and easier to install and remove that any comparable bushing system. The bushing comprises of a taper sleeve and threaded collar which ensures grater gripping power.However, in order to prevent fretting corrosion and easy removal, shaft mounted taper clamps and the support bushes are manufactured in stainless steels. Taper clamps are available in various sizes of bores and securing easy method of mounting on different shaft sizes.

involute’s shaft mounted gear units (smgu) are manufactured as per international quality standards, which offer speed reduction by directly mounting onto the drive shaft. Shaft mounts gearbox offer ease of installation and removal.the shaft mounted gear units (smgu) are offered with case carburized hardened and ground gear teeth with optimal gear geometry, allowing maximum loading and highest efficiency torque output, for higher rating capacity in the most compact design and robust casing. smgu is a standard product inter-changeable with leading international gearbox brands, which is known for its low cost maintenance and repair. the product specifications and features are as follows: manufactured in 11 different sizes from a to l with power rating of upto 150 kw at 70 rpm multiple bore sizes per size & three different reduction ratios - 5:1, 13:1 and 20:1 redesigned gearings for higher power to weight ratios metallic double lip seals preventing oil leakage and locking outside dirt taper clamp shaft mounted gear units – for key-less applications numerous accessories: backstops, labyrinth seals, reducing bush kits, motor mounts etc. drives for hydraulic motor mounts with/without splines available on request all units tested prior to dispatch with trace-ability of all components consistency & reliability in performance guaranteed in the harshest of conditions

The T-Series Round Shaft Mounted Speed Reducers are an outcome of popular demand for our gearboxes.These gearboxes are an alternative of our Shaft Mounted Gear Units and are currently offered in 4 Sizes with reduction ratios of 5:1, 13:1 & 20:1

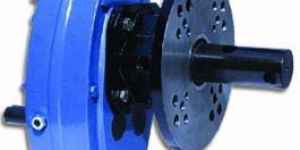

Shaft Mounted Screw Conveyor Units are designed with tapered roller bearings on the output end to take in end thrusts.

Shaft Mounted Screw Conveyor Units are designed with tapered roller bearings on the output end to take in end thrusts. The important characteristics of shaft mounted screw conveyor units are;  The gear units are available in Imperial bores and keyways. CEMA bolt on adaptor flanges features double lip seals on both sides. The adaptor center is open for contaminate to drop out for optimized sealing. 3 – Holes drilled drive shafts are available in various sizes

Shaft Mounted Gear Units (SMGU) are manufactured as per international quality standards, which offer speed reduction by directly mounting onto the drive shaft. Shaft Mounts Gearbox offer ease of installation and removal.The Shaft Mounted Gear Units (SMGU) are offered with case carburized hardened and ground gear teeth with optimal gear geometry, allowing maximum loading and highest efficiency torque output, for higher rating capacity in the most compact design and robust casing.

he Shaft Mounted Speed Reducer and designed a keyless gear unit. It is a quick release taper bushing and easier to install and remove that any comparable bushing system. The bushing comprises of a taper sleeve and threaded collar which ensures grater gripping power. However, in order to prevent fretting corrosion and easy removal, shaft mounted taper clamps and the support bushes are manufactured in stainless steels. Taper clamps are available in various sizes of bores and securing easy method of mounting on different shaft sizes.

We offer round shaft mounted speed reducers. The t-series round shaft mounted speed reducers are an outcome of popular demand for our gearboxes. These gearboxes are an alternative of our shaft mounted gear units and are currently offered in 4 sizes with reduction ratios of 5:1, 13:1 & 20:1 some features: • multiple bore sizes and reduction ratios • backstops are available with all sizes • direct motor mounted flanges available.

We offer rolling mill gearboxes research & development are a part of involute’s growth & we are continuously developing drives for specialized applications. Steel industry is amongst the fastest growing industries worldwide & we at involute recognize the opportunity. We have recently launched: • single stage, double stage, multi stage gear boxes • combined reduction cum pinion stands • speed increaser gear box cum pinion stands • fly shear gearboxes for heavy duty steel cutting.

Gearboxes like Rolling Mill Gearbox and Crane Gearboxes are made up of Gears forged, tempered alloy steels, hardened & ground, enclosed in a sturdy fabricated steelcast iron housing.

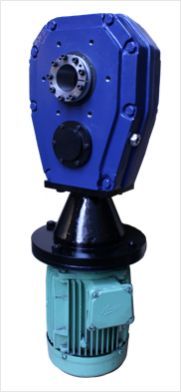

The shaft mounted bevel speed reducer is a compact speed reducer which offers right-angled input output combination thereby eliminating the need of a pulley. It is a two stage helical – bevel speed reducer with hardened and ground helical gears and spiral bevel gears of suitable steel alloys.
