Kamax Corporation Okhla, Delhi

Wire Gauge : 12swg to 32swg

Shape : Round

Country of Origin : Made in India

We offer Super Enamelled Copper Wires and Strips in various sizes and grades (modified polyester, polyester-imide, Polyamide-imide, Dual Coated). Quality of these wires depend upon the various makes & grades offered by us.

We offer our clients an excellent quality of Super Enamelled Aluminium Wires, which are manufactured from high grade quality raw materials. These Super Enamelled Aluminium Wires can be customized as per our customers specifications. Our range of super Enamelled Aluminium wires are available in different sizes.

Packaging Type : Roll

Material : Polyester

Thickness : 10 to 350 microns

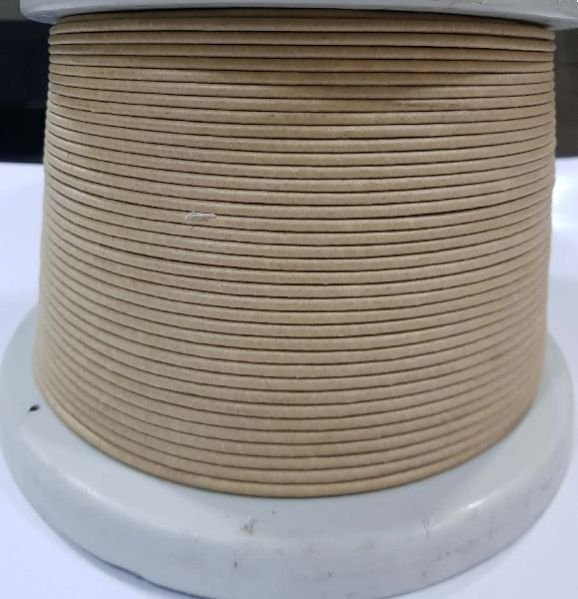

Paper Covered Conductors are used in oil filled distribution and power transformers as they have good dielectric strength when immersed in oil. No. of layers of Paper & thickness of paper depends on the overall thickness of Insulation desired for winding purposes. Paper Covering can be done with Kraft paper or Crepe paper as per the requirements of our customers.

Paper Covered Conductors are used in oil filled distribution and power transformers as they have good dielectric strength when immersed in oil. No. of layers of Paper & thickness of paper depends on the overall thickness of Insulation desired for winding purposes. Paper Covering can be done with Kraft paper or Crepe paper as per the requirements of our customers.

Paper Covered Conductors are used in oil filled distribution and power transformers as they have good dielectric strength when immersed in oil.

Kapton Covered Conductors has one of the best Insulation properties as it can be used over a very wide range of temperature. It has very good mechanical, electrical & thermal properties. It is generally used in Traction motors & aerospace equipments, where extreme conditions are experienced.

Fibre Glass Covering has a high mechanical & thermal stability. With Varnish impregnation, dielectric strength of the insulation is further improved. These conductors are used in motors, generators, dry type transformers, where Insulation requirement is high. We can give Fibre Glass conductors in F class & H class.

Size : 10mm to 2m wide

Cotton Covered Copper and Aluminum Strip has the unique feature of absortive capacity when used with impregnating substances. This is used in transformers and welding sets. Single Fibre + Single Cotton is a better insulation as compared to Double Cotton covering due to higher thermal withstanding of Fibre Glass.

Country of Origin : India

Type : Dcc Copper Wire

Application : Electrical Use

Color : White

Feature : High Quality

Brand Name : Kamax

Diameter : As per customer requiirement

Conductor Material : 99.97% pure copper

Insulation Material : DCC

Usage/Application : Used in Transformers

Color : Brown

Size : 25mm to 1000mm width, 2mil to 5mil thickness

Cotton Covered Copper has the unique feature of absortive capacity when used with impregnating substances. This is used in transformers and welding sets. Single Fibre + Single Cotton is a better insulation as compared to Double Cotton covering due to higher thermal withstanding of Fibre Glass.

Bare Copper Wires and Strips are used for winding purposes, making different types of cables and for making bus bars by switchgear industry. Efficiency of all electrical equipments depend upon the quality & purity of Bare conductor used therein. Our Bare Copper Wires & Strips have minimum purity of 99.97% (ETP grade). Since Bare conductors are the core of any covered conductors, we take due care about the finish & quality of same.    Bare Copper Wires Range   0.20 – 10 mm Bare Copper Strips Cross Section Area   2.5 – 90 Sq. mm Minimum Width   3 mm Maximum Width   25 mm Minimum Thickness   1 mm Maximum Thickness   6.5 mm

Bare Copper Wires are used for winding purposes, making different types of cables and for making bus bars by switchgear industry. Efficiency of all electrical equipments depend upon the quality & purity of Bare conductor used therein.

Type : Bare Copper Wire

Application : Electric Conductor

Conductor Material : Copper

Insulation Material : Fiberglass

Conductor Type : Solid, Stranded

Country of Origin : India

Brand Name : KAMAX

Grade : ELECTRICAL

Thickness : 1-6MM

Type : Bare

Country of Origin : Made in India

Material : Bare Aluminium Strip

Thickness : 1.5 to 6 mm

Country of Origin : Made in India

We do not compromise with the quality of our Bare Aluminium Wires and Strips as they are manufactured strictly under international quality norms of design and quality. We are offering a wide range of these wires and strips to our clients at very competitive rates. We manufacture Aluminium Wires and Strips in different dimensions and EC grade as per our customers’ requirement.    Bare Aluminium Wires Range   0.20 – 10 mm Bare Aluminium Strips Cross Section Area   2.5 – 100 Sq. mm Minimum Width   3 mm Maximum Width   25 mm Minimum Thickness   1 mm Maximum Thickness   6.5 mm

Aluminum Strip has the unique feature of absortive capacity when used with impregnating substances. This is used in transformers and welding sets. Single Fibre + Single Cotton is a better insulation as compared to Double Cotton covering due to higher thermal withstanding of Fibre Glass.

Thickness : 1.5-5mm
