Lakshmi Tradeing Company Gb Road, Delhi

Offered shell type needle roller bearings are light-weight but are rates for heavy loads. They employ a shell type outer ring made of thin special-steel plate which is accurately drawn, carburized and quenched , thus providing the minimum sectional height of the needle roller bearings the caged type has a structure in which the needle rollers are accurately guided by the cage and thrust rings. It is useful for applications at high-speed rotations. Available in sizes from bore size: 3 mm to 60 mm inches bore size: 3.969 (532") to 69.85 (2 34") series mm: tla (hk),ta (hmk) , yt (fj) (full complement) inches: ba (sce) , bha (sch), yb (full complement)

Brand Name : IKO.INA & NTN

We offer needle roller cages needle roller cages needle roller cages for general usage are bearings, which display excellent rotational performance. Since they have a large lubricant holding capacity, lightweight and high rigidity, they can withstand severe operating conditions such as high-speed rotation and shock loads, and they are used in wide range of applications. Available in sizes from bore size: 3 mm to 200 mm series: kt (k), ktw (k..zw) ktz & ktv used for engines available in big and small ends.

We offer needle combined thrust bearings are combination of radial bearings and thrust bearings, caged needle roller bearings are used as radial bearings and thrust ball or roller bearings are used as thrust bearings. They are compact and very economical, and can be subjected to radial loads and axial loads simuntaneously. They are widely used for machine tools, textile machinery, industrial machinery etc. Size available from : 10 mm to 70 mm series: rax , nkx (nax), nkxr (nbx), nkx.z (nax..z , raxnpz)(with dust cover) nkia (nata),nkib (natb with 3 point ball contact.

Brand Name : IKO.INA & NTN

Offered machined type needle roller bearings are bearings with a small sectional height and large load rating. The outer ring has high rigidity and can easily be used even for light alloy housings. These bearings are available in metric and inch series, both of which have the caged type and full complement type. It is therefore possible to select suitable bearing for use under various conditions , such as heavy load, and high speed or low speed rotations. In addition there are bearings without and with inner rings , they are also available with side sealing to protect from dust and other factors. Available in bore size from: 5 mm to 490 mm inches bore size: 15.875 (58") to 101.6(4") series mm: nk, rna (without inner ring) nki , na (with inner ring) series inches: br (hj) (without inner ring), bri (with inner ring)

Brand Name : IKO.INA & NTN

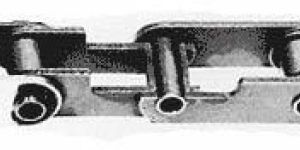

We are offering hollow pin chain, standard types of attachments are available for tsubaki hollow pin chains in both single and double pitch types. Attachments or cross rods may be inserted into any link in the chain without disassembling the chain. s type rf type standard roller rf type oversized roller.

We are a renowned organization, which is engaged in offering dx type washer to our clients. The offered range of washers is available in customized designs, colors, shapes and sizes to append and respond to the diverse demands of respectable clients. Along with this, the offered range of washers is designed utilizing high grade raw material and modern techniques by certified vendors, who ensure to bring it in conformation with the highest quality norms and standards. Composition: steel backed sintered bronze polymer-pb free features: maximum load = static load: 250 nmm2 dynamic load: 140nmm2 temperature limit: 40ã�â°c to + 130ã�â°c friction coefficient: 5 to ã¢ï¿½ï¿½ 0.25 maximum sliding speed: 2.5 ms wear depth limit: 0.50 mm2 maximum pv value: dry lubricant: ã¢ï¿½ï¿½3 nmm2 ã¢ï¿½ï¿½ ms oil lubricant: 22 nmm2 ã¢ï¿½ï¿½ms limit coefficient of thermal expansion: 11*106 k thermal conductivity: 4 wm k

Brand Name : Ch

We offer Bush Bearing. Backed by the rich experience and a competent team of professionals, we are able to offer DX Type Bush Bush Bearing. The offered range of DX type bush bush bearings is suitably inspected in varied characteristics to ensure its adherence with the highest quality norms and standards. Along with this, the offered range of DX type bush bush bearings is available in different designs, shapes and sizes in accordance with the diverse requirements of esteemed clients. Composition: Steel backed Sintered bronze Polymer-PB free Features: Maximum load = static load: 250 Nmm2 Dynamic load: 140Nmm2 Temperature limit: 40°c to + 130°c Friction coefficient: 5 to – 0.25 Maximum sliding speed: 2.5 ms Wear depth limit: 0.50 mm2 Maximum PV value: Dry lubricant: –3 Nmm2 – ms Oil lubricant: 22 Nmm2 –ms Limit coefficient of thermal expansion: 11*106 K Thermal conductivity: 4 Wm k

Brand Name : Ch

We offer Du Bush. We are an eminent name, which is engaged in delivering DU Type Bush Bush Bearing to respectable clients. This range of DU type bush bush bearings is sourced from trusted vendors of the market. In addition to this, the offered range of DU type bush bush bearings is available in different customized dimensions, shapes and allied specifications in accordance with the diverse demands of clients. Composition: Steel backed and sintered bronze PTFE and leadPb Features: Longer service life Dimensional accuracy Resistant against corrosion High compressive strength Maximum load capacity: 140 Nmm Static load: 250 Nmm2 Dynamic load: 140Nmm Maximum speed limit: 2 ms Dry friction: 2.5 ms Oil lubrication: 5.0 ms Temperature limit: 195°c to + 280°c Dry friction: 3.6 Nmm2 ms Oil friction: 50 Nmm2 ms Wear amulet limit: 0.05 mm Friction coefficient: Dry friction: .08 to 0.20 Oil friction: .02 to 0.07 Thermal conductivity: 42 Wm k Coefficient of thermal extension: 11*106k

We are offering ansi standard roller chain. Single and multiple strand tsubaki standard 80th series roller chains conform to the ansi (american standard institute) and are interchangeable with other chains conforming to ansi standards. The tsubaki 80th series roller chains celebrate tsubaki's 80 year history of constantly improving quality and customer satisfaction. dimensions-mm chain no. Ansi no. Pitch p roller dia.r width between roller link plates w rs25^* 25 6.35 3.30 3.18 rs35^* 35 9.525 5.08 4.78 rs41* 41 12.70 7.77 6.38 rs40* 40 12.70 7.92 7.95 rs50* 50 15.875 10.16 9.53 rs60 60 19.05 11.91 12.70 rs80 80 25.40 15.88 15.88 rs100 100 31.75 19.05 19.05 rs120 120 38.10 22.23 25.40 rs140 140 44.45 25.40 25.40 rs160 160 50.80 28.58 31.75 rs180 180 57.15 35.71 35.72 rs200 200 63.50 39.68 38.10 rs240 240 76.20 47.63 47.63 dimensions-mm chain no. Ansi no. Pitch p roller dia.r width between roller link plates w rs25^* 25 6.35 3.30 3.18 rs35^* 35 9.525 5.08 4.78 rs41* 41 12.70 7.77 6.38 rs40* 40 12.70 7.92 7.95 rs50* 50 15.875 10.16 9.53 rs60 60 19.05 11.91 12.70 rs80 80 25.40 15.88 15.88 rs100 100 31.75 19.05 19.05 rs120 120 38.10 22.23 25.40 rs140 140 44.45 25.40 25.40 rs160 160 50.80 28.58 31.75 rs180 180 57.15 35.71 35.72 rs200 200 63.50 39.68 38.10 rs240 240 76.20 47.63 47.63 dimensions-mm chain no. Average tensile strength kn {kgf} maximum allowable load kn {kgf} approx. Mass kgm number of links per unit rs25^* 4.71 {480 } 0.64 {65 } 0.14 480 rs35^* 11.3 {1,150} 2.16 {220 } 0.33 320 rs41* 11.8 {1,200} 2.26 {230 } 0.41 240 rs40* 19.1 {1,950} 3.63 {370 } 0.64 240 rs50* 31.4 {3,200} 6.37 {650 } 1.04 192 rs60 44.1 {4,500} 8.83 {900 } 1.53 160 rs80 78.5 {8,000} 14.7 {1,500} 2.66 120 rs100 118.0 {12,000 } 22.6 {2,300} 3.99 96 rs120 167.0 {17,000 } 30.4 {3,100} 5.93 80 rs140 216.0 {22,000 } 40.2 {4,100} 7.49 68 rs160 279.0 {28,500 } 53.0 {5,400} 10.10 60 rs180 370.0 {37,700 } 60.8 {6,200} 13.45 54 rs200 471.0 {48,000 } 71.6 {7,300} 16.49 48 rs240 686.0 {70,000 } 99.0 {10,100} 24.5 40

Brand Name : Tsubaki
