LEVSEN CONTROLS & INSTRUMENTS PVT LTD Jhilmil Industrial Area, Delhi

Technical specifications (stadard): switching unit: housing: aluminum, weather proof, powder coated. Integral with the probe suitable for back panel mounting. Cable entry: 2 nos. Power consumption: 2 va

Type: Barstock, Solid Barstock, Deep Drilled and Machine, Tapered or Straight Hot End Materials: Hexagonal Round AISI 304, 316, 310, 321, 446, Inconel Tungsten Carbide, Cobalt, and Cermeric Coated. Process connection: Screwed: BSP NPT Metric, Thread Flanged: ASTM BSS DIN

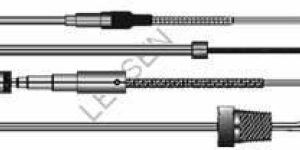

Available types: T, J, K, E, R, S, B Simplex Duplex Triplex Available types: PT100, PT46 Simplex Duplex Connection: 2, 3 or 4 wires

One of the leading best TEMPERATURE GAUGE supplying company.

Available in all sizes (48 X 48) , (72 X 72) , (96 X 96) Input : J, K, RTD (Pt100) Output : Relay SSR Set point : 1 Control mode : Proportional ON - OFF Relay action : Heat Cool

Simple Magnetic proven design Float Mounted at one end of rigid rod moves with changes in level .Magnetic capsule at other end rod moves accordingly with fixed micro switch contacts across the phase change accordingly.

TECHNICAL DETAILS Housing POLYMER Cast Aluminum Protrusion length 150 mm standard, Extension upto 1 mtrs Revolution per minute 1 or 2 rpm wetted parts SS ,PP Process connection 1-12” BSP 1” (standard) others on request. Medium temperature 40 °C…+90 °C Electrical Cable gland 2 nos. Medium pressure max. 2 bar Output SPDT 230 V AC, 10 A, (standard) 2X SPDT (Optional) Power supply 230 V AC, ±15%,

Rotameter is a device that measures the flow rate of liquid or gas in a closed tube. A Rotameter consists of a tapered tube, typically made of glass, with a float inside that is pushed up by flow and pulled down by gravity. At a higher flow rate, more area (between the float and the tube) is needed to accommodate the flow, so the float rises. Floats are made in many different shapes, with spheres and spherical ellipses the most common. The float is shaped so that it rotates axially as the fluid passes. This indicates if the float is stuck, since it will only rotate if it is free.

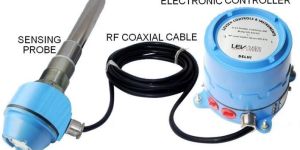

A Reliable Level Switch Based on Radio Frequency principle for Solids, Liquids, Slurries. Levsen RF Level Switch comprises of an electronic controller, a sensing probe and coaxial cable for the connection of the electronic controller to the probe. The Electronic Controller provides RF signals to the probe and measures the changes in parameters provided by the sensing probe mounted in the material (to be measured) container. The sensing probe does not contain any electronics.

Available in all sizes Type: Inductive, Capacitive ACDC

Input : J, K, T, R, S, C, E, B, N, L, U, W, RTD(Pt100 Pt1000), mV, Current, Voltage 24 VDC sensor supply

Highly resistant to dynamic pressure changes 4-20 mA 2-wire output signal, others available Special design features improve operator safety Several process connections available Stainless steel case and wetted parts Application: Liquid ,Gas & Vapor .

Protection : IP 66 Switch Type : 1 SPDT Switch Rating (Standard) : 10A resistive 4A inductive 380 VAC, 12 W 220 VDC (Other ratings are also available) Cable Entry : 12 NPT (F)

We are offering best PRESSURE GAUGE supplying company. Available in Panel Clamp Mountings, available in all standard process connections. Accuracy ±2% Dial size 40, 50, 63,100,150,200 & 250 mm

Levsen series MLI -31 Magnetic Level Indicator simple & reliable Level Indicator, Which is based on magnetic principle. It is absolutely safe for dangerous liquid even under high pressure. Magnetic Level Indicators are widely used to observe the Level of tanks or vessels that contain liquid media. Magnetic level gauges utilize a float that contains one or more magnets. As the float rises and falls its magnetic field passes up and down the level column. The level indicator follows the magnetic field.Simple Magnetic proven design Float moves up & down on Probe according to Liquid Level and Fixed limit switches inside the probe change their contacts by magnetic attraction.

Tubular Level gauge for visual liquid level observation is very common in process industry. It is a simple and reliable device for direct reading in atmospheric or pressurized tank applications It is mounted parallel, along the side of tank. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local liquid indication.

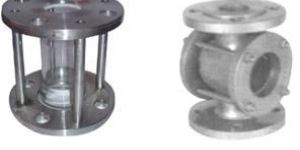

Specification: MOC: CI, CS, SS 304, SS316, PP Line Size: 6 NB to 250 NB Option: Flapper, rotary Wheel

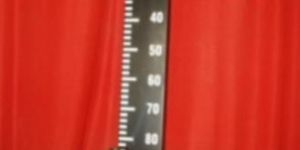

SPECIFICATION Range upto 15 mtrs Float SS-304316, PP, PVC. Wire SS-304316Nylon. Pulley SS-304316 PP. Scale AluminiumSS Pointer Florescent Red color. Application: Water, oil, Chemical, Solvents etc

SPECIFICATION Wetted part SS304, SS316 Process Connection Flanged Screwed Enclosure Weather proof Flame proof Switch Micro Read rating @5 Amps. , 230VAC Contact NONC (Potential Free) No. of Contact 1, 2 or 3 Switching Temperature 150ºC max. Pressure 20 kgcm² max.

Maximum Load 16 A 250 V AC CABLE MATERIAL PVC or Neoprene CONTACT TYPE Microswitch with NO and NC contact CONTACT LIFE 10 million switches SWITCH ANGLE ±45° SWITCHING SPEED max. 600min. PROCESS TEMPERATURE 0°C to 70°C PROCESS PRESSURE max. 5 Bar LIQUID DENSITY min. 0.8 gcm3 HOUSING MATERIAL non-toxic polypropylene PROTECTION IP 68 CABLE SPECIFICATION Ø 9 mm 3x1.5 mm2

SPECIFICATION Range upto 15 mtrs Float SS-304316, PP, PVC. Wire SS-304316Nylon. Pulley SS-304316 PP. Scale AluminiumSS Pointer Florescent Red color.
