Discharge height from channel bottom1100 to 9780mm
Discharge length1150 mm
Screen width430 to 2030mm
Effective width350 ? 1950 mm
Discharge height from operation floor400 to 6800 mm
Overall height1820 to 10500mm
UsageIndustrial
Bar ThicknessUpto 12 mm
MOCSS316
Side Margin200 mm maximum
Chain and sprocketNon wetted type hardened carbon Steel
SensorProximity Sensor
FinishPolish
ShapeRectangular
Thickness6 - 12 mm
We are manufacture, Slupplier and exporter of all kind of mechanical bar screen, mechanical fine screen and mechanical srew screen in SS-304, SS-316 and others also.

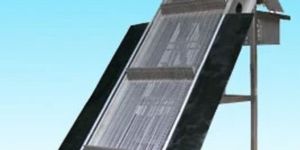

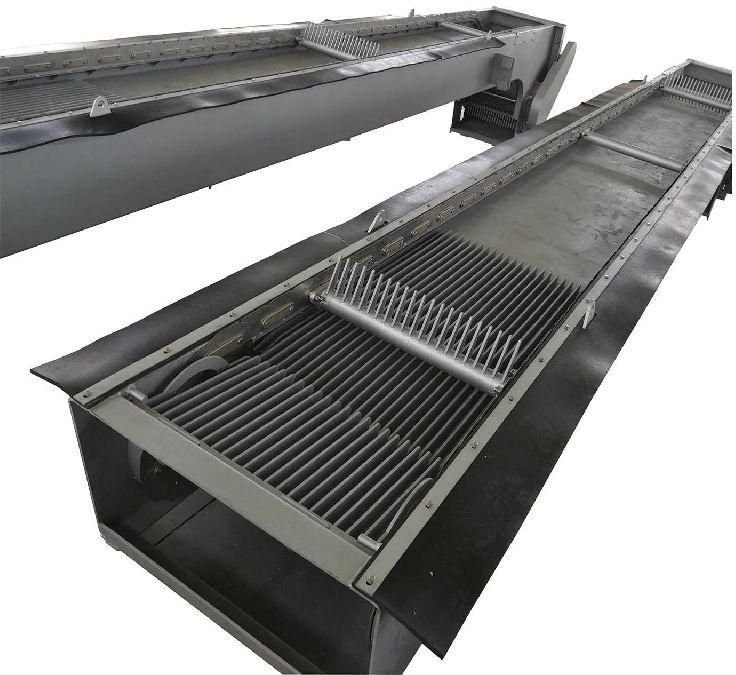

We (PP Aqua) are manufacturing mechanical bar screens used in municipal sewage and waste water treatment plant. Our screen offers efficient screening in any flow condition. Screens are completely assembled at our works to ensure correct fit at site.
Material of construction: SS 304 , SS 316
Bar Spacing: 2mm to 100mm
4 or more cleaning rakes depending on screen height
Channel width: 400 ~ 2,000 mm
75-degree incline angle
Types of screen:
•Coarse bar rake screen
•Fine bar rake screen
•Fine bar step screen
•Suspended trash rake screen
