Mukesh Trading Company New Rohtak Road, Delhi

Features:- Ideal for technical institutes. Robust construction. Popular for do it yourself enthusiast. Body of cast iron. Spindle screw, sliding rods and handle is of high quality steel.

Frame : Made out of Cast Iron Rollers : Made out of good quality case hardennig steel (HRC 58-60) and precision ground. Sizes : 1) 400 mm     2) 800 mm Maximum Wheel Diameter (While ordering, please specify maximum wheel dia. required.)

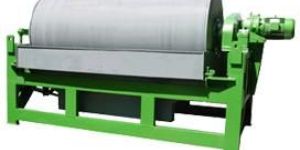

The wet drum separator NTS is used to remove very fine magnetisable components from low concentration, low-viscosity liquids. The NTS is intended for use in the metal processing industry and for the treatment of preconcentrates extracted from the STEINERT high gradient magnetic filter HGF. Around 90 % of the grain sizes ranging from 1 µm to 1000 µm can be separated as sludge. Features such as stainless steel housing and powerful neodymium iron boron magnets are standard.General Princip :The liquid flows through a semicircular separating chamber beneath a stainless steel drum to which the magnetisable particles are attracted. The strong, high-gradient magnetic field is created by a cylinder consisting of permanent magnetic discs positioned within the drum. These special permanent magnets generate particularly high field gradients which are necessary for successful separation, as is the need with all magnetic separators. For recovering magnetic / ferrosilicon in dense media plants and iron ores wet drum separators are primarily used. They remove contaminants from the product stream, increasing product purity and plant productivity. In the applications where the product purity is most essential the wet drum separators can use powerful rare earth magnets which can remove very fine and weak contaminants even from dense materials. How it Works : The liquid flows through a semicircular separating chamber beneath a stainless steel drum gather is a semicircular separating chamber through which the liquid flows. The cylinder consisting of permanent magnetic discs are positioned within the drum to which the magnetizable particles are attracted. By rotating the drum, the filter cake is lifted out of the slurry and the magnetic field.    Features :   Wet drum magnets have high magnetic recovery and discharge.   The feed slurries recover the magnetics.   Available in single or multiple drum applications.   Recover magnetic solids in as clean a magnetic concentrate as possible .   Permanent magnet assembly eliminates coil burn-outs .   The magnet / pole elements are bolted to a mild steel shaft.   The drum is made from thick stainless steel for long service life.   Wet drum separators are available in different configuration like single drum, double drum and multiple drum. In double drum two separators are arranged back to back with a common feed back.   Applications :   Glass industry   Chemical industry   Plastic industry   Mining industry   Food industry   Pharmaceuticals industry   Foundry industry   Buyers Advantage :     Wet drum separator has following advantages for the buyers :   The separator provides minimum wear on the cylinder.   The materials are return to the feed point automatically.   It has the high magnetic solid discharge.   It can also handle heavy magnetic load.   Wet drum separator has wide industrial usage.

Features:- Used for marking & transferring measurement. Ground base for accurate reference surfaces. V groove on the front end which allows the spindle to adjust to any angle above or below the base. V groove in the base for cylindrical work. A very positive fine adjustment through a rocker arm that makes smooth & accurate setting. Grooves on the side of the base for a sure & easy grip. Dial indicator can also be used.Two gauge pins facilitate easy linear marking.

Features:- Accurately designed for use on surface, universal tool & cutter grinding machines. Unbreakable steel body. Accurately groung jews made out of special steel for firm grip. All swivelling movements have positive locking and the job can be locked at any compound angle.

The Universal Dividing Head, Type BJUDH-135 is a very useful acessory for all machine shops especially for tool room work. It can be used on Milling, Drilling and Grinding Machines for a variety of operations. It has a wide range of application in tool manufacture, jigs and fixtures, gears, splines, polygonal components, milling cutters etc. The Universal Dividing Head is rigid in construction. It consists of close grained heavy duty cast iron housing and body. The main spindle is hardened and ground. The worm and wheel run in oil bath to reduce the wear minimum.

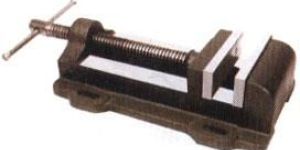

Features Compact and Indispensable vice for drilling machines. Hardened and ground steel jaws provided with horizontal and vertical notches for holding round, square and irregular jobs. Available in cast iron and malleable frame.

One cutting wheel and two rollers suitable for cutting copper, brass, aluminium, PVC and thin wall thickness pipe up to 30mm. It is fitted with a Reamer.

This type of ferrous metal removal unit can be fitted simply in existing pipe line or outlet of various equipments like pulverisor, blenders, & classifier or any other outlet location. In standard type each unit comprises to permanent magnetic grids mounted one above the other. system with multiple grids are available for special application. The grids are easily removable for cleaning. The drawer is fitted with flanges at outlet. As standard the magnetic rods consisting hard ferrite ceramic magnets or high intensity rare earth magnet is fitted in a sturdy steel housing. Model with stainless steel grids and housing can be supplied if required. The drawer magnets are available with either Ferrite magnets or with High Intensity. Rare Earth Nd-Fe-B Magnets.

APPLICATION : For use on Lathes, Shapers, Planer Machines etc. for operations like cylindrical external & internal grinding. SPINDLE : Made from alloy steel suitably heat treated and precision ground. Precision preloaded bearings used. STANDARD ACCESSORIES : Tools Post Grinder is delivered complete with sturdy guards, motor/spindle pulleys, belts and grinding wheel. Electric motor supplied only against request at extra cost. External Grinder price includes the cost iron body. PRECAUTIONS : Rotate the external spindle only in the direction indicated by the arrow. Horizontal models of tool post grinders are required to be mounted between job/workpiece and operator. Vertical models of tool post grinders can be mounted beyond the job/workpiece.

Features:- Used for holding jobs together. Made from hardened steel & precision ground for parallelism. Designed for maximum strength & rigidity. A retaining strip hold loose job in alignment when clamp is tightened or loosened. The ends of the jaws are rounded to permit clamping under shoulder or in recess.

Is a very useful accessory for bigger Radial Drilling Machines in every Machine Shop. It can be used as Auxiliary Base for mounting of Fixture on Floor type Milling & Boring Machines. It is also useful for inspection and marking purposes. The Base, Top Table and Worm Wheel Segment are made of High Grade Heavy Duty Cast Iron with Brinnel Hardness of 180 and above. They are machined to very close tolerances. The top surface is hand scraped to achieve better accuracy. The Worm Shaft is made of Alloy Steel. The Top Table can be tilted from 0 to 90° on Horizontal Axis by means of Worm & Worm Wheel arrangement and it can be locked in any position.

Features:- Unique Tilt Lock Vices can with stand heavy jobs. Top & Bottom of vice bed, bottom & both sides of jaws & all jaw mounting surfaces are precision ground. By reversing the jaws plates the jaws are raised & can be fitted to both ends of the fixed jaws & the moveable jaws. The four different positions of jaw plates pair are available for more gripping area. Coolant through on vise body and swivel base. Chip clerance holes .. No dead pockets. Swivel handle allows the screw head revolved on machine table. The vice can be disassembled and repaired by regrinding.

Inder oil is a fine thread cutting oil which cools , lubricates & helps to wash away threading chippings & makes the job of threading , cutting speedy & easier without risk of our heating the dies .

This under pressure Drilling and Taping Machine is used to drill and tap in water line while under preserve. It makes the hole and tap up to 2 inches single operation without electricity. It covers the  range size 4" to 48" of cast iron ,ductile iron and M.S. Pipes . Its superior quality seals stop the water pressure while drilling. it is packed in metal box .

Features:- Body is made of grey cast iron. High quality ACME steel screw. Hardened & accurately ground jaws provided with 'V' groove. This vice can'set up at any angle with positive locking. Upper angle base can incline from the horizontal position to the vertical position. The lower angle setting base can incline up to 45° in both right & left direction. The entire unit may be swivelled on base plate through 360°. Quick alignment to machines though longitudinal slot provided in base. Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.

  Drop forged chrome-vanadium steel, heat treated jaws, 45 Degree "S" Shaped jaws angled access, self-locking for convinient to grip the pipe.

Flaring tools basically meant for soft pipe viz. Copper, Aluminium, Brass Tubing. It gives uniform & smooth flairs with minor force, even on large diameter of tubing. Its hardened steel flaring cone, gives uniform flare walls 45º. size of tubing holes clearly marked on the bar & its 2 bars cover 9 sizes of flares & 5 swaging adopters for 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", & 3/4" tubing sizes.

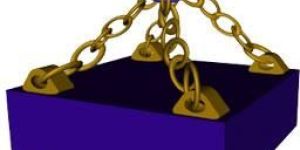

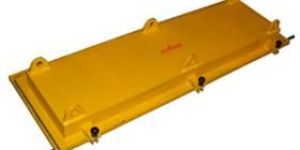

Mukesh Trading Company Suspension Type Magnets are most useful for products carried by the Belt Conveyors. Use of Suspension Type Magnets is recommended for products with low contamination. However if the frequency of the impurities is too high, these will make a layer shunting magnetic field. The equipment will require frequent cleaning. For such applications Over Band type Magnetic Separator is recommanded. The main applications are for the processing of Bulk products such as Sugar, Coal, Minerals, Cereals, Coffee, Glass, Culets etc.

Features Used for supporting the job. Made from good quality alloy steel material. Safe & reliable adjustment of height. Locknut for adjustment. Can be used with different pads.

The super thin Round Chuck gives 0.075mm TIR repeatability using the master pinion. The flanged type mounting makes it easy to load the chuck. The angle between "Handle" and "Base of Chuck" is 30 degree for good handle rotation. Soft Jaws are also available. Ideal fro Milling, VMCs, Drill Machines, Angle Plates Grinding Machines.

Sturdy & accurately made machine vices from graded casting. Fine acme thread screw. Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal 'V' groove to hold the round job firmly. The swivel base is graduated fully through 360°. Vice can be converted from swivel base to fix by removing the base. Quick alignment to machines through longitudinal slot provided in base & body. Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip. Body is provided with water channel. Depth of jaws is more to hold heavy jobs.

Features Clamping force right behind work. No lifting of the sliding jaw. Used for light milling & drill works, simple but sturdy. Fitted with all over hardened ground high quality steel jaws. Moving jaw is plain and other is provided with one vertical & two horizontal 90° V-grooves.
