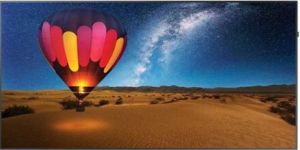

Product : Professional 4K LFD
Model Number : QM98N
Series Number : QMN
"4K High End Professional Display for AVSI & Digital Signage Projects 500 nit
HDMI / DVI / RS232 / USB / RJ45 / WiFi Ready / Built-in-Speakers /EDGE LED/
Inbuilt Media Player & MagicInfo S6. Daisy chain"
Product : Professional 4K LFD
Model Number : QM98N
Series Number : QMN
"4K High End Professional Display for AVSI & Digital Signage Projects 500 nit
HDMI / DVI / RS232 / USB / RJ45 / WiFi Ready / Built-in-Speakers /EDGE LED/
Inbuilt Media Player & MagicInfo S6. Daisy chain"

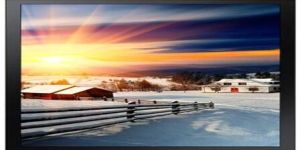

Product : Full HD Fully Outdoor Displays
Model Number : OH85F
Series Number : OHF
"FHD Fully Outdoor display, HDMI (x2), HDBT, 2500 nit, IK10 front glass,
IP56, SSSP 4.0, 24x7"
Product : Full HD Fully Outdoor Displays
Model Number : OH85F
Series Number : OHF
"FHD Fully Outdoor display, HDMI (x2), HDBT, 2500 nit, IK10 front glass,
IP56, SSSP 4.0, 24x7"

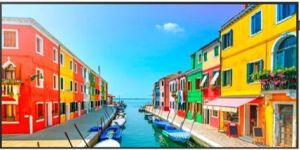

Product : Full HD Semi-Outdoor Displays
Model Number : OM75D-W
Series Number : OMN
FHD Fully Outdoor display, HDMI (x2), 2500 nit, IP5X, SSSP 2.0, 24x7
Product : Full HD Semi-Outdoor Displays
Model Number : OM75D-W
Series Number : OMN
FHD Fully Outdoor display, HDMI (x2), 2500 nit, IP5X, SSSP 2.0, 24x7

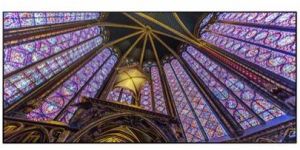

Product : Professional 4K QLED LFD
Model Number : QH65H
Series Number : QHH
"4K QLED Professional Display for AVSI & Digital Signage Projects / HDMI / DP /
RS232 / USB / RJ45 / WiFi Ready / Built-in-Speakers/ Inbuilt Media Player &
MagicInfo S5"
Product : Professional 4K QLED LFD
Model Number : QH65H
Series Number : QHH
"4K QLED Professional Display for AVSI & Digital Signage Projects / HDMI / DP /
RS232 / USB / RJ45 / WiFi Ready / Built-in-Speakers/ Inbuilt Media Player &
MagicInfo S5"
Product : Professional Full HD LFD
Model Number : PH55F
Series Number : PHF
"High End Professional Display for AVSI & Digital Signage Projects - 24x7 Operation
- 700 nits Brightness with Web Browsing"
Product : Professional Full HD LFD
Model Number : PH55F
Series Number : PHF
"High End Professional Display for AVSI & Digital Signage Projects - 24x7 Operation
- 700 nits Brightness with Web Browsing"

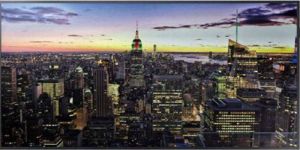

Product : Professional 4K LFD
Model Number : QM49N
Series Number : QMN
"4K High End Professional Display for AVSI & Digital Signage Projects 500 nit HDMI /
DVI / RS232 / USB / RJ45 / WiFi Ready / Built-in-Speakers /EDGE LED/ Inbuilt
Media Player & MagicInfo S6. Daisy chain"
Product : Professional 4K LFD
Model Number : QM49N
Series Number : QMN
"4K High End Professional Display for AVSI & Digital Signage Projects 500 nit HDMI /
DVI / RS232 / USB / RJ45 / WiFi Ready / Built-in-Speakers /EDGE LED/ Inbuilt
Media Player & MagicInfo S6. Daisy chain"
Product : Professional Full HD Interactive LFD
Model Number : PM43F-BC
Series Number : PMF-BC
Full HD Professional Display with Integrated Capacitive Touch
Product : Professional Full HD Interactive LFD
Model Number : PM43F-BC
Series Number : PMF-BC
Full HD Professional Display with Integrated Capacitive Touch
1. All-in-one displays that leverage capacitive touch technology backed by a Tizen-powered media player
2. All-in-one display solution with embedded MagicInfo Player S4 powered by Tizen
3. Capacitive touch technology that enables up to 10 different touch points simultaneously
Specifications
Display
Diagonal Size - 80cm (32")
Panel Type - 60Hz E-LED BLU
Resolution - 1920 x 1080 (16:9)
Pixel Pitch (HxV) - 0.360(H) x 0.360(V) mm
Active Display Size (HxV) - 698.4(H) x 392.85(V) mm
Contrast Ratio - 5,000:1
Viewing Angle (H/V) - 178/178
Response Time - 8 ms
Display Color - 10bit Dithering - 1.07Billion
Color Gamut - 72 %
H-Scanning Frequency - 30 ~ 81kHZ
Maximum Pixel Frequency - 148.5MHz
V-Scanning Frequency - 48 ~ 75HZ
Brightness - 400nit
Contrast Ratio (Dynamic) - Mega
Connectivity
HDMI In - 2
DP In - 1
DVI In - 1
USB - 2
RGB In - D-Sub (DVI-I Common)
Audio In - Stereo Mini Jack, RGB/DVI/DP/HDMI
Audio Out - Stereo Mini Jack
Video Out - DP1.2(Loop-out)
RS232 In - Yes
RS232 Out - Yes
RJ45 In - Yes
Design
Stand Type - Foot Stand (Optional)
Power
Power Consumption (Off Mode) - less than 0.5 W
Power Consumption (On Mode) - Max:88W / Typical:(EU)61, (US)42, (WW)61W / BTU(Max):300.08W
Power Consumption (Sleep Mode) - less than 0.5 W
Dimension
Set Dimension (WxHxD) - 721.2 x 415.6 x 29.9 mm
Package Dimension (WxHxD) - 796 x 484 x 132 mm
Weight
Set Weight - 5.6 kg
Package Weight - 7 kg
Operation Conditions
Temperature - 0~40 ?
Humidity - 10~80 (non-condensing)
Mechanical Specification
VESA Mount - 200 x 200 mm
Bezel Width - 8.9(Even) mm
Media Player Option Type - SBB
1. All-in-one displays that leverage capacitive touch technology backed by a Tizen-powered media player
2. All-in-one display solution with embedded MagicInfo Player S4 powered by Tizen
3. Capacitive touch technology that enables up to 10 different touch points simultaneously
Specifications
Display
Diagonal Size - 80cm (32")
Panel Type - 60Hz E-LED BLU
Resolution - 1920 x 1080 (16:9)
Pixel Pitch (HxV) - 0.360(H) x 0.360(V) mm
Active Display Size (HxV) - 698.4(H) x 392.85(V) mm
Contrast Ratio - 5,000:1
Viewing Angle (H/V) - 178/178
Response Time - 8 ms
Display Color - 10bit Dithering - 1.07Billion
Color Gamut - 72 %
H-Scanning Frequency - 30 ~ 81kHZ
Maximum Pixel Frequency - 148.5MHz
V-Scanning Frequency - 48 ~ 75HZ
Brightness - 400nit
Contrast Ratio (Dynamic) - Mega
Connectivity
HDMI In - 2
DP In - 1
DVI In - 1
USB - 2
RGB In - D-Sub (DVI-I Common)
Audio In - Stereo Mini Jack, RGB/DVI/DP/HDMI
Audio Out - Stereo Mini Jack
Video Out - DP1.2(Loop-out)
RS232 In - Yes
RS232 Out - Yes
RJ45 In - Yes
Design
Stand Type - Foot Stand (Optional)
Power
Power Consumption (Off Mode) - less than 0.5 W
Power Consumption (On Mode) - Max:88W / Typical:(EU)61, (US)42, (WW)61W / BTU(Max):300.08W
Power Consumption (Sleep Mode) - less than 0.5 W
Dimension
Set Dimension (WxHxD) - 721.2 x 415.6 x 29.9 mm
Package Dimension (WxHxD) - 796 x 484 x 132 mm
Weight
Set Weight - 5.6 kg
Package Weight - 7 kg
Operation Conditions
Temperature - 0~40 ?
Humidity - 10~80 (non-condensing)
Mechanical Specification
VESA Mount - 200 x 200 mm
Bezel Width - 8.9(Even) mm
Media Player Option Type - SBB
