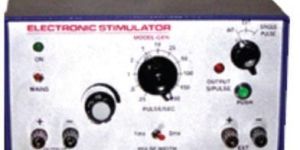

Electronic Stimulator
Get Price Quote
Electronic Stimulator : (1369)
Available in five modelsStudent Stimulators Transistorised : Out put 0-25 DC in twosteps, duration .5 ro 1.5ms frequency 5 to 100 c/s in 11steps, modes, single, repetitive or an external trigger, for220V 50Hz.Student Electronic Stimulator Latest Design :• Frequency continuously variable from 0.1Hz to 100Hz in 3decades of 0.1 to 1, 1 to 10 and 10 to 100 selectablethrough push-button controls and one continuously variablecontrol.• Output voltage continuously variable from 0 to 30V in twosteps of 1 to 3 and 1 to 30, selectable through a switch.• Fixed pulse duration 1m sec• Single & external trig. single pulse facility• Sensitive speaker to give audible indication or eachoutput• High stability new circuitry minimises external interference.Stimulator General Purpose :Provides rectangular pulse of controlled amptitude 0.1 -100V. Frequency 0.1 - 1000 PPS & width 0.01 to 100mm.Research Stimulator With R.F. Isolation unit :Provides rectangular pulse of controlled polarity, Amptitude1.5mV to 150V, frequency 0.1 to 10 KCS delay 10 micro secto 1 sec & width 10 micro sec to 1 sec.
...more
