Precision Lathes Dealers in Delhi

(8 products available)

All IndiaDelhiRajkot Kolkata Mumbai Ludhiana Pune Ahmedabad Batala Coimbatore Faridabad

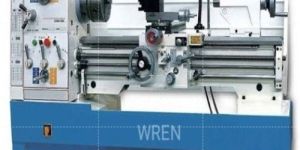

WREN ALL GEARED HIGH SPEED HIGH PRECISION LATHE MACHINE

2,424,000 / piece

MOQ1 piece
Brand NameWREN
MaterialCAST IRON, COPPER & CHROMIUM
Driven TypeHEAVY DUTY
Automatic GradeManual
Availability3870/4480 Kgs
Country of OriginIndia
Max. swing over bed (mm) Dia800
Max. swing over cross slide (mm) Dia570
Max. swing in gap (mm) Dia1035
Admit between centers3000mm
Bed width400mm
Spindle hole Dia105mm
Spindle noseD1-8
Main motor power7.5KW(10Hp)

WREN all geared high speed high precision lathe machine Model C6280C*3000Features1. Machine head stock and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability2. Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the agreeability and stability of the machine3. This series lathe machine is suitable for internal and external turning, tapering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot4. Width of bed is wider than normal lathe machine, with high hardness on guideway, the guideway is through high-frequency quenching, wear-resisting5. This machine is easy to operate, with rapid device for carriage, design with single hand wheel to operate6. The strength and rigidity of machine is higher than normal lathe machine, high efficiency, suit for heavy duty machining.Technical Specification1. Model: C6280C*3000 2. Max. swing over bed (mm) Dia: 8003. Max. swing over cross slide (mm) Dia: 5704. Max. swing in gap (mm) Dia:10355. Admit between centers: 3000mm6. Bed width: 400mm7. Spindle hole Dia: 105mm8. Spindle nose: D1-89. Taper of Spindle Hole/Bore: Dia.113mm(1:20)/MT510. Spindle speeds (Number): 1611. Range of Spindle Speed: 25-1600 RPM12. Inch threads range (Kinds): 7/16-80TPI OR 40mm*12mm13. Module threads range (Kinds): 0.25-60MP(46 Kinds) 14. Max. Cross slide travel: 420mm15. Compound rest travel: 230mm16. Cross-section size of toolshank: 25*25 17. Taper of tailstock sleeve / Quill Taper: MT518. Dia. of tailstock sleeve: 90mm 19. Travel of tailstock sleeve: 235mm20. Main motor power: 7.5KW(10Hp)21. Packing size (L*W*H) (mm): 3740*1140*1910mm22. Net Weight/Gross Weight: 3870/4480 KgsStd Accessories Supplied With1.3 Jaw Chuck2.4 Jaw Chuck3.Face Plate4.Steady Rest5.Follow Rest 6.Center7.Splash Guard 8.Oil Gun9.Center sleeves10.Foot Brake 11.Halogen Lamp12.Foundation Bolt13.ToolboxOpt Accessories1.Digital readout system with suitable linear scales(Rs 32000)2.Taper turning attachment(Rs 12600)3.Quick change type tool post(Rs 16600)

...more
WREN ENGINEERING PVT.LTD.

Okhla, Delhi

GST 4 yrs

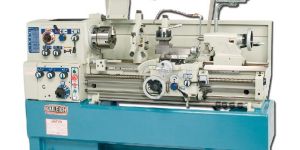

Precision Lathe Machine

Get Price Quote

lathe are well suited for all common Turning, Surfacing and screw Cutting with high accuracy. Lathes are designed for continuous Lights and Heavy jobs. Lathe Machines are made with close grain graded casting, many models & size are available.
...more

zenith rubbers pvt ltd

Kirti Nagar, Delhi

16 yrs
All Geared Precision Lathe Machine

Get Price Quote

Matchwell Machine Tools is the prominent Manufacturer, Supplier, Importer and Exporter of All Geared Precision Lathe Machines. The raw materials used in the manufacturing of our All Geared Precision Lathe Machines are of high quality. Features Precision Ground Designed, Superior Frequency, Superb RigidityThe spindle system is high in rigidity and accuracyOptimized Design of the main drive and the gearsLow NoiseThe machine can turn about 200 kinds or metric, whit worth, model and D.P. ThreadsNo need for changing gearsAn automatic stopping device is used, which is safe and reliableA pedal breaking device providing quick and effective stop while operating
...more

Matchwell Machine Tools

Mayapuri, Delhi

15 yrs

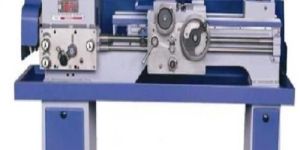

ZOIL All Geared High Speed High Precision Lathe

140,000 / piece

MOQ1 piece
Brand NameZOIL
Automatic GradeSemi Automatic, Automatic
Availability1200 KG
Country of OriginIndia
LayoutHORIZONTAL
Admit Between Centre660 mm
Distance Between Centres660 mm
Gap LengthYES
Centre Height185 mm

All geared high speed high precision latheMax swing over bed 320 mmAdmit between centers 66O MMMOTOR POWER 2 hpWith all standard accessories and 3 jaw chuck

...more
Zoil Machine & Tools

Okhla, Delhi

GST 5 yrs
High Class Precision Lathe Machine

Get Price Quote

High Class Precision Lathe Machine, High Speed Lathe Machin

J. P. Industries

Kirti Nagar, Delhi

13 yrs

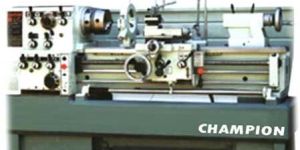

Precision Lathe Machines

Get Price Quote

Precision Lathe Machines, Milling Machine, Auto Lathe Machin

Champion Engineering Works

Mayapuri, Delhi

14 yrs
Precision Lathe

Get Price Quote

Precision Lathes are designed for continuous light & heavy duty jobs and to give prolonged efficient life. These presicion lathes are made in simple & 3-SPEED GEAR BOX types & possess exceedingly improved features both in construction & design.
...more

ENROLAB INSTRUMENTS

Adchini, Delhi

8 yrs
Geared Precision Lathes

Get Price Quote

Geared Precision Lathes, CNC Flat Bed Lathe Machin

S & T Engineers (p) Ltd.

Mangolpuri, Delhi

13 yrs
