SCIENTECH INSTRUMENTS Kamla Nagar, Delhi

It has a heavy cast iron with rugged construction and two side arms for holding flasks. Fitted with a F.H.P heavy duty motor with variable speed. Can hold flasks from 100 to 1000 ml. Capacity. Supplied with cord and plug to work on 220/230 volts A.C. supply. To hold 4 flasks. To hold 4 flasks and top platform to hold 4 flasks/bottle. To hold 8 flasks. To hold 8 flasks and top platform to hold 4 flasks/bottles.

This yoder type motor driven sieve shaker is for carrying out wet sieve analysis of material. Consists of a water reservior and a holder for sieve which can take upto 7 sieve of 8'' dia. The shaker is driven by 1/4 HP motor through a belt drive. Suitable to operate on 230 volts, 50 cycles, single phase A.C.CAPACITY:For 1 setFor 2 setsFor 4 sets

The unit is recommended for making pyrogen free distilled water of a very high degree of purity. Made out of S.S. special kettle element is fitted with Ejection Device/Auto Cut for safety of the element in case water supply is stopped. The cock fitted to the unit is of brass C.P. A wall mounting clamp is provided with the unit but without rubber tubing. Supplied with cord and plug to work on 220/230 volts A.C.   Capacity Load 2 ltrs per hr 1.5 KW 4 ltrs per hr 3.0 KW 6 ltrs per hr 4.0 KW

Double walled construction with inner and outer chamber made of S.S. the gap in between being filled with glass wool. The condenser and top are also made of S.S. the raw water is first made of pass around the tubes in the condenser  Where it gets heated nearly to the boiling point thus economising the heating energy. The heated water passes to the evaporator through a water level maintaining pipe. Excess water is let out through the drain.  To work on 220/230 volts A.C. supply. CAPACITY                        LOAD    2 litre/hr.(approx)               2.0 KW4 litre/hr.(approx)               3.0 KW6 litre/hr.(approx)               4.0 KW8 litre/hr.(approx)               6.0 KW

REFRIGERATED WATER BATH WITH CIRCULATION SYSTEM Inner chamber made of Stainless steel, outside mild Steel Painted/ Powder Coated. The gap between the two is filled with glass wool. Heating by immersion heater placed in the chamber and cooling by sturdy refrigeration unit duly controlled by Electronic Digital Temperature Controller Cum Indicator from 5°C to 90°C with Sensitivity of ± 2°C. Front panel is 0provided with indicator lamp individual switches for heating and cooling purpose.

It is a double walled bath with inner chamber made of stainless and outer wall made of M.S. sheet duly powder coated/  Painted. The gap between outer and inner walls in filled with special grade glass wool insulation. The concentric rings  can be removed  to accommodate containers of various sizes. Temperature from ambient to 90°C ± 2°C is to controlled by thermostat. 300 x 250 x 100 m.m. (6 Holes of 75 m.m. Dia) 355 x 405 x 100 m.m. (12 Holes of 75 m.m. Dia)

Made out of heavy gauge S.S. with concentric rings. Auto-cut heating elements are fitted. to protect the same when bath gets dry.  To work on 220/230 volts A.C. supply. 300 x 250 x 100 m.m. (6 Holes of 75 m.m. dia) 355 x 405 x 75 m.m. (12 Holes of 75 m.m. dia)

It is a double walled unit with inside made of thick S.S. sheet and outer made of M.S. Steel duly powder coated prevents falling of condensed water droplets on the specimens. Heating is achieved through a immersion type heater and the temperature is controlled by hydraulic type thermostat with an accuracy of ± 0.5°C. The bath has an oscillating tray riding on ball rollers oscillated through a geared variable speed motor. Shaking speed range is between 40 to 140 cycles per minute. The shaking tray can either hold test tubes or erlynmeyer flasks of 25 ml or 50 ml or 100 m or250 ml or 1000 ml. as ordered by the users. (Kindly mentioned the capacity of the flasks while ordering). Supplied complete with one shaking tray, paramedical cover, L-shaped thermometer cord and plug, to work on 220/230 volts A.C. supply. Available with heating arrangement only (having temperature range from ambient to 100°C) or with both heating and cooling arrangements (having temperature range from 5°C to 60°C). INSIDE SIZE : 225 x 275 x 150 m.m. 275 x 275 x 150 m.m. 405 x 300 x 150 m.m.

We are enlisted as one amidst the forefront Stainless Steel Laminar Air Flow Various national clients are placing repeated orders for the Vertical Laminar Air Flow due to the unmatched quality and unsurpassable performance. Additionally, the Vertical Laminar Air Flow Cabinets are loaded with advanced features confirming to the international standards.

These are double walled units with outer made of M.S.  sheet duly powder painted and inner made of heavy gauge S. Sheet. Gap between the two walls is duly filled with high grade glass wool to avoid thermal loss. Temperature range from ambient  to 150°C is controlled by  Digital Temperature Controller  with an accuracy of ± 1°C. It is capable of  with standing a high vacuum. Provided  with  vacuum gauge, see through transparent window of toughened glass and one shelf. To work on 220/230 Volts A.C. supply. INSIDE SIZE (DIAxDEPTH) Round : 200 x 250 m.m. (8"x10") Round : 250 x 300 m.m. (10"x12")

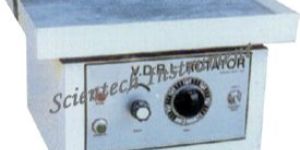

Used for V.D.R.L. Tests, blood grouping tests, various agglutination tests or for mixing of solutions in small bottles, flasks or beakers. It has a platform of size 300 x 300 mm. and can accommodate blood Bottles slides or flasks using a spring holder. Supplied complete with cord and plug to work on  220/230 volts A.C. Fixed speed (fixed at 180 RPM) Variable speed

For visualization of test objects under U.V. tube having long wavelength (365 n.m.) and short  wavelength (254 n.m.) as desired. A flourescent tube is fitted to the unit for day light visualization. Supplied with three tubes to work on 220/230 Volts A.C. With short wave tube With long wave tube & short wave With long short wave & day light tube

Ultrasonic energy is produced in the solvent by transducers, which convert electrical energy to high frequency inaudible sound waves. The pulsating effect of  the ultrasonic sound waves cause rapid formation and collapse of tiny bubbles-cavitations which produce a highly effective  scrubbing action on the part. The transducers are shaped to focus sound waves, and parts to be cleaned are passed through the area of focal intensity, either  manually or by coneyor.SIZES                     CAPACITY 8”X3”X3” (H)              1.3 LTR8”X4”X4” (H)              2 LTR.9”X6”X4” (H)              3.3 LTR.     12”X6”X6”(H)              6.5 LTR.

Detail same as SE-318, BUT WITH TRINOCULAR HEAD -do- but with built in illumination system at base ‘’IMPORTED’’ 100x lens (mounted in India) in lieu of 100x objective

This homogenizing system has a stirrer motor with a 1/40-hp motor and two output shafts that measure 5/16" dia. The geared shaft is ideal when you need higher torque (5.4 in-lb) and lower speeds (333 rpm); direct-drive shaft has lower torque (0.26 in-lb) and higher speeds (6000 rpm). Electronic motor controller features feedback circuitry that maintains set speed regardless of sample viscosity. Filtered circuitry provides smooth rotation and repeatability while reducing motor temperature and noise. Reversing switch lets motor shaft rotate the pestle clockwise or counterclockwise during homogenization. Controller is connected to the motor with a cord to keep it away from hazardous environments. Controller measures 8"W x 3 7/8"H x 6"D; the motor measures 10 7/8"W x 10 7/8"H x 10"D. System includes speed controller, one three-jaw keyless chuck, one 90° double clamp holder, and 6-ft cord with three-prong plug (208/240 VAC unit has NEMA Type 5-15 plug.) AccessoriesFlex-Grip Chuck is used with 6-mm pestles that have glass shafts or glass stirrer rods. Flexible, self-gripping slip clutches accept glass pestles directly without a tubing connector. Flexible Drive allows you to keep the homogenizing tube stationary while moving the pestle up and down. Ideal for samples needing to be immersed in an ice or controlled-temperature bath. Includes extension clamp and double clamp holder for tube.

This double walled unit is most suited for preparing wrinkle free tissue specimens. Insides is made up of  Aluminium S. steel and outside of  M.S. sheet duly powder coated. Temperature range from ambient  to 90°C+2°C is controlled hydraulic type thermostat. Complete with indicators, cord and plug, to  work on 220/230V A.C. Supply, Inside size : 200 m.m. (dia) x 70 m.m. (depth)

Made out of sunmica clad thik wooden board. and sunmica clad working top the unit has frame at front fitted with transparent plexiglass and has an arrangement for keeping the door open if desired.Outside Size:1200 x 600 x 600m.m(4"x2"x2")

For direct reading of surface moisture Ply or wood, the instrument is housed in cabinet complete with needle type probe to work on 9  volts battery. Range from 2-30% has an accuracy of ± 1%(ANALOGUE MODEL)

Made of perforated steedl plate with square holes. Available in following aperature of 125, 160, 100, 90, 80, 75, 63, 53, 50, 45, 40, 37.5, 31.5, 26.5, 25, 22.4, 19, 16, 13.2, 12.2, 11.2, 10.2, 10, 9, 5, 8, 6.7, 6.3, 5.6, 4.75, 2.8 m.m. With brass frame 8'’ dia With G.I. frame 12'’ dia With G.I. frame 18'’ dia

Tablet Coating pan 12" dia Stainless Steel, the machine is worked by oil immersed gear box with F.H.P. motor drive. Air blower is operated independently and air is thermostatically controlled to give temperature 30 to 100 oC. Switches for motor, blower, heater and thermostat are fixed on a panel with neon indicators. Also mains lead with 15 Amp plug provided.

Single Test Unit(B)   Single Test Unit (Fitted with Digital RPM meter)                                        (C)   Three Test Unit (Fitted with Digital RPM meter)                                        and Micro Process Temperature Control. & automatic lifting (D)   Six Test Unit (Fitted with Digital RPM meter)  and Micro Process Temperature Control & automatic lifting

We offer a wide range of Tablet Disintegration that is also known as D.T. Machine. The D. T. Machine is used for the manual testing of disintegration times of tablets, capsules and other solid dosage forms. The single / Double basket D.T. Machine offers the following features: Totally silent operation† Vibration free movement, stroke height set to 55 mm at 30 strokes/min.† Disintegration Baskets always stops at highest point† User adjustable number of strokes† Total testing time (pre-selectable) between 1 second to 24 hours†

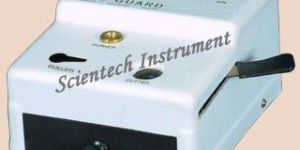

To destroy syringe needles from 18 G to 26 G, needle burns electrically & Syringe cuts automatically unit quick in action, portable, noise free with electrical cutter.

A Perspex organ bath with fine thermostatic temperature control; electric stirrer; and complete set of accessories, making it a versatile unit for all research work. Bath 12"x9"x8", with leak proof dovetailed joints, resting in sturdy metal frame; top of the bath carries a 1"x3/8" thick band, for fixing accessories, Inside the bath is a metal sheathed heating element (easily replaceable), controlled by means of a fine adjustable thermostat with sensitivity ± 5°C. The stirrer unit is completely independent and dips in the bath in one corner, fixing on its special stainless steel upright. A MS junction box is fitted to the bath frame, and carries all the electrical leads and connections, Two pilot lamps indicate functioning of the thermostat and stirrer. Standard components are :i) Double set of glass inner vessels. ii) Oxygen tubes iii) Warming coils iv) Two stainless steel capillary levers. v) Four stainless steel uprights with boss heads,
