Explosion proof type 3way solenoid valve, YT-700S series outputs pressure to valves or changes output port direction. - Explosion proof type (ExdIICT6) solenoid valve. - Replacement of coil is easy due to AC and DC applied in same enclosure. - Manual switch enables user to test the operation when the power source is cutoff. - Connecting wires are easy because connection port can be rotated (265°). - Valve body is air pressure operating type, so the operation is very smooth with high durability. - Can be directly attached on actuator, because of NAMUR type design.

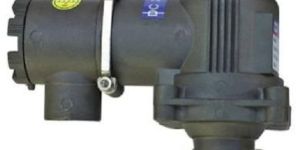

Explosion proof type 4way solenoid valve, YT-700D series outputs pressure to valves or changes output port direction. - Explosion proof type (ExdIICT6) solenoid valve. - Replacement of coil is easy due to AC and DC applied in same enclosure. - Manual switch enables user to test the operation when the power source is cutoff. - Connecting wires are easy because connection port can be rotated (265°). - Valve body is air pressure operating type, so the operation is very smooth with high durability. - Can be directly attached on actuator, because of NAMUR type design.

YT-1050, the Electro Pneumatic positioner is used for operation of pneumatic valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split ranges.

YT-1000L Electro Pneumatic positioner is used for operation of pneumatic valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split ranges.

For sensor switch, control of temperature, weight, flow, motor, actuator, and even highly precise positioning control, XGB series offer diverse special modules such as analog, HSC, and positioning to satisfy complicated industrial needs.

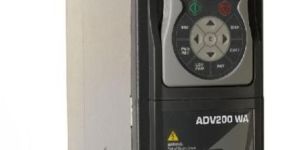

Gefran has applied its application experience to the new series of ADV200 WA industrial drive inverters for the Water Treatment and HVAC sectors. Specific power structures for variable or quadratic loads, combined with intelligent optimisation of energy consumption and specialised functions, offer important advantages in terms of plant design and ease of startup as well as economic benefits. Specific configurations and application macros and parameters in engineering units cater to the wide-ranging technological requirements of the Water Treatment and HVAC sectors and guarantee easy, intuitive installation and setup for users at any level.

Extensive application possibilities The CPT2500 USB pressure transmitter is suitable for connection to any PC with a USB port, via the CPA2500 USB adapter. For the USB adapter there are stainless steel pressure transmitters available with measuring ranges up to 1,000 bar. The USB adapter automatically detects the measuring range of the currently connected pressure transmitter and ensures a highly accurate pressure measurement. Functionality The measurement interval for pressure recording can be set in the range of 1 ms ... 10 s. With a recording interval of more than 5 ms the following data is recorded in addition to the current measured value: the mean value over the recording interval the maximum and minimum value during the recording interval Thus pressure peaks within the overall recording interval can be very easily identified. It is also possible to set start and stop conditions for the recording. In this way it is possible to detect pressure peaks with a resolution of up to 1 ms.

SITRANS F M TRANSMAG 2 with the SITRANS FM 911E sensor is a pulsed alternating field magnetic flowmeter where the magnetic field strength is much higher than conventional DC pulsed magnetic flowmeters.

Generally the material chosen for a specific installation is governed by corrosion conditions to which the protection tube is exposed. In some instances, strength is a primary requirement while corrosion resistance is secondary. For accuracy of the temperature measurement, the immersion length should be long enough to permit the entire temperature sensitive portion of the thermometer bulb, or the thermocouple element, to project into the temperature medium to be measured.

Cost efficiency, optimal use of space, reliable operation and easy commissioning indicate modern process measuring technology. The temperature switch completely fulfills these requirements in the Food & Beverage as well as in the Life Science industry. Designed for safe monitoring of process temperatures it can be selected between one or two switch outputs as well as one switch output and one standardized analog output. A variety of hygienic process connections leads to a flexible use.

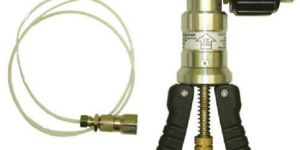

Areas of application Test pumps are used in generating pressure for the testing, adjusting and calibrating of mechanical and electronic pressure measuring instruments by means of comparative measurements. These pressure tests can be carried out in laboratories, workshops or on site at the set measuring point. Ease of operation When the device under test and a suitably accurate reference measuring instrument are connected to the test pump, after actuating the pump, the same pressure will act on both measuring instruments. Calibration or adjustment of the device under test can be carried out by comparing the two measured values at any pressure value. In order to enable the accurate generation of the measuring points, the test pump is fitted with a fine adjustment valve.

Country of Origin : India

Number Of Flower : Electronic Measuring Instrument

Certification : CE Certified

Application : Measuring Use

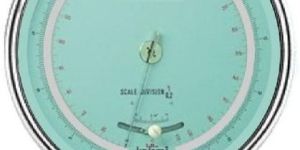

MIEPL make instruments have been designed for use as in laboratories, instrument testing or recalibration facilities in applications where accuracy and repeatability are of prime importance. They can be used with gaseous or liquid media which do not corrode copper alloy and which do not have high viscosity or do not crystallize. Each instruments is delivered with a certificate after various checking and inspection by our Quality control department to ensure long term stability. On request we can supply the calibration certificate issued by a recognized laboratory.

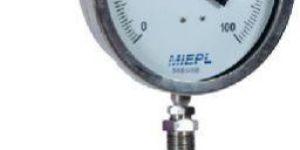

Mercury - In - Steel - Thermometer MIEPL make Mercury - in -Steel Thermometers operate on the basis of expansion of Mercury - in the bulb which in its turn produces a circular deflection is a volume sensitive Bourdon tube.This deflection is transmitted to the pointer. In these thermometers a Mechanism linear scale is obtained which the system preferable to customers who require good reading of scale over the whole range.

Designed and manufactured as per BS 5155, API 609, MSS SP 67 & ISO 5752 Teflon Seated Butterfly Valve It's Enquire For Teflon Seated Butterfly Valve

Feature : Bi Directional zero leakage Butterfly Valve.

The LT12 float tank gauges have been developed for the use in all areas of industry. Many years of operation in a wide variety of applications have proven their reliability. Benefits No electrical power is required to perform the measurement Built-in repeatability check Direct reading at the tank side allows you to check the level indication easily Can be installed on a variety of tanks including fixed roof, floating roof, covered floating roof and spherical tanks Can be used in conjunction with analoguedigital transmitter to perform tank inventory management LT12 has all integrated internal mechanism. Standardized guide wire and anchor design allow easy customer installation

The LT11 float tank gauges have been developed for the use in all areas of industry. Many years of operation in a wide variety of applications have proven their reliability. Benefits, No electrical power is required to perform the measurement Built-in repeatability check Direct reading at the tank side allows you to check the level indication easily Can be installed on a variety of tanks including fixed roof, floating roof, covered floating roof and spherical tanks Can be used in conjunction with analoguedigital transmitter to perform tank inventory management LT11 has all integrated internal mechanism. Standardized guide wire and anchor design allow easy customer installation. Field of application , Level indication of petroleum products such as crude oil, kerosene, light and heavy oil, vegetable oil, palm oil, seed oil, animal oil, as well as highly viscous liquids such as asphalt and certain chemicals (corrosivetoxic vapor can be sealed using a liquid seal pot).

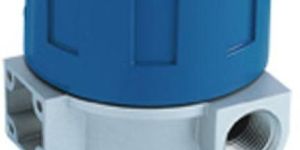

Now there's a compact IP transducer that delivers reliable high performance for the toughest applications in the most hazardous environments: the T950XP from ControlAir. The 950XP converts an electrical current signal to a stable, pneumatic output to actuate valves. Its NEMA 4X (IP65) housing is designed for both Intrinsically Safe* and Explosion-Proof* operation. Advanced circuitry includes electronic feedback control for superior vibration protection and highly accurate output. With flow rates up to 12 SCFM(20m3hr), the 950XP has the muscle to drive large valves and actuators. Yet because it typically consumes only .05 SCFM (0.11m3hr), it not only costs less to buy, it costs less to operate as well. And because it takes impure air in stride, downtime is reduced, too. The 950XP gives you big flexibility. Its small footprint can fit into tight spots. Its standard mounting bracket lets you mount it directly on a valve, wall, panel, or pipe. Optional, field-selectable process output ranges reduce downtime and inventory. And since the 950XP is position insensitive, it gives you even more freedom in mounting and connecting to valves and instruments. As a result of this flexibility, installation goes faster. Easy access Zero and Span adjustments make bench or field calibration quick and easy. For operating versatility, you may choose direct, reverse, and split range modes.

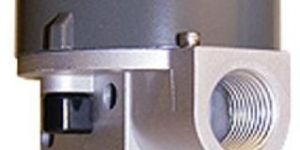

The Type-595XP Explosionproof IP (current to pressure) transducer converts a 4–20mA electrical current signal to a proportionally linear pneumatic output. The unique conversion technology utilizing open loop control provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications. This compact unit is housed in an explosion proof enclosure that is designed for pipe, bracket or direct manifold mounting. This explosion-proof and intrinsically safe field device is available with an integral volume booster or as a low-flow signal converter that directly mounts to a pneumatic valve positioner. The Type-595XP has worldwide agency approvals for use in hazardous areas. Multiple choices for wiring and porting simplify installation and decrease the time required to do so. In addition to standard wall, panel or pipe mounting, optional DIN rail and manifold mounting kits are available. The ControlAir Type-925 Multifunction Manifold provides a common supply port and individual shutoff valves for sets of 3, 5, 10 or 15 units.

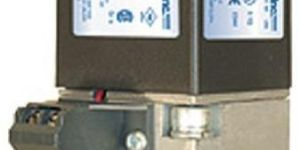

The Type-590X Manifold Mount IP Transducer converts a variable electrical signal to a low flow proportional pneumatic output. Its compact size, light weight and immunity to shock and vibration make it ideal for use in process control valve positioner applications. Conversion technology utilizing open loop control and a low mass magnet produces accurate pressure control at an economical cost. The Type-590X can mount in any position and is impervious to RFIEMI interference.

The ControlAir Type-500X converts a current or voltage input signal to a linearly proportional pneumatic output pressure. This versatile instrument is designed for control applications that require a high degree of reliability and repeatability at an economical cost. The Type-500X is available in two different versions. The lower range model is designed for standard process control applications which typically utilize a 3 to 15 psig output. The extended range unit provides up to 145 psig output for higher pressure industrial pneumatic and process control system requirements.

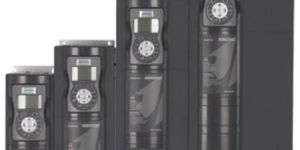

This inverter series represents an innovative concept in drive technology, as a result of the constant technological research and of the experience that the Gefran Group has acquired keeping a constant presence aside that of the major sector players. The new range has been engineered and developed to satisfy the real needs of System Integrators and OEM’s in order to provide them the best innovations and economical competitiveness in the international markets. Based on full mechanical modularity and on a powerful, intuitive and “fully open” programming platform, this drive offers absolute integration flexibility with high-end performance in any system architectures of the most advanced automation environments.

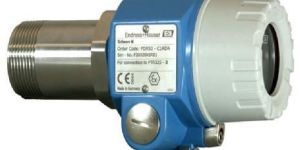

The Soliwave FDR50 microwave barrier uses a contact-free procedure for detection of point levels. It can be installed in containers, conduits, shafts or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. It interacts with the Soliwave FQR50 emitter.
