Shade Card Winding Machine Dealers in Delhi (9 products available)

• Maximum Number of Pattern Wrapping: 20 On One Shade Card
• Size of Shade Card: 20cm×3.0cm×10mm

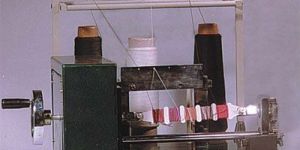

My QShade Card-Winding Machine consists of a set of grips between which the card is held with the help of knurling bolts. There is an arrangement of gears to rotate both grips at a time. Yarn is wind over the shade card at equal spacing under a desired tension. The yarns are guided on the shade card with the help of yarn guides, which are moves parallel to the shade card with the help of the worm / worm wheel and cam/ follower mechanism. The guide is positively linked to the rotation of the shade card with the help of the worm/ worm wheel, shaft and cam/ follower mechanism. There are a set of spring loaded adjustable tensioning arrangement provide the desired tension to the yarn. For holding the reels, there is a stand on which the holding pins and guides for yarn etc. are mounted for easy movement of the yarns.   The equipment is built on the fabricated base. It is finished in metallic or deco painting and bright chrome/ zinc plating to give it a corrosion resistance finish.

• Warranty: 12 month
• Automatic Grade: Automatic
• Condition: New
• Packaging Size: Wooden Packing
• Brand: NTF
• Customization: Yes
• Pipe Material: Steel

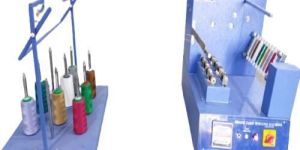

The machine is specially designed to wind cards for textile industry. It is used for making shade cards, which can be fed into the spectro photo-meter of the color matching system. This machine can wind 2 cards at a time equipped with a motor for spindle drive and to and fro motion for traverse mechanism. A digital counter has been provided for counting the no. of rotations.

• Brand Name: Globe Tex
• Country of Origin: Made in India
• Voltage: 220 V AC
• Automation Grade: Semi-Automatic
• Frequency: 50 Hz
• Display Type: Digital
• Body Material: Mild Steel
• Surface Finish: Color Coated

• Country of Origin: Made in India
• Voltage: 220 V
• Brand Name: Sisco India
• Material: Stainless Steel
• Motor Power: 60 W
• Power Source: Electric
• Usage/Application: Laboratory

• Length: 26cm
• Width: 4cm
• Yarn width: 1.5cm
• Gap between two yarn: 1cm

• Size: 25 X 195 - 200 mm.

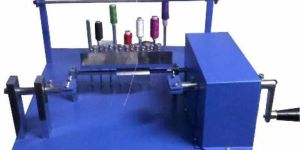

The 'Innolab' Shade Card Winding Machine consists of a set of grips between which the card is held with the help of knurling bolts. There is an arrangement to rotate both grips at a time. Yarn is wind over the Shade Card at equal spacing under a desired tension. The yarns are guided on the shade card with the help of yarn guides, which are moves parallel to the shade card with the help of the wormworm wheel and camfollower mechanism. The guide is positively linked to the rotation of the shade card with the help of the wormworm wheel, shaft and camfollower mechanism. There are a set of spring loaded adjustable tensioning arrangement provide the desired tension to the yarn. For holding the reels, there is a stand on which the holding pins and guides for yarn etc. are mounted for easy movement of the yarns. The equipment is built on the fabricated base. It is finished in metallic or deco painting and bright chrome zinc plating to give it a corrosion resistant finish.

shade card winding machine, Bundesmann Apparatus, Fabric Extensometer

shade card winding machine, swatch cutter, Wrap Heel Color Fastness Tester
