orion series
orion series – impressive lighting levels & ingenious design make it perfect partner for surgical procedures. Maintenance free ot light to ensure that surgeon can concentrate on the demanding intervention.
double dome specially used for large size modular operation theater latest technology, extreme effective advance features, excellent laminar flow, shadow less operation light with long life. With effective and superior technology with high intensity & modern technology.
optional features:
light color pattern adjustment:the panel & remote is designed with graphical icons to allow user to quickly learn and easily operate:
on/off finger touch switch
light intensity adjustment
light color pattern adjustment
camera & monitoring system:camera & monitoring system: we can provide camera (sd/hd) with monitor also for modular operation theaters uses.
technical specification
intensity
1,50 ,000 lux
spot diameter
100 – 150 mm
depth illumination
10 – 15 cm
colour temp.
3800-4800 k
colour rendering index
93 ra
focusing
manual
led average life
>50000 hrs.
number of led
48
diameter of light
600 mm
intensity control
10~100 digital
power supply
220v/50hz ac
power consumption
50 watt
special function
dual memory function
ORION SERIES
ORION Series – Impressive lighting levels & ingenious Design make it perfect partner for surgical procedures. Maintenance free OT light to ensure that surgeon can concentrate on the Demanding intervention.
Double Dome specially used for large size Modular Operation Theater latest technology, extreme effective advance features, excellent laminar flow, shadow less operation light with long life. With effective and superior technology with high intensity & modern technology.
Optional Features:
Light Color Pattern Adjustment:The panel & remote is designed with graphical icons to allow user to quickly learn and easily operate:
On/off finger touch switch
Light intensity adjustment
Light color pattern adjustment
Camera & monitoring System:Camera & monitoring System: We can provide Camera (SD/HD) with Monitor also for modular operation theaters uses.
TECHNICAL SPECIFICATION
Intensity
1,50,000 X 2 Lux
Spot Diameter
100 – 150 mm
Depth Illumination
10 – 15 cm
Colour Temp.
3800-4800 K
Colour Rendering Index
93 Ra
Focusing
Manual
LED Average Life
>50000 Hrs.
Number of LED
48X2
Diameter of Light
600 mm (each)
Intensity Control
10~100 Digital
Power Supply
220V/50Hz AC
Power Consumption
50+50 Watt
Special Function
Dual Memory Function

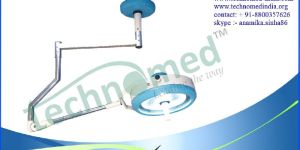

TMI-1102 CEILING SHADOWLESS OPERATING LIGHT
Features :
� Imported Dichoric glass reflector with cold mirror technology reduces heat and improves light output.
� Spring balanced arm made of stainless steel.
� Sterilizable handle helps to swivel the reflectors.
� Digital control panel allows to adjust the intensity from 10% to 100%.
� Outstanding laminar flow characteristics.
� Optimized deep cavity at wounded area.
� Heat absorbing colour correcting filters, provided with plastic diffusers for shadow reduction.
� Optional Battery backup
� OSRAMPHILIPS halogen bulbs of international brand are adopted with the average service life up to 2000 hours.
� The main bulbs can be easily and conveniently replaced
� With Low voltage supply unit.
� Available with Aluminium reflector also.
� Light adjustment through dimmer, enabling increase or decrease of illumination.
TECHNICAL SPECIFICATION:
Luminance 100,000 Lux
Color temperature 4300K±5000K
Lighthead 20'�inch
Reflectors Dichroic glass reflector 14.5� dia
Light-adjusting mode Dimmer systemcontroller
Temperature at surgeon�s head �2°C
Output power supply: 180-220VAC, 50Hz
Power(W) Bulb of 1x24v150w
Power consumption 300 W
Stand by bulb yes
