Shiva Scientific Glass Pvt. Ltd. Paschim Vihar, Delhi

Brand Name : BORO G

Country of Origin : 220V

Phase : Single Phase

Total Carbohydrate : 1 Year

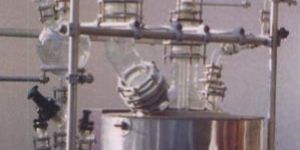

A variety of stirrers and stirrer drives are available to use glass vessels as agitated reaction equipment

Finishing : Coated

Power Source : Electric

Automation Grade : Automatic

Certification : CE Certified

Number Of Flower : Industrial Stirrer

Number Of Flower : Automatic

Certification : CE Certified

Country of Origin : 220V

Brand Name : BORO G

Application : Laboratory

Material : Borosilicate 3.3 Glass

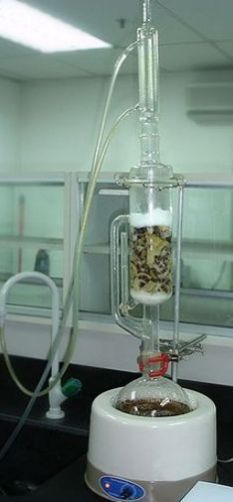

This is a semi-batch unit designed for solid-liquid extraction as a means of separation. The solid to be extracted is put inside a glass fiber bag and is placed in the extraction vessel. Solvent in the reactor is boiled and condensed, and passed to the extraction vessel, from where extract is mixed with the solvent and passes to the reboiler. The process is repeated until extraction is complete. Solution is again evaporated to obtain the extract. The unit is complete with spherical vessel, heating bath, condenser, reflux divider, extraction vessel, and necessary pipelines and valves. The unit can be supplied with solvent feed arrangement either from the top /or from the bottom, or with both arrangements. The unit is available in vessel size of 10, 20, 50, 100 Ltr.

Number Of Flower : Semi-batch Extraction Unit

Material : Glass, Metal

Application : Solid-liquid Extraction For Separation

SIMPLE DISTILLATION UNIT  This is a general purpose batch distillation unit to be operated at atmospheric Pressure. Heating bath heats and evaporates the contents of the vessel. The vapors are then condensed in the condenser and collected in a container or a receiver. The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid inlet, vapor pipeline and  coil condenser. A receiver with drain valve can be added optionally. The unit is available in vessel size 20, 50, 100, 200 , 300 & 500 Ltr.

Number Of Flower : Batch Distillation Unit

Capacity : 20, 50, 100, 200, 300, 500 Ltr

Application : General Purpose Distillation

This is a general purpose batch distillation unit to be operated at atmospheric Pressure. Heating bath heats and evaporates the contents of the vessel. The vapors are then condensed in the condenser and collected in a container or a receiver. The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid inlet, vapor pipeline and coil condenser. A receiver with drain valve can be added optionally.

Application : Laboratory

Country of Origin : 220V

Driven Type : Electric

Brand Name : BORO G

Sight glass is a device used between any kind of non-transparent pipelines to observe the flow of liquid. This can be used both in horizontal as well as vertical pipeline. Sight glass is constructed in such a way that it gives a complete view from every angle.A sight glass consists of one glass pipe section, one metal frame, a pair of PTFE bushes and washers and an acrylic cover. Borosilicate pipe section is highly heat resistant, has excellent chemical resistance and has low thermal expansion. Metal frame is composed of two flanges which are welded with studs so that the stresses and vibrations of the pipeline do not transfer to the glass pipe section. Its check nut keeps the glass pipe section in compression and provides ease in replacement.PTFE bushes on both sides of glass pipe section ensures that liquid in the pipeline does not come in contact with metal frame. PTFE washers are used as gaskets while fitting the sight glass in the pipeline. Acrylic cover covers the glass pipe section and protects it from outer damages.

Size : Standard

Material : Glass

Application : Laboratory

Feature : Casting Approved, Durable, Easy Maintenance.

Pattern : Plain

The Shell & Tube Heat Exchangers are available in various combinations of Glass/Metal, Metal/FRP in Shell & Headers. Shell & Tube heat exchanger consists of a cylindrical shell which houses a glass tube bundle. Tubes are sealed with shell with the help of PTFE tube sheets. Each tube is individually sealedwith tube sheets at both the ends.  Baffles are provided in the shell to maintain state of turbulence of fluid as well as to hold the tubes.Shell & Tube heat exchanger can be operated within a temperature range of -40° C to 150° C on either side. However, differential temperature should not exceed 120° C at any point. Also, these can be used predominantly under full vacuum, provided differential pressure does not exceed 3 Bar.The range of overall heat transfer co - efficient in the shell & tube heat exchanger in most of the application range  between 300 - 900 kcal/m², h,°C .These are available in different standard models from 3M² to 26M².Glass Shell & tube heat exchangers can be used for condensation, vaporization, cooling and heating. They have come out to be more advanced and beneficial for its following advantages :- Higher Heat Transfer area in one unit Less pressure drop. Stuffing box sealing allows easy tube replacement

Material : Etc

Application : Pharmaceutical Industry

Brand Name : Boro G

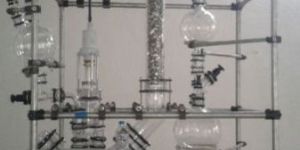

This versatile unit can be used as a Reaction Distillation Unit, Fractional Distillation Unit or a combination of both. All features of the Reaction Distillation Unit and Fractional Distillation Unit are incorporated. The Reaction Distillation Unit combines the functionalities of a reactor and a distillation column into a single compact unit. This integration eliminates the need for separate equipment, reducing space requirements and simplifying the overall process. Our unit is designed to handle a wide range of chemical reactions and distillation processes, making it suitable for various industries including pharmaceuticals, petrochemicals, and specialty chemicals. The units are available in vessel sizes of 20, 50, 100, 200, 300 & 500 L and are suitable for operation under atmospheric pressure and full vacuum.

Brand Name : BORO G

Driven Type : Electric

Condition : New

Power : 0-5kw

Application : PHARMA-CHEMICAL

Country of Origin : 440V

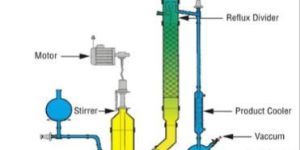

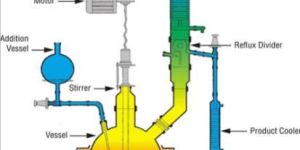

This is a general purpose batch reaction distillation unit to be operated at atmospheric pressure or vacuum. While heating bath heats and evaporates the contents of the vessel, the stirrer agitates to avoid heat spots. Vapors enter the condenser through reflux divider and get condensed. The condensate is then cooled by a product cooler and collected into a receiver. The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid additional vessel, stirring assembly with drive, coil condenser, reflux divider, product cooler and receiver with drain valve.

Number Of Flower : Batch Reaction Distillation Unit

Application : Batch Reaction Distillation

This is a general purpose batch reaction distillation unit to be operated at atmospheric  pressure, or vacuum. Heating bath heats and evaporates the contents of the vessel. The stirrer agitates to ensure uniform stirring, heat distribution and to avoid heat spots. Vapors enter into the packed column and get fractionated. Vapors of low boiling liquid enter into condenser, get condensed and collected in twin receivers. From the final receiver, distillate can be removed without breaking the vacuum. The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid addition vessel, agitator, packed column, coil condenser, product cooler and twin receivers.

Brand Name : BORO G

Certification : CE Certified

Country of Origin : 220V

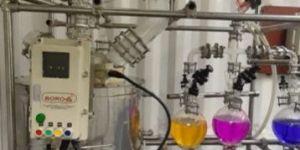

REACTION DISTILLATION UNIT  This is a general purpose batch reaction distillation unit to be operated at atmospheric  pressure, or vacuum. Heating bath heats and evaporates the contents of the vessel. The stirrer agitates to ensure uniform stirring, heat distribution and to avoid heat spots. Vapors enter into the packed column and get fractionated. Vapors of low boiling liquid enter into condenser, get condensed and collected in twin receivers. From the final receiver, distillate can be removed without breaking the vacuum. The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid addition vessel, agitator, packed column, coil condenser, product cooler and twin receivers. The unit is available in vessel size of 20, 50, 100, 200, 300, 500 Ltr.

Certification : ISO 9001:2008

Condition : New

Automatic Grade : Automatic

Total Carbohydrate : 1 Yr

Country of Origin : India

Shiva specilize in supplying high quality mobile gas scrubber unit that are simple in desight and aresuitable for air & exhaust clean up tasks.  These are ideal for scrubbing exhaust from small scale chemical plants.  Further, these can be used for studies & scale-up of gas scrubber systems.  We offer customization on all the products as per the specifications and requirements of our prestigious clients.

Condition : New

Application : Scrubbing

Certification : CE Certified

Number Of Flower : Gas Scrubbers, Portable

Driven Type : Electric

Power Source : Electrical

Total Carbohydrate : 1 Year

Country of Origin : India

Brand Name : BORO G

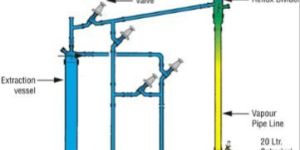

This is a semi-batch unit designed for liquid-liquid extraction as a means of separation. Liquid to be extracted should be treated with solvent of different density. A liquid mixture is poured in the extraction vessel. Solvent in the reactor is boiled and condensed, and passed to the extraction vessel, from where liquid is extracted and is mixed with the solvent and passes to the reboiler. The process is repeated until extraction is complete. Solution is again evaporated to obtain the extract. The unit is complete with spherical vessel, heating bath, condenser, reflux divider, extraction vessel, and necessary pipelines and valves. The unit can be supplied with solvent feed arrangement either from the top or from the bottom, or with both arrangements. The unit is available in vessel size of 10, 20, 50, 100 Ltr.

Number Of Flower : Semi-batch Unit

Application : Liquid-liquid Extraction

Material : Spherical Vessel, Heating Bath, Condenser, Reflux Divider, Extraction Vessel

Purity : Solvent Feed Arrangement From Top Or Bottom, Or Both

Packaging Type : Complete Unit With All Components Included

Details : Most suitable for all type of digestion & distillation Sturdy stand structure having powder coating finish and quite heavy duty to hold complete assembly perfectly Two heater housing box for digestion base plate to get quick heating 250ml, 500ml or 800ml flask can be used Condenser rack made of brass for water circulation in condenser Fume duct pipe made if S.S for driving away fumes Operates on 230 volts

Material : Borosilicate 3.3 Glass

Shape : Rectangular

Application : Laboratory

Country of Origin : 220 V

Power Source : Electric

Number Of Flower : Kjeldahl

Brand Name : BORO G

Certification : CE Certified

Country of Origin : 220V

Total Carbohydrate : 1 Year

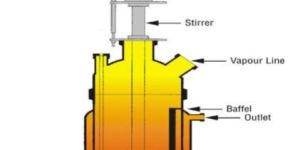

This is a general purpose reactor, to be operated at atmospheric pressure, or vacuum. These vessels are provided with jacketed cylindrical vessel, cover, flush bottom valve,  thermometer pocket, liquid inlet tube, Gas sparging tube, vent valve, anchor stirrer and  mechanical seal. Other type of stirrer can be provided in place of anchor stirrer on demand. A battery of 4 PTFE baffles, removable type can be provided. Condenser assembly as per requirement can be attached ( can be ordered separately ) on the vapour nozzle.

Number Of Flower : Reactor

Material : Stainless Steel

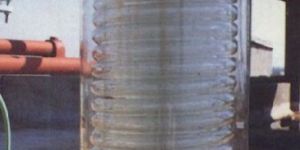

The overall heat transfer coefficiency of Borosilicate glass equipment compare favourably with many alternative materials because of its smooth surface which improve the film coefficient and reduce the tendency of fouling.   Heat exchangers are avilable in two basic types: coil type and shell & tube type. Shell & tube type heat exchangers are of recent development.

Application : Industrial

Condition : New

Automatic Grade : Automatic

Speciality : High Efficiency

This is a general purpose batch reaction distillation unit to be operated at atmospheric pressure, or vacuum. Vapours from the GL Reactor rise through the column and enter to condensers. Condensate then is either refluxed back or collected into a container or receiver. The unit is complete with adaptor plate, bellow, column, pipe line, coil condensers, vent, reflux line and drain valve. A receiver with drain valve can be added optionally. Refer selection chart for different options available for  couplings, structure, receiver vessels etc. The unit is available for GL Reactors 63Ltr. to 3000Ltr. Glass Assembly for bigger capacity GLRs can be designed on request.

Number Of Flower : Batch Reaction Distillation Unit

Material : Glass

Packaging : Adaptor Plate, Bellow, Column, Pipe Line, Coil Condensers, Vent, Reflux Line, Drain Valve

Compatibility : GL Reactors 63Ltr. To 3000Ltr.

Number Of Flower : Volumetric

Certification : ISI Certified

Application : Lab Use

Appearance : Transparent

Material : Glass

Vessels provide the optimum solution for every requirement encountered in practice because of the wide range of types available. Vessels in either basic or jacketed form are essential components of many units, and plants, both large and small. They can be combined with various components such as Vessel Covers, Stirrers, stirrer drives and heat exchangers to construct a widely varying range of stirred units and reaction units. The range is supplemented by complete assemblies such as mobile vessels, horizontal separators and cyclones. In most of glass plants, vessels are used as reactors, receivers, separators and measuring or feed vessels. Vessels are available in spherical shape from 5 to 500Ltr. and in cylindrical shape from 5 to 800Ltr. capacity. Cylindrical vessels can be supplied with metal /glass jacket also. All Vessels are provided with a bottom outlet for which a suitable valve can be chosen from range of valves.

Size : Standard

Material : Glass

Shape : Round

Certification : ISI Certified

Pattern : Plain

Appearance : Modern
