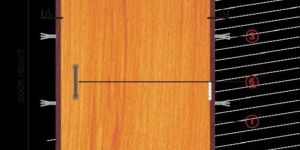

Wooden fire door DOOR SHUTTER: 42mm thick asbestos free composite Fire Smoke check shutters of 30 minutes fire resistant rating confirming to BS: 476 Part - 22, ISO: 834 & IS: 3614 Part - II comprising of two 6mm thick Calcium Silicate boards, a 100% without Asbestos, Brucite and Meerschaum, having density not 3 less then £ 1150 kgm and thermal conductive £0.03 Wm*k sandwiching 18mm thick fire resistance insulation filler faced with 6mm thick Commercial facing on both side with Hardwood lipping and one coat of anti-termite fire retardant primer.

DOOR FRAME: Wooden Door Frame of 115mm x 70mm section with one coat of anti-termite fire retardant Primer. DOOR SHUTTER: 42mm thick asbestos free composite Fire / Smoke check shutters of 30 minutes fire resistant rating confirming to BS: 476 Part - 22, ISO: 834 & IS: 3614 Part - II comprising of two 6mm thick Calcium Silicate boards, a 100% without Asbestos, Brucite and Meerschaum, having density not 3 less then £ 1150 kg/m and thermal conductive £0.03 W/m*k sandwiching 18mm thick fire resistance insulation filler faced with 6mm thick Commercial facing on both side with Hardwood lipping and one coat of anti-termite fire retardant primer.   Technical Details Wood Frame 115 x 70mm Door Leaf 42mm Thk. MS Fastener SS Ball Bearing Hinges (100 x 75 x 3mm) Door Closer Briton 121 Door Handle / Mortise Lock IR 10 x 4mm Fire & Smoke Seal (Astroflame - U.K.) 18mm Thk Insulation Filler Calcium Silicate Board 6mm Thk Commercial Ply 6mm Thk Hard Wood Beading 30 x 20mm Perimeter Stile 100 x 18mm

46mm thick Steel Fire Check door of 60/120 minutes Fire Rating confirming to BS: 476 Part 22 and IS: 3614 Part II fabricated with 2 nos. 1.2mm thick galvanized sheet with infill of fire rated Acrylic Sealant and non-combustible core bonded to both faces of sheet with lock seam joints at stile edges and internal reinforcement at top, bottom and stile edges for Fire Rating. The door frames are manufactured from 1.6mm thick galvanized steel sheet pressed from to double rebate profile of size 143mm x 57mm. The door frames and door shutters are finished with 'H' Primer.     Technical Details Door Frame (143 x 57 mm) 1.6mm Thk GI Door Leaf (46mm Thk) 1.2mm Thk. GI. MS Fastener SS Ball Bearing Hinges (100 x 75 x 3mm) Door Closer Briton 121 Door Co-ordinator FR Acrylic sealant Non -combustible core bonded to Both faces of sheet 64 Kg/M3(1HR)/144 Kg/M3 (2Hr) Vision Panel - Clear or Clear wired SS Tower Bolt Mortise Lock/Door Handles IR MS Strip 32 x 2.5mm

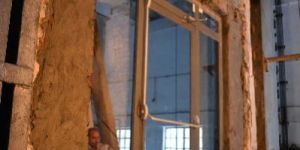

PYRAN S is pre-stressed, monolithic borosilicate singlepane safety glass in accordance with EN 13024-1. As a component in fire-resistant glazing that meets the requirements of resistance classes E 30, F 60, E 90 and E 120, it has proven its outstanding optical and mechanical characteristics over the years in a wide variety of buildings.PYRAN Platinum – floated glass ceramic for fire resistant glazing  PYRAN Platinum the worlds first and only floated glass ceramic for fire resistant glazing. ®As UL-certified glass ceramic PYRAN Platinum meets even the highest US standards. This requires that the glass withstand thermal shock immediately following exposure to extremely high temperature. In the test, the hot glass is blasted with cold water at a very high pressure from a fire hose. Only glass ceramic is able to withstand such extremes in temperature difference. ®PYRAN Platinum offers fire protection up to 120 min in windows and 180 min in doors.
