Tinna Rubber & Infrastructure Ltd Sultanpur, Delhi

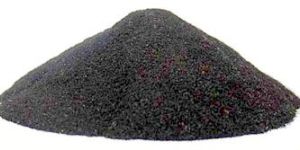

We, at Tinna, produce ultra-fine hi structure crumb of 80-100 mesh from Radial Trucks and Buses tyres. In the process, the steel wires are removed using a number of magnets. The thin wires are crushed and these wires cut through the crumb rubber giving it roughness and perforation creating a very high surface area. During the compounding, the rubber penetrates into these hi structure particles and a strong mechanical bond is created.When mixed in a rubber compound, this crumb becomes one with it and imparts high properties. IRMRA has concluded in its study that as the particle size of crumb reduces, it gives higher physical properties. It was also found that by using 10 phr of 80/ 100 mesh crumbs, no loss of properties was observed, even though the carbon phr had to be reduced to maintain the hardness, thus affecting cost reduction without impairing properties.Generally 2/3 phr of fine crumb were used to improve mould flow of complicated designs like tyre tread. A detailed study was done by IRMRA using Tinna crumb, result of which shows that up to 15 phr of crumb rubber used in a standard tyre tread compound having tensile strength of 26 mpa and E.B -580%, Abrasion index of 107, does not affect these properties significantly.A detailed study was done in USA in association with the largest tyre companies confirming the use of 80-100 mesh crumb in new tyres. To get the best results, crumb has to be mixed with the rubber in the initial stage before adding other fillers so that the crumb penetrates into the high structure of the crumb.The problem with 30-40 mesh conventional crumb in a rubber compound is that it is just a foreign matter and a filler which does not bond with the new vulcanizate. When a rubber product is put to use this crumb detaches itself if used in large quantities.

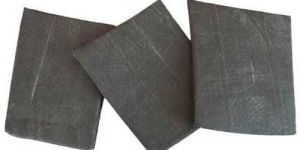

Reclaim rubber is the most traditional way of recycling waste tyres. Unfortunately in the conventional process, the rubber molecules are cut to smaller length by oxidation which causes sharp drop in tensile strength and fall in abrasion properties. This process also causes pollution by emitting effluent waste and obnoxious gasses.

structure crumb of 80-100 mesh from Radial Trucks and Buses tyres. In the process, the steel wires are removed using a number of magnets. The thin wires are crushed and these wires cut through the crumb rubber giving it roughness and perforation creating a very high surface area. During the compounding, the rubber penetrates into these hi structure particles and a strong mechanical bond is created.

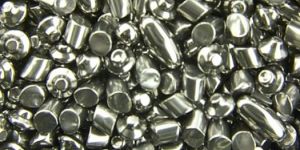

Solid steel shots are made from high quality high carbon grade-II wire. Each particle is cut to a length about equal to its diameter. Our feedstock is imported directly by us and is far superior to the indigenous high carbon grade -II wire. Basis Raw Material has far lower physical property & composition; obliviously causes blow hole & porosity which makes the shots to fracture into small particle.

Brand Name : Tinna Rubber

Material : Carbon Steel

Surface Finishing : Polished

Size : 90-105mm, 1.2 mm 1.8mm

Certification : ISI Certified

Feature : High Quality, High Tensile

CARBON STEEL SCRAP In our process of tyre crumbing, high quality Carbon Spring Steel Scrap is produced. Material offered is of superior quality and the chemical test results of loose form as well as baled material are appended.

Brand Name : Tinna Rubber And Infrastructure Ltd,Tinna Rubber

Texture : Turning

Steel Grade : High Carbon Steel Scrap

Scrap Material : Steel Wire

Condition : Waste

Application : Melting for manufacturing of TMT bar & Ingot (Replacement of PIG IRON)

Certification : PSIC Certified

The fully computerized plant capable of producing 12 TPH Bitumen Emulsion of very high quality has been imported from ENH Engineering, Denmark, world leaders in Asphalt modification machinery manufacturing. A fully equipped laboratory with all testing facilities complements the Emulsion manufacturing plant studded with the most advanced PILOT PLANT for making trial samples.

Manufacturing and supply of crumb rubber, crumb rubber modifier, steel scrap steel wires, crumb rubber modified bitumen polymer modified bitumen and bitumen emulsion.

Manufacturing and supply of crumb rubber, crumb rubber modifier, steel scrapsteel wires, crumb rubber modified bitumenpolymer modified bitumen and bitumen emulsion.
