Features of stepper driver tstep-484: a perfect micro stepping drive by using sinusoidal current for an accurate motion. Tstep 484 can drive motor with which can run on 20v-48v rated voltage and 4a rated current. Jumper selectable drive current for driving range of stepper motor. Opto isolated step and direction inputs and error outputs. When the motor is stopped, there is less motor heating with automatic current reductions. Drive is very compact and less installation space is required. Maximum torque is achieved at high rotational speed by automatic current compensation usage. Smooth motion without resonance. The drive is versatile and can be used with a range of stepping motors. Protection from short circuit. You can use drive with 4,6 and 8 lead steppers in bipolar series, in half coil or parallel configurations. Made in india stepper drive specification series model : tstep-484 rated voltage : 18v-48v rated current : jumper selectable 0.7a to 4.2a micro stepping : yes idle current reduction : yes short circuit protection : yes isolated step dir inputs : yes

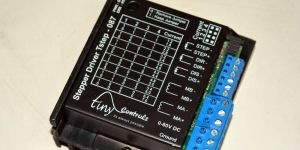

We are offering Stepper Motor Driver. Features of Stepper Driver Tstep-087: Precise micro-stepping driver using sinusoidal current for accurate motion. Bipolar Driver can drive motors at 20V-80V and 7A depending on the model Driver current is Jumper selectable for driving range of stepper motors. Driver has opto-isolated StepDirection Inputs and Error output. Low stepper motor heating with automatic current reduction while motor is stopped Very compact design so that drivers require less space in control box or panels. Our drives uses automatic current compensation to achieve maximum torque at high rotation speeds. Smooth motion without any resonance or vibrations. Versatile drive design capable of driving range of stepper motors. Short circuit protection Driver can be used with 4, 6 or 8 lead stepper motors in bipolar Series, Half Coil or Parallel configurations. Made in India User manual: http:www.tinycontrols.comdatasheetsTstep-087.pdf Stepper Drive Specification Series Model : Tstep-087 Rated Voltage : 18V-80V Rated Current : Jumper selectable 1.2A to 7.0A Micro stepping: Yes Idle Current Reduction : Yes Short Circuit Protection : Yes Isolated Step Dir Inputs : Yes

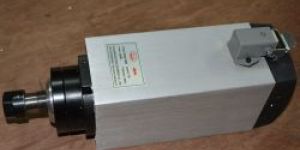

we are offering 4.5kw spindle motor, square air cooled etc. specifications model : ts-46 power : 4.5kw electrical specs : 380v 12a, ac 3-phase 300hz dimensions : square body collet : er20 chuck weight : 6.8kg cooling : air cooled visit http:www.tinycontrols.comhigh-speed-spindle-motors.html for more spindle motors.

we are offering 3.0kw spindle motor (380v). specifications model : ts-34 power : 3.0kw electrical specs : 380v 8.5a, ac 3-phase 400hz dimensions : dia: 100mm, len: 260mm collet : er20 chuck weight : 6.8kg cooling : water cooled

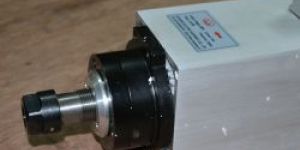

we are offering spindle motor, square air cooled spindle etc. specifications model : ts-31 power : 3.0kw electrical specs : 220v 14a, ac 3-phase 300hz dimensions : square collet : er20 chuck weight : 6.8kg cooling : air cooled

we are offering ts-30 3.0kw spindle motor. specifications model : ts-30 power : 3.0kw electrical specs : 220v 14a, ac 3-phase 400hz dimensions : dia: 100mm, len: 260mm collet : er20 chuck weight : 6.8kg cooling : water cooled

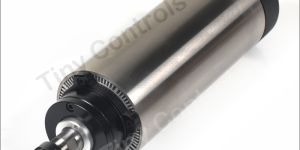

we are offering 2.2kw air cooled spindle er-20. specifications model : ts-24 power : 2.2kw electrical specs : 220v 10a, ac 3-phase 400hz dimensions : dia: 80mm, len: 230mm collet : er20 chuck weight : 5.45kg cooling : air cooled

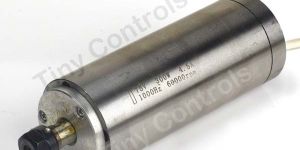

we are offering 2.2kw water cooled spindle. specifications model : ts-23 power : 2.2kw electrical specs : 220v 10a, ac 3-phase 400hz dimensions : dia: 80mm, len: 230mm collet : er20 chuck weight : 5.45kg cooling : water cooled

we are offering 2.2kw air cooled spindle motor er-16. specifications model : ts-22 power : 2.2kw electrical specs : 220v 10a, ac 3-phase 400 hz speed (rpm) : 10000 ~ 24000 rmin dimensions : dia: 80mm, len: 230mm collet : er16 chuck weight : 5.45kg cooling : air cooled

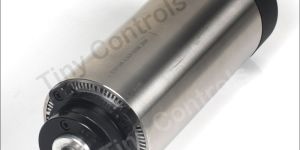

we are offering air cooled spindle. specifications model : ts-21 power : 1.5kw electrical specs : 220v 6a, ac 3-phase 400hz dimensions : dia: 80mm, len: 205mm collet : er11 chuck weight : 4.35kg cooling : air cooled

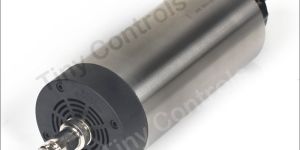

we are offering air cooled spindle. specifications model : ts-20 power : 800w electrical specs : 220v 3.8a, ac 3-phase 400hz dimensions : dia: 65mm, len: 183mm collet : er11 chuck weight : 2.6kg cooling : air cooled

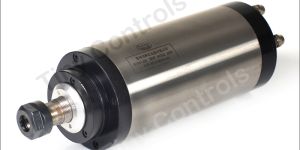

We are offering 300w, 60,000 rpm spindle. specifications model : ts-11 power : 300w electrical specs : 75v 4.5a, ac 3-phase 1000hz dimensions : dia: 48mm, len: 137mm collet : er08 chuck weight : 1.5kg cooling : water cooled

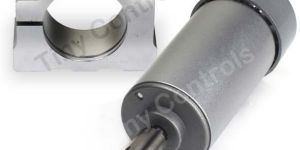

we are offering 300w 48v dc spindle. specifications model : ts-01 power : 300 w electrical specs : 12v-48v, 6a dc dimensions : dia: 53 mm, len: 170 mm collet : er11 chuck weight : 1.4 kg cooling : air cooled visit http:www.tinycontrols.comhigh-speed-spindle-motors.html for more spindle motors.

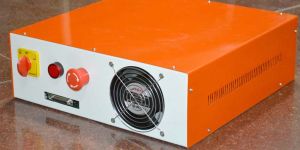

We are offering tnc-m13 cnc controller box. Specifications of cnc controller box: tnc-m13 cnc controller board for cnc machining with handheld pendant. 3 stepper drives for 3 axes. Two options for stepper drives are available: drive 087 generates 1.2-7.0 a phase current. Drive 484 generates 0.7-4.2 a phase current. Power supply: transformer + tl-psb1 linear power supply board. Following options are available for the transformers: option 1: 42v, 10a toroidal-crgo transformer with transformer rating 300va continuous. Option 2: 60v, 12.5a toroidal-crgo transformer with transformer rating 500va continuous. Usb host port:usb 2.0 port. Communication terminals: serial terminal for pendant interfacing. Serial terminal (for plc interfacing). Operating interface: external connectors for connections. Inputs connectors: home input connector: 1. Limit input connector: 1. Misc inputs (tool zero, block mode, start-stop, hold resume) connector: 1 outputs connectors: axes outputs connectors: 3. Spindle output (vfd output) connector: 1. Coolants output: 1 220v power indicator: 1. Emergency switch: 1 supply voltage: 220v. Fuse: 2a. Dimensions: 400x400x130 (in mm). Weight: 15 kg approx.

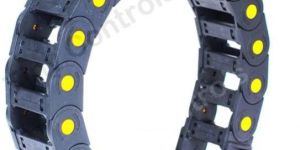

we are offering cable drag chain. used in various machinery tools, move the fragile materials gently. the inner dimensions are 35x75 (in mm) and the bending radius is 200 mm. specifications length : 1000mm width : 35mm height : 75mm bending radius : 200mm material : plastic colour : black

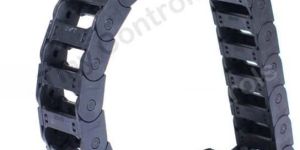

we are offering drag chains. flexible, robust, high quality plastic made wire carrier used in machines. inner dimensions are 25x57 (mm) and the bending radius is 150 mm. specifications length : 1000mm width : 25mm height : 57mm bending radius : 150mm material : plastic colour : black

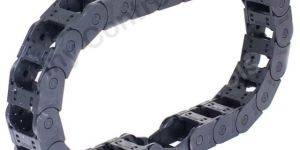

we are offering plastic drag chain. a highly durable, standard, efficient plastic made drag chain for housing the wires for the long life of numeric machine wires. the inner dimensions are 25x38 (in mm) and bending radius is 100 mm. specifications length : 1000mm width : 25mm height : 38mm bending radius : 100mm material : plastic colour : black

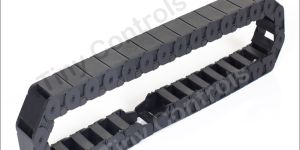

High quality, precised and customized cable drag chain. The inner dimensions are 18x37 (in mm), bending radius is 48 mm, black in color and a full series linear product. Specifications length : 1000mm width : 18mm height : 37mm bending radius : 48mm material : plastic color : black

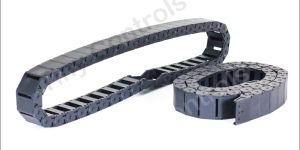

Cable drag chain wire carrier 15x30 and bending radius r38. Standard plastic made cable chains for the housing of the machinery wires and many other purposes. Specifications length : 1000mm width : 10mm height : 20mm bending radius : 38mm material : plastic colour : black

We are offering tc-10x20-r38 cable chain. Length : 1000mm width : 10mm height : 20mm bending radius : 38mm

We are offering t85h80-4208 nema - 34 8 wire motor. General specifications step angle accuracy : ±5% (full step, no load) resistance accuracy : ±10% inductance accuracy : ±20% temperature rise : 80°c max.(rated current, 2 phase on) ambient temperature : -20°c ~ +50°c insulation resistance : 100 m o min. , 500v dc dielectric strength : 500v ac for one minute shaft radial play : 0.02 max. (450 g-load) shaft axial play : 0.08 max. (4200 n (20 mm from the flange ) 50 g-load) max. Radial force : 60 n

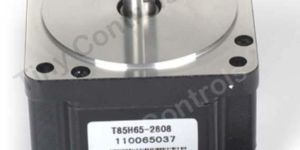

We are offering T85h65-2808 Nema - 34 Bipolar Motor. General Specifications Step Angle Accuracy : ±5% (full step, no load) Resistance Accuracy : ±10% Inductance Accuracy : ±20% Temperature Rise : 80°C Max.(rated current, 2 phase on) Ambient Temperature : -20°C ~ +50°C Insulation Resistance : 100 M O Min. , 500V DC Dielectric Strength : 500V AC for one minute Shaft Radial Play : 0.02 Max. (450 g-load) Shaft Axial Play : 0.08 Max. (4200 N ( 20 mm from the Flange ) 50 g-load) Max. radial force : 60 N

we are offering nema - 34 4 wire motor. general specifications step angle accuracy : ±5% (full step, no load) resistance accuracy : ±10% inductance accuracy : ±20% temperature rise : 80°c max.(rated current, 2 phase on) ambient temperature : -20°c ~ +50°c insulation resistance : 100 m o min. ,500v dc dielectric strength : 500v ac for one minute shaft radial play : 0.02 max. (450 g-load) shaft axial play : 0.08 max. (4200 n (20 mm from the flange) 50 g-load) max. radial force : 60 n

We are offering t85h118-4208 nema - 34 8 wire motor. General specifications step angle accuracy : ±5% (full step, no load) resistance accuracy : ±10% inductance accuracy : ±20% temperature rise : 80°c max.(rated current, 2 phase on) ambient temperature : -20°c ~ +50°c insulation resistance : 100 m o min. ,500v dc dielectric strength : 500v ac for one minute shaft radial play : 0.02 max. (450 g-load) shaft axial play : 0.08 max. (4200 n (20 mm from the flange ) 50 g-load) max. Radial force : 60 n visit to http:www.tinycontrols.comstepper-motor.html for more details.
