FeatureDurable, Easy To Handle, High Performance, High Strength, Leakage Proof, Non Breakable, Rust Proof, Safety Certified
ConditionNew
PressureHigh Pressure
BrandUNIPRO
Working Pressure0-280 Bar
Outlet Flow0-50 LPM
Heavy Duty Gas Pressure Regulator made from Stainless Steel Grade material with Pressure Gauge for showing Inlet Gas Pressure from Gas Cylinder & Flow Gauge at Regulator Outlet for Continuous Flow of gases in LPM.
Technical Data:
# Material – SS 304 Construction for Longer Life.
# Working Pressure – 0-280 Bar.
# Delivery Flow – 0- 50 LPM.
# In-built Safety Relief Valve.
# Regulator Inlet Connection – Suitable as per type of gas cylinder.
# Regulator Outlet Connection – 3/8’’ BSP
# Applicable Gas – Argon, CO2, ACM Mixtures
Heavy Duty Gas Pressure Regulator made from Stainless Steel Grade material with Pressure Gauge for showing Inlet Gas Pressure from Gas Cylinder & Flow Gauge at Regulator Outlet for Continuous Flow of gases in LPM.
Technical Data:
# Material – SS 304 Construction for Longer Life.
# Working Pressure – 0-280 Bar.
# Delivery Flow – 0- 50 LPM.
# In-built Safety Relief Valve.
# Regulator Inlet Connection – Suitable as per type of gas cylinder.
# Regulator Outlet Connection – 3/8’’ BSP
# Applicable Gas – Argon, CO2, ACM Mixtures
Country of Origin : India
Number Of Flower : Industrial Gas Pressure Regulator
Material : Stainless Steel
Certification : ISO Certified
Application : CO2, Ar, Ar+CO2
Feature : Durable, Easy To Handle, High Performance, High Strength, Leakage Proof, Non Breakable, Rust Proof, Safety Certified
ApplicationO2, N2, CO2, Ar, AR+CO2, H2, DA, N2O etc
FeatureEasy To Fit
PressureHigh
Total Carbohydrate3 Years
Inlet and Outlet ConnectionAs per Requirement
Hydraulic Test Pressure300 Bar
SS -304 Double Wire Braided SS 316 Corrugated Flexible Hose with SS Spring having SS 304 Nut / Nipple on both sides.
These are ideal for connecting Gas Manifold System with Gas Cylinders.
Key Features:
# High physical strength combined with light weight.
# Overcomes all the limitations of Copper Tailpipes and Teflon Hoses.
# Good corrosion resistance.
# Resistance to fire, moisture, abrasion and penetration.
# Compensates for intermittent or constant movement
# A flexible and quick alternative for rigid piping in difficult location.
# Compensates for thermal expansion or contraction of piping.
# Available in sizes: 1000 mm, 2000 mm, 3000 mm, 6000 mm.
# Size can be customised as per requirement.
Technical Specifications –
# Maximum Working Pressure – 240 Bar.
# Operating Temperature Range: -40˚C to 74˚C
# Inlet and Outlet Connection – As per Requirement.
# Hydraulic Test Pressure – 300 Bar.
# Pneumatic Tested Pressure – He gas at 240 Bar.
Main Component Details –
# Inner Coil – SS 316 Grade.
# Outer Coil – SS 304 Grade.
# Spring – SS 304 Grade.
# Connectors – SS 304 Grade.
SS -304 Double Wire Braided SS 316 Corrugated Flexible Hose with SS Spring having SS 304 Nut / Nipple on both sides.
These are ideal for connecting Gas Manifold System with Gas Cylinders.
Key Features:
# High physical strength combined with light weight.
# Overcomes all the limitations of Copper Tailpipes and Teflon Hoses.
# Good corrosion resistance.
# Resistance to fire, moisture, abrasion and penetration.
# Compensates for intermittent or constant movement
# A flexible and quick alternative for rigid piping in difficult location.
# Compensates for thermal expansion or contraction of piping.
# Available in sizes: 1000 mm, 2000 mm, 3000 mm, 6000 mm.
# Size can be customised as per requirement.
Technical Specifications –
# Maximum Working Pressure – 240 Bar.
# Operating Temperature Range: -40˚C to 74˚C
# Inlet and Outlet Connection – As per Requirement.
# Hydraulic Test Pressure – 300 Bar.
# Pneumatic Tested Pressure – He gas at 240 Bar.
Main Component Details –
# Inner Coil – SS 316 Grade.
# Outer Coil – SS 304 Grade.
# Spring – SS 304 Grade.
# Connectors – SS 304 Grade.

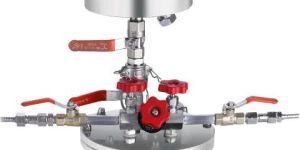

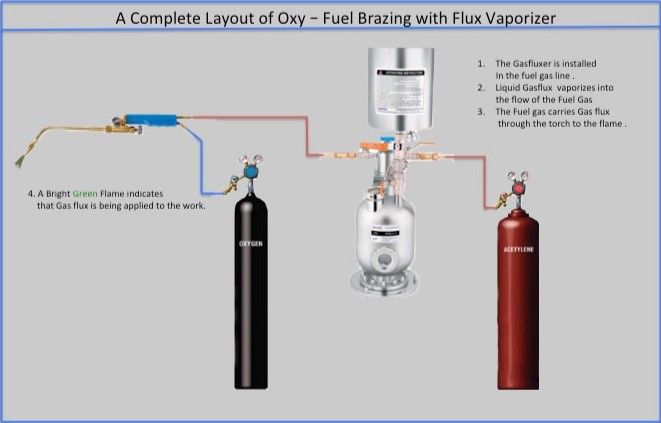

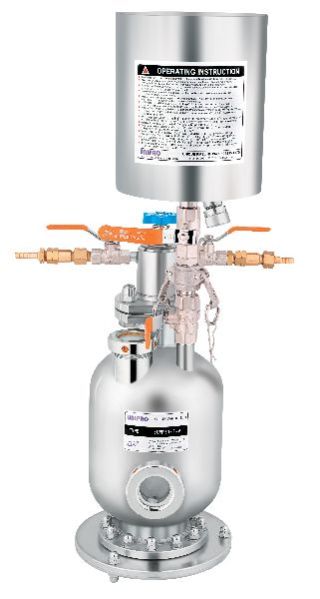

UNIPRO Flux Vaporizer is a means for adding liquid flux in a vapour form to any fuel gas (DA/LPG/Propane).
The flux adding form of this process is continuous and uniform which fully covers the brazing part in the torch combustion flame. This makes the welding work more convenient and qualified.
Salient Features:
• Brazed Joints are Neat and Glossy
• Minimizes Post-Brazing Clean-up
• Eliminates Over-Fluxing and Flux-Inclusion
• Produces Joints of Optimum Strength
• Reduces Overall Production Cost
• Increased Safety and Efficiency
Technical Data
Body Material : SS 304
Applicable Gas : DA/LPG/Propane etc
Tank Volume : 4L
Gas Flowrate : 3 m³/hr
Characteristic : Pressure relief valve to avoid excess pressure build-up in tank.
UNIPRO Flux Vaporizer is a means for adding liquid flux in a vapour form to any fuel gas (DA/LPG/Propane).
The flux adding form of this process is continuous and uniform which fully covers the brazing part in the torch combustion flame. This makes the welding work more convenient and qualified.
Salient Features:
• Brazed Joints are Neat and Glossy
• Minimizes Post-Brazing Clean-up
• Eliminates Over-Fluxing and Flux-Inclusion
• Produces Joints of Optimum Strength
• Reduces Overall Production Cost
• Increased Safety and Efficiency
Technical Data
Body Material : SS 304
Applicable Gas : DA/LPG/Propane etc
Tank Volume : 4L
Gas Flowrate : 3 m³/hr
Characteristic : Pressure relief valve to avoid excess pressure build-up in tank.
As a fore front company in the Gas System Industry, our company has its very own modernised workshop where we manufacture high quality fittings, regulators, valves, gas manifolds, High Pressure SS Hoses, Audio Visual Gas Alarms and numerous other Gas Handling Equipment. Our company has a fully equipped tool-room with high precision CNC Lathe and Milling Machines which allows us to manufacture products of highest quality. A variety of other traditional and special purpose machines are also used for manufacturing operations. We are committed to provide you with products of highest quality .That’s why all our products are manufactured under facilities that are ISO 9001 certified and meet CE, JAS-ANZ and various other international standards and certifications.
